(2 PCS) 74F8963A Registered Bus Transceiver 1-Func 9-Bit True Output TTL PLCC44
Tax included.

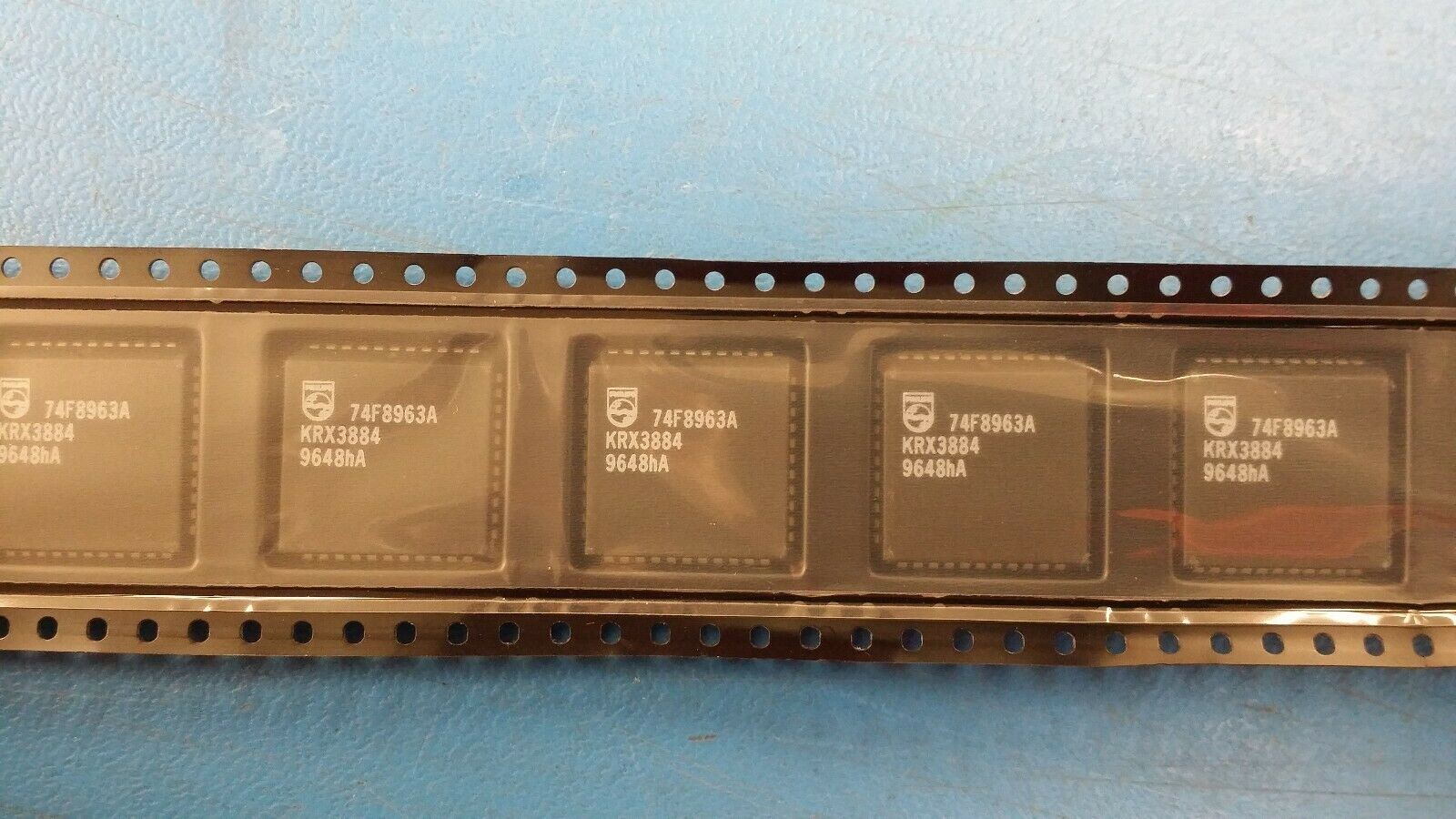

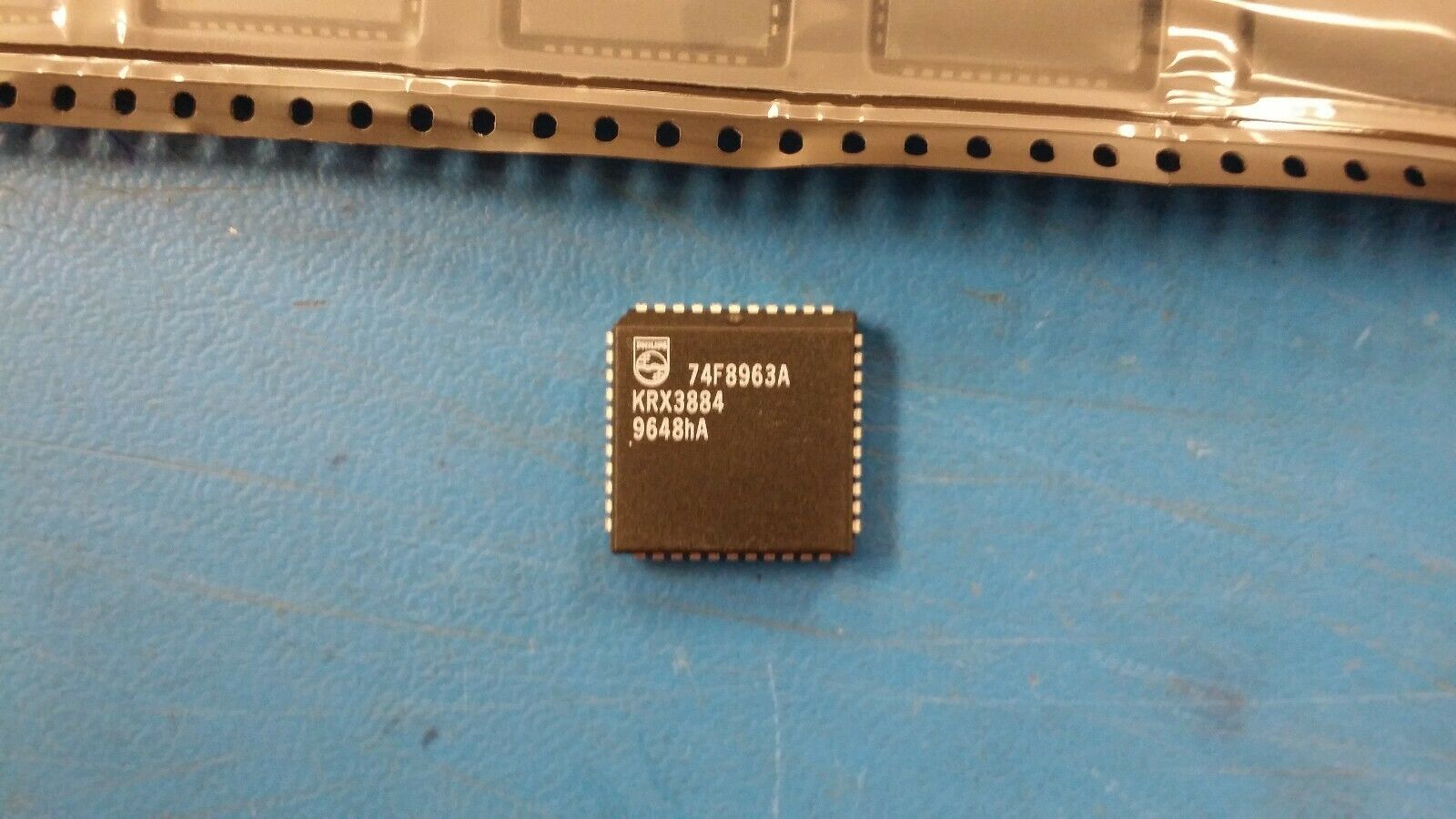

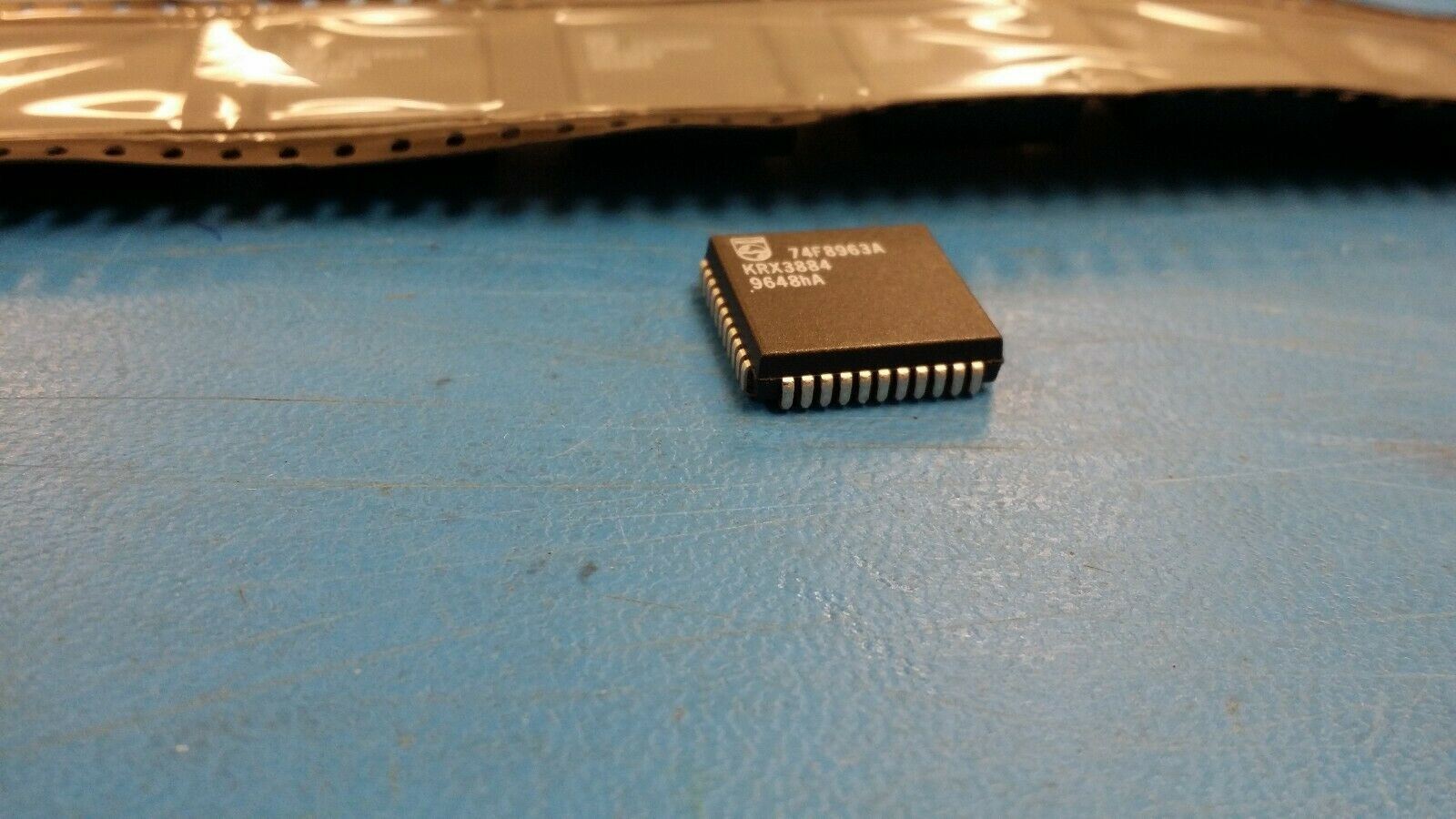

THIS LISTING IS FOR (2 PCS) OF 74F8963A BY PHILIPS
Registered Bus Transceiver, 1-Func, 9-Bit, True Output, TTL, PLCC44
Part #: N74F8963A
Part Category: Logic ICs
Manufacturer: NXP/PHILIPS
Description: Registered Bus Transceiver, F/FAST Series, 1-Func, 9-Bit, True Output, TTL, PQCC44
Manufacturer: NXP/PHILIPS
Description: Registered Bus Transceiver, F/FAST Series, 1-Func, 9-Bit, True Output, TTL, PQCC44
| Mfr Package Description | PLASTIC, LCC-44 |
| Status | Discontinued |
| Logic IC Type | REGISTERED BUS TRANSCEIVER |
| Family | F/FAST |
| JESD-30 Code | S-PQCC-J44 |
| Load Capacitance (CL) | 30.0 pF |
| Number of Bits | 9 |
| Number of Functions | 1 |
| Number of Ports | 2 |
| Number of Terminals | 44 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Output Characteristics | OPEN-COLLECTOR/3-STATE |
| Output Polarity | TRUE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | QCCJ |
| Package Shape | SQUARE |
| Package Style | CHIP CARRIER |
| Power Supply Current-Max (ICC) | 145.0 mA |
| Propagation Delay (tpd) | 11.5 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.57 mm |
| Supply Voltage-Nom (Vsup) | 5 |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Surface Mount | YES |
| Technology | TTL |
| Temperature Grade | COMMERCIAL |
| Terminal Form | J BEND |
| Terminal Pitch | 1.27 mm |
| Terminal Position | QUAD |
| Length | 16.5862 mm |
| Width | 16.5862 mm |
| Additional Feature | COMPATIBLE IEEE 896 FUTUREBUS STANDARDS; OPEN COLLECTOR BTL PORT OUTPUTS |
