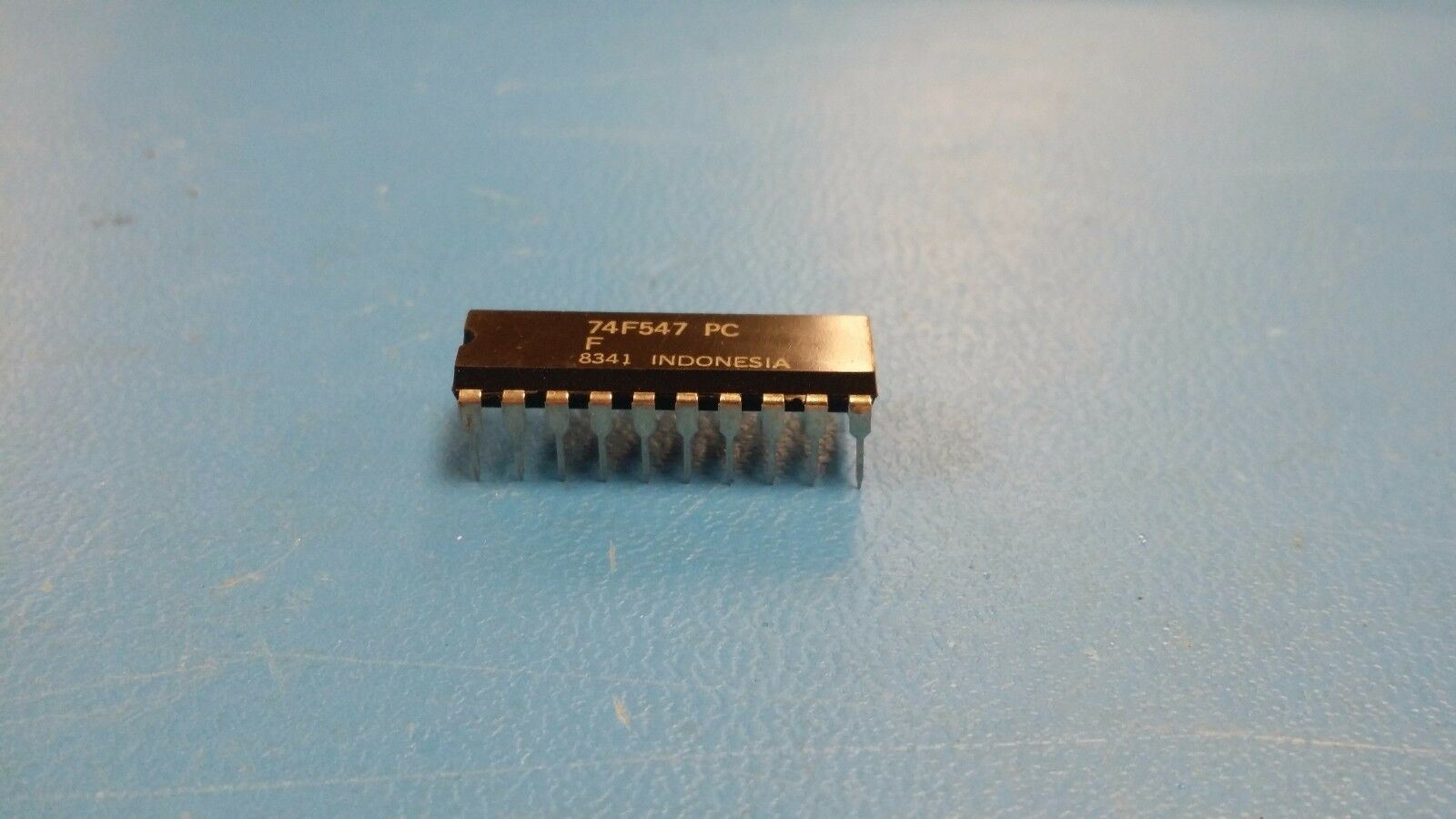

(2 PCS) 74F547PC FSC OTHER DECODER/DRIVER, INVERTED OUTPUT, PDIP20

  • $4.95
    Unit price per
Tax included.

Only 24 left!

THIS LISTING IS FOR (2 PCS) OF 74F547PC BY FSC
OTHER DECODER/DRIVER, INVERTED OUTPUT, PDIP20

Mfr Package Description PLASTIC, DIP-20
Status Discontinued
Logic IC Type OTHER DECODER/DRIVER
Sub Category Decoder/Drivers
Family F/FAST
JESD-30 Code R-PDIP-T20
JESD-609 Code e0
Number of Functions 1
Number of Terminals 20
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Characteristics OPEN-COLLECTOR
Output Polarity INVERTED
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP20,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supplies (V) 5
Propagation Delay (tpd) 13.0 ns
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount NO
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 24.895 mm
Width 7.62 mm
Additional Feature ADDRESS LATCHES; 3 ENABLE INPUTS
