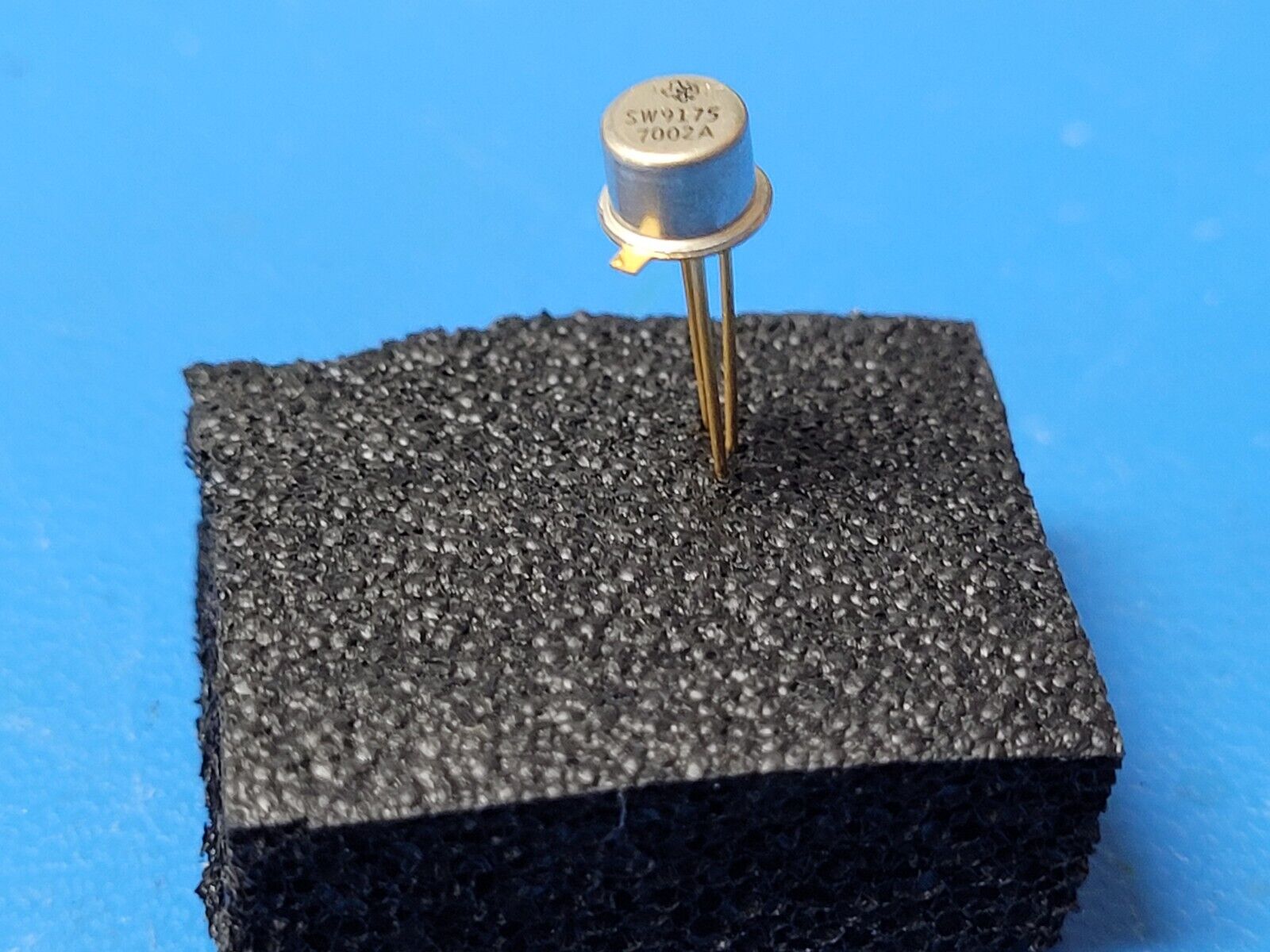

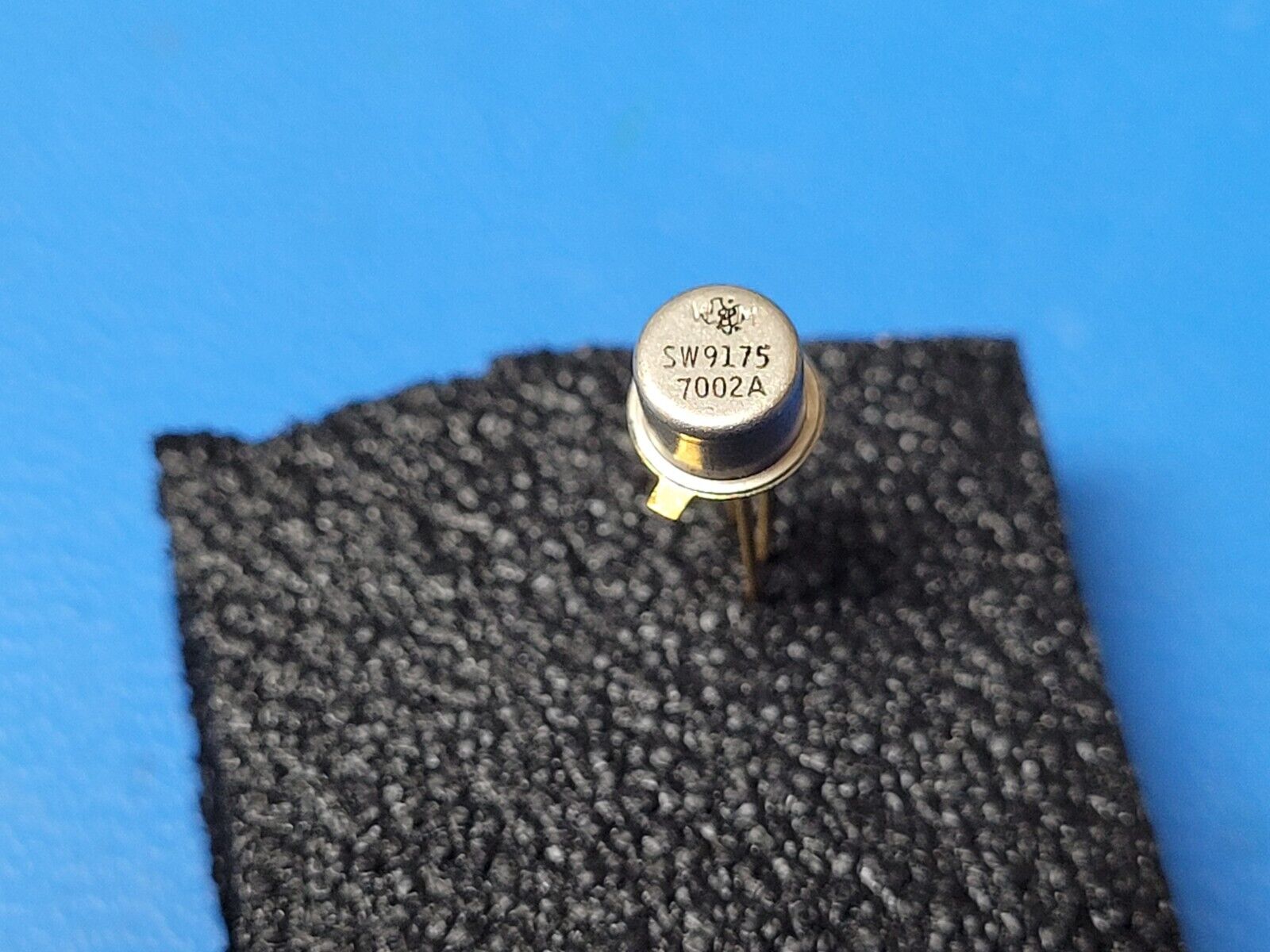

(2 PCS) 5961-00-831-8794 (SW9175) TRANSISTOR NPN METAL CAN 0.3W 40V 175 Cel

Technical Characteristics

Overall Length

0.210 inches maximum

Terminal Length

0.500 inches minimum

Overall Diameter

0.230 inches maximum

Internal Junction Configuration

npn

Mounting Method

terminal

Current Rating Per Characteristic

200.00 milliamperes maximum collector current,dc

Power Rating Per Characteristic

0.3 watts maximum total power dissipation

Inclosure Material

metal

Internal Configuration

junction contact

Terminal Circle Diameter

0.100 inches nominal

Features Provided

hermetically sealed case

Semiconductor Material

silicon

Voltage Rating In Volts Per Characteristic

40.0 maximum breakdown voltage,collector-to-base,emitter open and 20.0 maximum collector to emitter voltage/static/base open and 5.7 maximum breakdown voltage,emitter-to-base,collector open

Maximum Operating Temp Per Measurement Point

175.0 deg celsius ambient air

Terminal Type And Quantity

3 uninsulated wire lead
