(2 PCS) 1N815 EICO General Purpose Fast Rectifier DO-7

  • $5.00
    Unit price per
Tax included.

Only 3 left!

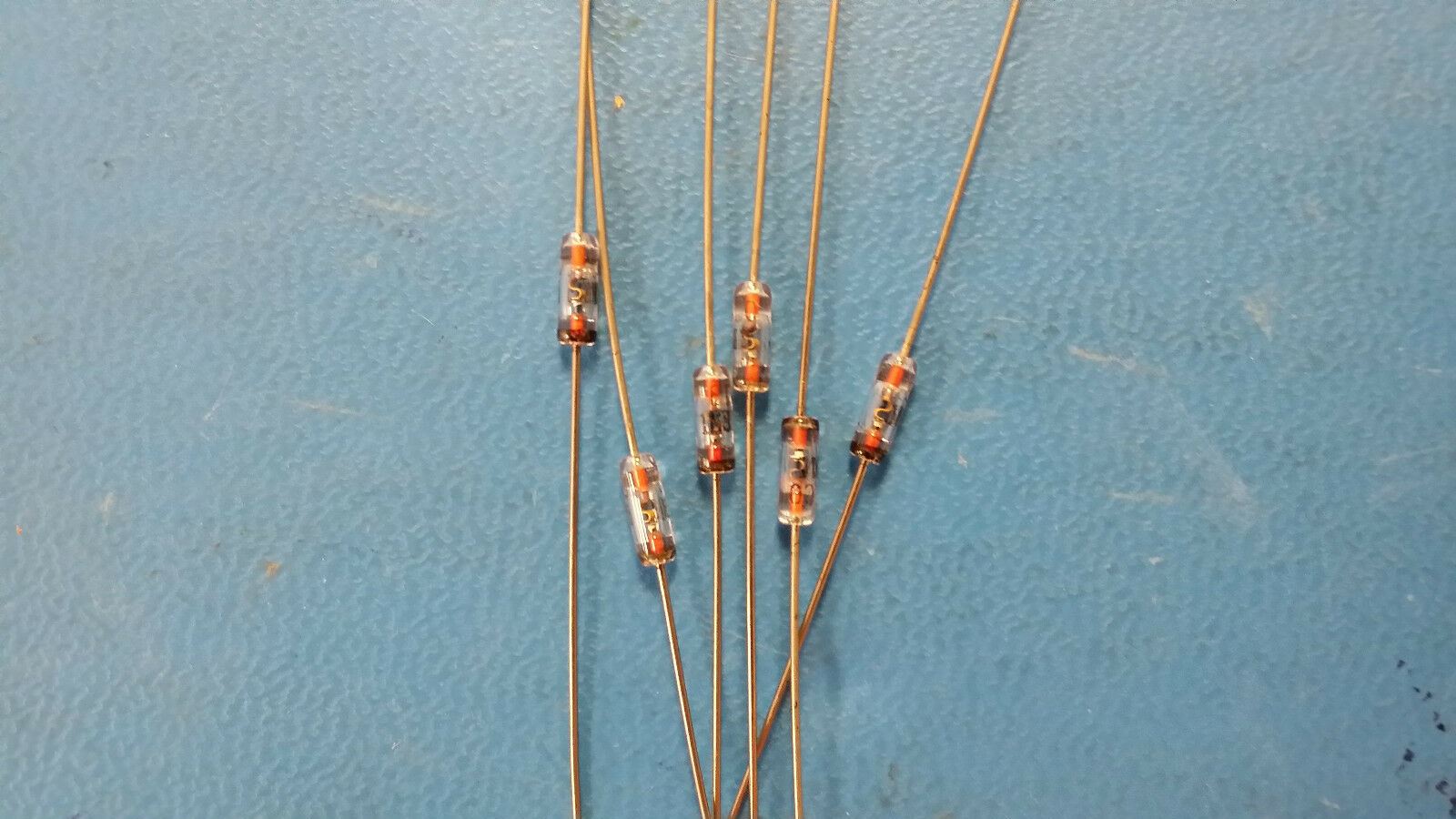

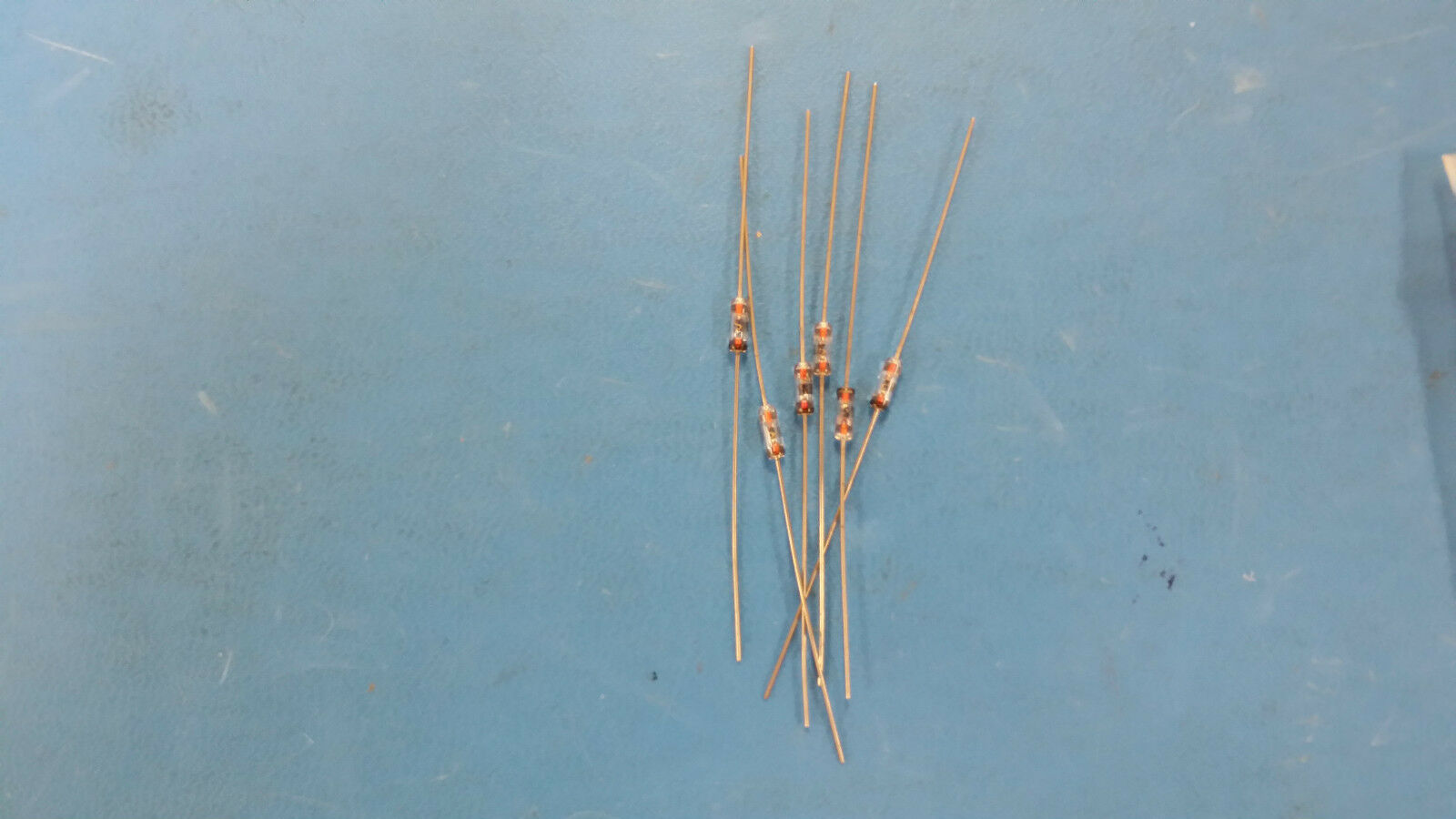

THIS LISTING IS FOR (2 PCS) OF 1N815 BY EICO
 General Purpose Fast Rectifier DO-7
I(O) Max.(A) Output Current 120m
V(RRM)(V) Rep.Pk.Rev. Voltage 15
t(rr) Max.(s) Rev.Rec. Time 250n
@I(F) (A) (Test Condition) 5.0m
@I(R) (A) (Test Condition) 500u
V(FM) Max.(V) Forward Voltage 1.5
@I(FM) (A) (Test Condition) 100m
@V(RM) (V) (Test Condition)
I(RM) Max.(A) Reverse Current 500n
@V(R) (V)(Test Condition) 5.0
I(RM) Max.(A) Pk. Rev. Current 10u
@V(R) (V) (Test Condition)
@Temp. (øC) (Test Condition) 125’
Semiconductor Material Silicon
Maximum Operating Temp (øC) 150’
Package Style DO-7
