(2 PCS) 10116NA SIGNETICS Triple Receiver 16-Pin PDIP
Tax included.

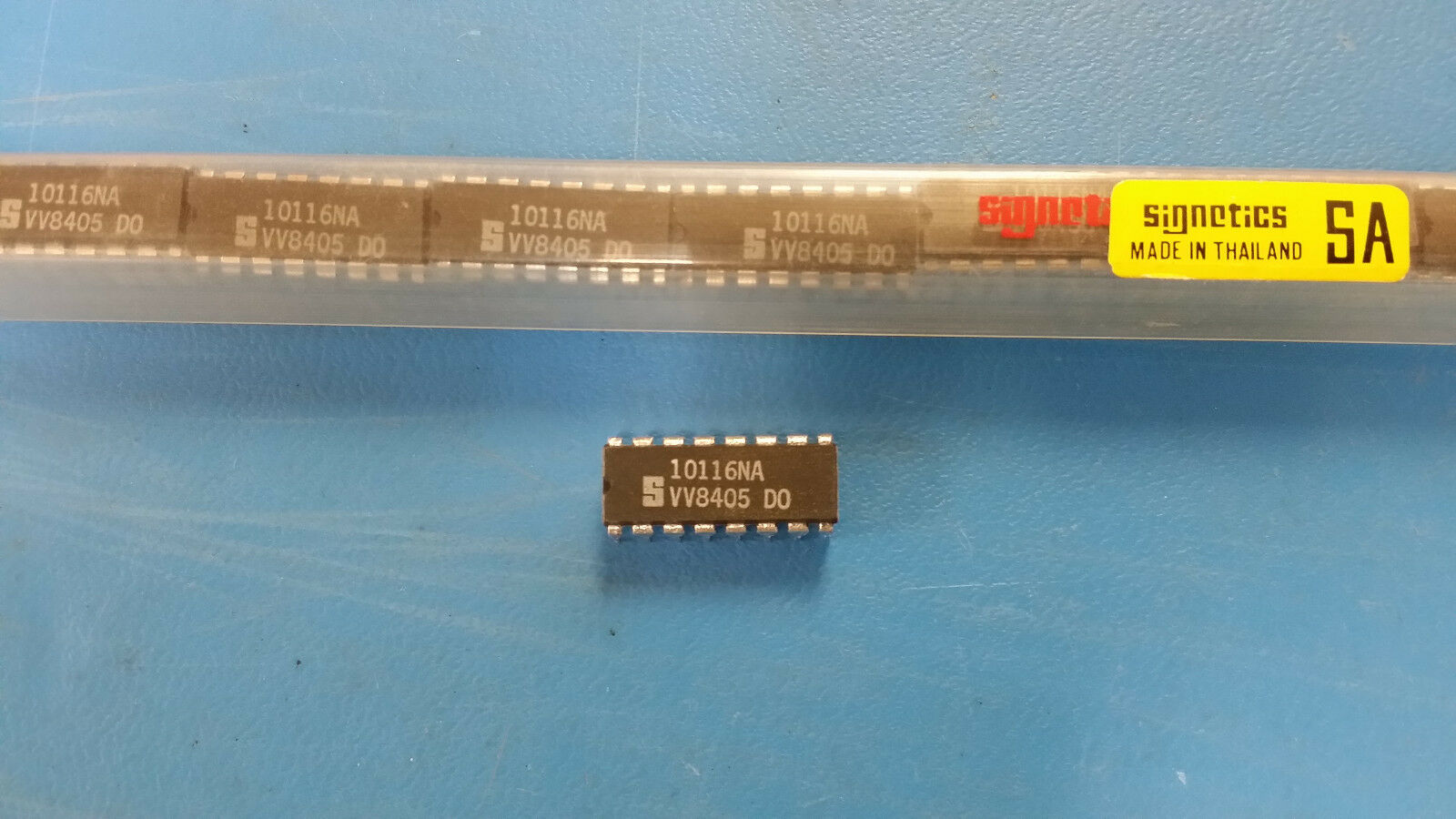

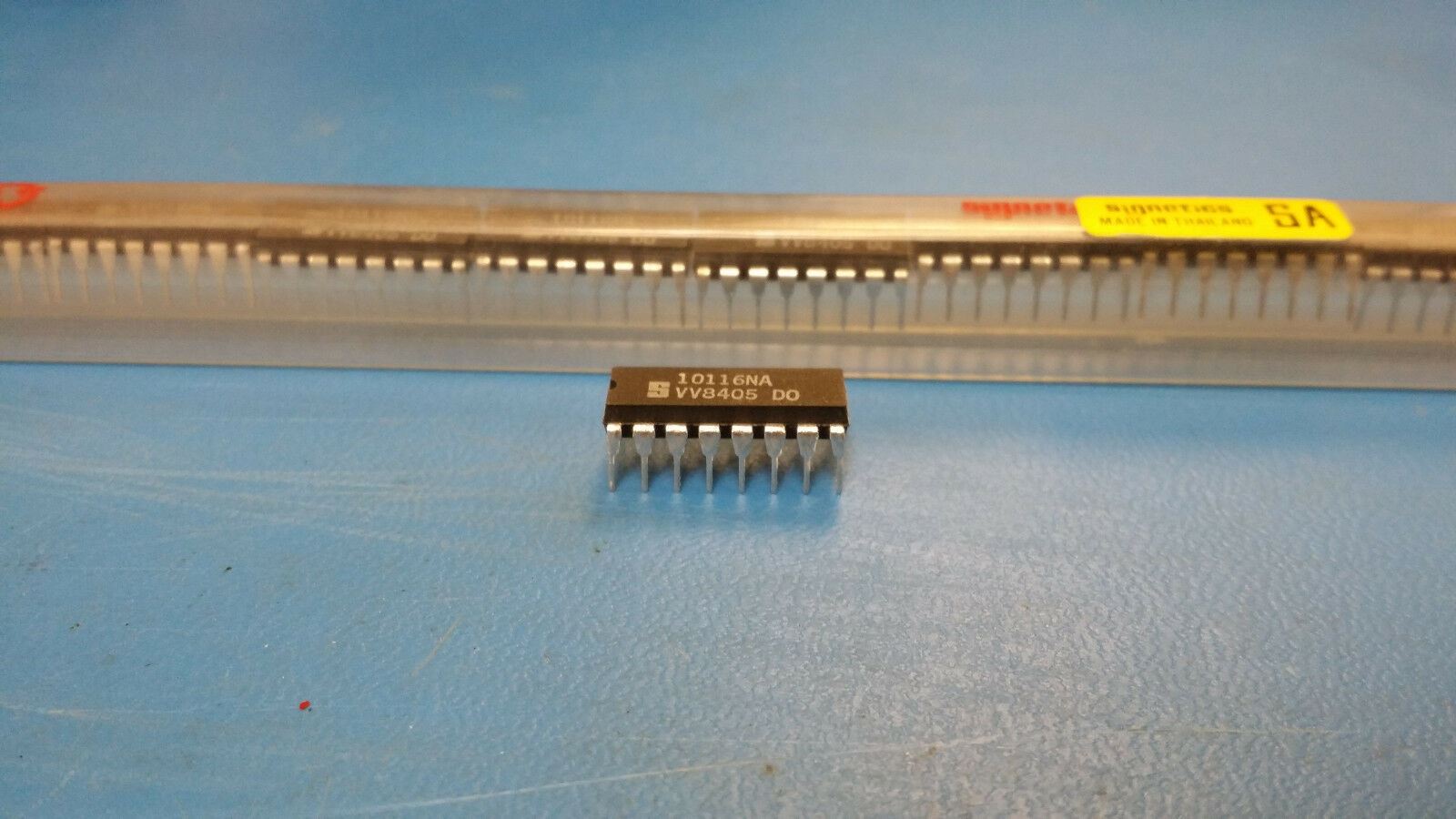

THIS LISTING IS FOR (2 PCS) OF 10116NA BY SIGNETICS
Triple Receiver 16-Pin PDIP
Mfr Package Description
Triple Receiver 16-Pin PDIP
Mfr Package Description
| PLASTIC, DIP-16 | |
| REACH Compliant | Yes |
| Status | Discontinued |
| Interface IC Type | LINE RECEIVER |
| Input Characteristics | DIFFERENTIAL SCHMITT TRIGGER |
| Interface Standard | GENERAL PURPOSE |
| JESD-30 Code | R-PDIP-T16 |
| JESD-609 Code | e0 |
| Negative Supply Voltage-Nom | -5.2 V |
| Number of Functions | 3 |
| Number of Terminals | 16 |
| Operating Temperature-Min | -30.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP16,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Supplies (V) | -5.2 |
| Qualification Status | Not Qualified |
| Receive Delay-Max | 2.9 ns |
| Receiver Number of Bits | 3.0 |
| Seated Height-Max | 4.44 mm |
| Sub Category | Line Driver or Receivers |
| Supply Current-Max | 23.0 mA |
| Surface Mount | NO |
| Technology | ECL10K |
| Temperature Grade | OTHER |
| Terminal Finish | Tin/Lead (Sn80Pb20) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
