(2 PC) JAN2N3019S MOTOROLA Trans GP BJT NPN 80V 1A 3-Pin TO-39
Tax included.

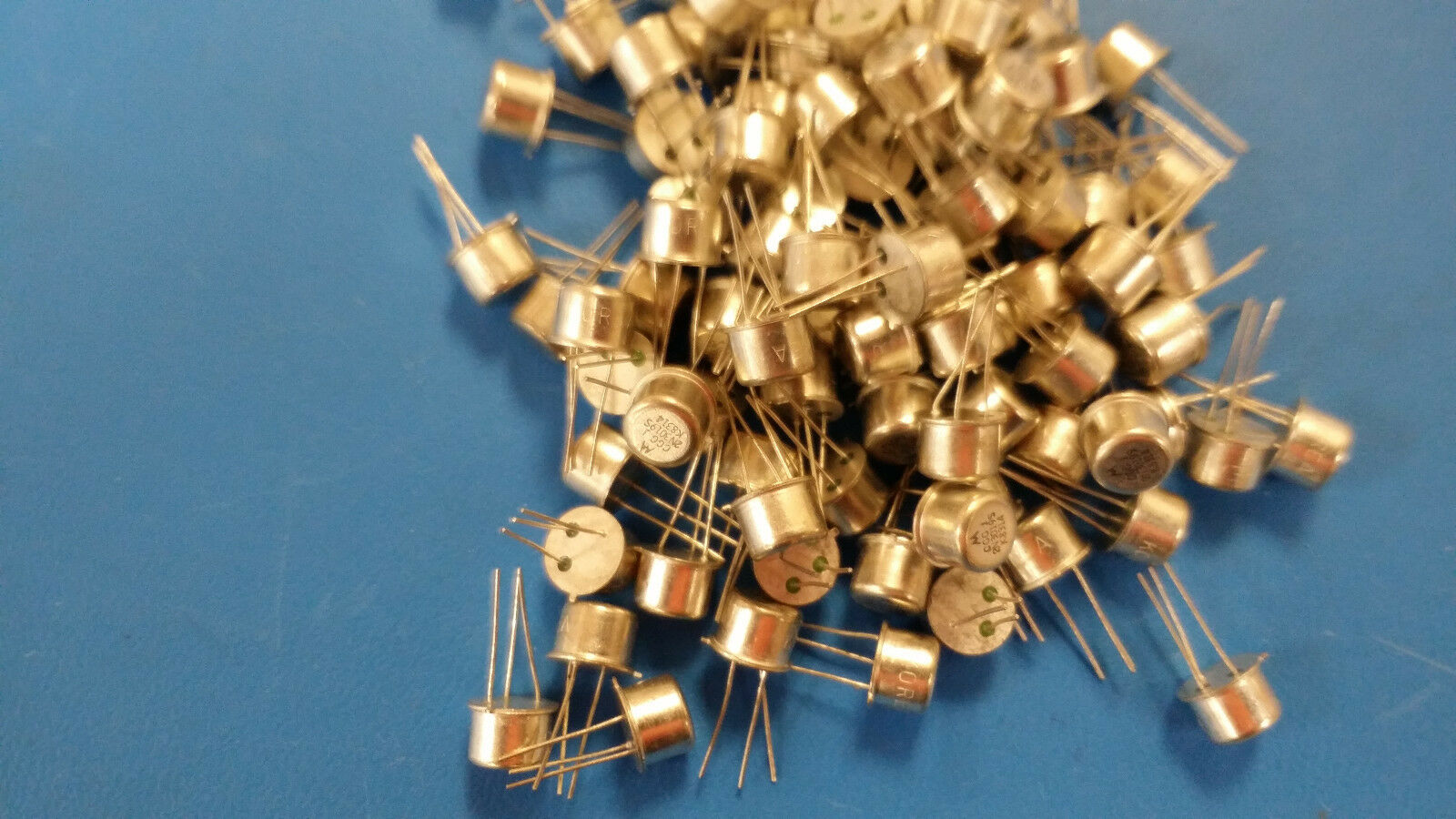

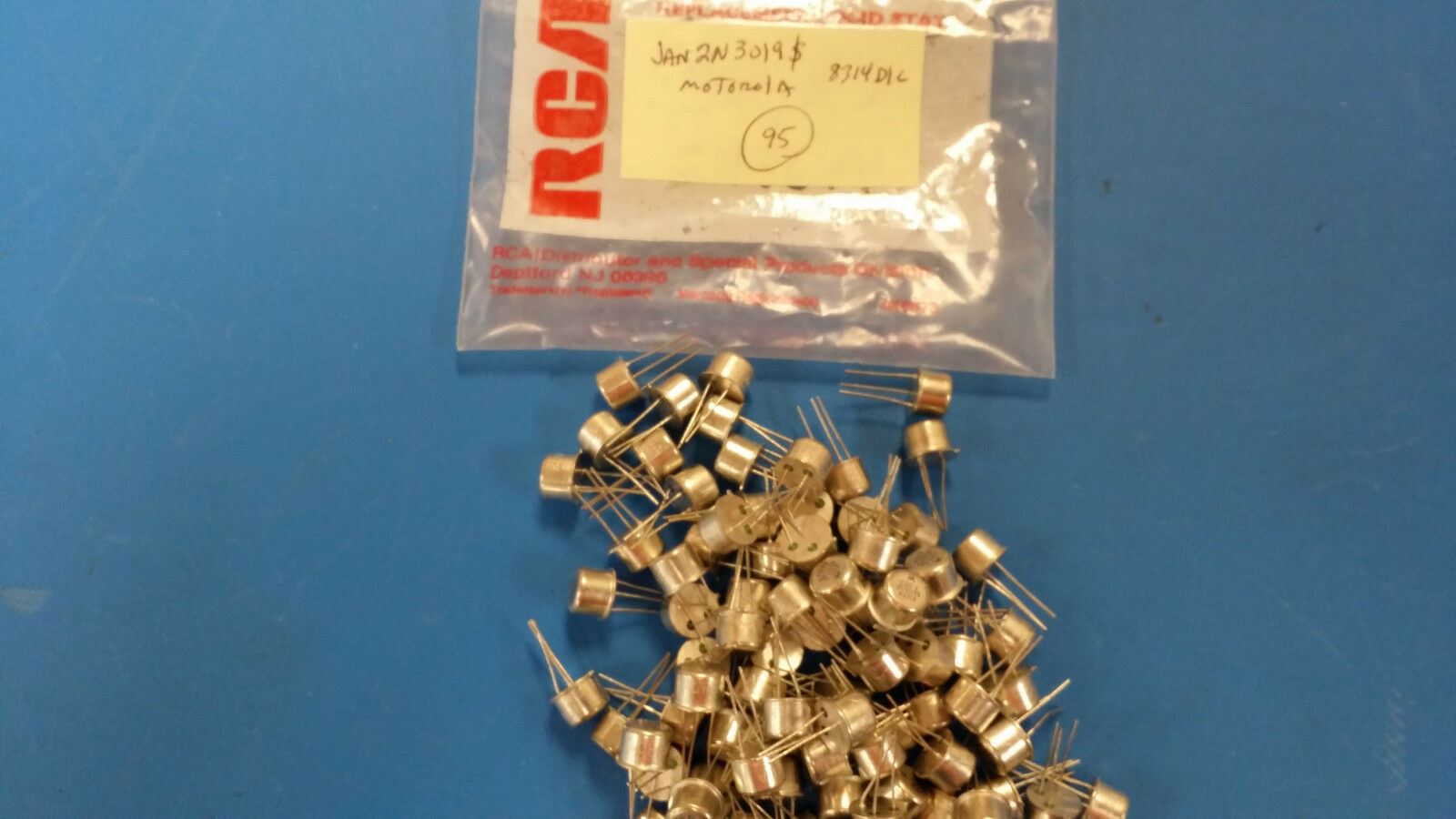

THIS LISTING IS FOR (2 PCS) JAN2N3019S BY MOTOROLA
Trans GP BJT NPN 80V 1A 3-Pin TO-39
Trans GP BJT NPN 80V 1A 3-Pin TO-39
JAN2N3019S Part Details & Parametric
| Screening Level | Military |
| Minimum Operating Temperature (°C) | -65 |
| Maximum Operating Temperature (°C) | 200 |
| Type | NPN |
| Maximum Collector Base Voltage (V) | 140 |
| Maximum Emitter Base Voltage (V) | 7 |
| Maximum Collector Emitter Voltage (V) | 80 |
| Maximum Power Dissipation (mW) | 800 |
| Maximum DC Collector Current (A) | 1 |
| Packaging | Bulk |
| Minimum DC Current Gain | 50@0.1mA@10V|90@10mA@10V|100@150mA@10V|50@500mA@10V|15@1A@10V |
| Number of Elements per Chip | 1 |
| Maximum Transition Frequency (MHz) | 400 |
| Category | Bipolar Power |
| Package Diameter (mm) | 9.4(Max) |
| Mounting | Through Hole |
| Package Height (mm) | 6.6(Max) |
| PCB | 3 |
| Standard Package Name | TO-205-AF |
| Supplier Package | TO-39 |
| Pin Count | 3 |
| Lead Shape | Through Hole |
