(2 PC) BTA41-600B STMICRO 4 Quadrant Logic Level TRIAC, 600V V(DRM), 40A I(T)RMS
Tax included.

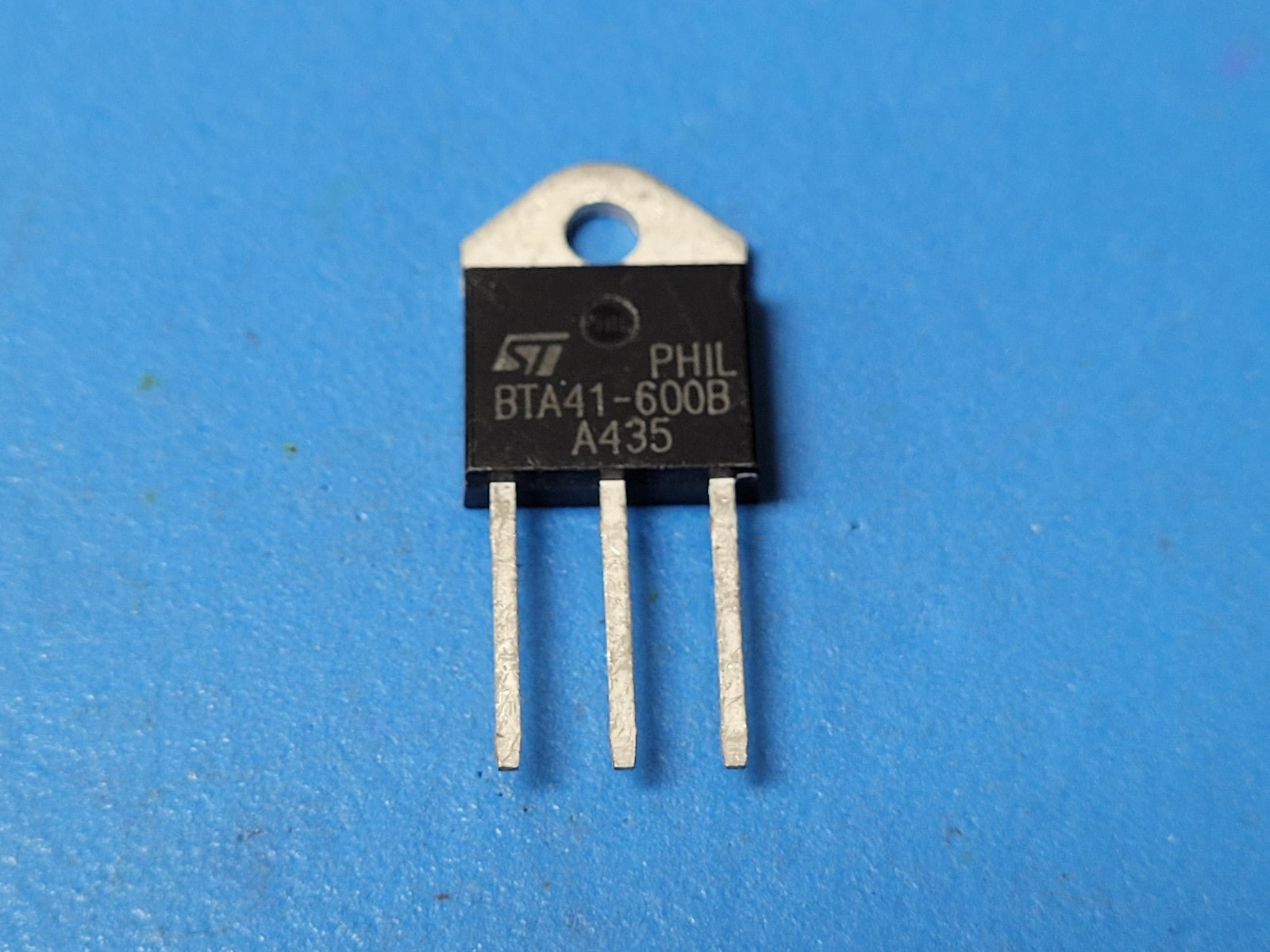

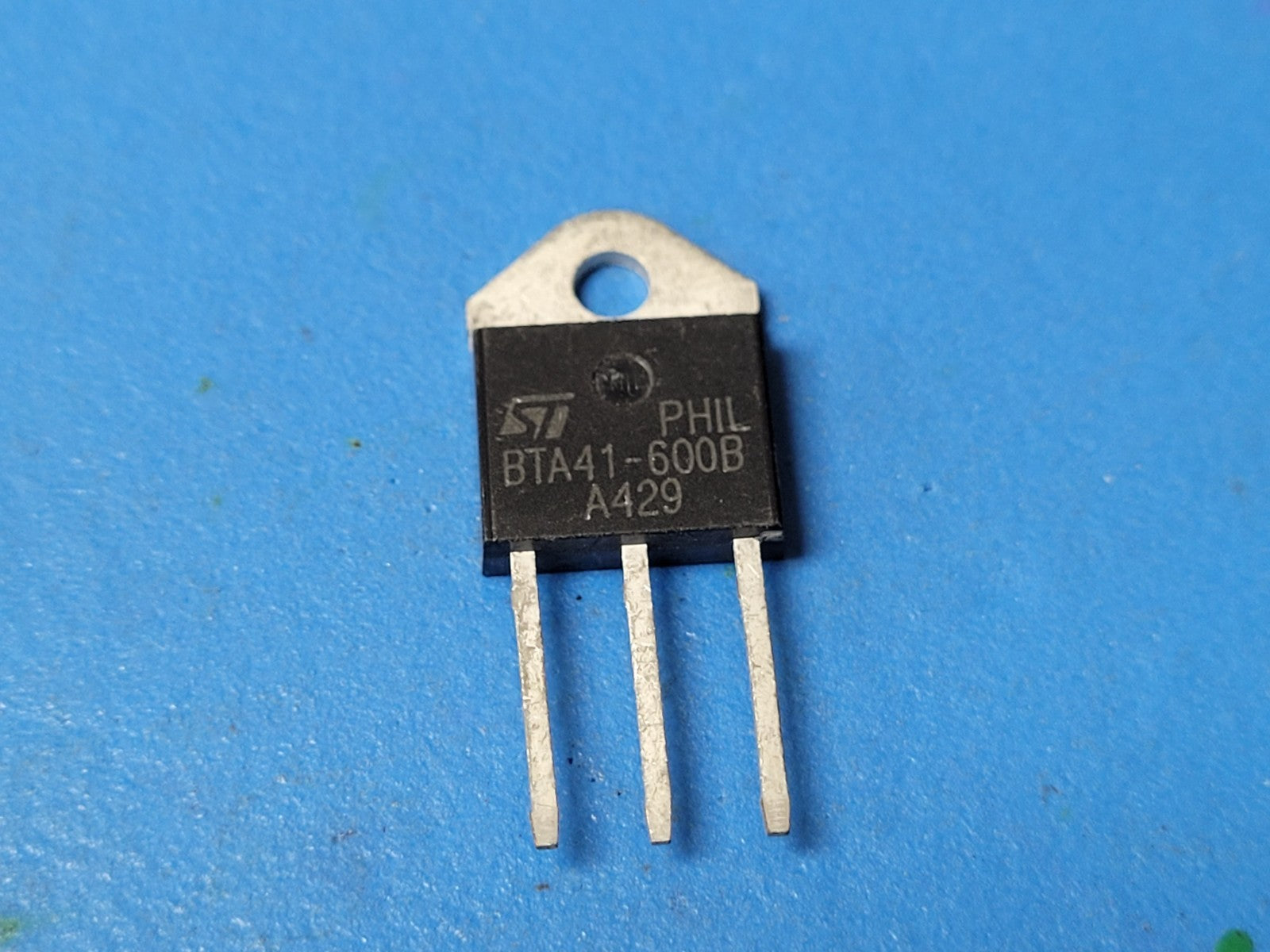

THIS IS FOR (2 PCS) OF BTA41-600B BY STMICRO
4 Quadrant Logic Level TRIAC, 600V V(DRM), 40A I(T)RMS
Part #: BTA41-600B
Obsolete
Part Category: TRIACs
Manufacturer: STMICROELECTRONICS
Description: 4 Quadrant Logic Level TRIAC, 600V V(DRM), 40A I(T)RMS
BTA41-600B SPECIFICATIONS
Status Discontinued
Case Connection ISOLATED
Configuration SINGLE
Critical Rate of Rise of Off-state Voltage-Min (V/us) 150.0000000000000000
DC Gate Trigger Current-Max (mA) 50.0000000000000000
DC Gate Trigger Voltage-Max (V) 2.5000000000000000
Holding Current-Max (mA) 80.0000000000000000
JESD-30 Code R-PSFM-T3
J-STD-609 Code e3
Leakage Current-Max (mA) 4.000000000000000
Number of Elements 1
Number of Terminals 3
Operating Temperature-Max (Cel) 110
Operating Temperature-Min (Cel) -40
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Peak Reflow Temperature (Cel) 245
DLA Qualification Not Qualified
RMS On-state Current-Max (A) 40.0000000000000000
Repetitive Peak Off-state Voltage (V) 600
Surface Mount NO
Terminal Finish MATTE TIN
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Trigger Device Type 4 QUADRANT LOGIC LEVEL TRIAC
