(2) HEF40162BDB PHILIPS Decade Counter Synchronous 4Bit Up Direction CMOS CDIP16

$5.95
Unit price per

Tax included.

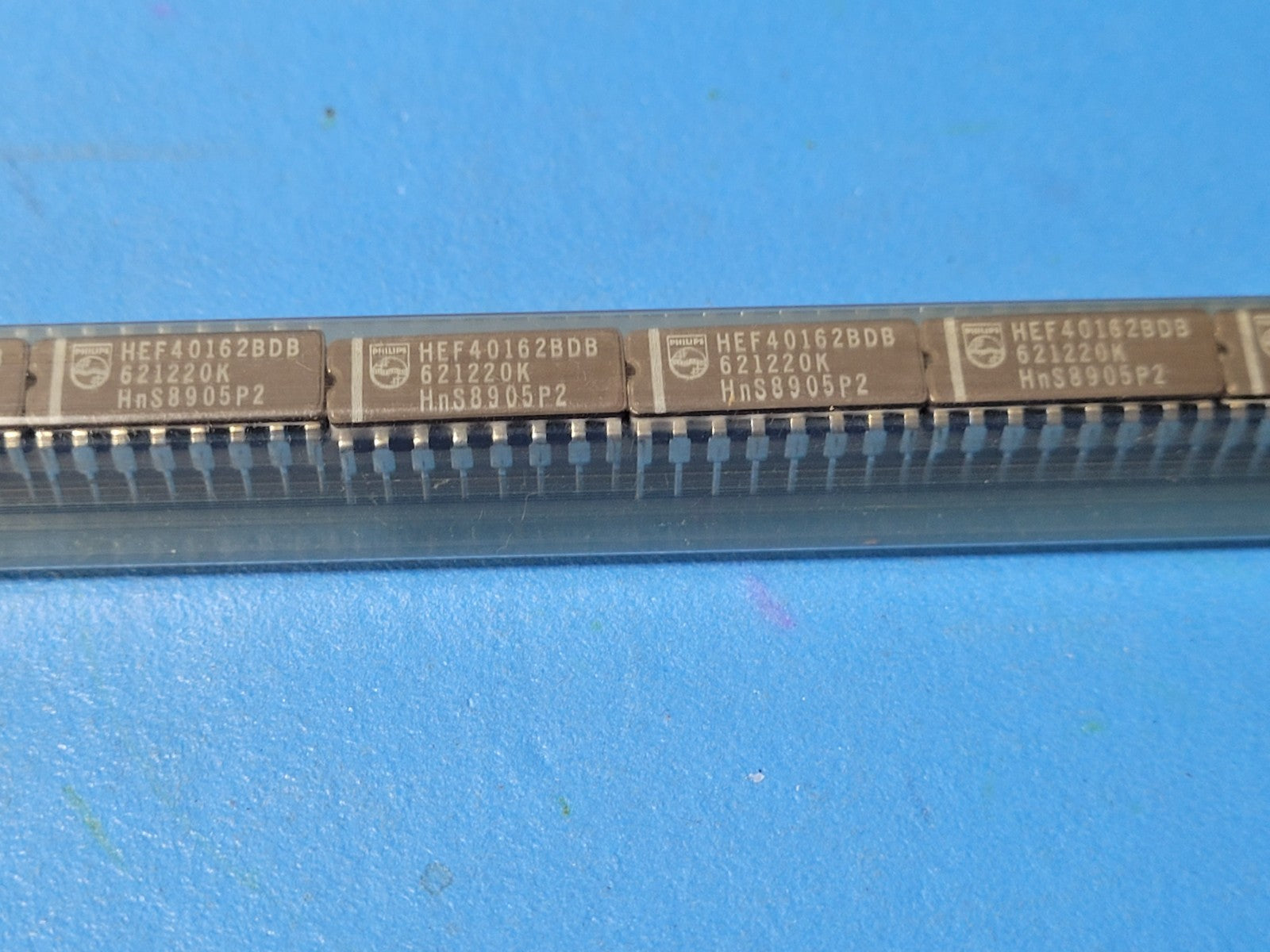

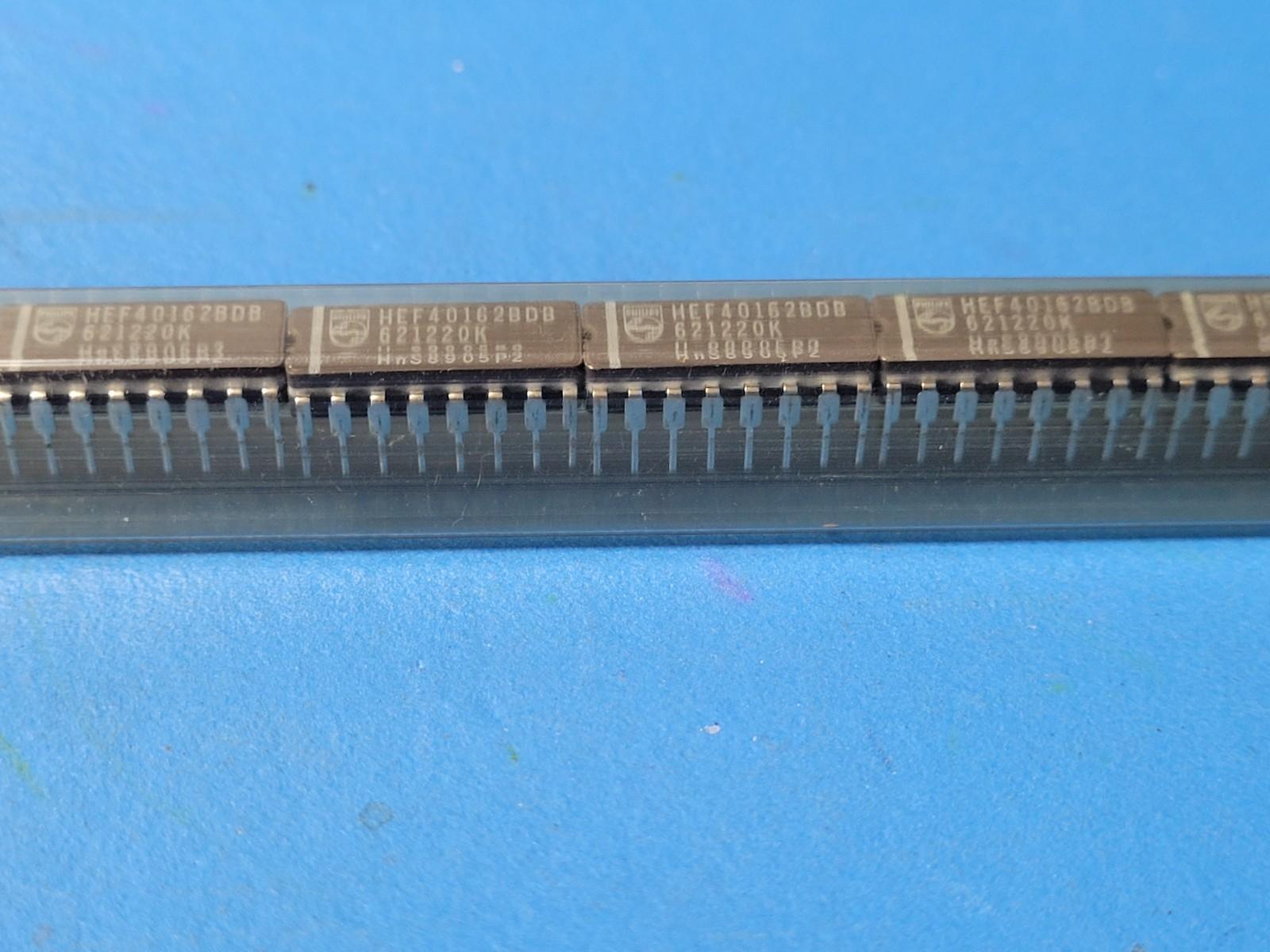

THIS IS FOR (2 PCS) OF HEF40162BDB BY PHILIPS

Decade Counter Synchronous 4Bit Up Direction CMOS CDIP16

Status Discontinued

Additional Feature TCO OUTPUT

Direction UP

Family 4000/14000/40000

JESD-30 Code R-GDIP-T16

Load Capacitance (pF) 50.0000

Load/Preset Input YES

Logic IC Type DECADE COUNTER

Mode of Operation SYNCHRONOUS

Number of Bits 4

Number of Functions 1

Number of Terminals 16

Operating Temperature-Max (Cel) 85

Operating Temperature-Min (Cel) -40

Package Body Material CERAMIC, GLASS-SEALED

Package Code DIP

Package Shape RECTANGULAR

Package Style IN-LINE

Propagation Delay (ns) 220.0000

DLA Qualification Not Qualified

Seated Height-Max (mm) 5.0800

Supply Voltage-Max (V) 15.0000

Supply Voltage-Min (V) 3.0000

Supply Voltage-Nom (V) 5

Surface Mount NO

Technology CMOS

Temperature Grade INDUSTRIAL

Terminal Form THROUGH-HOLE

Terminal Pitch (mm) 2.540

Terminal Position DUAL

Trigger Type POSITIVE EDGE

Width (mm) 7.6200

fmax-Min (MHz) 2.5000
