(2) 178328-2 Conn Power HDR 20 POS 3.81mm Solder ST Thru-Hole 20 Terminal 1 Port
Tax included.

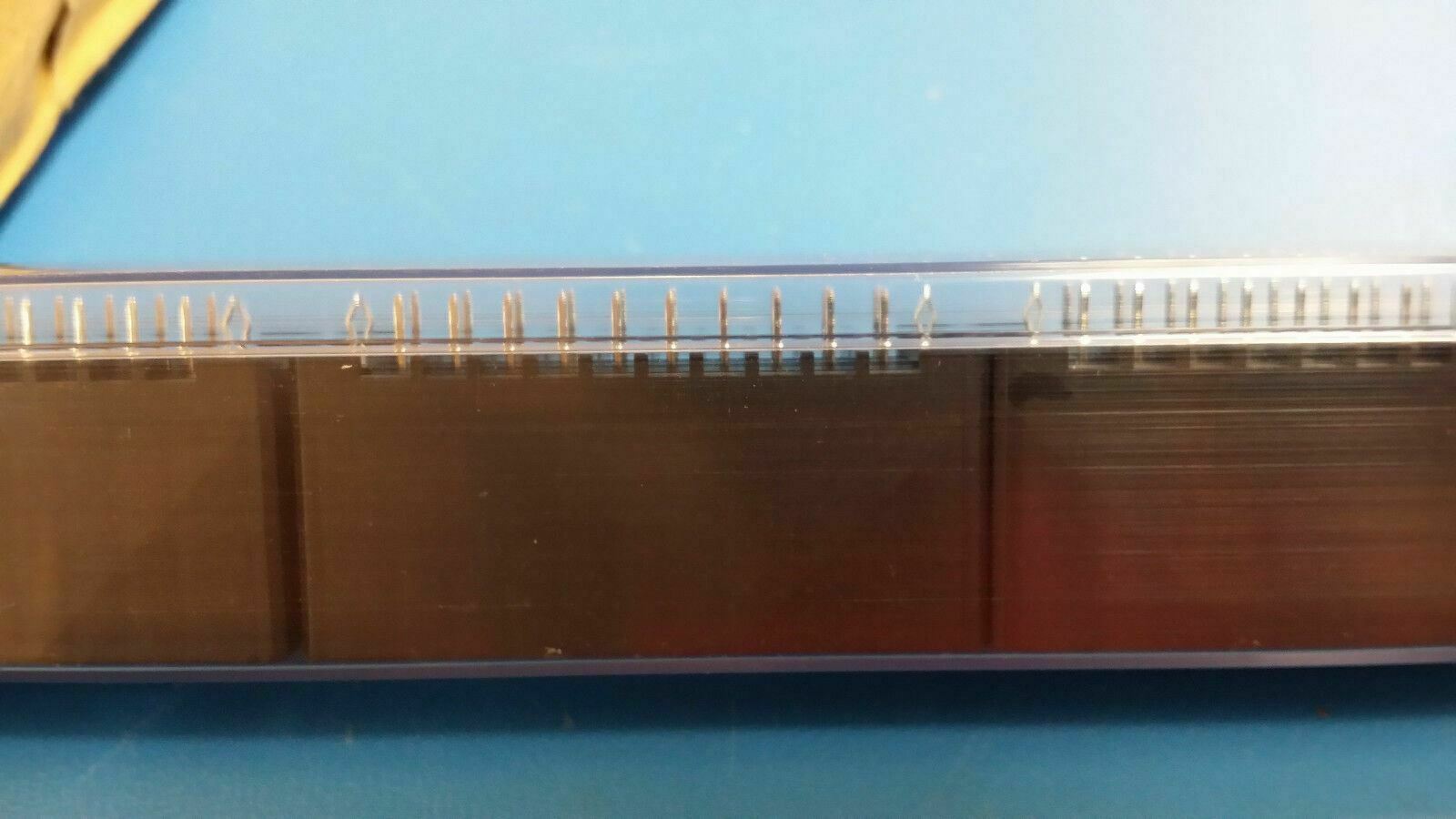

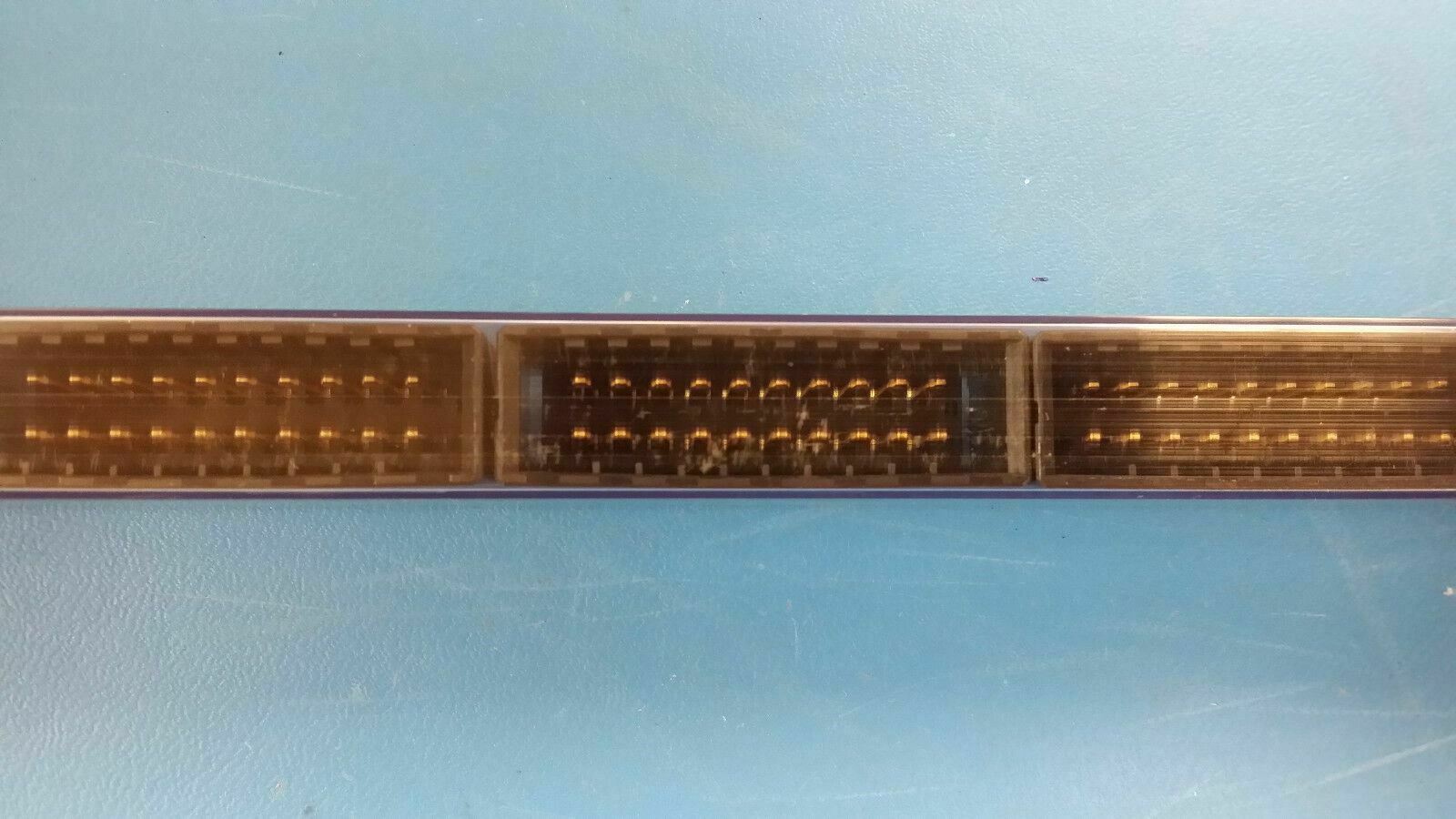

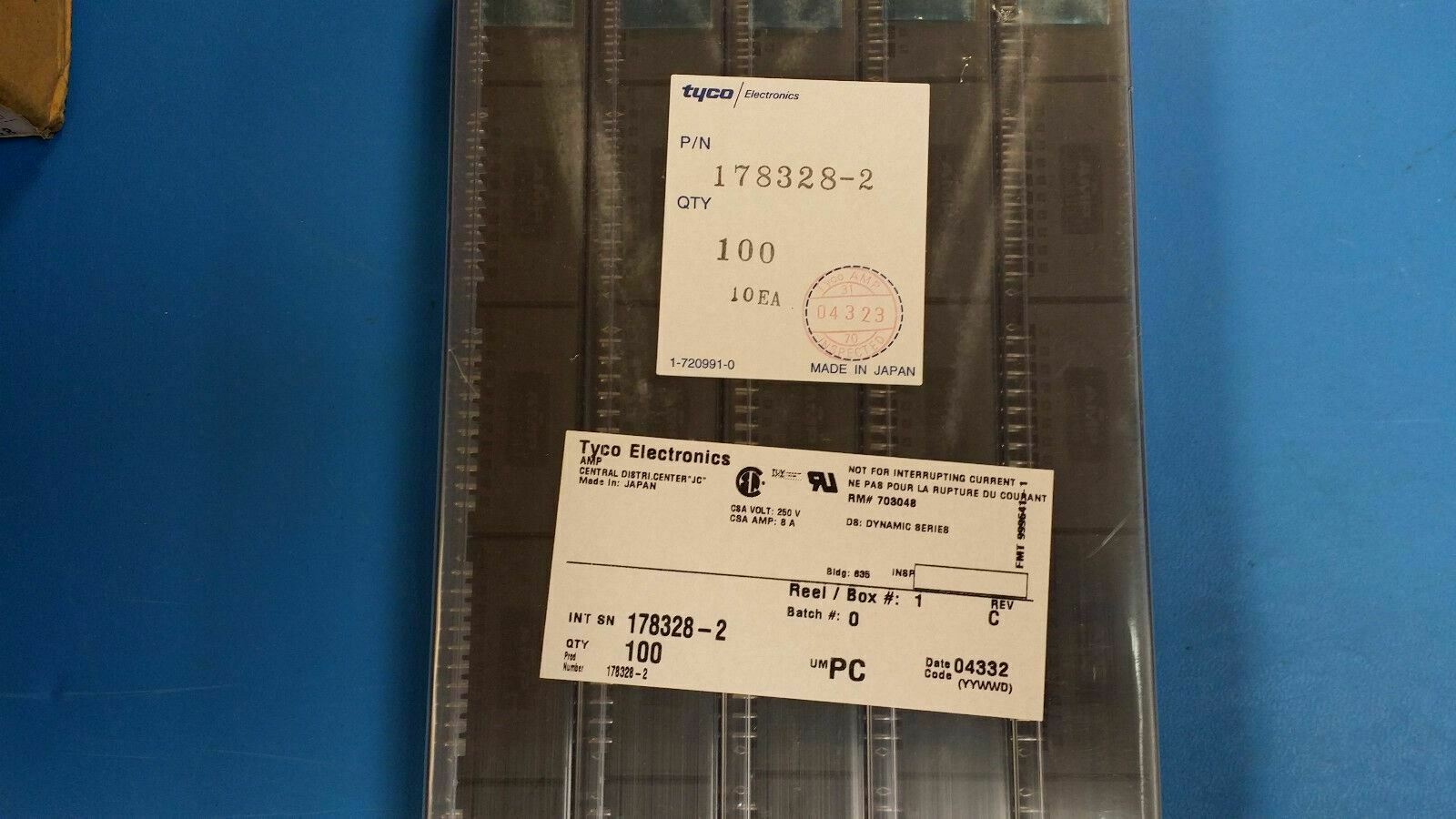

THIS LISTING IS FOR (2 PCS) OF 178328-2 BY TYCO/AMP
Conn Power HDR 20 POS 3.81mm Solder ST Thru-Hole 20 Terminal 1 Port
Conn Power HDR 20 POS 3.81mm Solder ST Thru-Hole 20 Terminal 1 Port
| Contact Type | Male Pin |
|---|---|
| Connector Type | Header, Shrouded |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Pitch | 0.150" (3.81mm) |
| Number of Rows | 2 |
| Row Spacing | 0.200" (5.08mm) |
| Contact Mating Length | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | - |
| Features | Board Lock |
| Contact Finish | Gold |
| Contact Finish Thickness | 15µin (0.38µm) |
| Color | Black |
