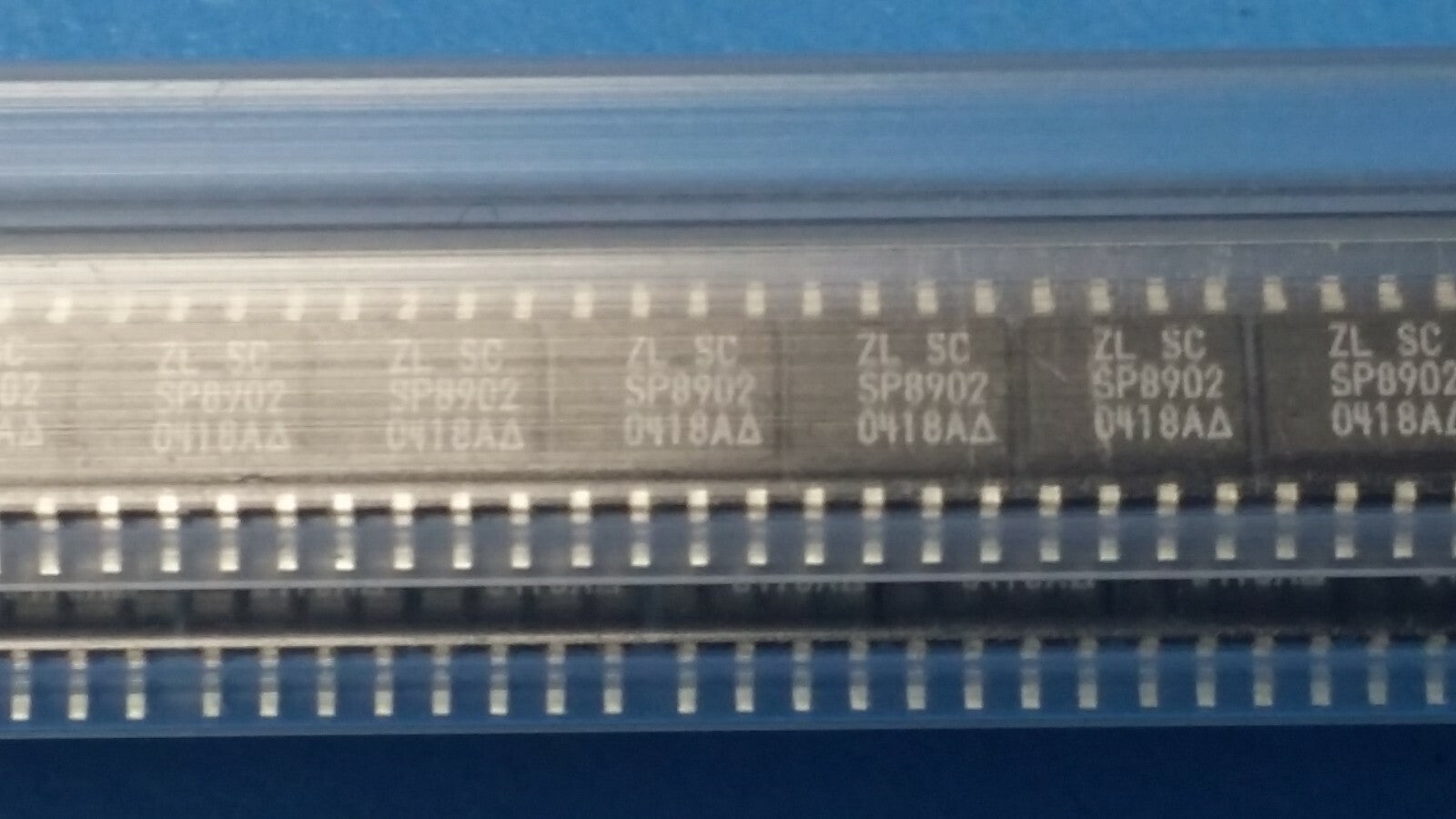

(1pcs) SP8902/KG/MP1T OPERATIONAL AMPLIFIER 5GHz Divide By 2 Fixed Modulus
Tax included.
Each order is for 1pcs.
The SP8902 is one of a range of very high speed low power prescalers for professional applications. The dividing elements are static D type flip flops and therefore allow operation down to DC if the drive signal is a pulse waveform with fast risetime. The output stage has a differential current output and provides a direct drive into a 50 ohm load.
Key Features
Very High Operating Speed
Operation down to DC with Square Wave Input
Silicon Technology for Low Phase Noise (Typically better than 2140dBc/Hz at 1KHz)
5V Single Supply Operation
Low Power Dissipation: 335mW (Typ.)
Surface Mount Plastic Package
Lead Finish Tin-Lead
Max Processing Temp 240
Mounting Surface Mount
Pin Count 8
Product Dimensions 5 x 4 x 1.5 mm
Supplier Package SOIC
