(1PCS) ADSP-21065LKCA-240 DSP, 32-Bit, 30MHz, CMOS, PBGA196 Heat Bubbles

$19.95
Unit price per

Tax included.

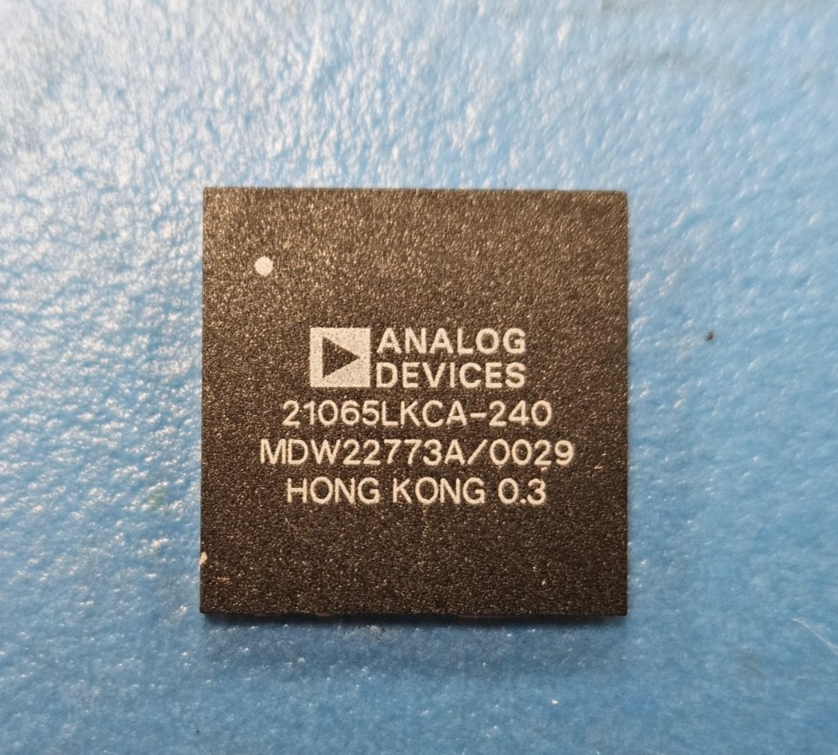

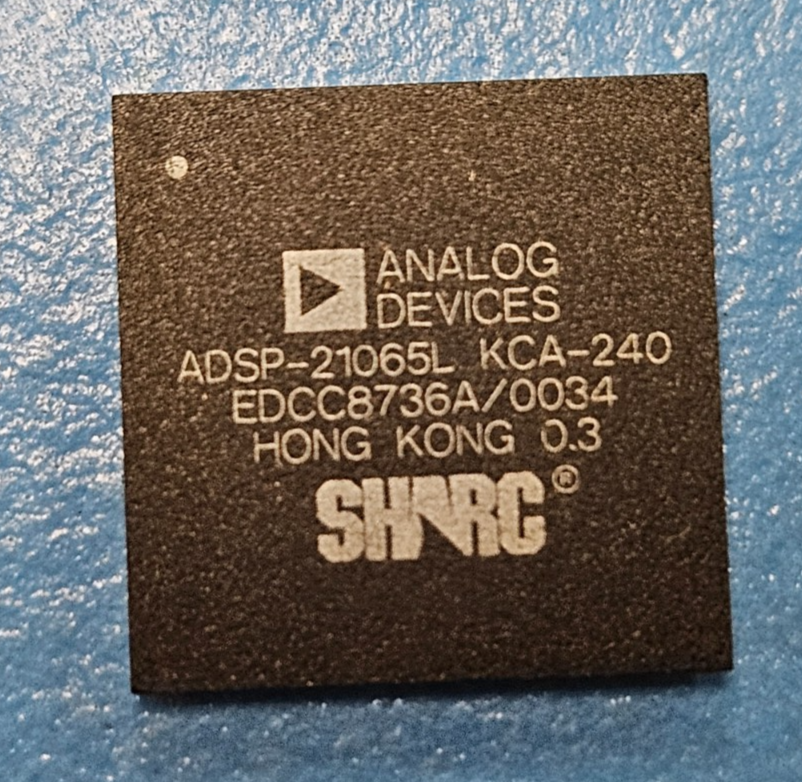

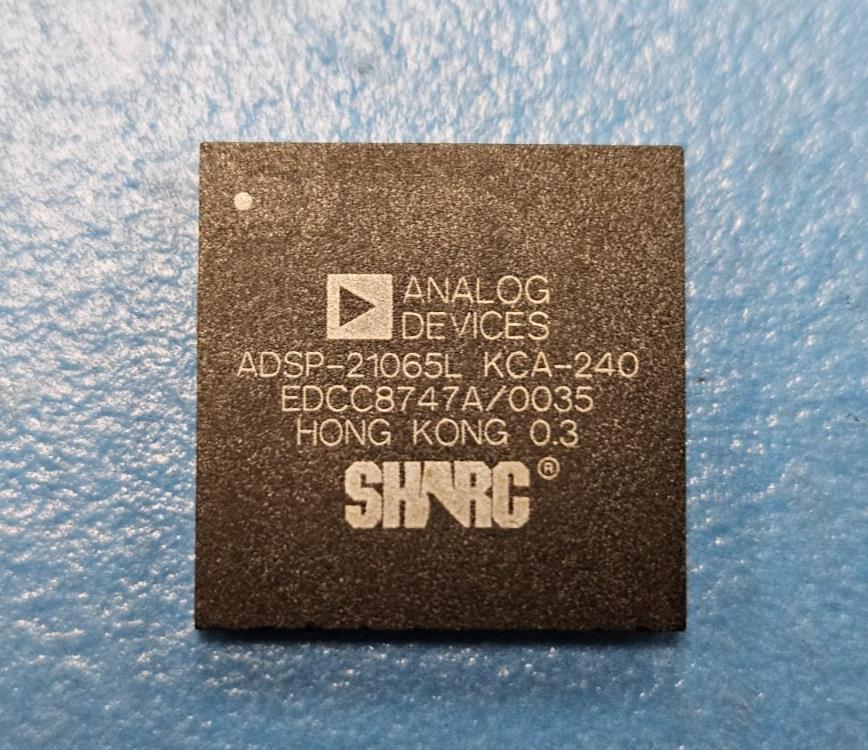

This listing is for (1PC) by Analog Devices

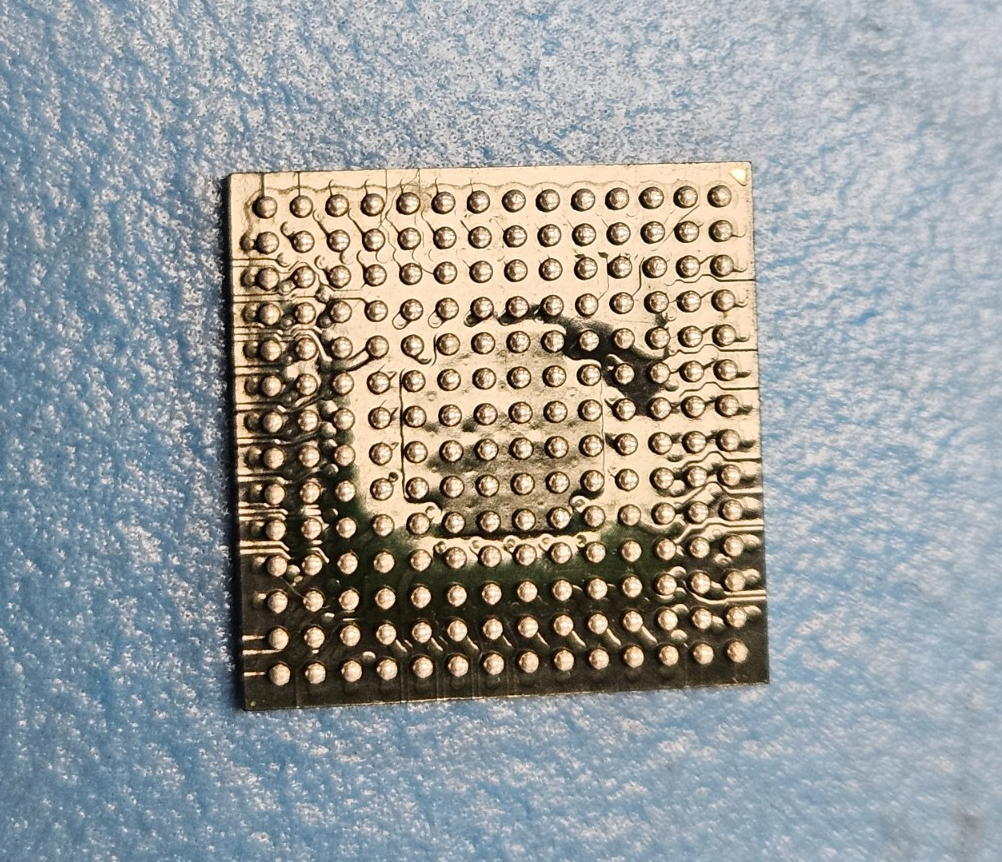

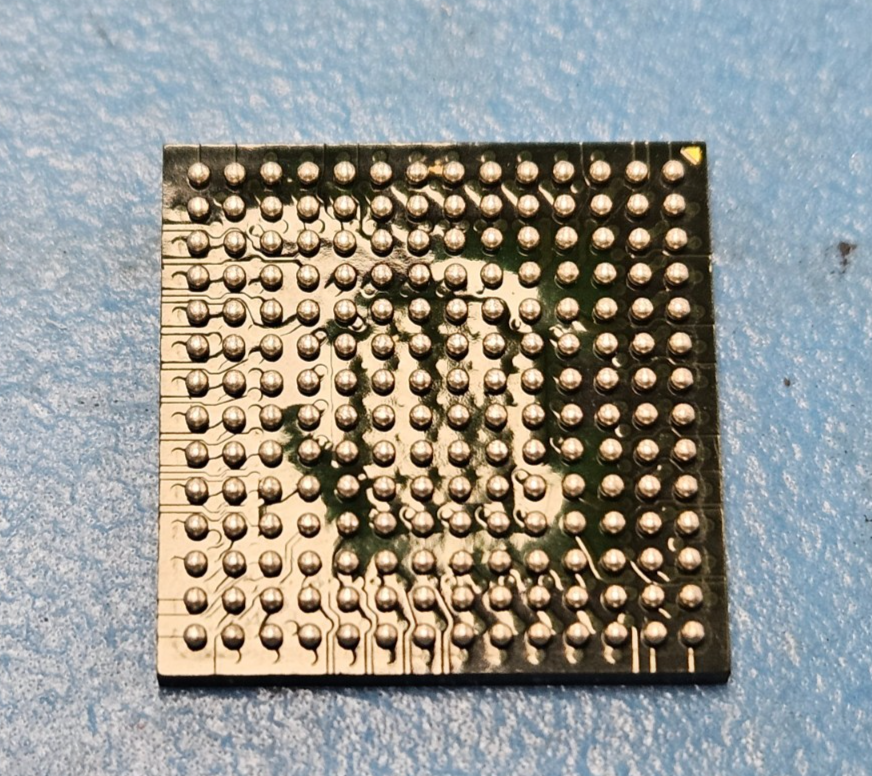

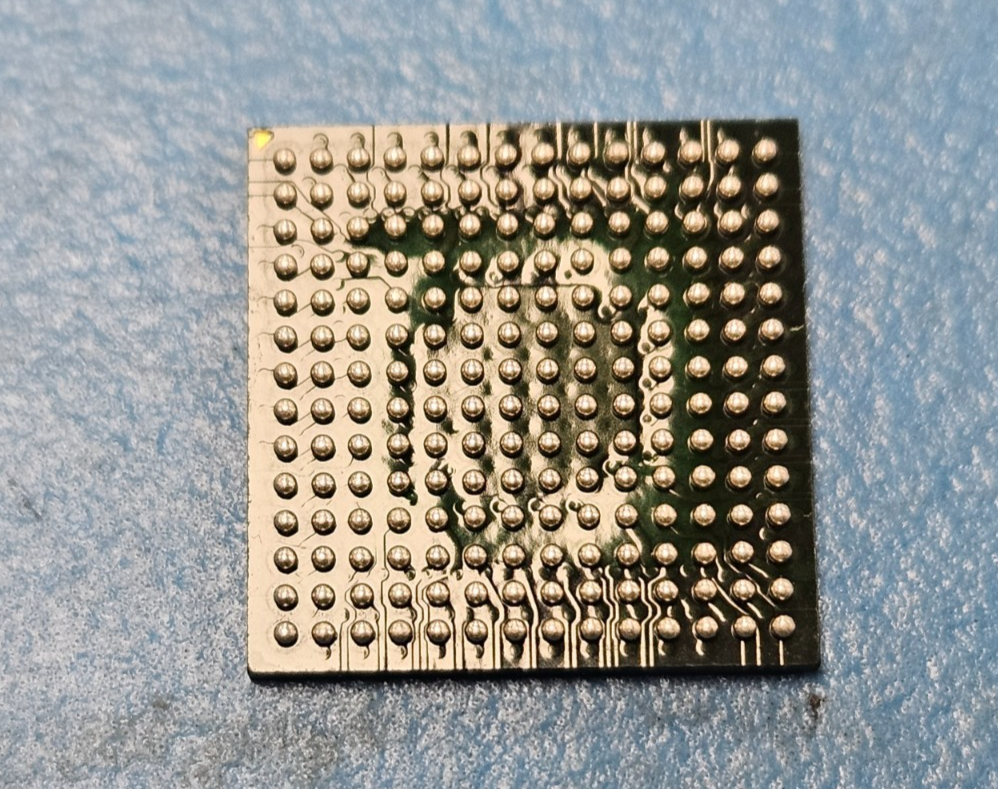

**These components have heat bubbles on bottom of component.

Status Discontinued

Address Bus Width 24

Barrel Shifter YES

Bit Size 32

Boundary Scan YES

Clock Frequency-Max (MHz) 30.0000000000000000

External Data Bus Width 32

Format FLOATING POINT

Internal Bus Architecture MULTIPLE

JESD-30 Code S-PBGA-B196

J-STD-609 Code e0

Length (mm) 15.0000

Low Power Mode NO

Moisture Sensitivity Level 3

Number of Terminals 196

Operating Temperature-Max (Cel) 85.0000

Operating Temperature-Min (Cel) 0.0000

Package Body Material PLASTIC/EPOXY

Package Code BGA

Package Equivalence Code BGA196,14X14,40

Package Shape SQUARE

Package Style GRID ARRAY

Peak Reflow Temperature (Cel) 240

DLA Qualification Not Qualified

RAM (words) 16384

Seated Height-Max (mm) 1.9000

Supply Current-Max (mA) 470.00000000

Supply Voltage-Max (V) 3.6000

Supply Voltage-Min (V) 3.1300

Supply Voltage-Nom (V) 3.3000

Surface Mount YES

Technology CMOS

Temperature Grade OTHER

Terminal Finish TIN LEAD SILVER

Terminal Form BALL

Terminal Pitch (mm) 1.000

Terminal Position BOTTOM

Width (mm) 15.0000

uPs/uCs/Peripheral ICs Type DIGITAL SIGNAL PROCESSOR, OTHER
