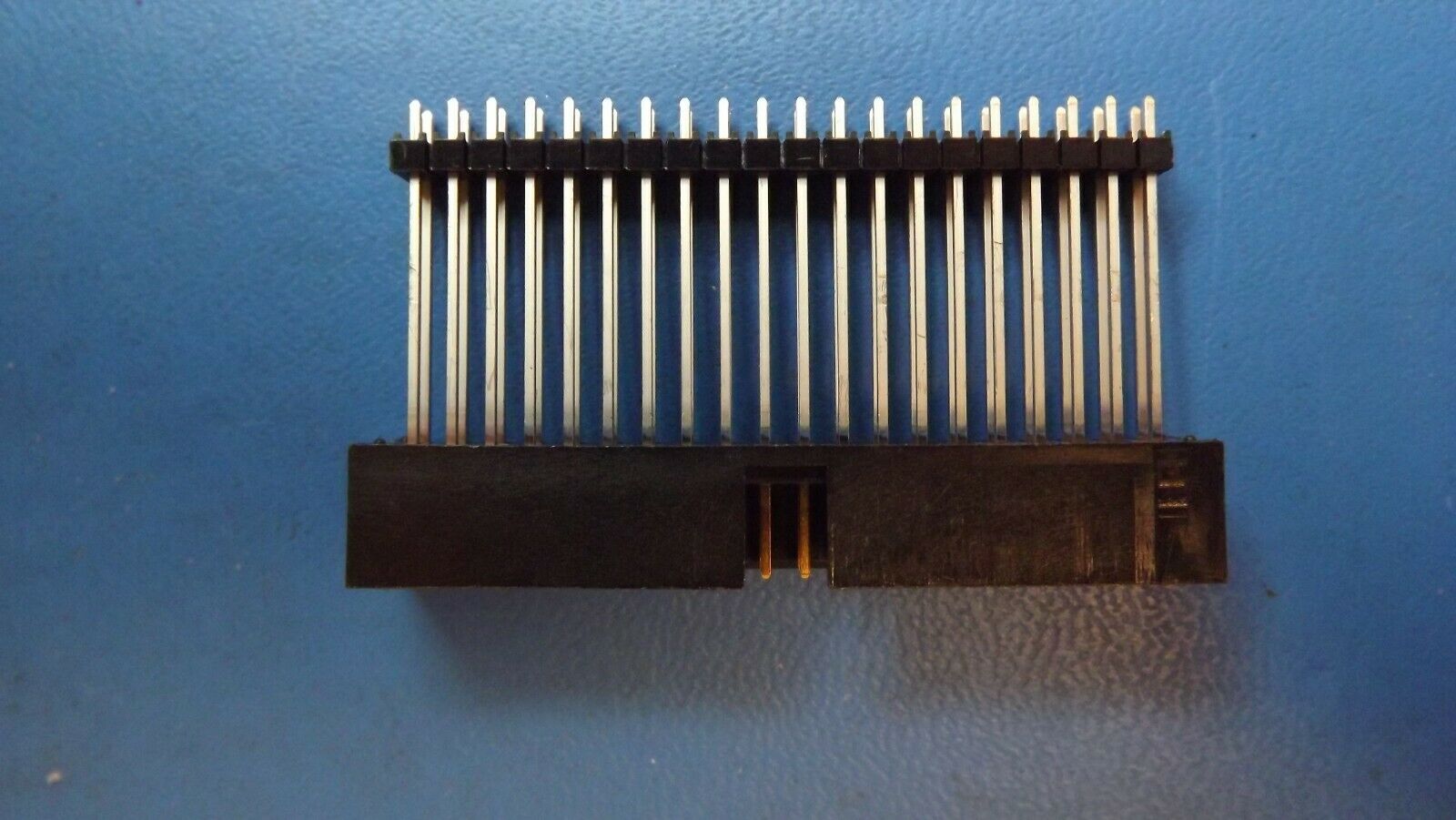

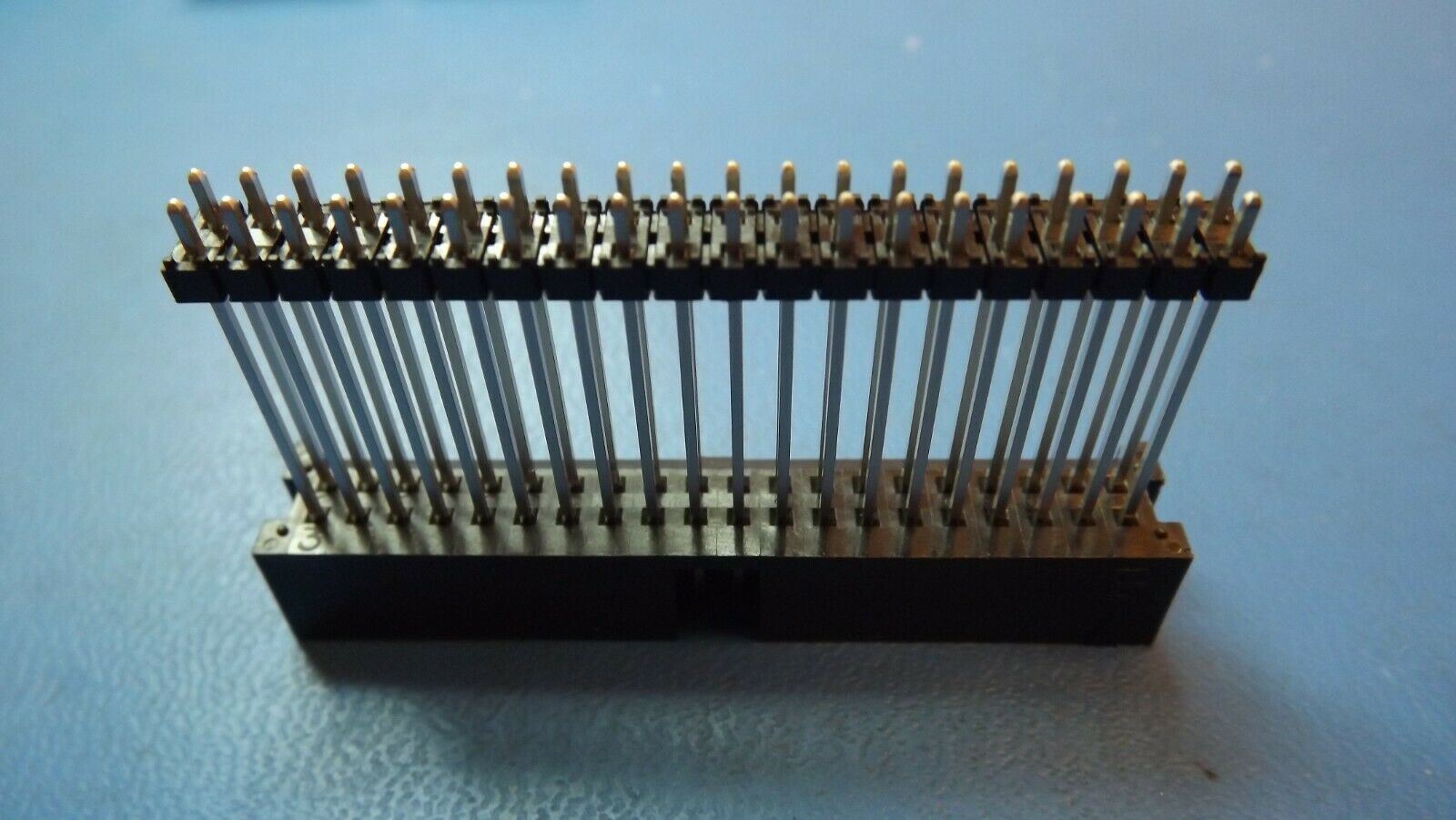

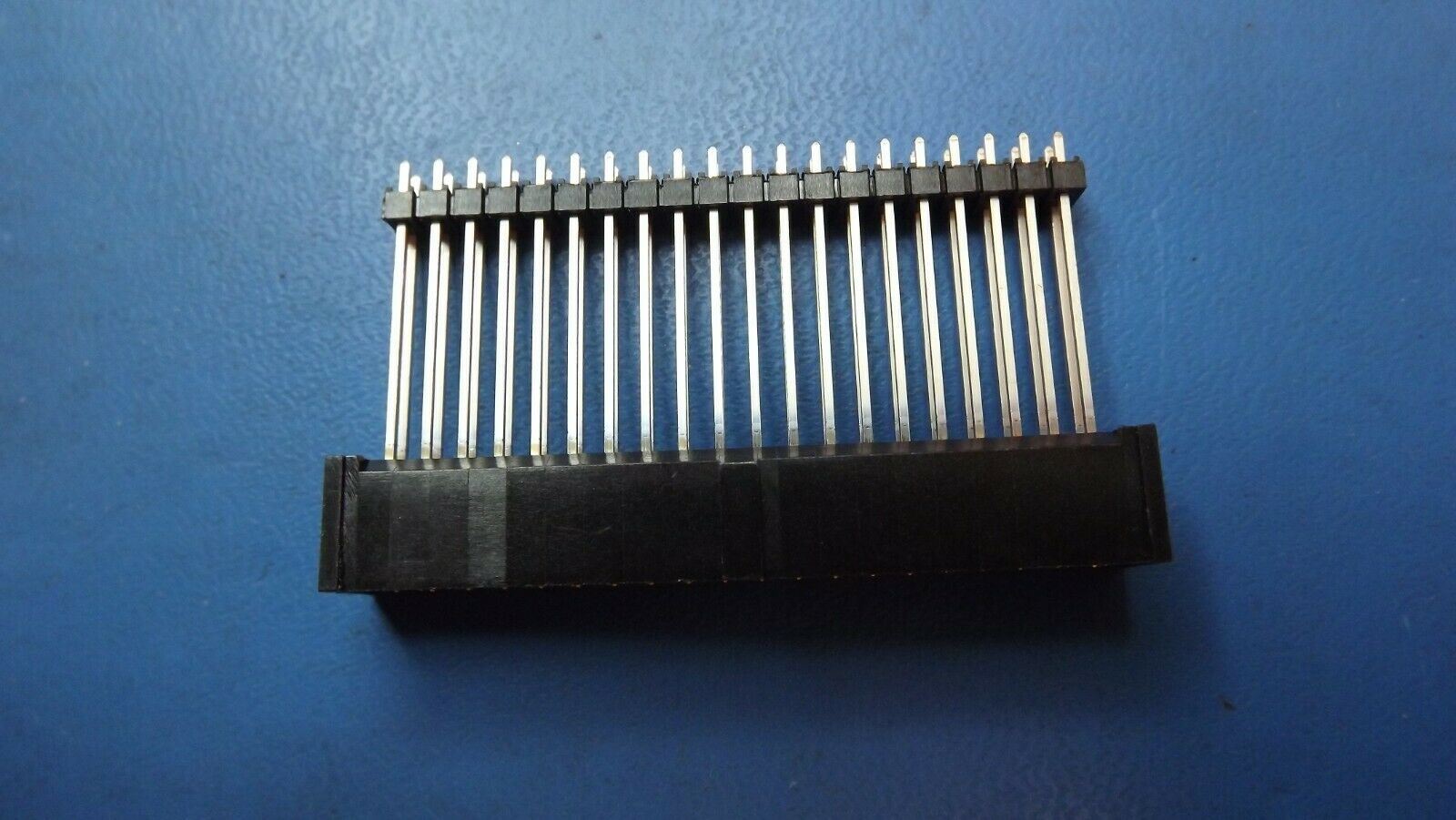

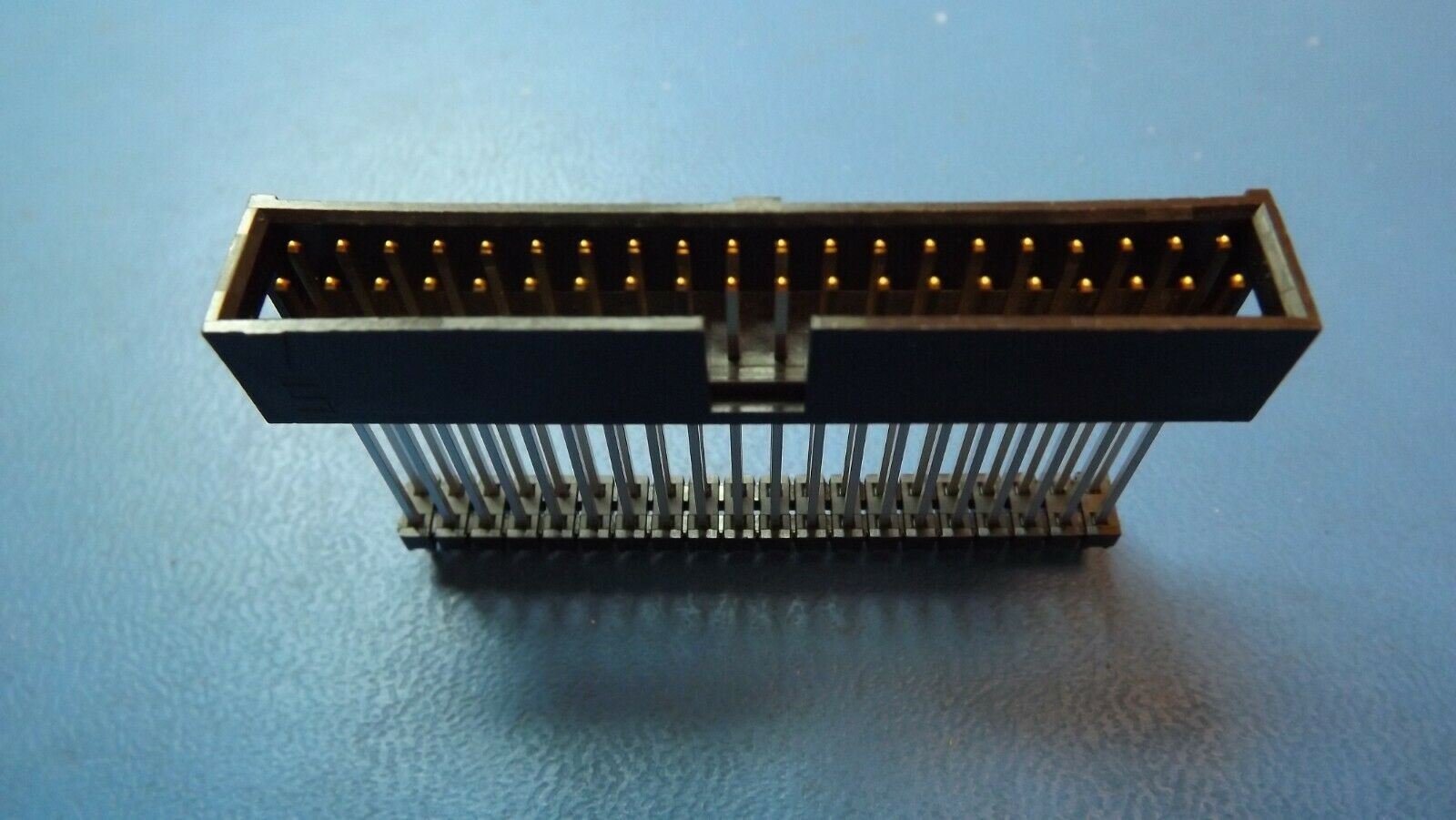

(1PC) ZSS-120-07-S-D-1140 SAMTEC Shrouded Elevated Terminal Strip

  • $7.95
    Unit price per
Tax included.

Only 7 left!

THIS LISTING IS FOR (1PC) OF ZSS-120-07-S-D-1140 BY SAMTEC

Product: Headers
Number of Positions: 40 Position
Pitch: 2.54 mm
Number of Rows: 2 Row
Mounting Style: Straight Pin
Termination Style: Through Hole
Mounting Angle: Straight
Contact Gender: Pin (Male)
Mating Post Length: 6.35 mm
Termination Post Length: 2.29 mm
Series: ZSS
Tradename: Flex Stack
Packaging: Bulk
Housing Material: Polyester
Brand: Samtec
Contact Material: Phosphor Bronze
Flammability Rating: UL 94 V-0
Row Spacing: 2.54 mm
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
