(1PC) Z0853606VSC Parallel I/O Port, 20 I/O, NMOS, PLCC44
Tax included.

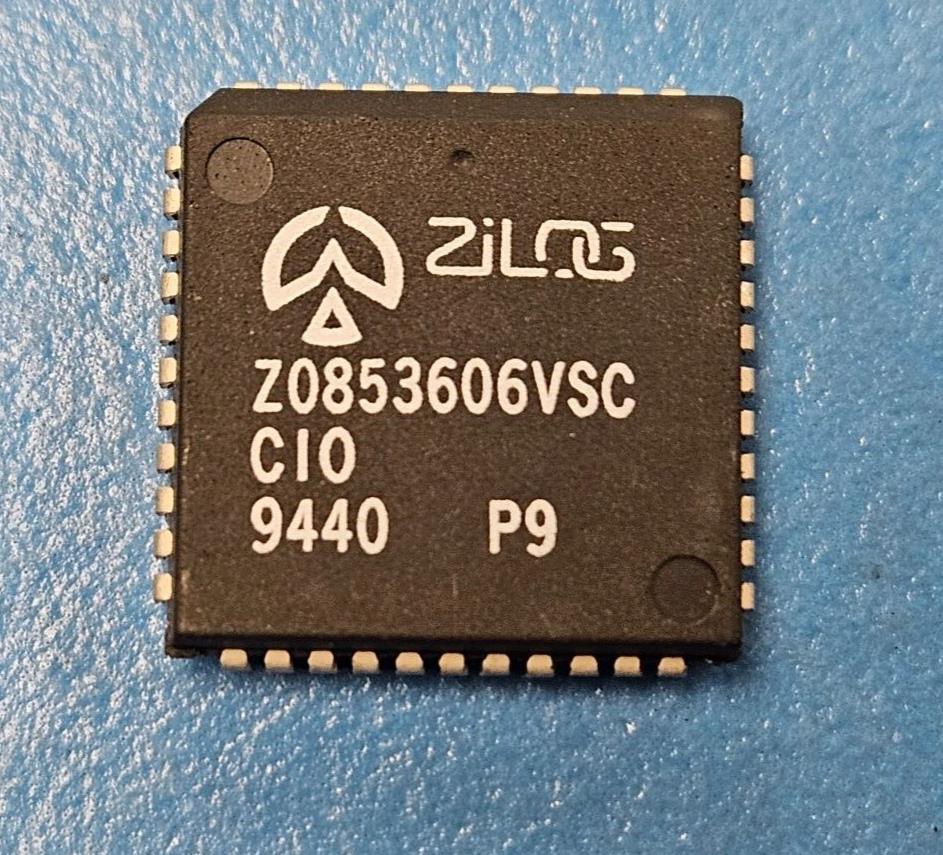

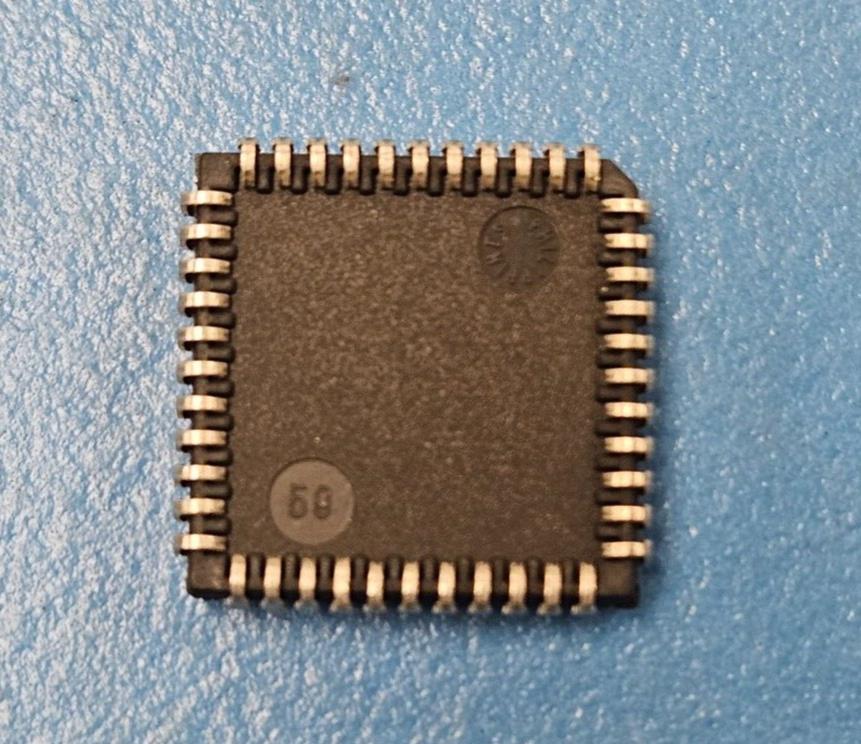

This listing is for (1PC) of Z0853606VSC by Zilog
Mfr Package Description PLASTIC, LCC-44
Status Discontinued
Clock Frequency-Max 6.06 MHz
External Data Bus Width 8.0
JESD-30 Code S-PQCC-J44
JESD-609 Code e0
Moisture Sensitivity Level 3
Number of I/O Lines 20.0
Number of Ports 3
Number of Terminals 44
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC(UNSPEC)
Package Shape SQUARE
Package Style CHIP CARRIER
Peak Reflow Temperature (Cel) 240
Power Supplies 5
Qualification Status Not Qualified
Seated Height-Max 4.57 mm
Sub Category Parallel IO Port
Supply Current-Max 200.0 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount YES
Technology NMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Length 16.51 mm
Width 16.51 mm
