(1PC) XPC860TZP50B3 Motorola RISC Microprocessor, 32-Bit, 50MHz, CMOS, PBGA357
Tax included.

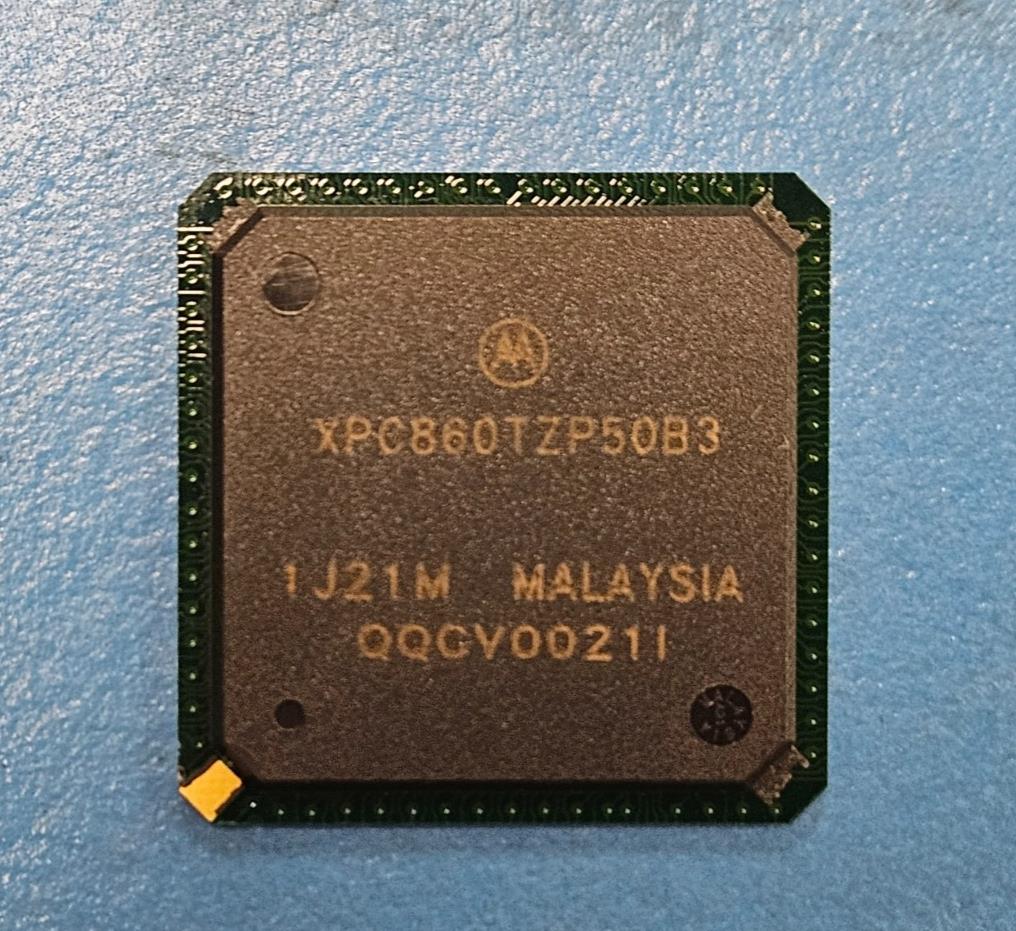

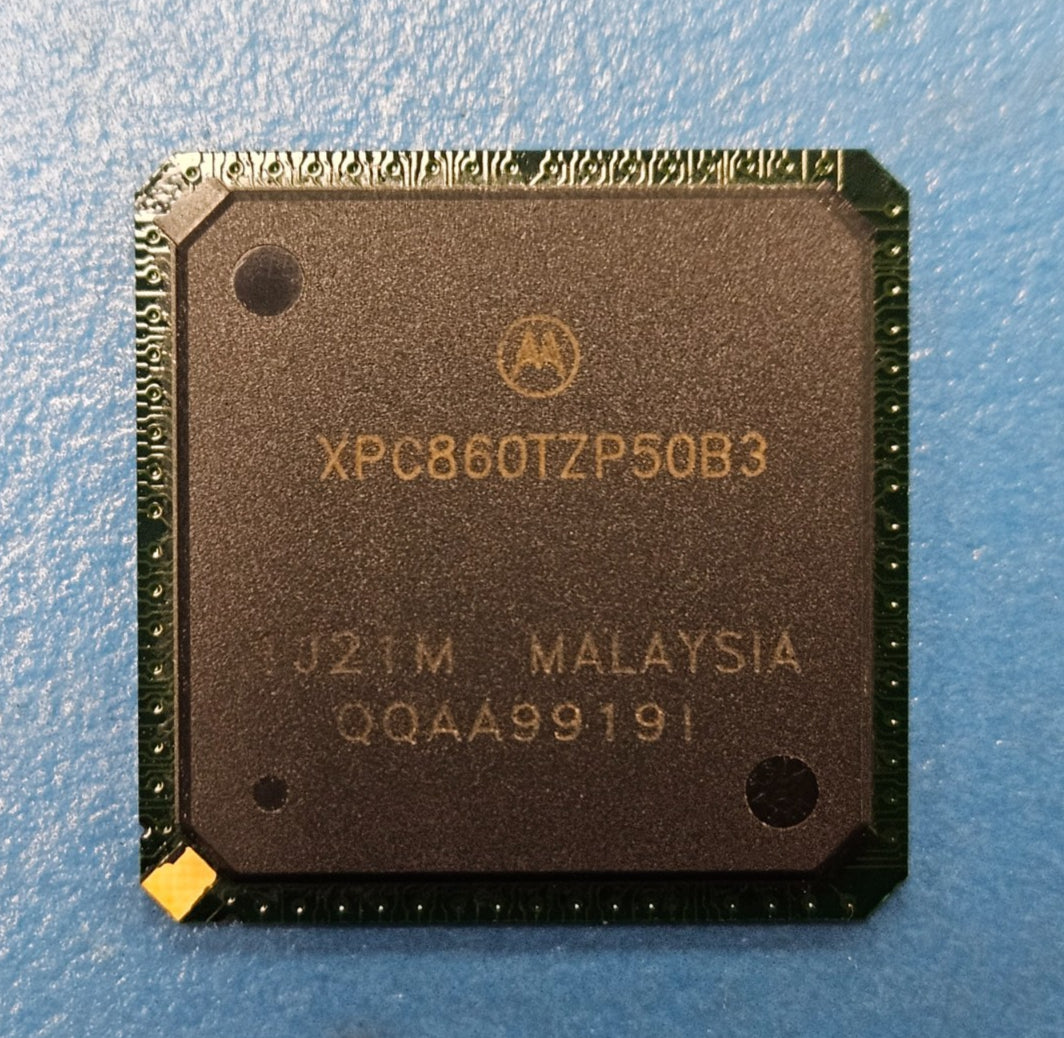

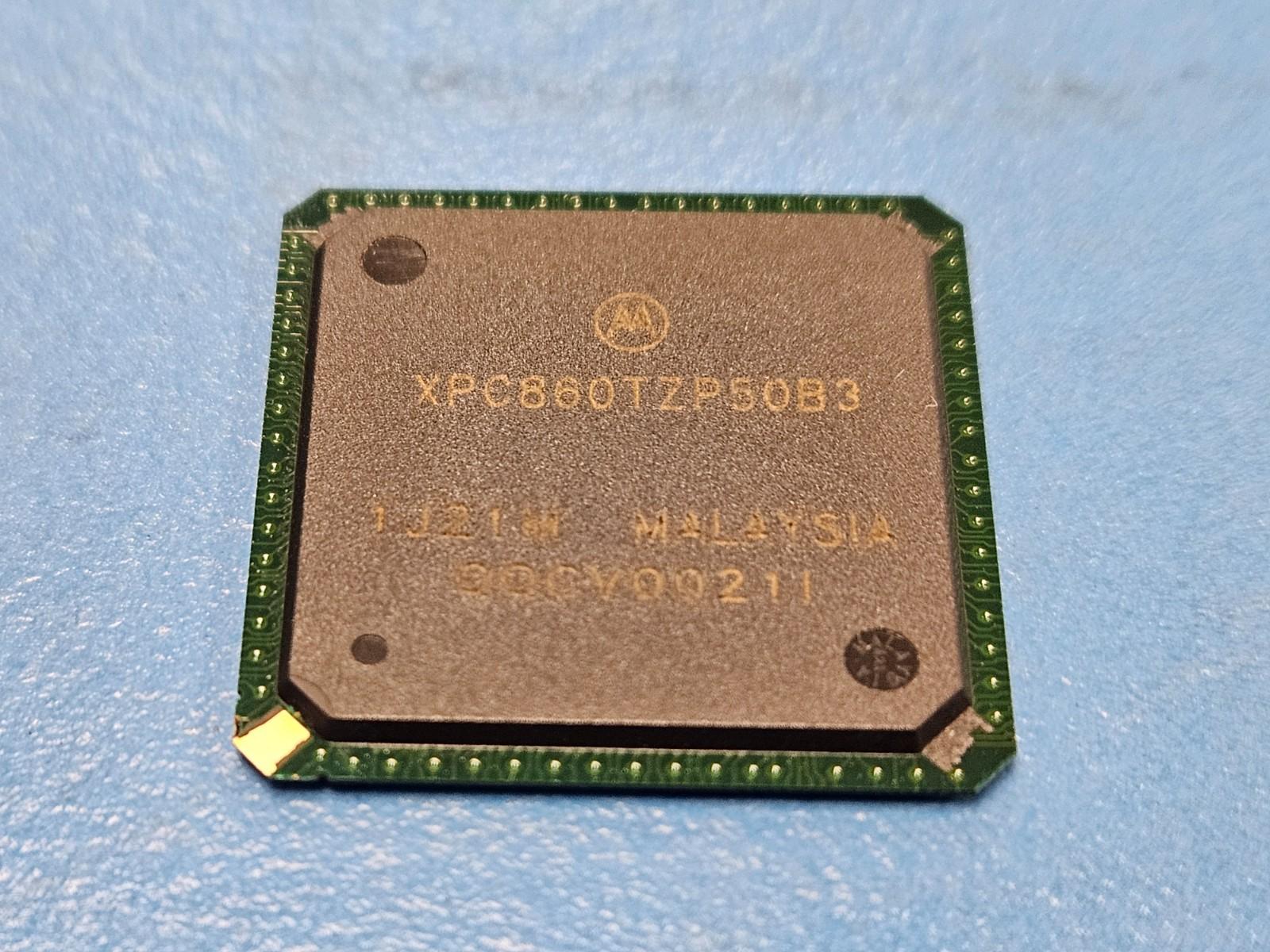

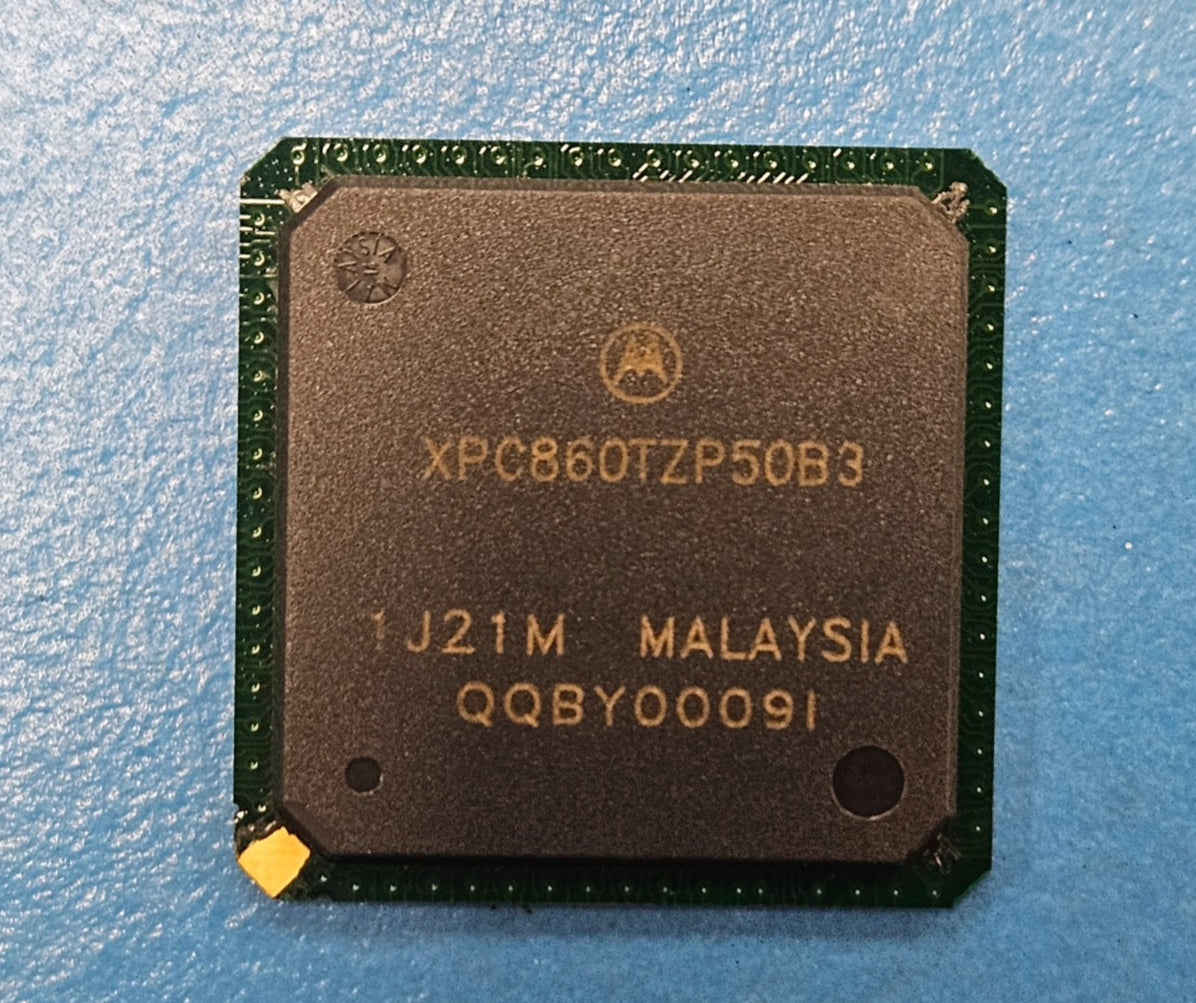

This listing is for (1PC) XPC860TZP50B3 by Motorola
Mfr Package Description PLASTIC, BGA-357
Status Discontinued
Address Bus Width 32.0
Bit Size 32
Boundary Scan YES
Clock Frequency-Max 50.0 MHz
External Data Bus Width 32.0
Format FIXED POINT
Integrated Cache YES
JESD-30 Code S-PBGA-B357
JESD-609 Code e0
Low Power Mode YES
Number of Terminals 357
Package Body Material PLASTIC/EPOXY
Package Code BGA
Package Shape SQUARE
Package Style GRID ARRAY
Qualification Status Not Qualified
Seated Height-Max 2.05 mm
Speed 50.0 MHz
Supply Voltage-Nom 3.3 V
Supply Voltage-Min 3.135 V
Supply Voltage-Max 3.465 V
Surface Mount YES
Technology CMOS
Terminal Finish TIN LEAD

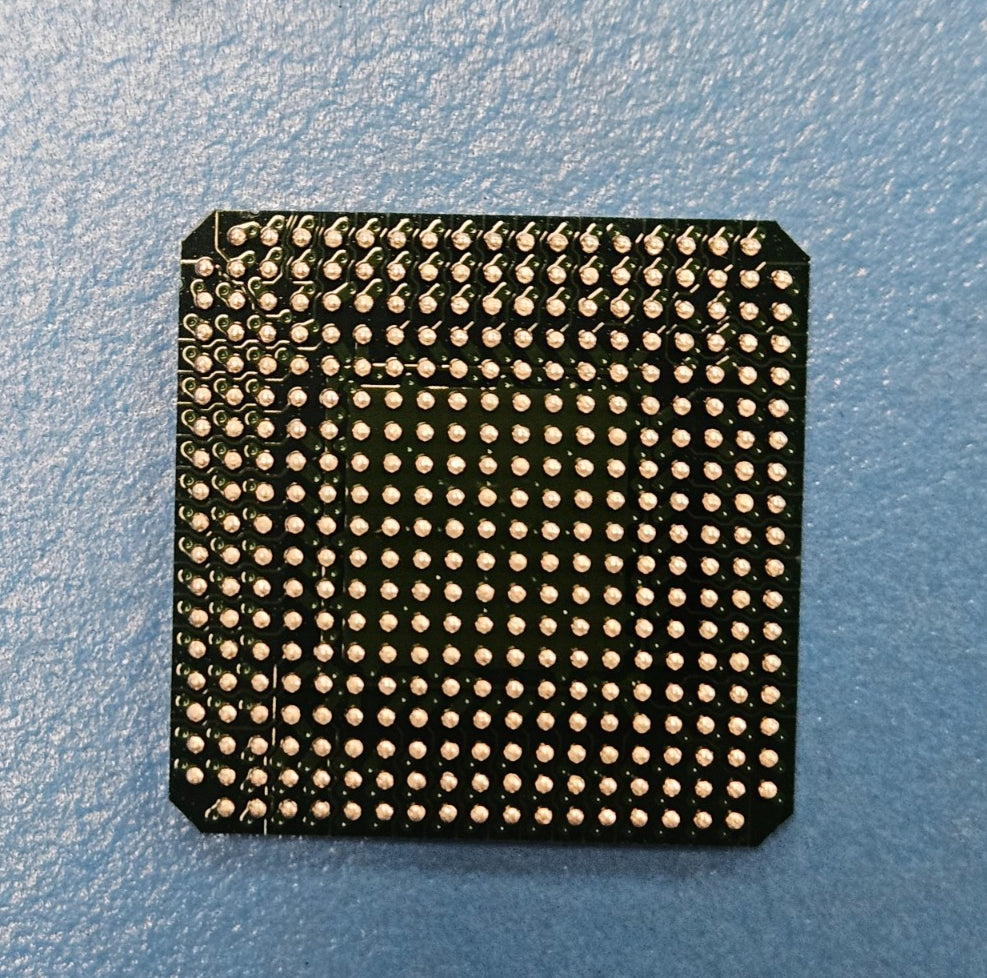

Terminal Form BALL
Terminal Pitch 1.27 mm
Terminal Position BOTTOM
Length 25.0 mm
Width 25.0 mm
