(1PC) XCS40XL-4BG256I FPGA 40K Gates 1862 Cells 217MHz 3.3V 256-Pin BGA
Tax included.

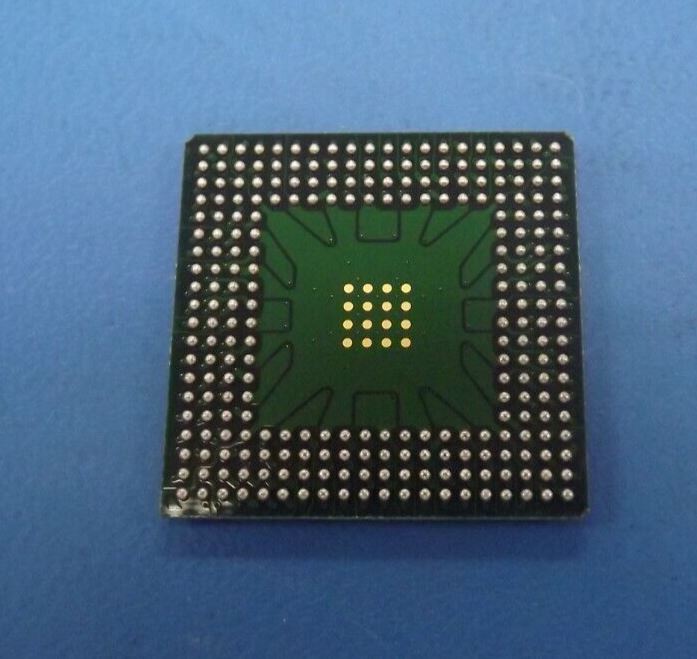

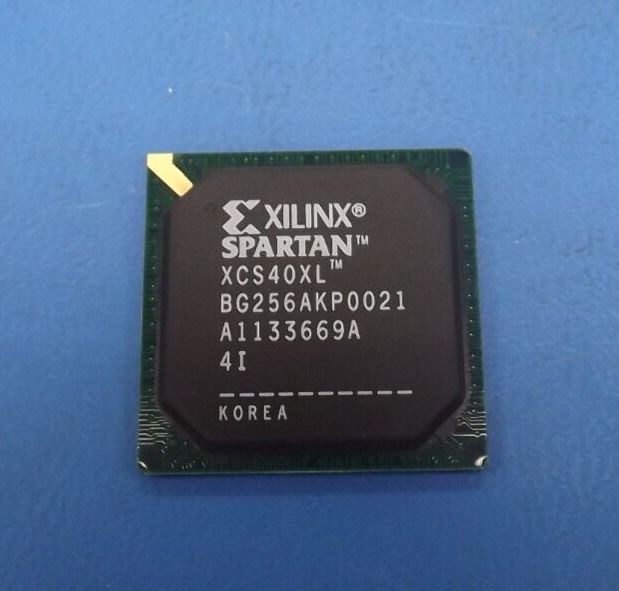

THIS LISTING IS FOR (1PC) BY XCS40XL-4BG256I XILINX
Mfr Package Description PLASTIC, BGA-256
Status Discontinued
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Clock Frequency-Max 217.0 MHz
Combinatorial Delay of a CLB-Max 1.1 ns
JESD-30 Code S-PBGA-B256
JESD-609 Code e0
Moisture Sensitivity Level 3
Number of CLBs 784.0
Number of Equivalent Gates 13000.0
Number of Inputs 205.0
Number of Logic Cells 1862.0
Number of Outputs 205.0
Number of Terminals 256
Organization 784 CLBS, 13000 GATES
Package Body Material PLASTIC/EPOXY
Package Code BGA
Package Equivalence Code BGA256,20X20,50
Package Shape SQUARE
Package Style GRID ARRAY
Peak Reflow Temperature (Cel) 225
Power Supplies 3.3
Qualification Status Not Qualified
Seated Height-Max 2.55 mm
Sub Category Field Programmable Gate Arrays
Supply Voltage-Nom 3.3 V
Supply Voltage-Min 3.0 V
Supply Voltage-Max 3.6 V
Surface Mount YES
Technology CMOS
Terminal Finish Tin/Lead (Sn63Pb37)
Terminal Form BALL
Terminal Pitch 1.27 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) 30
Length 27.0 mm
Width 27.0 mm
Additional Feature MAXIMUM USABLE GATES 40000
