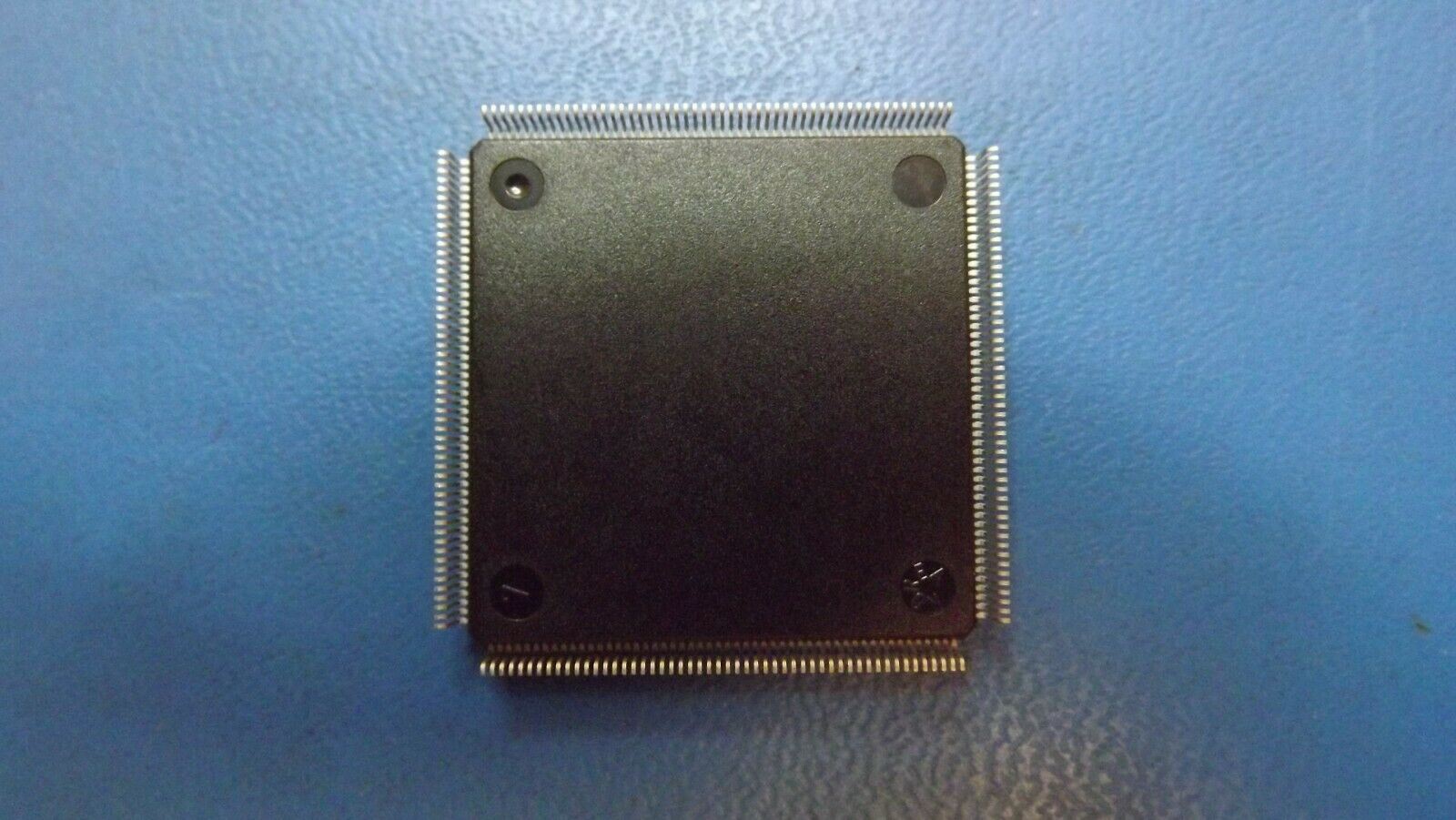

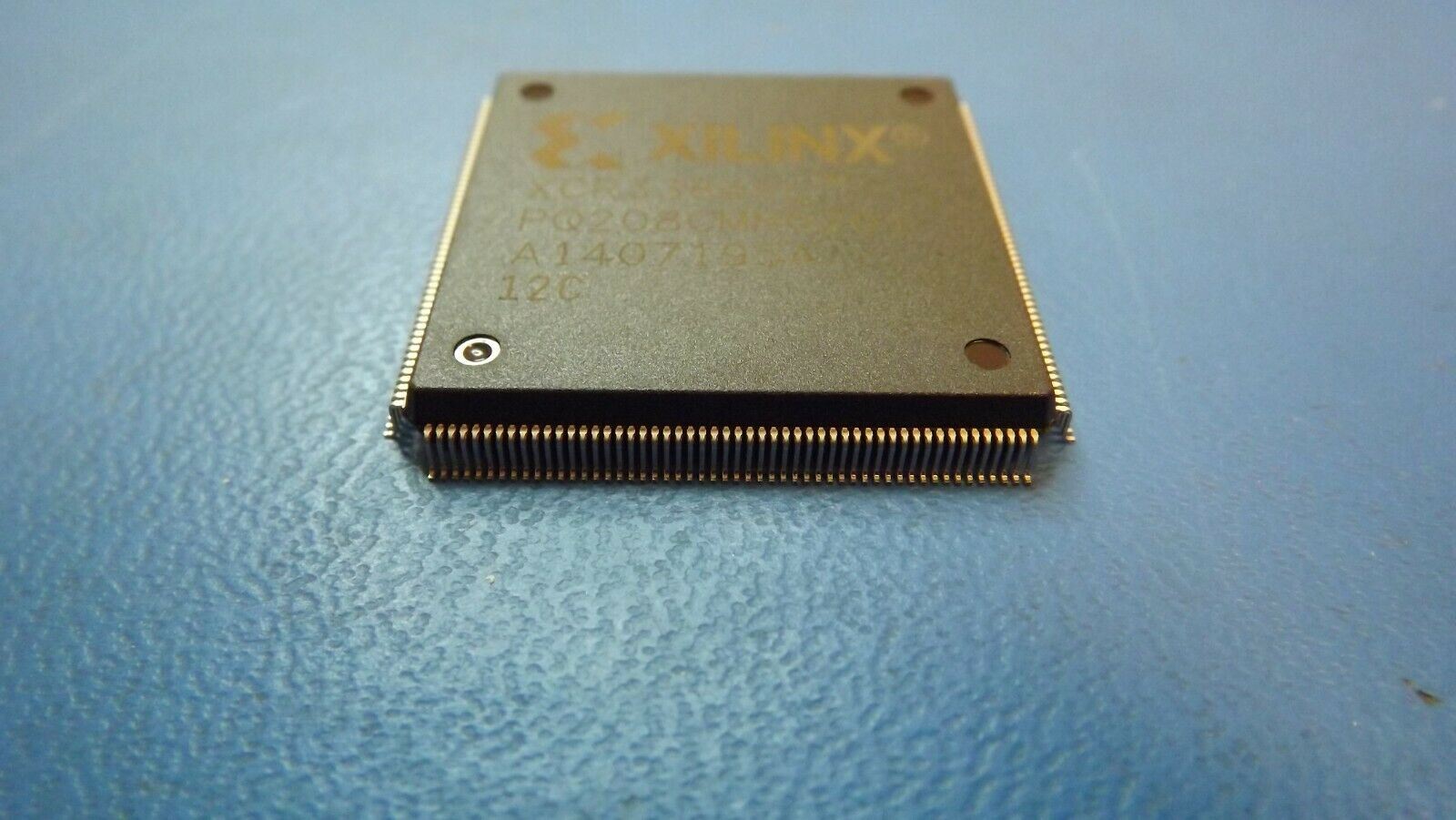

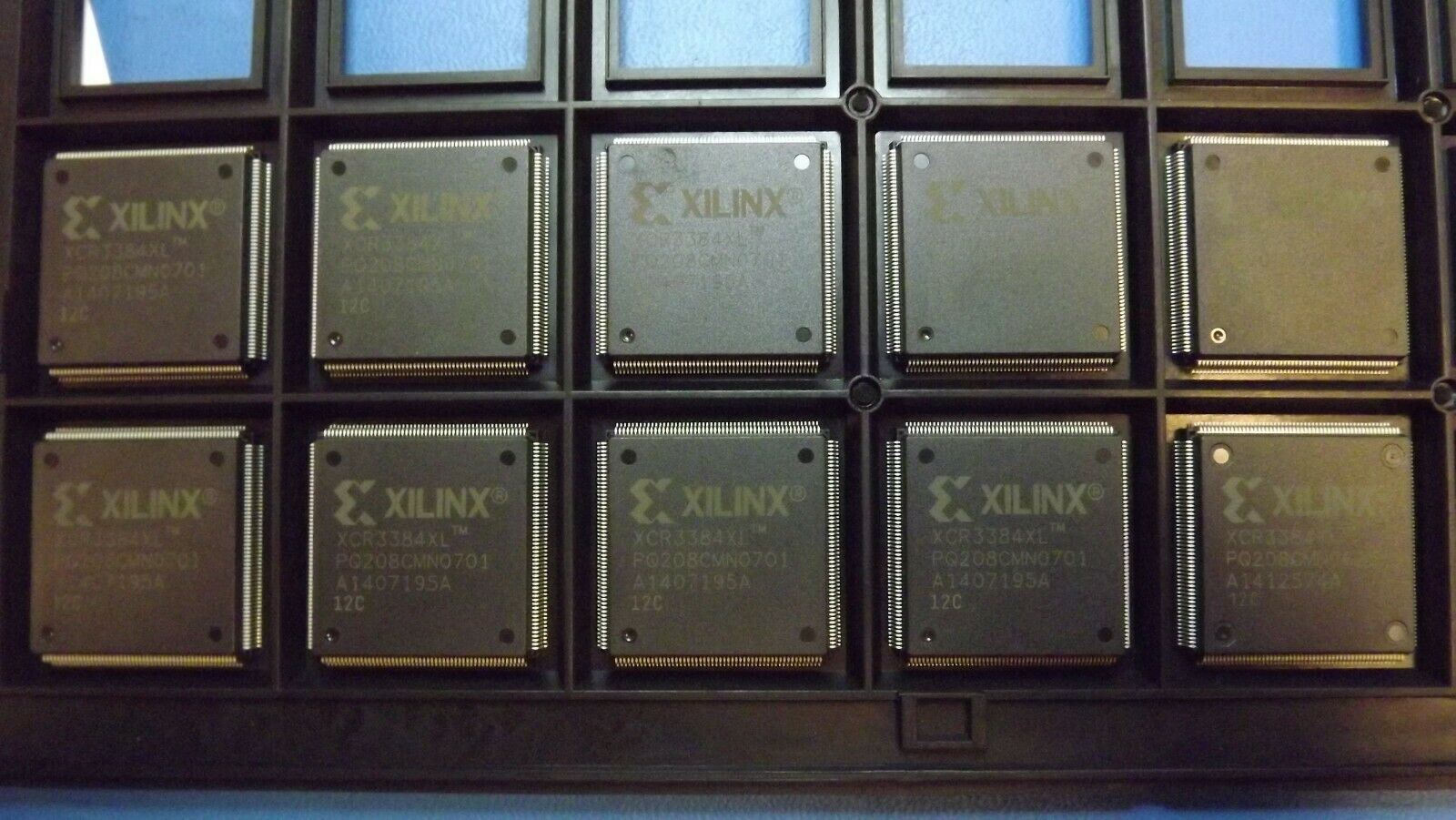

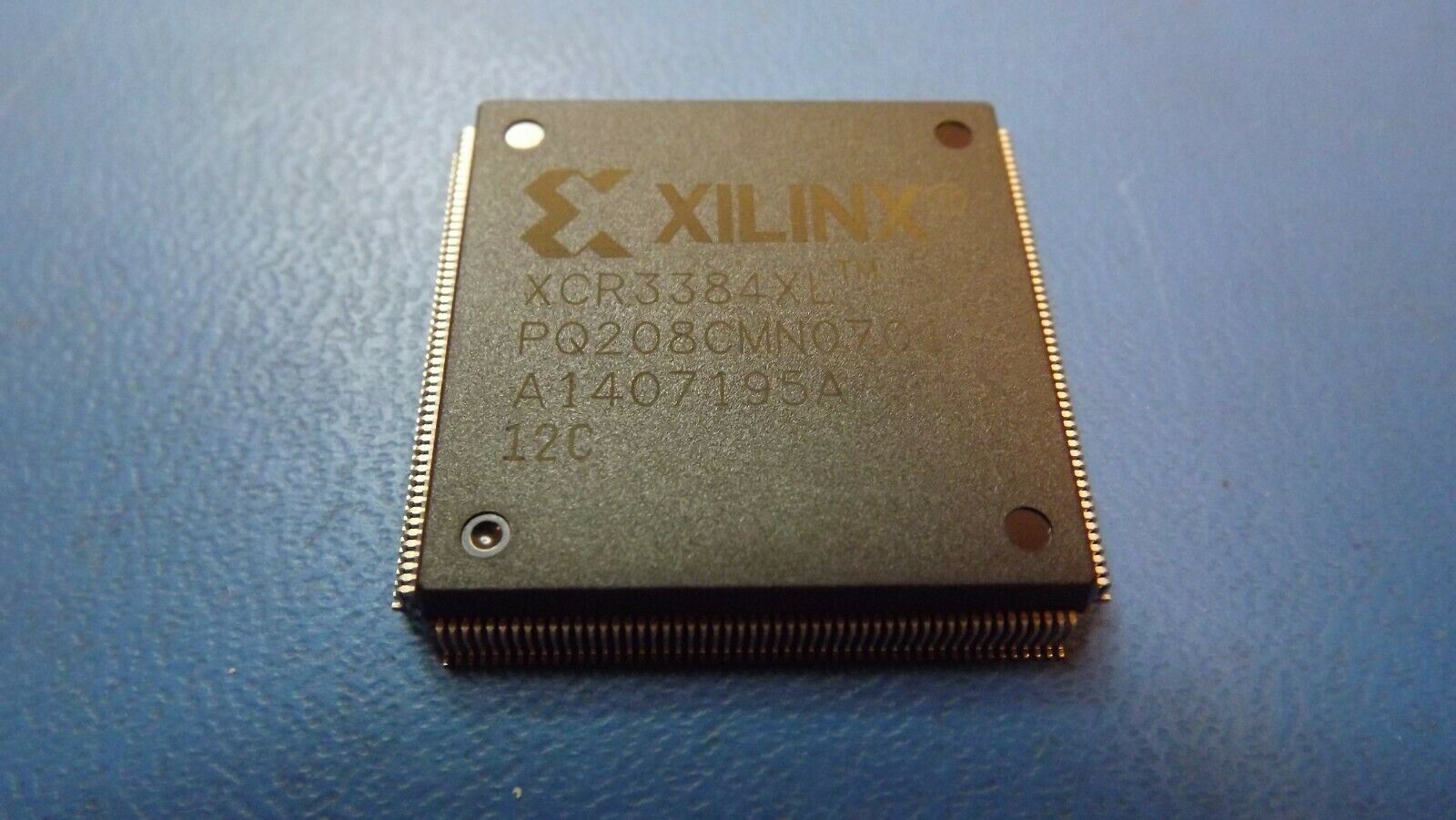

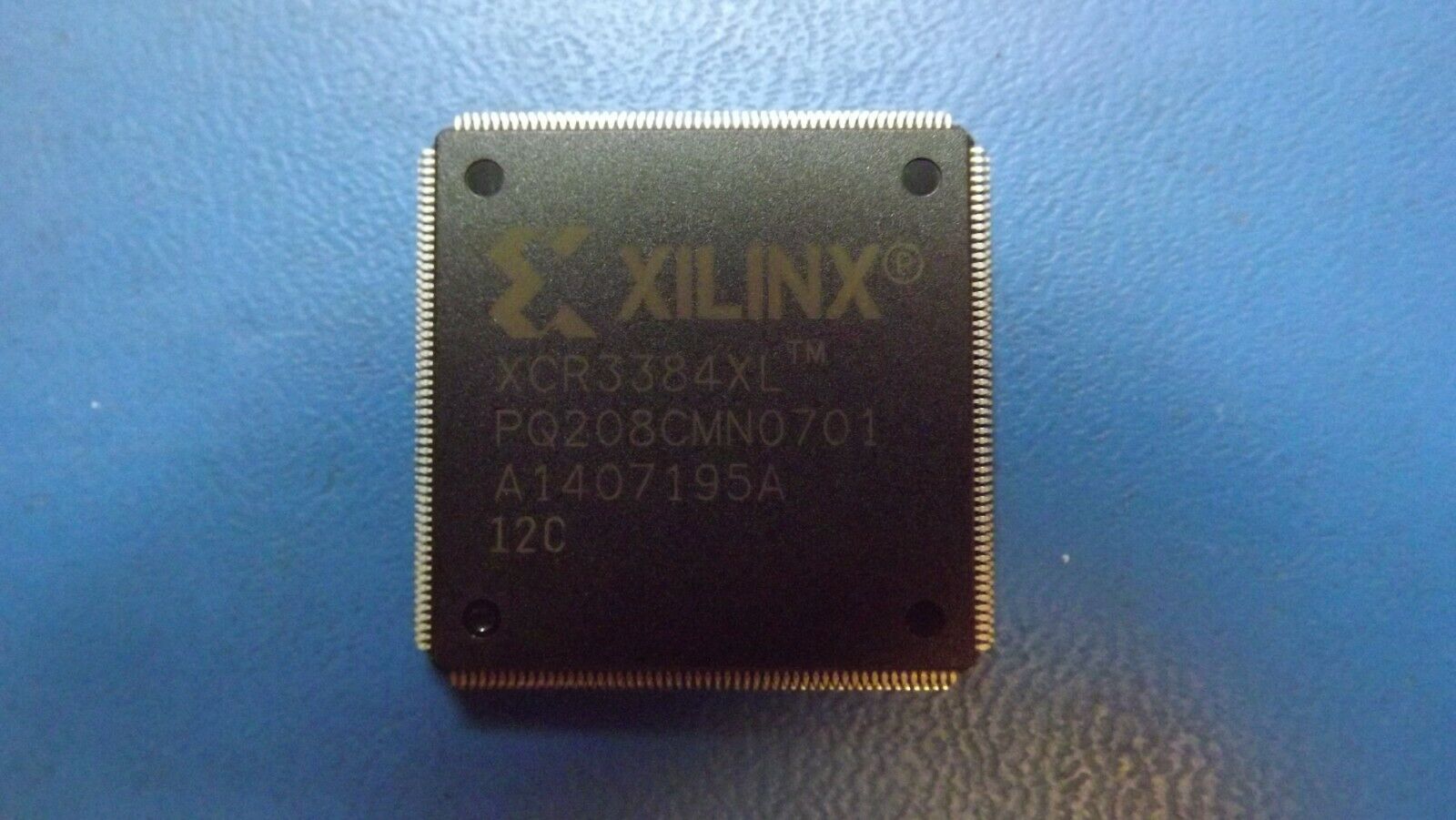

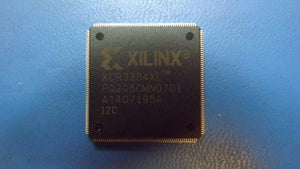

(1PC) XCR3384XL-12PQ208C XILINX IC CPLD 384MC 10.8NS 208QFP
Tax included.
THIS LISTING IS FOR (1PC) OF XCR3384XL-12PQ208C BY XILINX
SPECIFICATIONS
| Mfr Package Description | PLASTIC, QFP-208 |
| REACH Compliant | Yes |
| Status | Active |
| Programmable Logic Type | EE PLD |
| Clock Frequency-Max | 83.0 MHz |
| In-System Programmable | YES |
| JESD-30 Code | S-PQFP-G208 |
| JESD-609 Code | e0 |
| JTAG BST | YES |
| Moisture Sensitivity Level | 3 |
| Number of Dedicated Inputs | 0.0 |
| Number of I/O Lines | 172.0 |
| Number of Macro Cells | 384.0 |
| Number of Terminals | 208 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Organization | 0 DEDICATED INPUTS, 172 I/O |
| Output Function | MACROCELL |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | FQFP |
| Package Equivalence Code | QFP208,1.2SQ,20 |
| Package Shape | SQUARE |
| Package Style | FLATPACK, FINE PITCH |
| Peak Reflow Temperature (Cel) | 225 |
| Power Supplies | 3.3 |
| Propagation Delay | 12.0 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.1 mm |
| Sub Category | Programmable Logic Devices |
| Supply Voltage-Nom | 3.3 V |
| Supply Voltage-Min | 3.0 V |
| Supply Voltage-Max | 3.6 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn85Pb15) |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.5 mm |
| Terminal Position | QUAD |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Length | 28.0 mm |
| Width | 28.0 mm |
| Additional Feature | YES |
