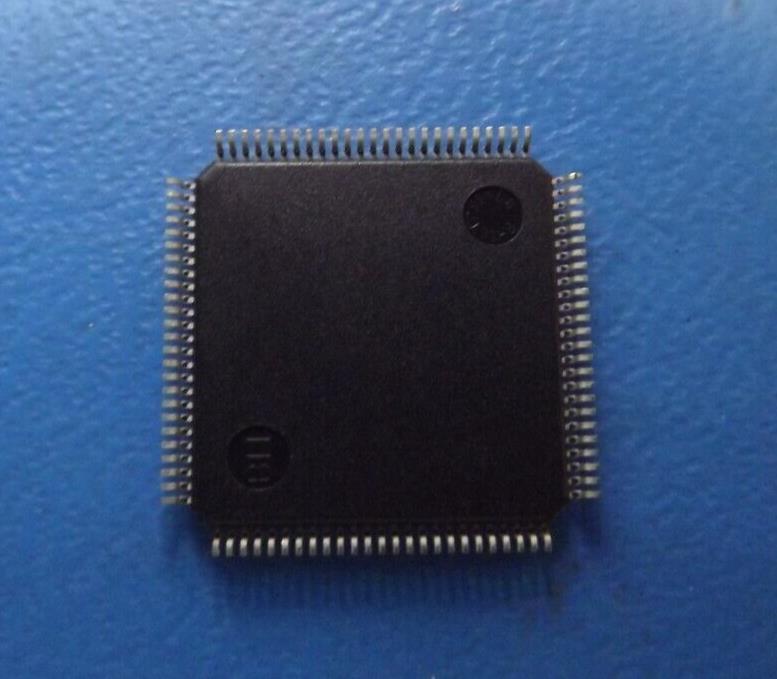

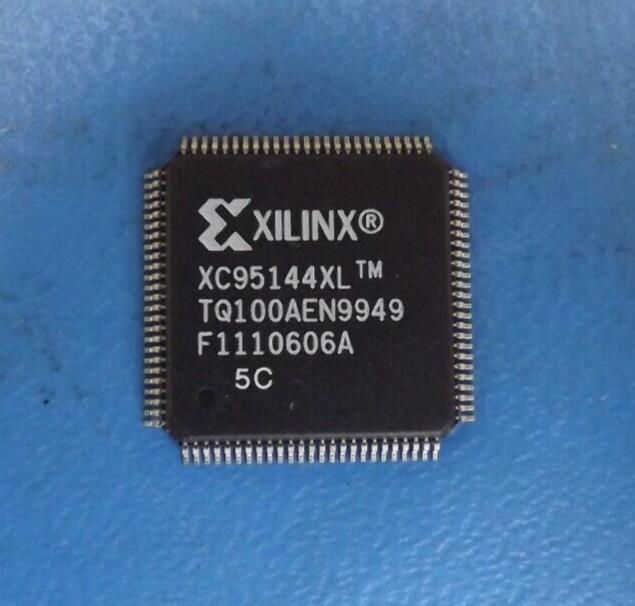

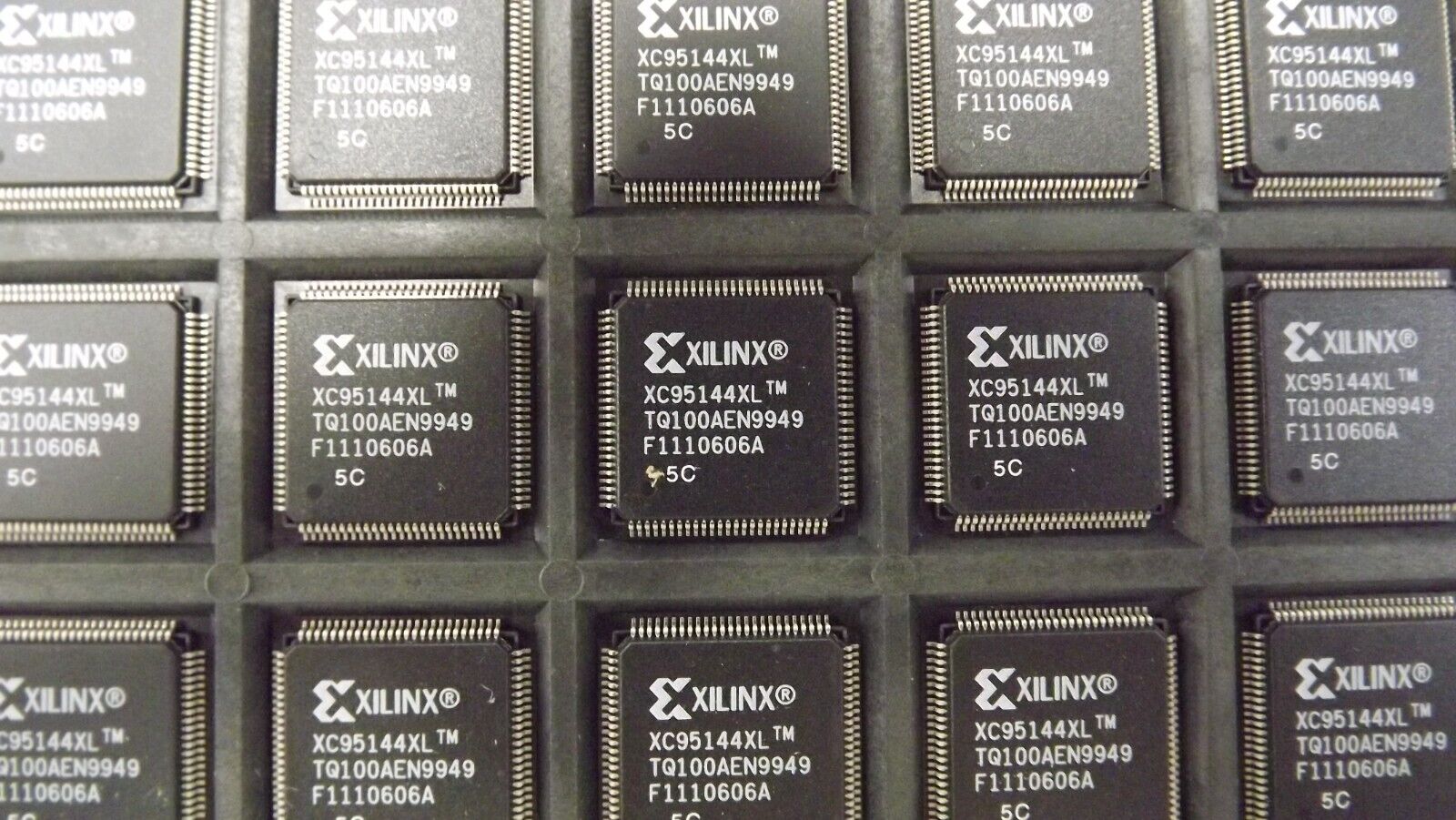

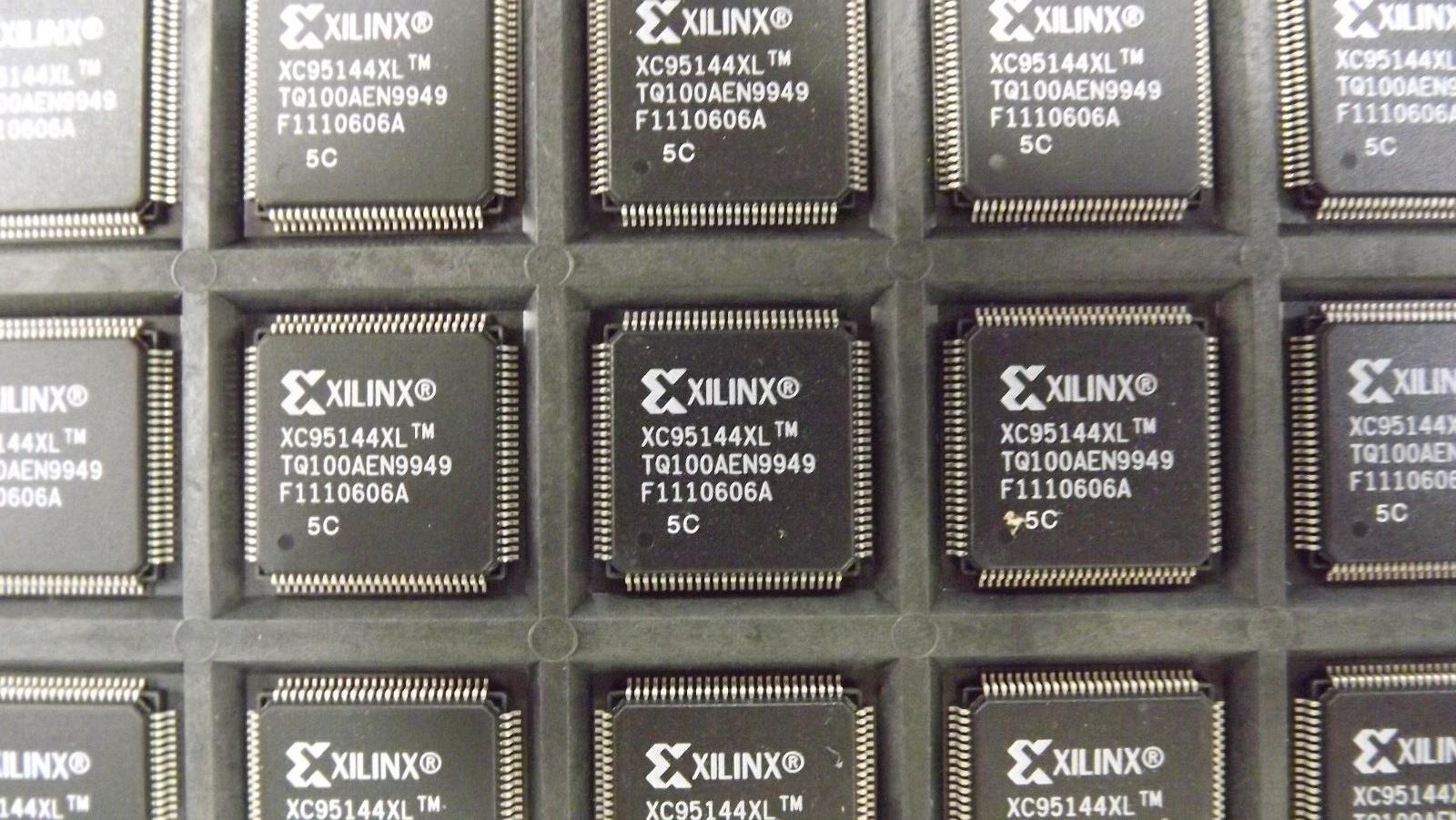

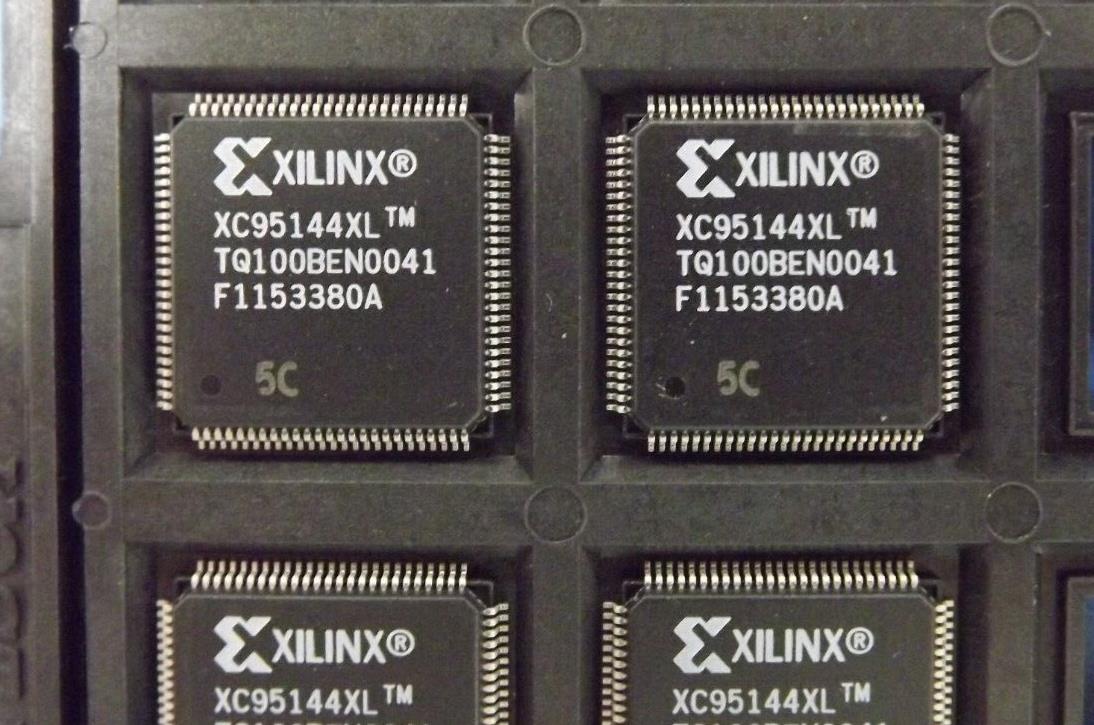

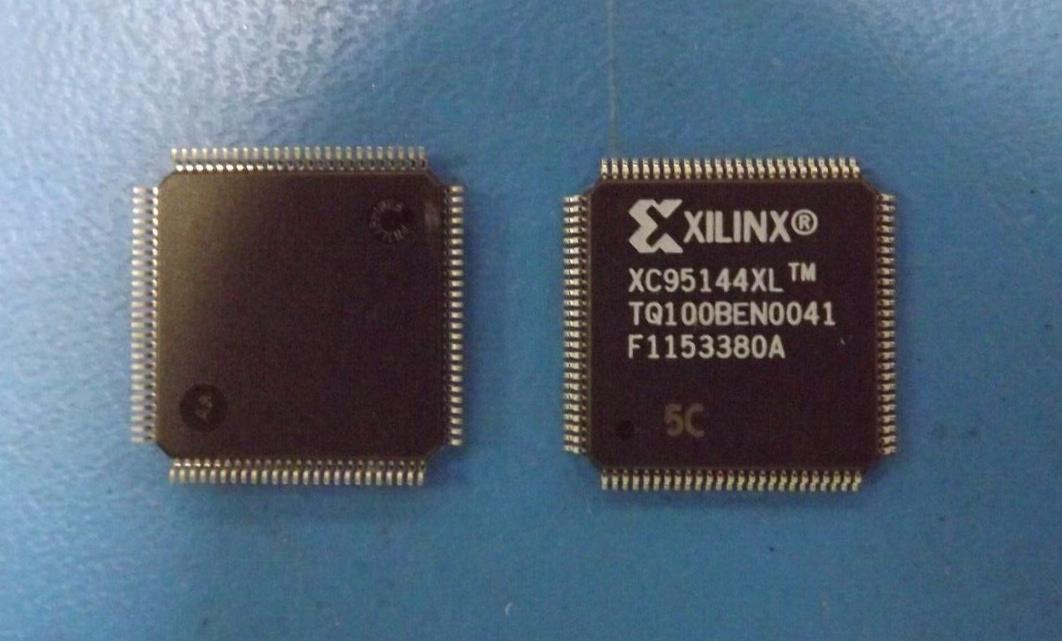

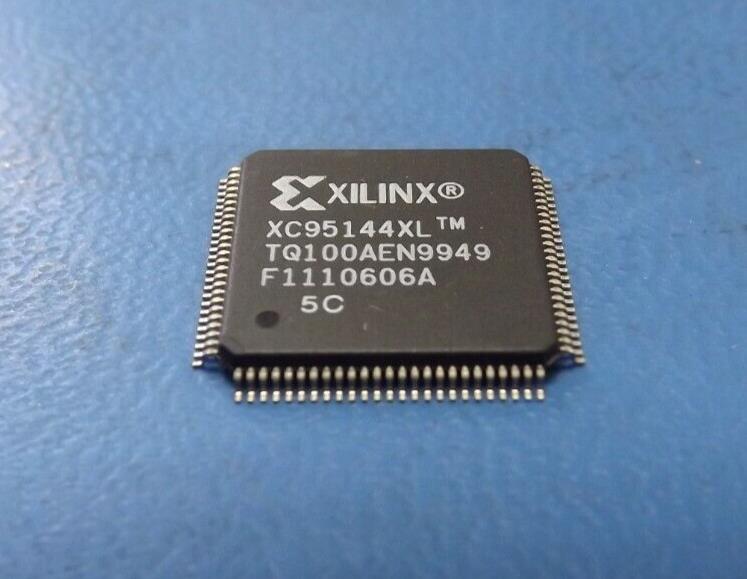

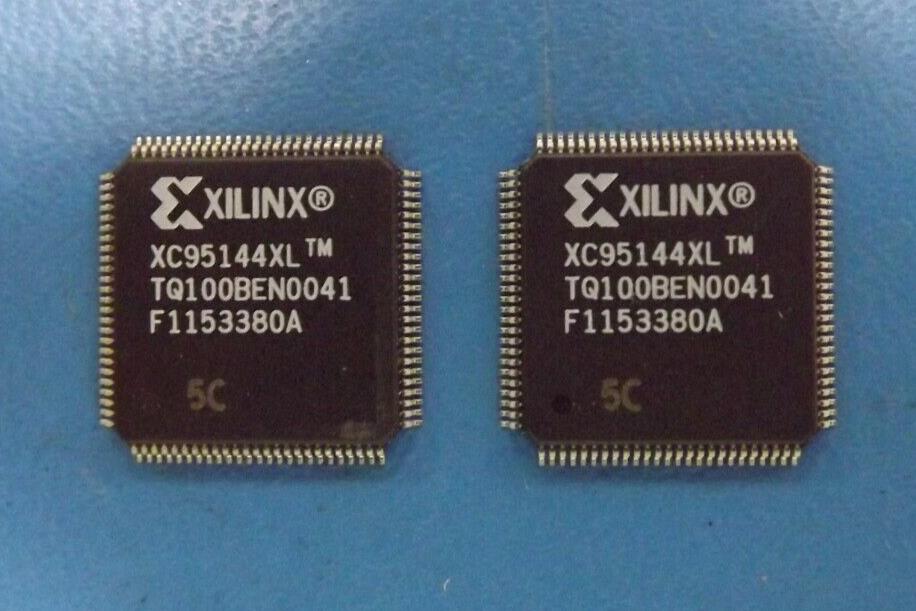

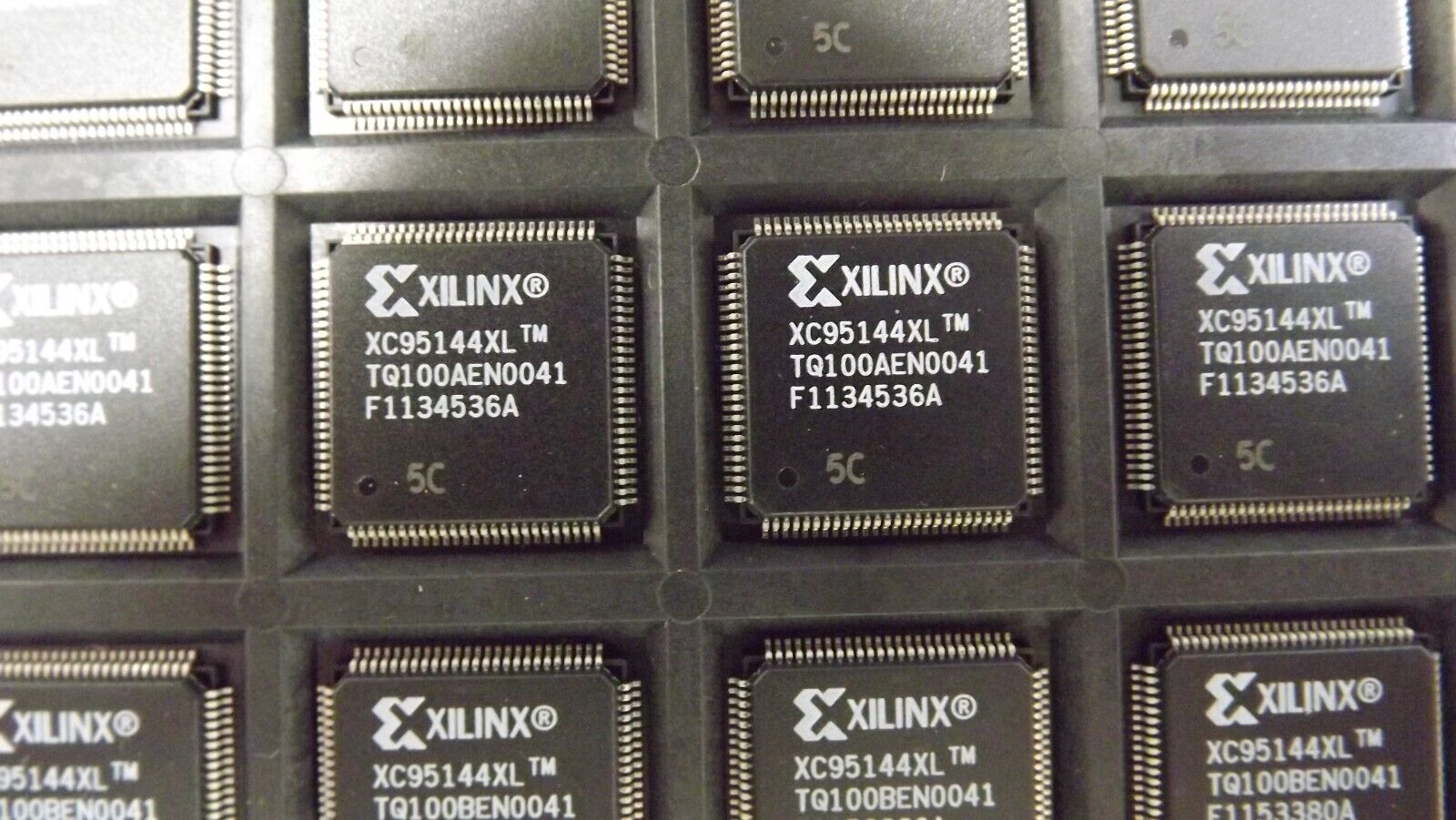

(1PC) XC95144XL-5TQ100C XILINX Flash PLD, 5ns, 144-Cell, CMOS, PQFP100
Tax included.
THIS LISTING IS FOR (1PC) OF XC95144XL-5TQ100C BY XILINX
Mfr Package Description TQFP-100
REACH Compliant Yes
EU RoHS Compliant Yes
Status Active
Programmable Logic Type FLASH PLD
Clock Frequency-Max 138.88 MHz
In-System Programmable YES
JESD-30 Code S-PQFP-G100
JESD-609 Code e4
JTAG BST YES
Moisture Sensitivity Level 3
Number of Dedicated Inputs 0.0
Number of I/O Lines 81.0
Number of Inputs 81.0
Number of Macro Cells 144.0
Number of Outputs 81.0
Number of Terminals 100
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 0 DEDICATED INPUTS, 81 I/O
Output Function MACROCELL
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP100,.63SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supplies 2.5/3.3,3.3
Propagation Delay 5.0 ns
Qualification Status Not Qualified
Seated Height-Max 1.6 mm
Sub Category Programmable Logic Devices
Supply Voltage-Nom 3.3 V
Supply Voltage-Min 3.0 V
Supply Voltage-Max 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 14.0 mm
Width 14.0 mm
Additional Feature IN SYSTEM PROGRAMMABLE
