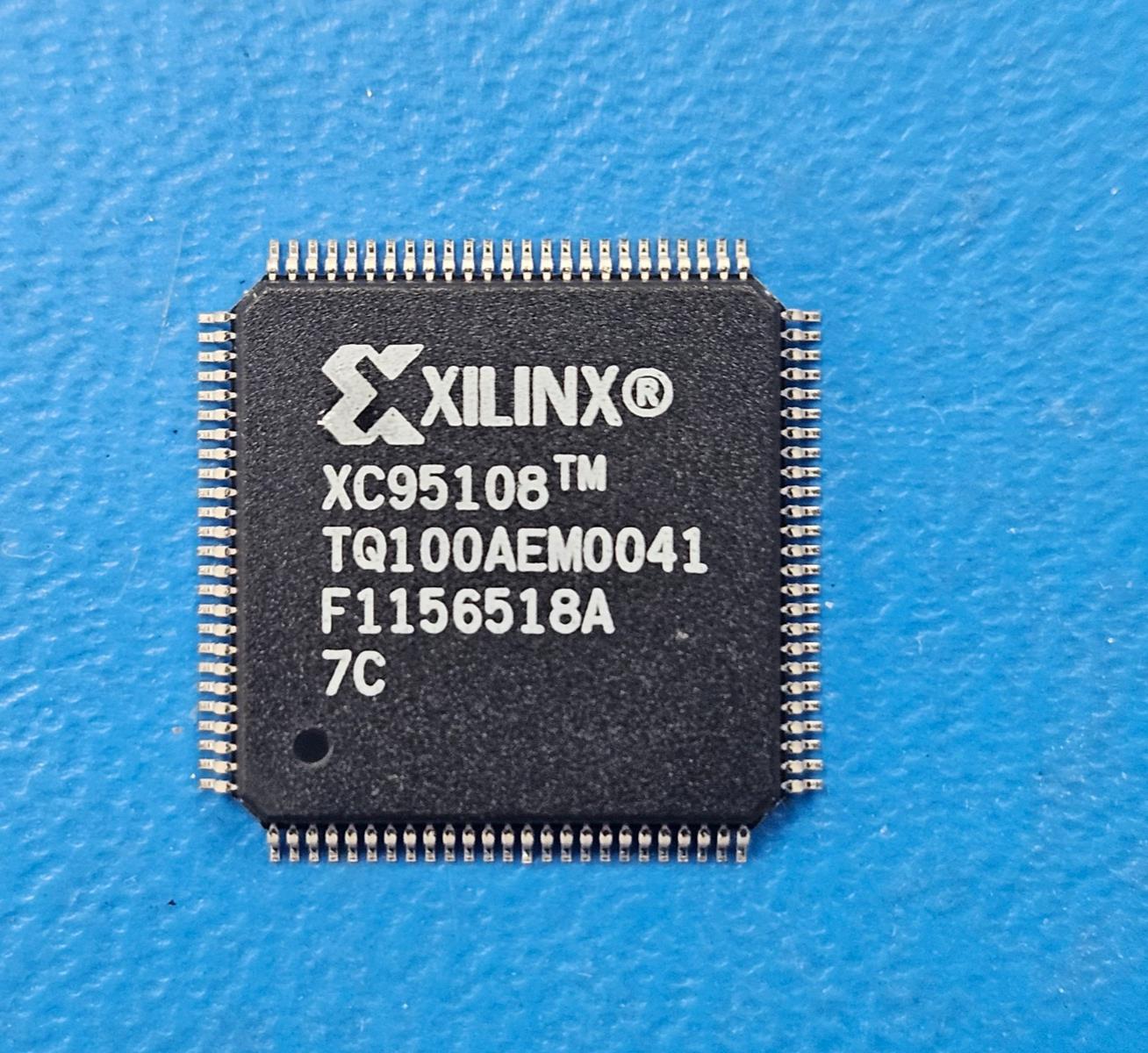

(1PC) XC95108-7TQ100C XILINX Flash PLD, 7.5ns, 108-Cell, CMOS, PQFP100
Tax included.
This listing is for (1PC) of XC95108-7TQ100C by Xilinx
Mfr Package Description TQFP-100
Status Discontinued
Programmable Logic Type FLASH PLD
In-System Programmable YES
JESD-30 Code S-PQFP-G100
JESD-609 Code e0
JTAG BST YES
Moisture Sensitivity Level 3
Number of Dedicated Inputs 0.0
Number of I/O Lines 81.0
Number of Macro Cells 108.0
Number of Terminals 100
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 0 DEDICATED INPUTS, 81 I/O
Output Function MACROCELL
Package Body Material PLASTIC/EPOXY
Package Code HLFQFP
Package Equivalence Code QFP100,.63SQ,20
Package Shape SQUARE
Package Style FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 225
Power Supplies 3.3/5,5
Propagation Delay 7.5 ns
Qualification Status Not Qualified
Seated Height-Max 1.6 mm
Sub Category Programmable Logic Devices
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn85Pb15)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Length 14.0 mm
Width 14.0 mm
Additional Feature YES
