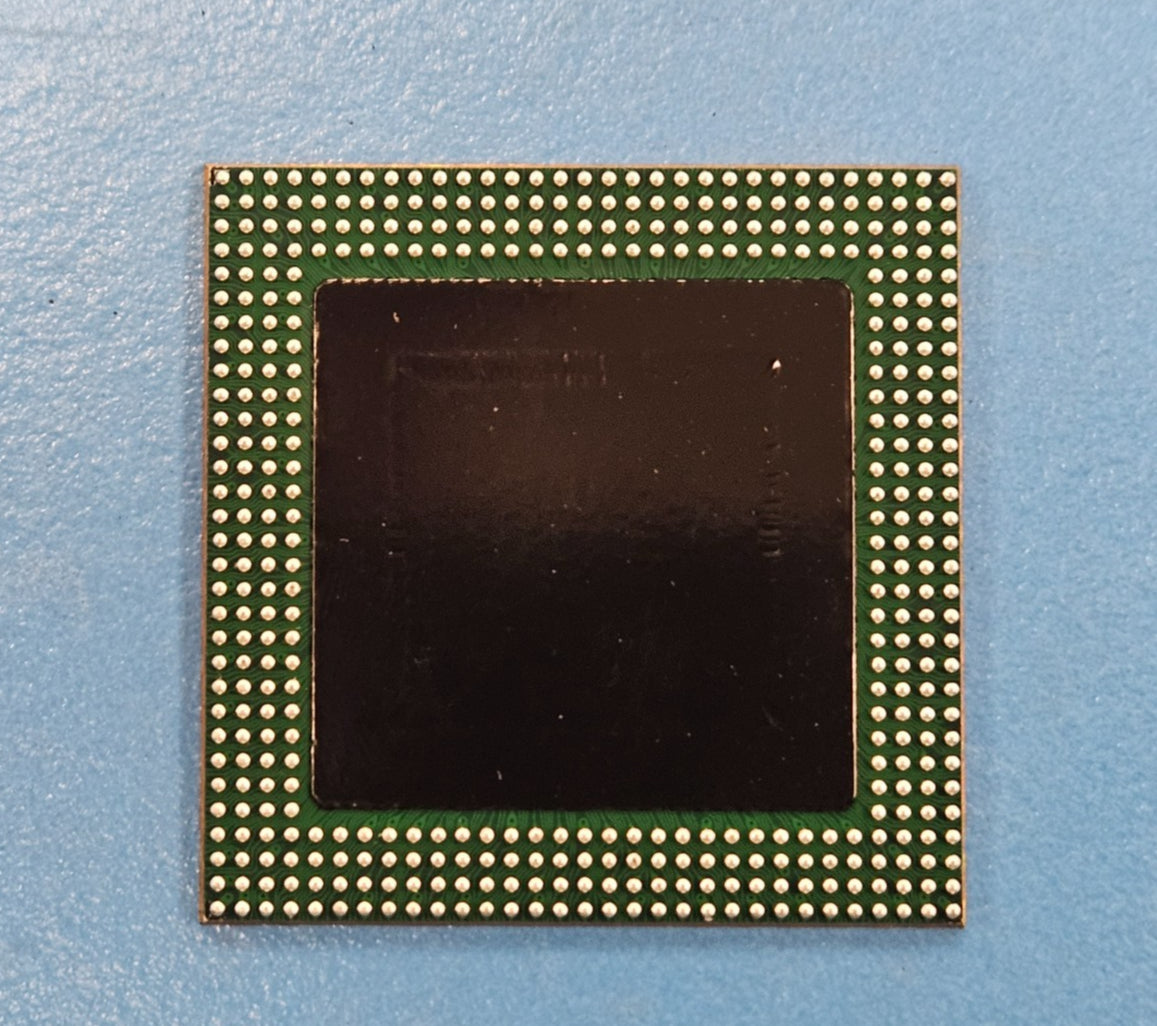

(1PC) XC4062XL-09BG432C FPGA 62K Gates 5472 Cells 217MHz 0.35um 3.3V 432QFP
Tax included.
This listing is for (1) XC4062XL-09BG432C by Altera
Status Discontinued
Additional Feature TYPICAL GATES 40000-130000
Clock Frequency-Max (MHz) 217.00000
Combinatorial Delay of a CLB-Max (ns) 1.2000000000000000
JESD-30 Code S-PBGA-B432
J-STD-609 Code e0
Length (mm) 40.0000
Moisture Sensitivity Level 3
Number of CLBs 2304
Number of Equivalent Gates 40000
Number of Inputs 384
Number of Logic Cells 2304
Number of Outputs 384
Number of Terminals 432
Operating Temperature-Max (Cel) 85.0
Operating Temperature-Min (Cel) 0.0
Organization 2304 CLBS, 40000 GATES
Package Body Material PLASTIC/EPOXY
Package Code LBGA
Package Equivalence Code BGA432,31X31,50
Package Shape SQUARE
Package Style GRID ARRAY, LOW PROFILE
Peak Reflow Temperature (Cel) 225
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
DLA Qualification Not Qualified
Seated Height-Max (mm) 1.7000
Supply Voltage-Max (V) 3.60000
Supply Voltage-Min (V) 3.00000
Supply Voltage-Nom (V) 3.3
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Finish Tin/Lead (Sn63Pb37)
Terminal Form BALL
