(1PC) XC4010XL-1PQ208C FPGA 950 Cells 0.35um Technology 3.3V 208-Pin PQFP
Tax included.

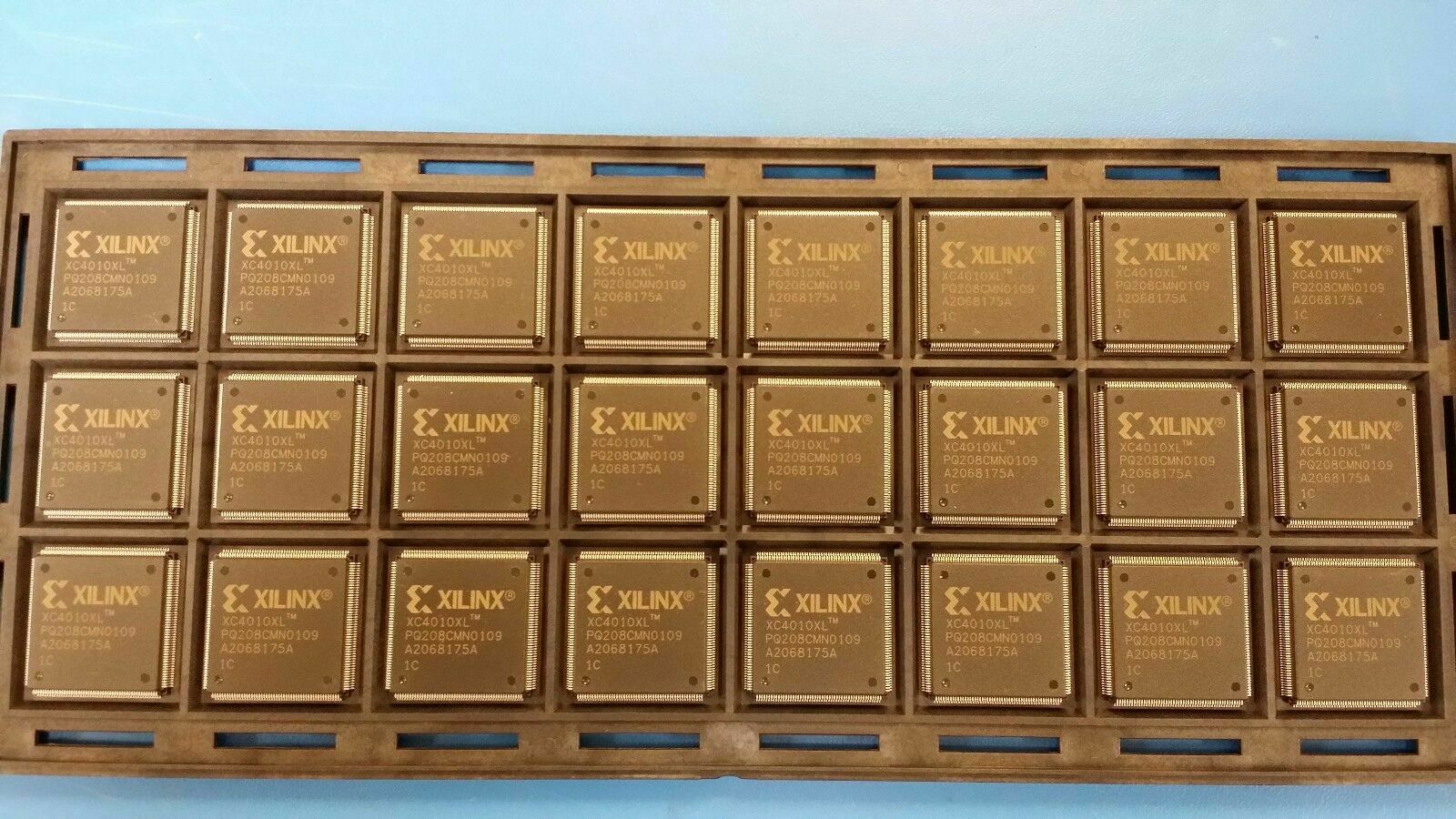

THIS LISTING IS FOR (1PC) OF XC4010XL-1PQ208C BY XILINX.
FPGA XC4000X Family 10K Gates 950 Cells 0.35um Technology 3.3V 208-Pin PQFP
| Mfr Package Description | PLASTIC, QFP-208 |
| REACH Compliant | Yes |
| Status | Discontinued |
| Programmable Logic Type | FIELD PROGRAMMABLE GATE ARRAY |
| Clock Frequency-Max | 200 MHz |
| Combinatorial Delay of a CLB-Max | 1.3 ns |
| JESD-30 Code | S-PQFP-G208 |
| JESD-609 Code | e0 |
| Moisture Sensitivity Level | 3 |
| Number of CLBs | 400 |
| Number of Equivalent Gates | 7000 |
| Number of Inputs | 160 |
| Number of Logic Cells | 400 |
| Number of Outputs | 160 |
| Number of Terminals | 208 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 85 Cel |
| Organization | 400 CLBS, 7000 GATES |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | FQFP |
| Package Equivalence Code | QFP208,1.2SQ,20 |
| Package Shape | SQUARE |
| Package Style | FLATPACK, FINE PITCH |
| Peak Reflow Temperature (Cel) | 225 |
| Power Supplies | 3.3 |
| Qualification Status | COMMERCIAL |
| Seated Height-Max | 4.1 mm |
| Sub Category | Field Programmable Gate Arrays |
| Supply Voltage-Nom | 3.3 V |
| Supply Voltage-Min | 3 V |
| Supply Voltage-Max | 3.6 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | OTHER |
| Terminal Finish | TIN LEAD |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.5000 mm |
| Terminal Position | QUAD |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Length | 28 mm |
| Width | 28 mm |
| Additional Feature | MAX USABLE 10000 LOGIC GATES |
