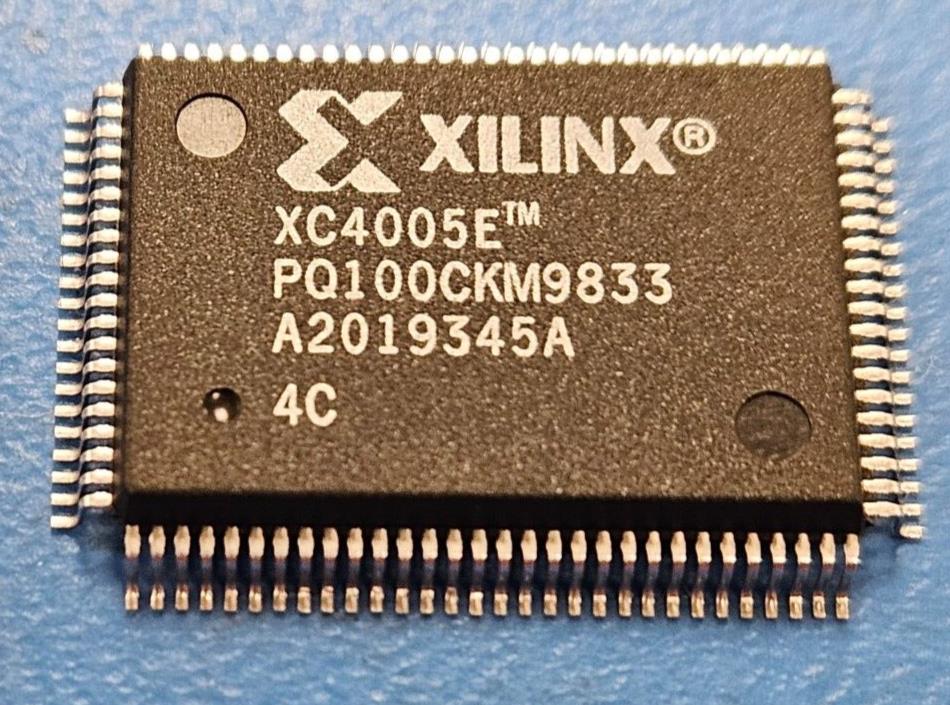

This listing is for (1PC) of XC4005E-4PQ100C by Xilinx

Mfr Package Description PLASTIC, QFP-100
Status Discontinued
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Clock Frequency-Max 111.0  MHz
Combinatorial Delay of a CLB-Max 2.7  ns
JESD-30 Code R-PQFP-G100
JESD-609 Code e0
Moisture Sensitivity Level 3
Number of CLBs 196.0
Number of Equivalent Gates 3000.0
Number of Inputs 112.0
Number of Logic Cells 196.0
Number of Outputs 112.0
Number of Terminals 100
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 85.0  Cel
Organization 196 CLBS, 3000 GATES
Package Body Material PLASTIC/EPOXY
Package Code QFP
Package Equivalence Code QFP100,.7X.9
Package Shape RECTANGULAR
Package Style FLATPACK
Peak Reflow Temperature (Cel) 225
Power Supplies 5
Qualification Status Not Qualified
Seated Height-Max 3.4  mm
Sub Category Field Programmable Gate Arrays
Supply Voltage-Nom 5.0  V
Supply Voltage-Min 4.75  V
Supply Voltage-Max 5.25  V
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Finish Tin/Lead (Sn85Pb15)
Terminal Form GULL WING
Terminal Pitch 0.65  mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Length 20.0  mm
Width 14.0  mm
