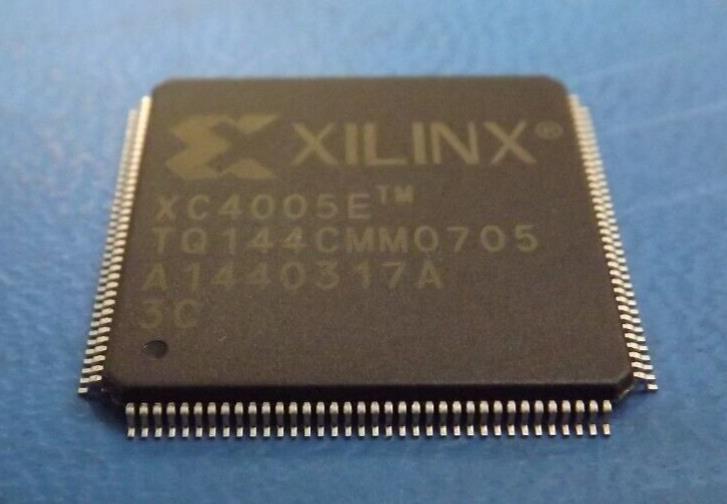

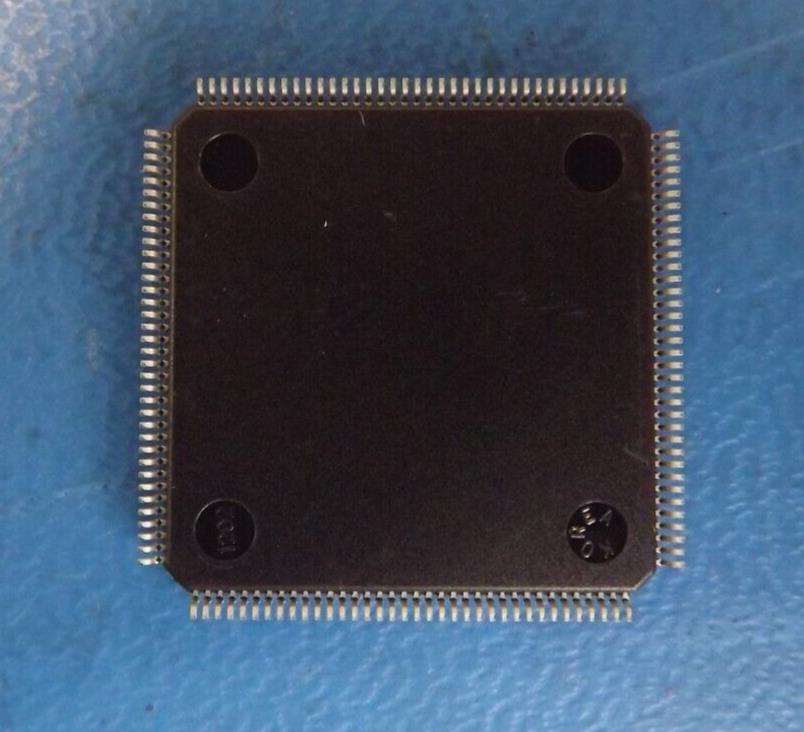

(1PC) XC4005E-3TQ144C XILINX FPGA 125MHz, 196-Cell, CMOS, PQFP144
(1PC) XC4005E-3TQ144C XILINX FPGA 125MHz, 196-Cell, CMOS, PQFP144
(1PC) XC4005E-3TQ144C XILINX FPGA 125MHz, 196-Cell, CMOS, PQFP144

(1PC) XC4005E-3TQ144C XILINX FPGA 125MHz, 196-Cell, CMOS, PQFP144

Tax included.
Only 1 left!
THIS LISTING IS FOR (1PC) OF XC4005E-3TQ144C BY XILINX

Mfr Package Description PLASTIC, TQFP-144
Status Discontinued
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Clock Frequency-Max 125.0 MHz
Combinatorial Delay of a CLB-Max 2.0 ns
JESD-30 Code S-PQFP-G144
JESD-609 Code e0
Moisture Sensitivity Level 3
Number of CLBs 196.0
Number of Equivalent Gates 3000.0
Number of Inputs 112.0
Number of Logic Cells 196.0
Number of Outputs 112.0
Number of Terminals 144
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 85.0 Cel
Organization 196 CLBS, 3000 GATES
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP144,.87SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 225
Power Supplies 5
Qualification Status Not Qualified
Seated Height-Max 1.6 mm
Sub Category Field Programmable Gate Arrays
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Finish Tin/Lead (Sn85Pb15)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Length 20.0 mm
Width 20.0 mm
Additional Feature MAX USABLE 5000 LOGIC GATES
