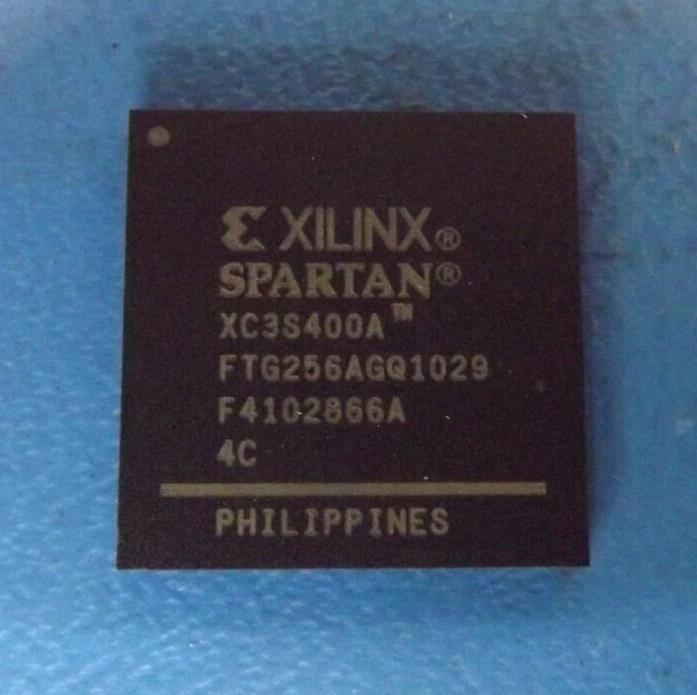

(1PC) XC3S400A-4FTG256C XILINX FPGA 667MHz, 8064-Cell, CMOS, PBGA256
(1PC) XC3S400A-4FTG256C XILINX FPGA 667MHz, 8064-Cell, CMOS, PBGA256
(1PC) XC3S400A-4FTG256C XILINX FPGA 667MHz, 8064-Cell, CMOS, PBGA256

(1PC) XC3S400A-4FTG256C XILINX FPGA 667MHz, 8064-Cell, CMOS, PBGA256

Tax included.
Only 32 left!
THIS LISTING IS FOR (1PC) OF XC3S400A-4FTG256C BY XILINX

Mfr Package Description FTBGA-256
REACH Compliant Yes
EU RoHS Compliant Yes
Status Active
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Clock Frequency-Max 667.0 MHz
Combinatorial Delay of a CLB-Max 0.71 ns
JESD-30 Code S-PBGA-B256
JESD-609 Code e1
Moisture Sensitivity Level 3
Number of CLBs 896.0
Number of Equivalent Gates 400000.0
Number of Inputs 195.0
Number of Logic Cells 8064.0
Number of Outputs 160.0
Number of Terminals 256
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 85.0 Cel
Organization 896 CLBS, 400000 GATES
Package Body Material PLASTIC/EPOXY
Package Code LBGA
Package Equivalence Code BGA256,16X16,40
Package Shape SQUARE
Package Style GRID ARRAY, LOW PROFILE
Peak Reflow Temperature (Cel) 260
Power Supplies 1.2,2.5/3.3
Qualification Status Not Qualified
Seated Height-Max 1.55 mm
Sub Category Field Programmable Gate Arrays
Supply Voltage-Nom 1.2 V
Supply Voltage-Min 1.14 V
Supply Voltage-Max 1.26 V
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Finish Tin/Silver/Copper (Sn95.5Ag4.0Cu0.5)
Terminal Form BALL
Terminal Pitch 1.0 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) 30
Length 17.0 mm
Width 17.0 mm
