(1PC) XC3142A-1PQ100C FPGA 144 CLBs, 2000 Gates, 323MHz, CMOS, QFP100
(1PC) XC3142A-1PQ100C FPGA 144 CLBs, 2000 Gates, 323MHz, CMOS, QFP100
(1PC) XC3142A-1PQ100C FPGA 144 CLBs, 2000 Gates, 323MHz, CMOS, QFP100

(1PC) XC3142A-1PQ100C FPGA 144 CLBs, 2000 Gates, 323MHz, CMOS, QFP100

Tax included.
Only 30 left!

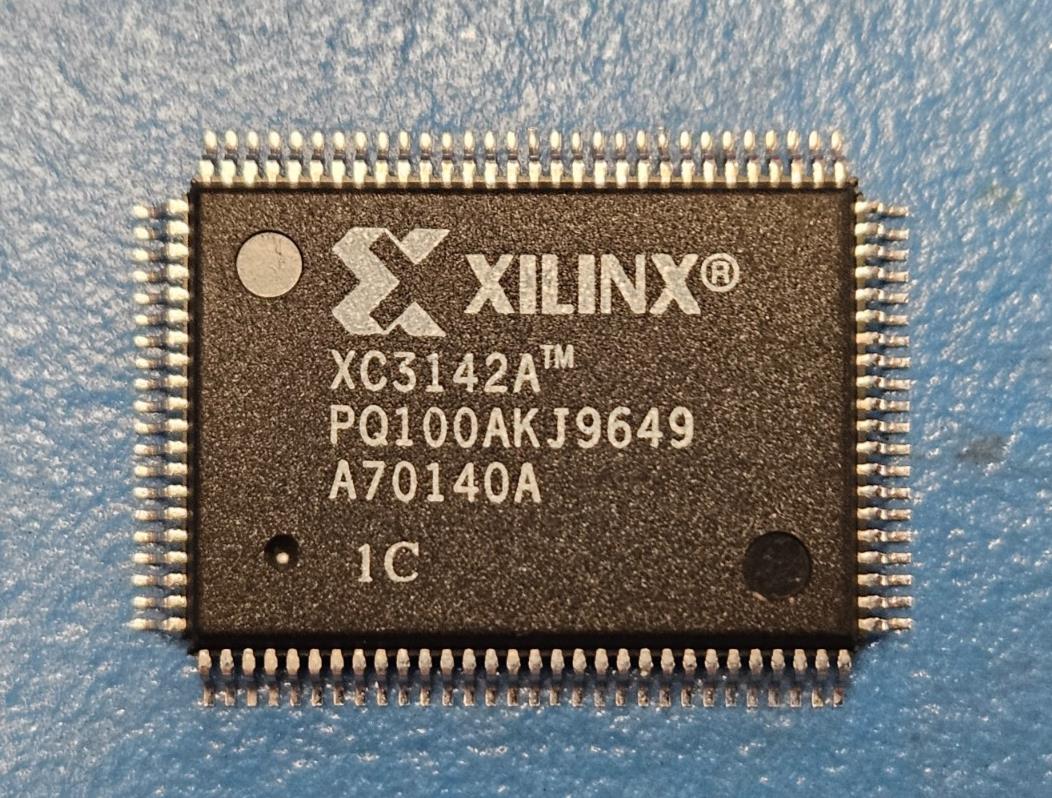

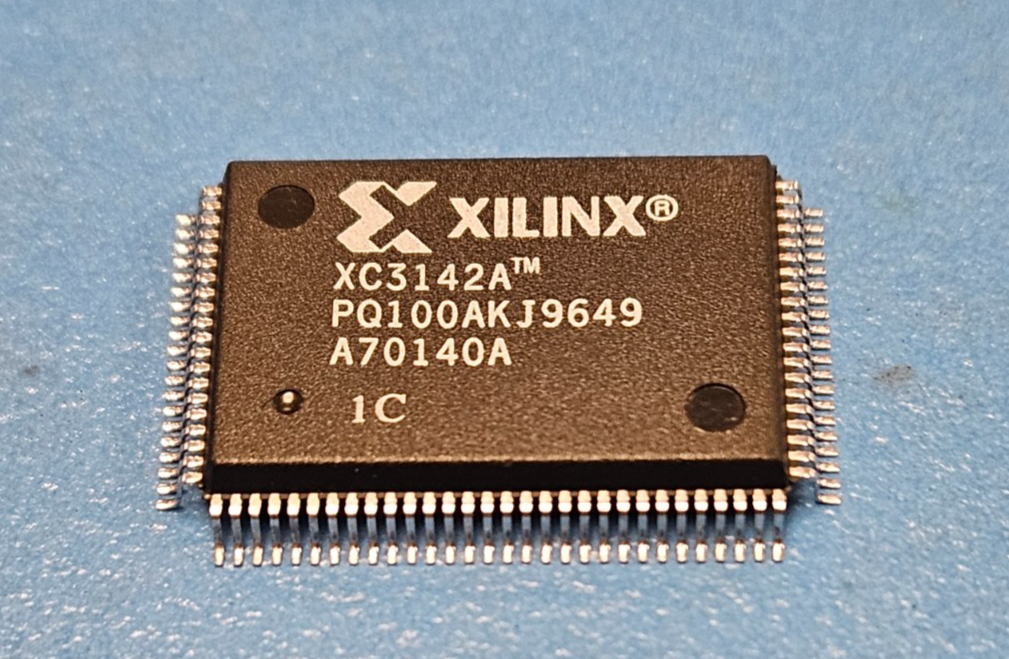

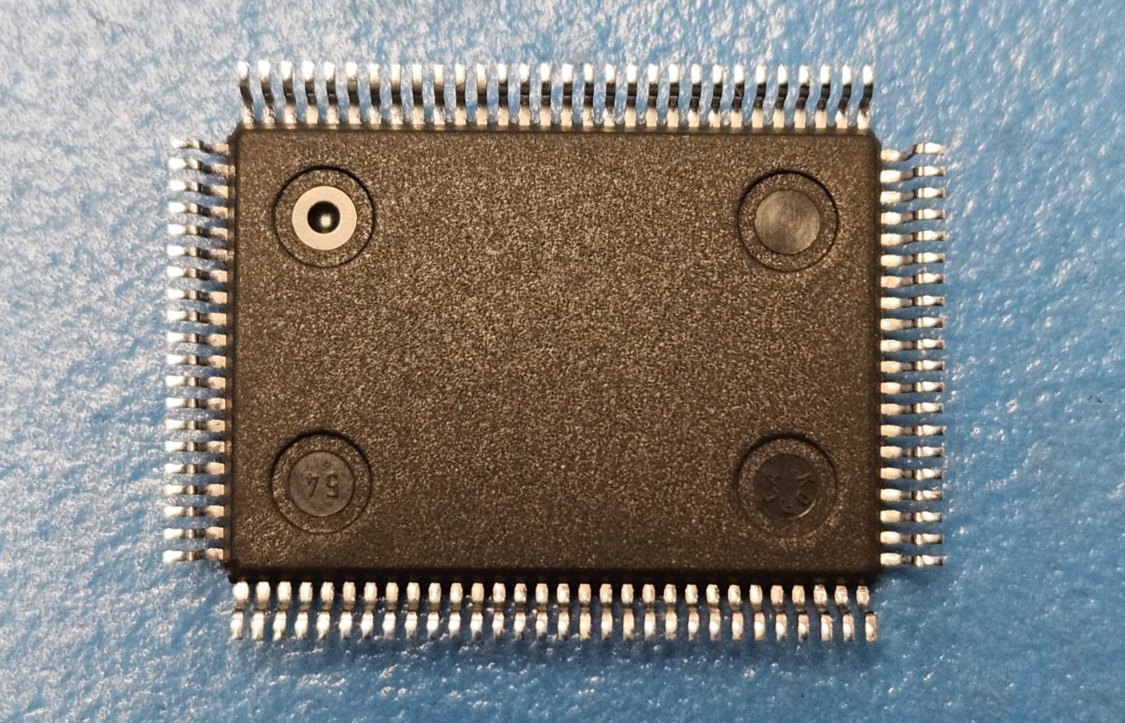

This listing is for (1PC) of XC3142A-1PQ100C by Xilinx


Status Discontinued
Additional Feature MAX USABLE 3000 LOGIC GATES
Clock Frequency-Max (MHz) 323.00000
Combinatorial Delay of a CLB-Max (ns) 1.7500000000000000
JESD-30 Code R-PQFP-G100
J-STD-609 Code e3
Length (mm) 20.0000
Moisture Sensitivity Level 3
Number of CLBs 144
Number of Equivalent Gates 2000
Number of Inputs 82
Number of Outputs 82
Number of Terminals 100
Operating Temperature-Max (Cel) 85.0
Operating Temperature-Min (Cel) 0.0
Organization 144 CLBS, 2000 GATES
Package Body Material PLASTIC/EPOXY
Package Code QFP
Package Shape RECTANGULAR
Package Style FLATPACK
Peak Reflow Temperature (Cel) 245
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Seated Height-Max (mm) 3.4000
Supply Voltage-Max (V) 5.25000
Supply Voltage-Min (V) 4.75000
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Pitch (mm) 0.650
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width (mm) 14.0000
