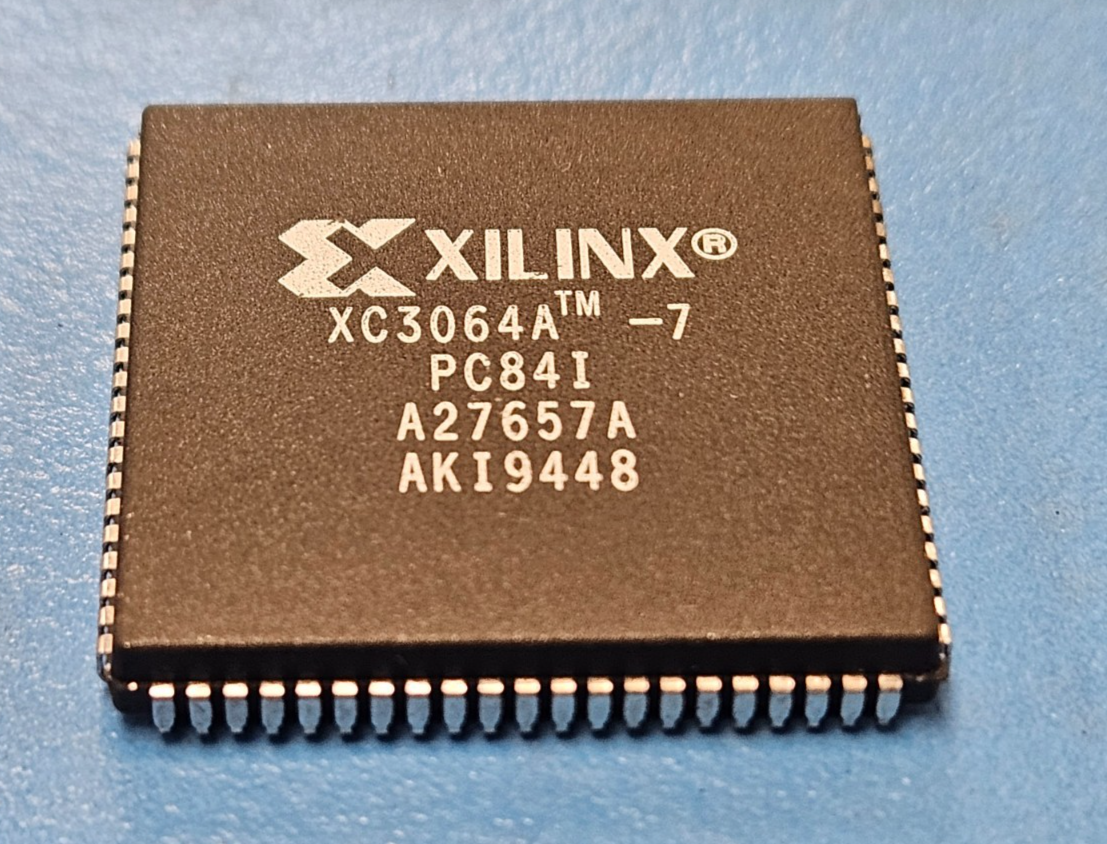

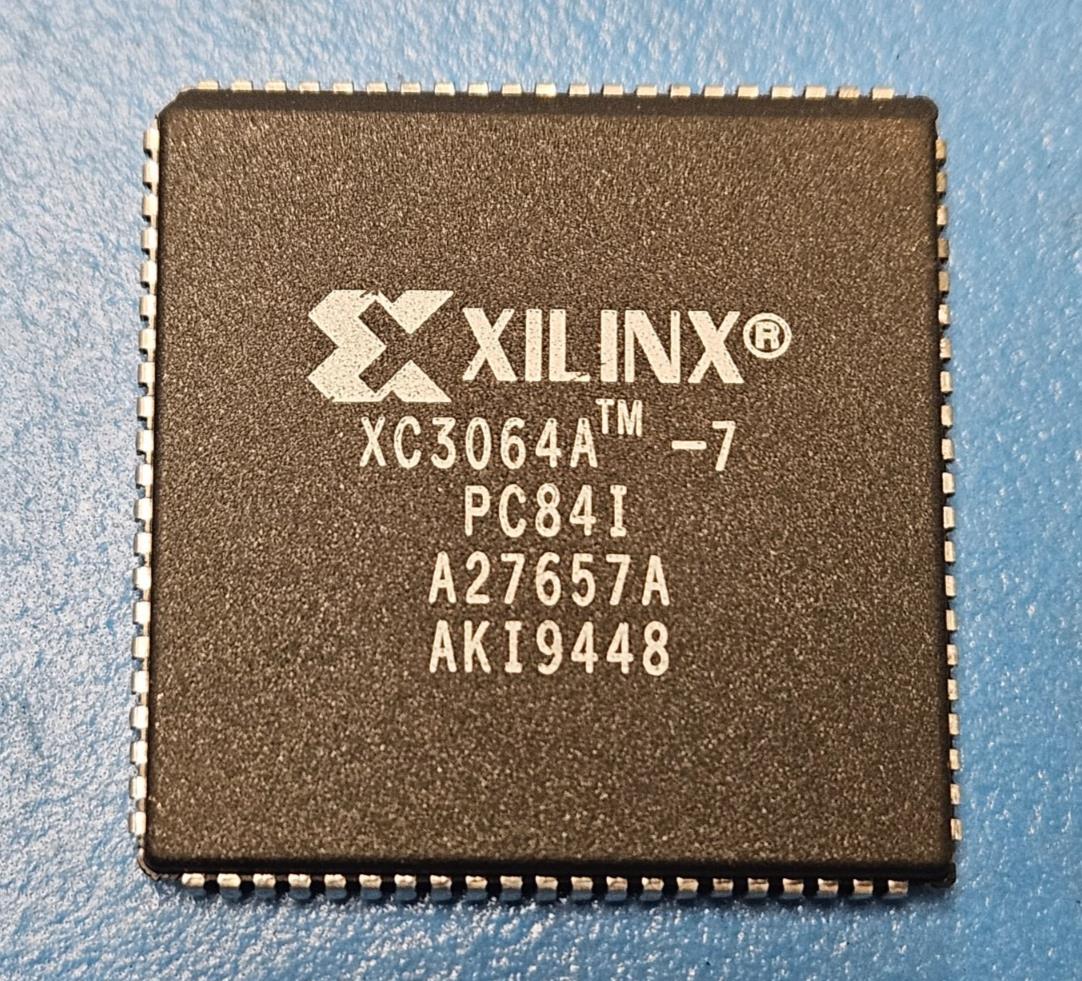

(1PC) XC3064A-7PC84I 224 CLBs, 3500 Gates, 113MHz, 224-Cell, CMOS, PLCC84
Tax included.
This listing is for (1PC) of XC3064A-7PC84I by Xilinx
Status Discontinued
Additional Feature MAX USABLE 4500 LOGIC GATES
Clock Frequency-Max (MHz) 113.00000
Combinatorial Delay of a CLB-Max (ns) 5.1000000000000000
JESD-30 Code S-PQCC-J84
J-STD-609 Code e0
Length (mm) 29.3116
Moisture Sensitivity Level 3
Number of CLBs 224
Number of Equivalent Gates 3500
Number of Inputs 70
Number of Logic Cells 224
Number of Outputs 70
Number of Terminals 84
Operating Temperature-Max (Cel) 85.0
Operating Temperature-Min (Cel) -40.0
Organization 224 CLBS, 3500 GATES
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC84,1.2SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Peak Reflow Temperature (Cel) 225
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
DLA Qualification Not Qualified
Seated Height-Max (mm) 5.0800
Supply Voltage-Max (V) 5.50000
Supply Voltage-Min (V) 4.50000
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn85Pb15)
Terminal Form J BEND
Terminal Pitch (mm) 1.270
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width (mm) 29.3116
