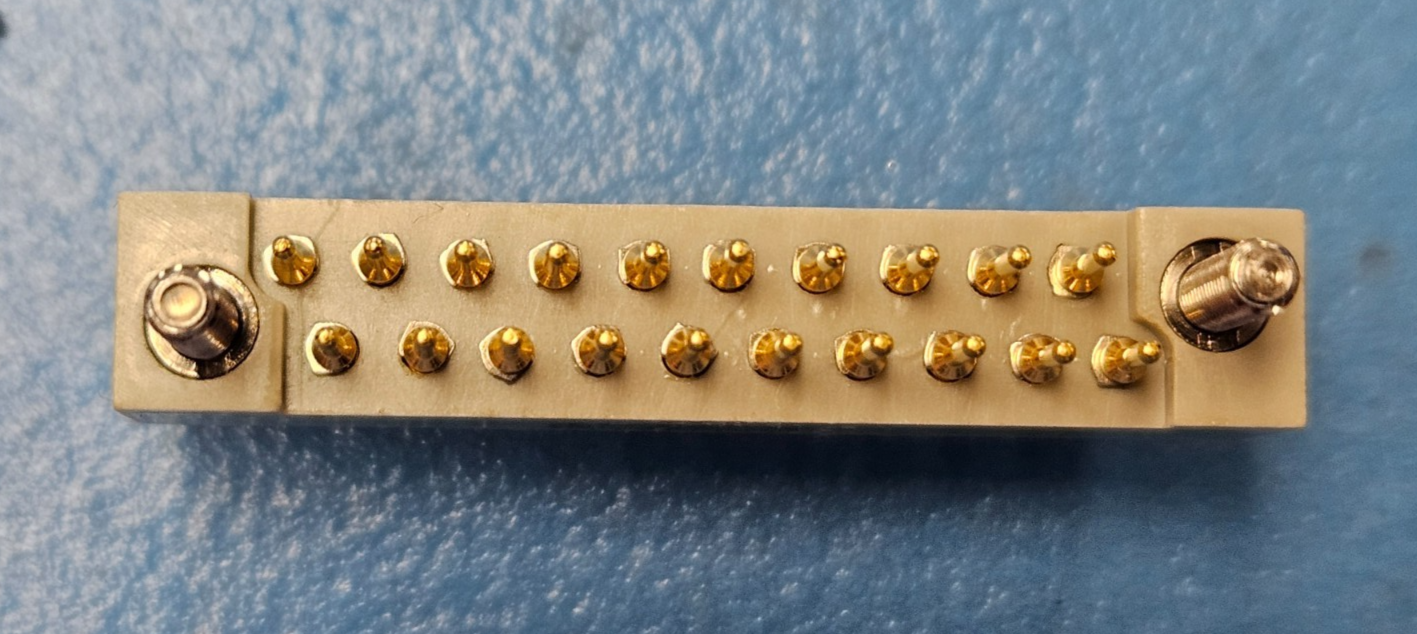

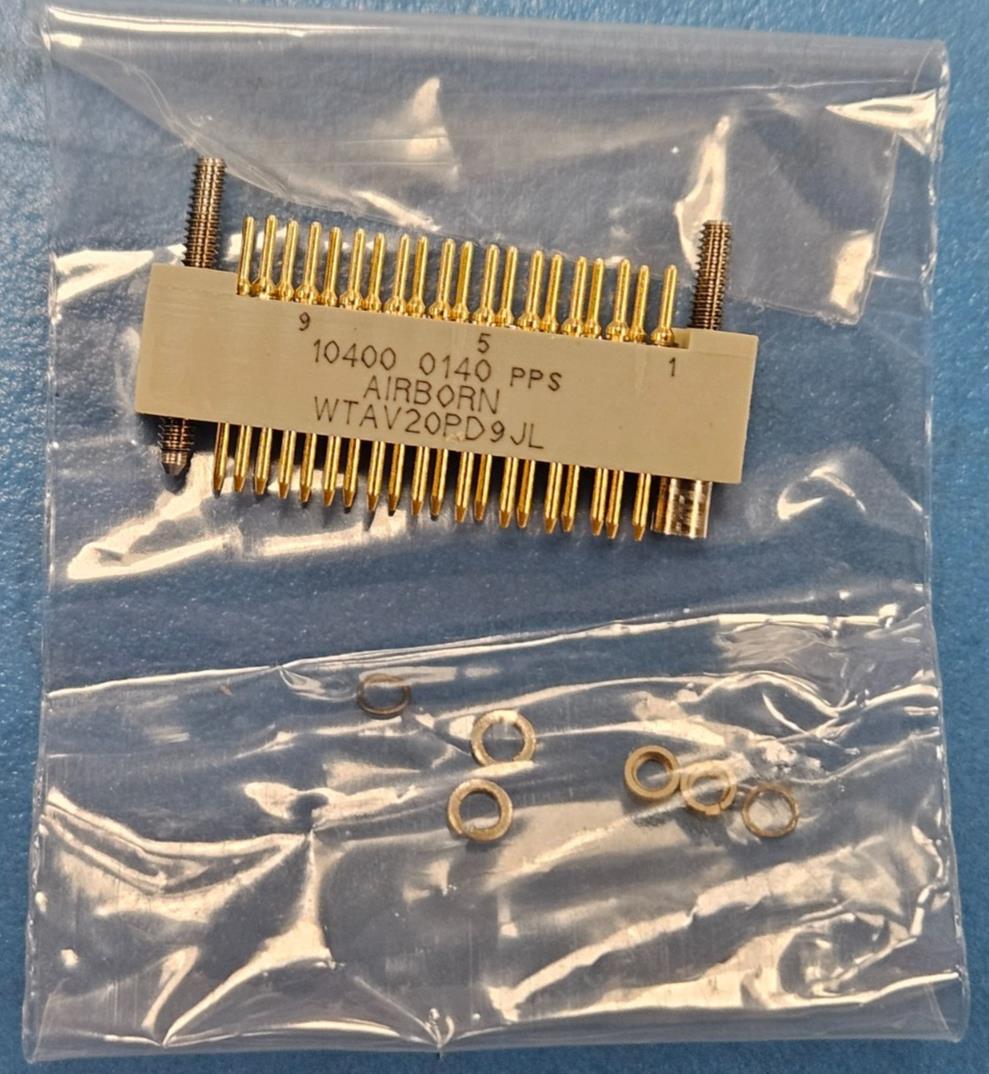

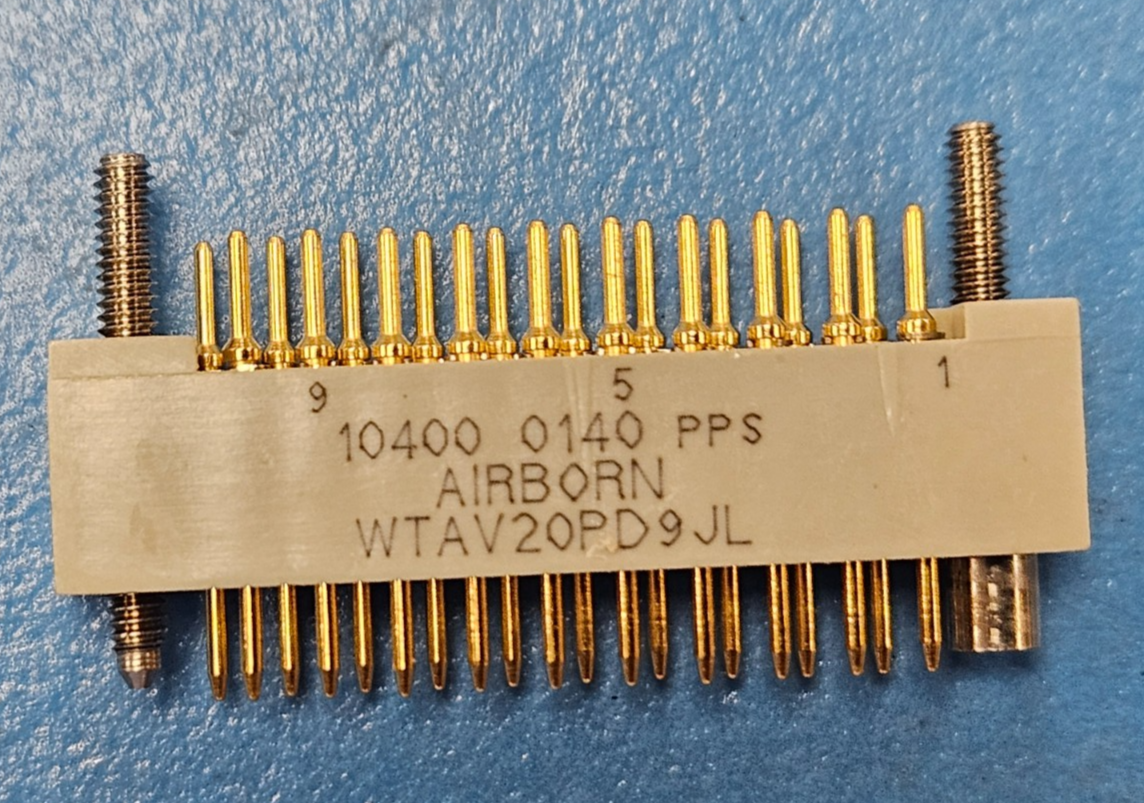

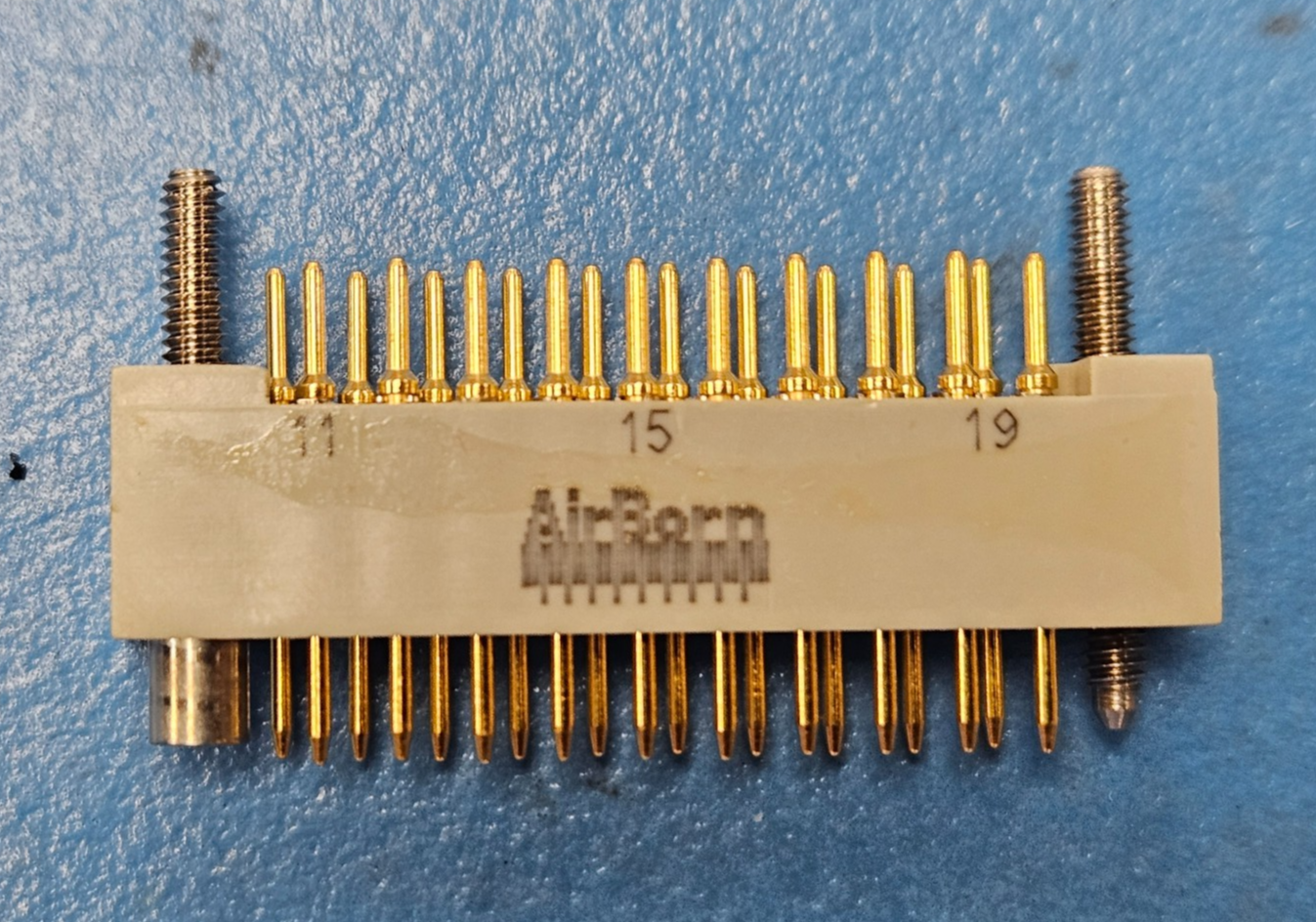

(1PC) WTAV20PD9JL Airborn Board Connector, 20 Contact, Dual Row, Male, Straight,
Tax included.
This listing is for (1PC) of WTAV20PD9JL by Airborn
Status Active
Additional Feature STANDARD: MIL-C-55302/63
Body Breadth (inch) 0.250000
Body Depth (inch) 0.335000
Body Length (inch) 1.350000
Body/Shell Style PLUG
Connector Type BOARD CONNECTOR
Contact Finish - Mating NOT SPECIFIED
Contact Gender MALE
Contact Material NOT SPECIFIED
Contact Pattern STAGGERED
Contact Resistance (mohm) 25.000000000000000
Contact Style RND PIN-SKT
DIN Conformance NO
Durability (Cycles) 500
Filter Feature NO
IEC Conformance NO
Insulation Resistance (ohm) 5000000000.000000000000000
Insulator Material GLASS FILLED POLYPHENYLENE SULFIDE
MIL Conformance NO
Mating Contact Pitch (inch) 0.1
Mating Contact Row Spacing (inch) 0.1
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 2 JACKSCREW
Mounting Style STRAIGHT
Mounting Type BOARD
Number of Connectors ONE
Number of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max (Cel) 125
Operating Temperature-Min (Cel) -65
Option GENERAL PURPOSE
PCB Contact Pattern STAGGERED
PCB Contact Row Spacing (mm) 2.54
Rated Current (Signal) (A) 5.0000000000000000
Terminal Length (inch) 0.140000
Terminal Pitch (mm) 2.54
Termination Type SOLDER
Number of Contacts 20
