(1PC) W24512AK-15 Windbond Standard SRAM, 64KX8, 15ns, CMOS, PDIP32
Tax included.

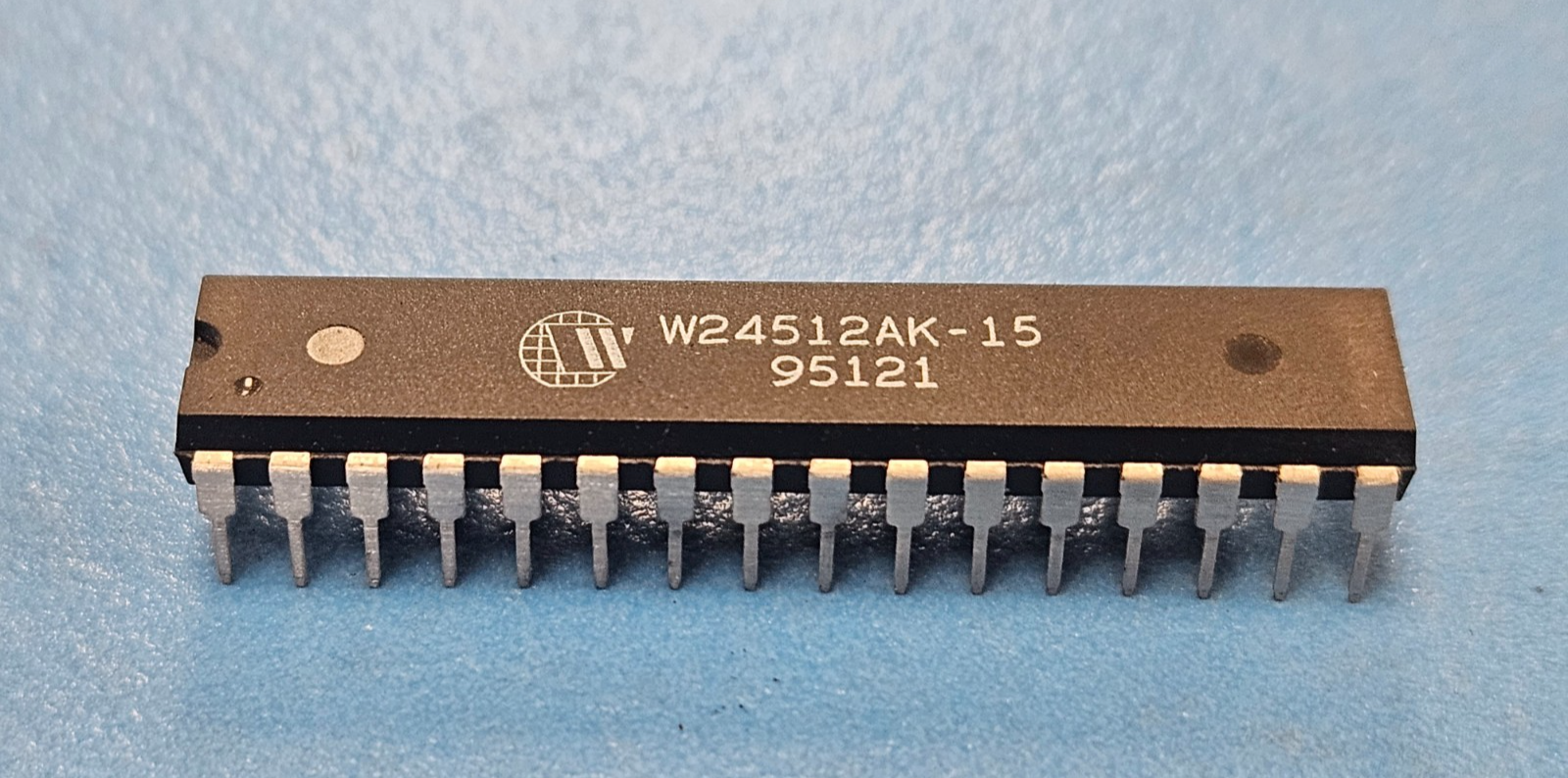

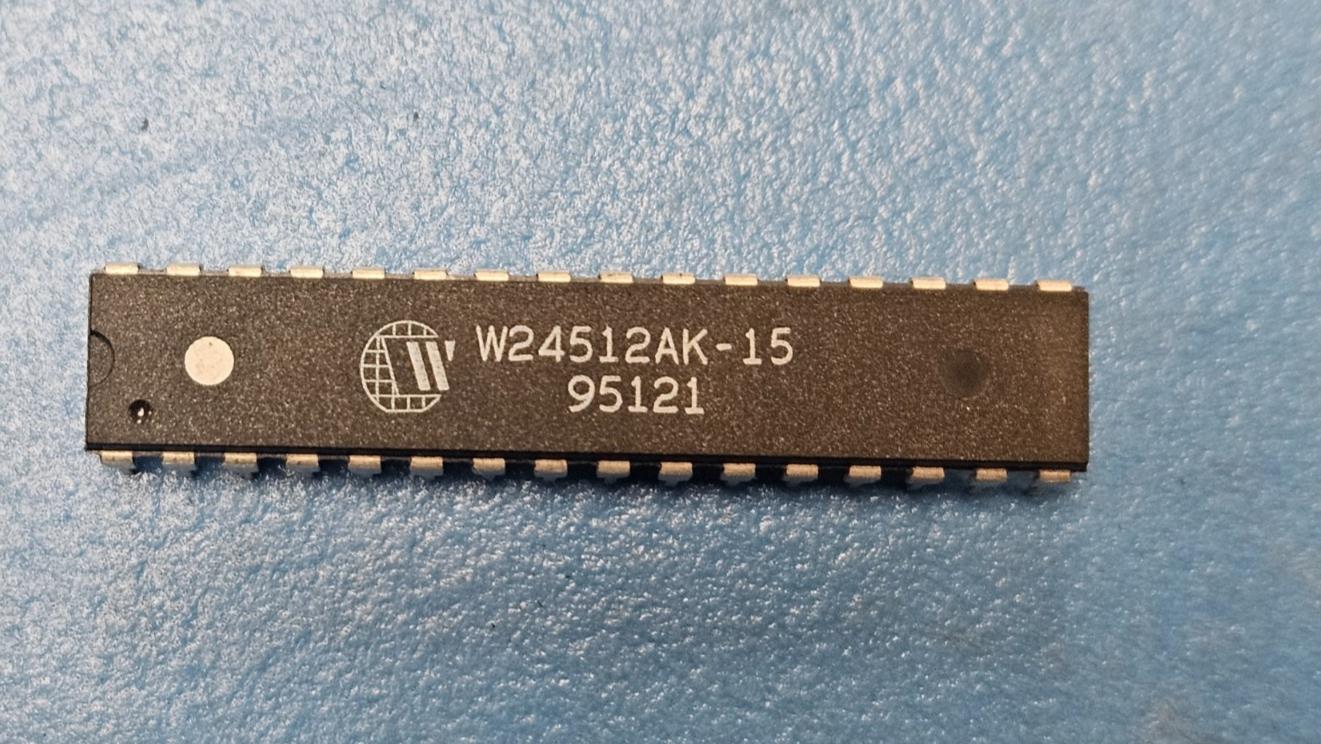

This listing is for (1PC) of W24512AK-15 by Winbond
Status Discontinued
Access Time-Max (ns) 15.0000000000000000
I/O Type COMMON
JESD-30 Code R-PDIP-T32
J-STD-609 Code e0
Length (mm) 40.6400
Memory Density (bits) 524288.0000000000000000
Memory IC Type STANDARD SRAM
Memory Width 8
Number of Functions 1
Number of Ports 1
Number of Terminals 32
Number of Words (words) 65536.0000000000000000
Number of Words Code 64K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Memory Organization 64KX8
Output Characteristics 3-STATE
Output Enable YES
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP32,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Parallel/Serial PARALLEL
DLA Qualification Not Qualified
Seated Height-Max (mm) 5.0800
Standby Current-Max (A) 0.010000000000000
Standby Voltage-Min (V) 4.500000
Supply Current-Max (mA) 200.000000000000000
Supply Voltage-Max (V) 5.50000
Supply Voltage-Min (V) 4.50000
Supply Voltage-Nom (V) 5
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch (mm) 2.540
Terminal Position DUAL
Width (mm) 7.6200
