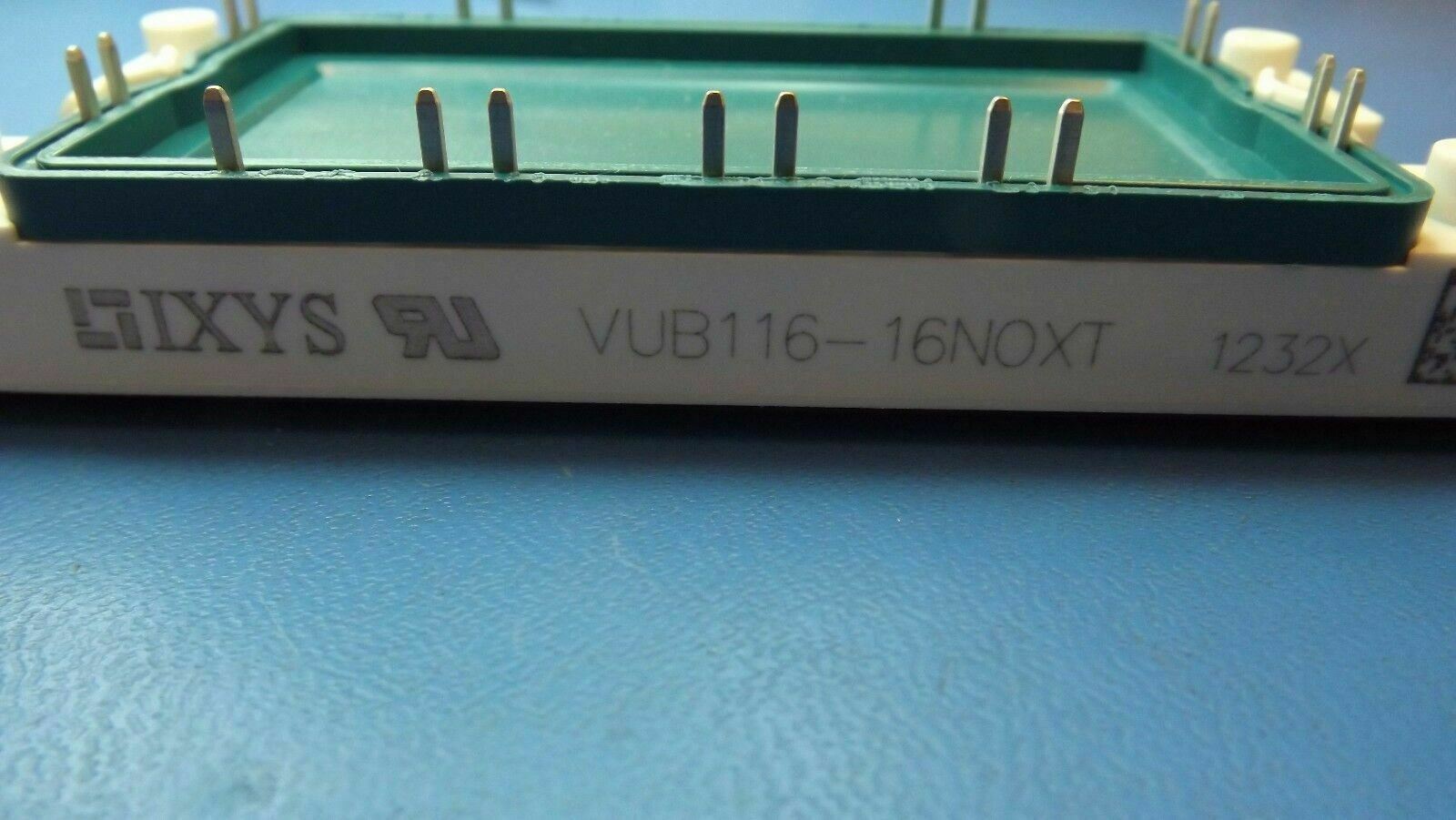

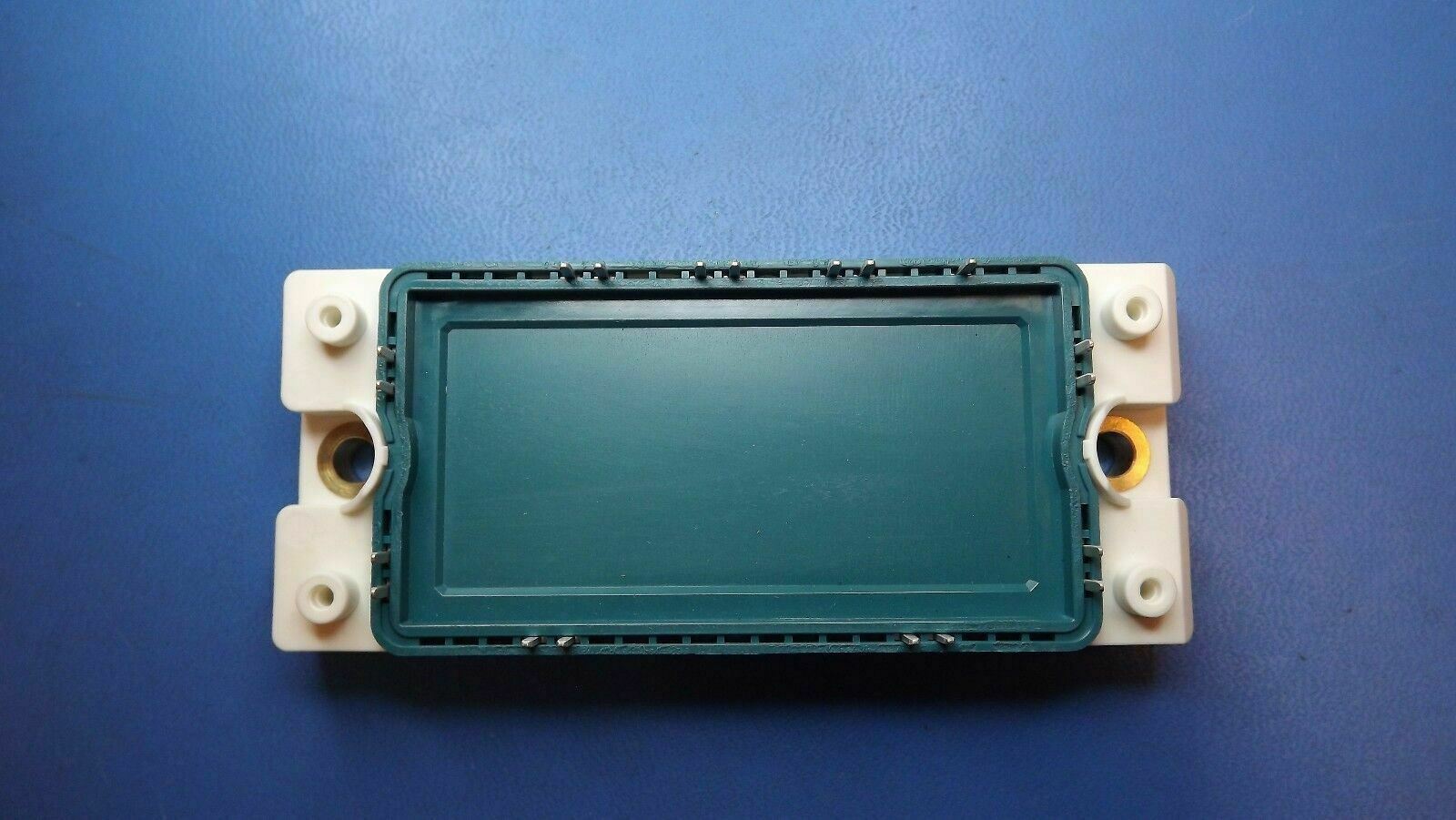

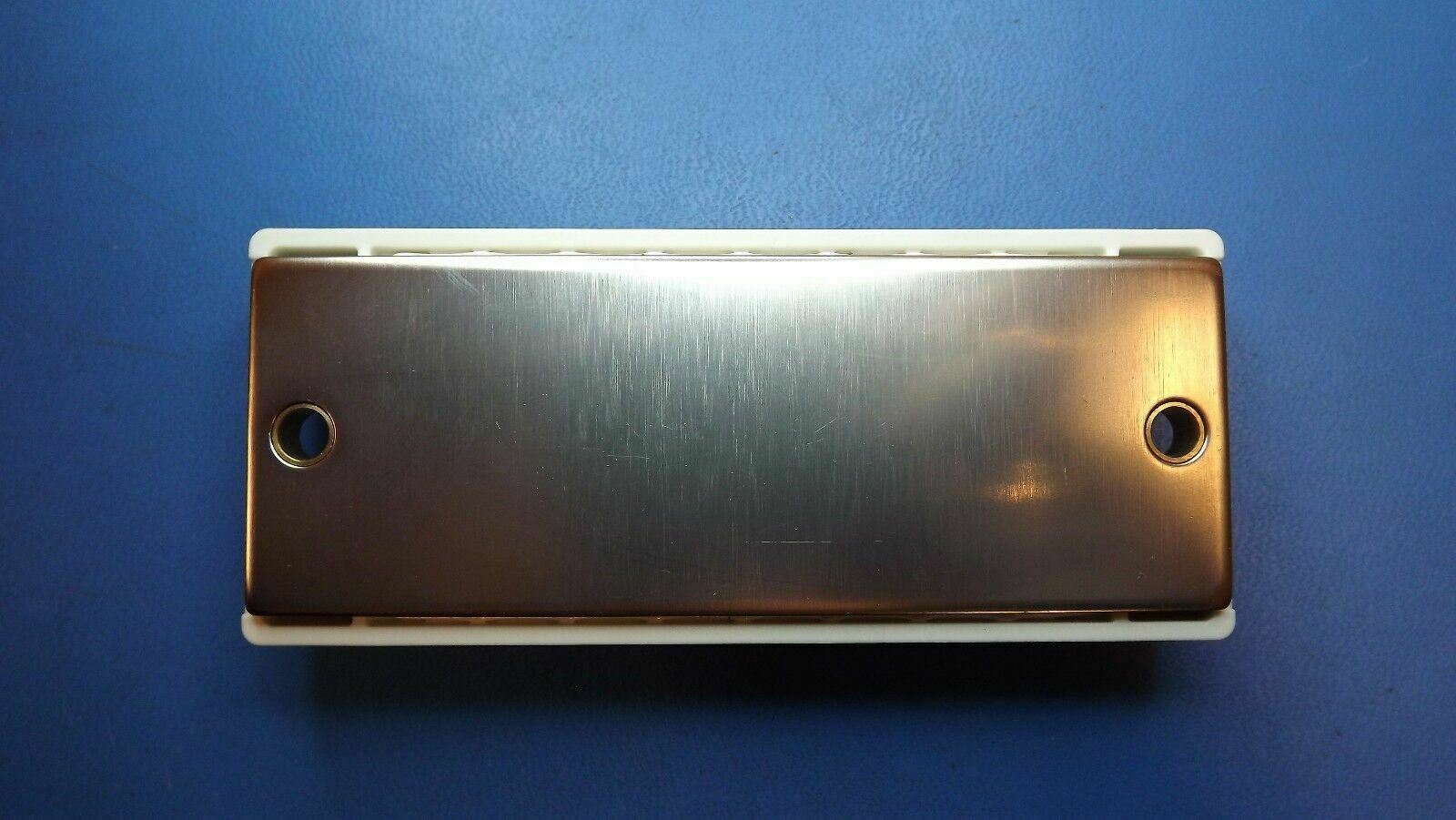

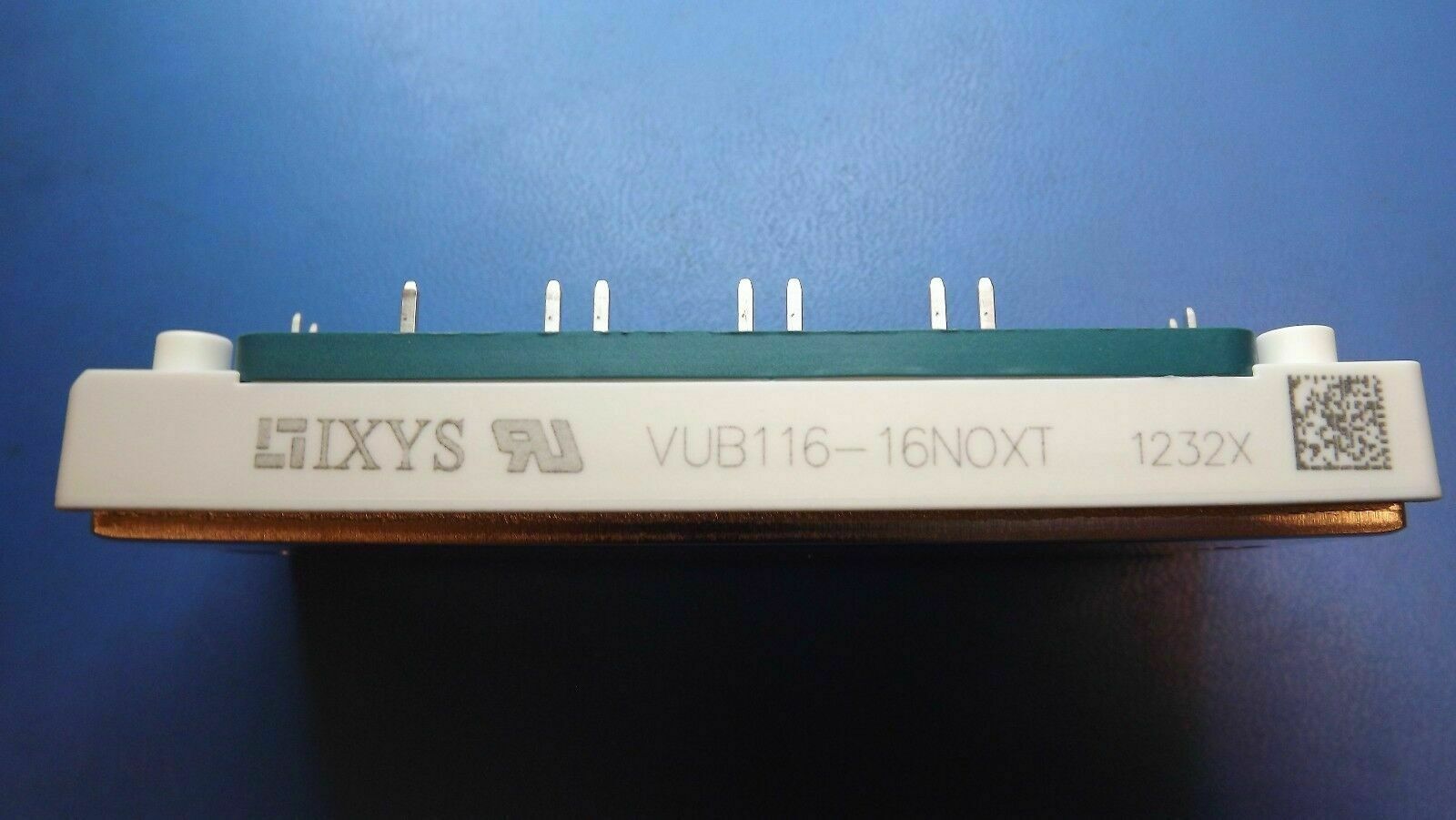

(1PC) VUB116-16NOXT IXYS DIODE BRIDGE 1600V 120A
Tax included.
THIS LISTING IS FOR (1PC) OF VUB116-16NOXT BY IXYS
SPECIFICATIONS
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| Status | Active |
| Diode Type | BRIDGE RECTIFIER DIODE |
| Case Connection | ISOLATED |
| Configuration | BRIDGE, 6 ELEMENTS WITH BUILT-IN IGBT AND THERMISTOR |
| Diode Element Material | SILICON |
| Forward Voltage-Max (VF) | 2.75 V |
| JESD-30 Code | R-XUFM-X22 |
| Non-rep Pk Forward Current-Max | 700.0 A |
| Number of Elements | 6.0 |
| Number of Phases | 3.0 |
| Number of Terminals | 22 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 125.0 Cel |
| Output Current-Max | 116.0 A |
| Package Body Material | UNSPECIFIED |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 1600.0 V |
| Sub Category | Bridge Rectifier Diodes |
| Surface Mount | NO |
| Terminal Form | UNSPECIFIED |
| Terminal Position | UPPER |
