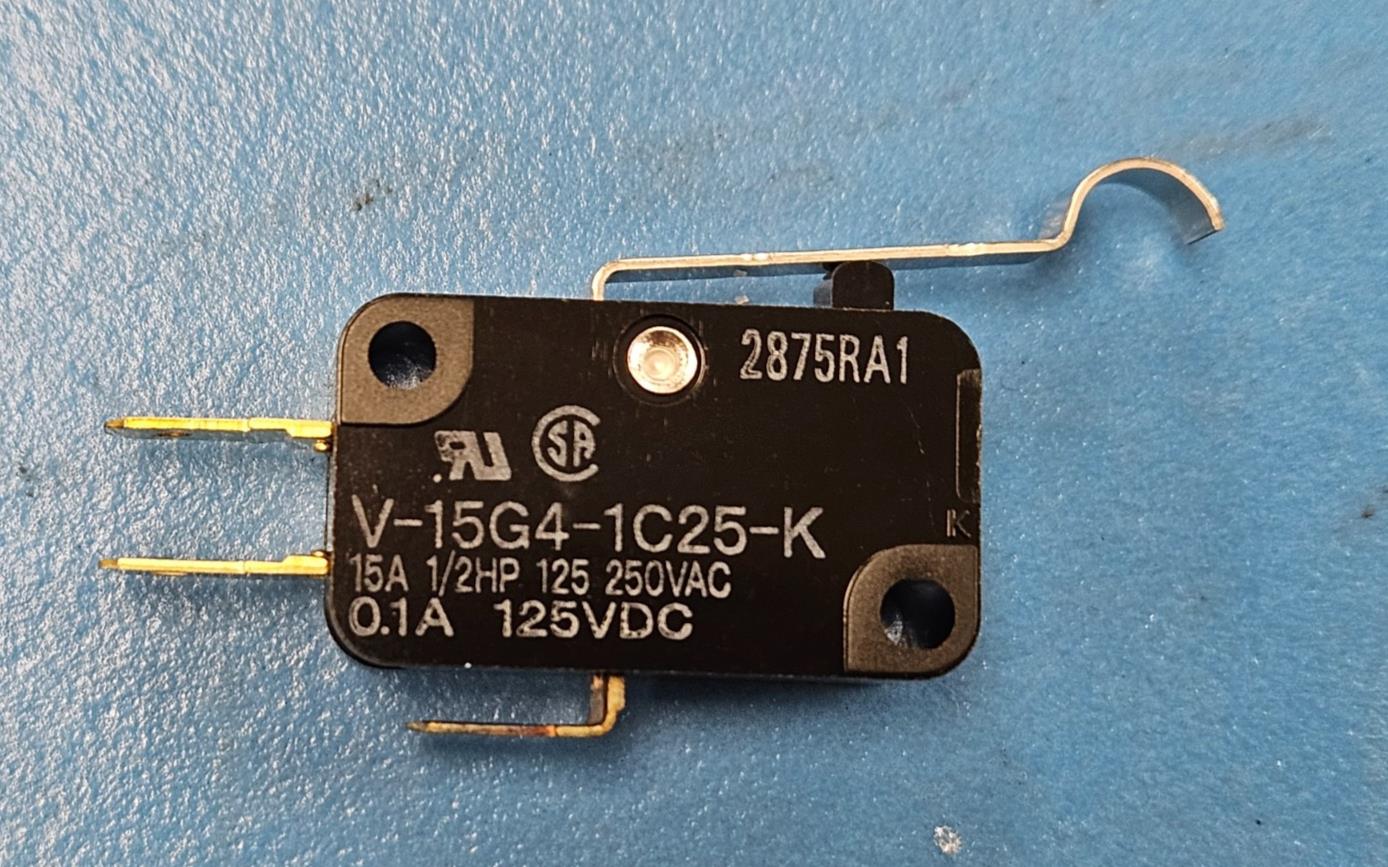

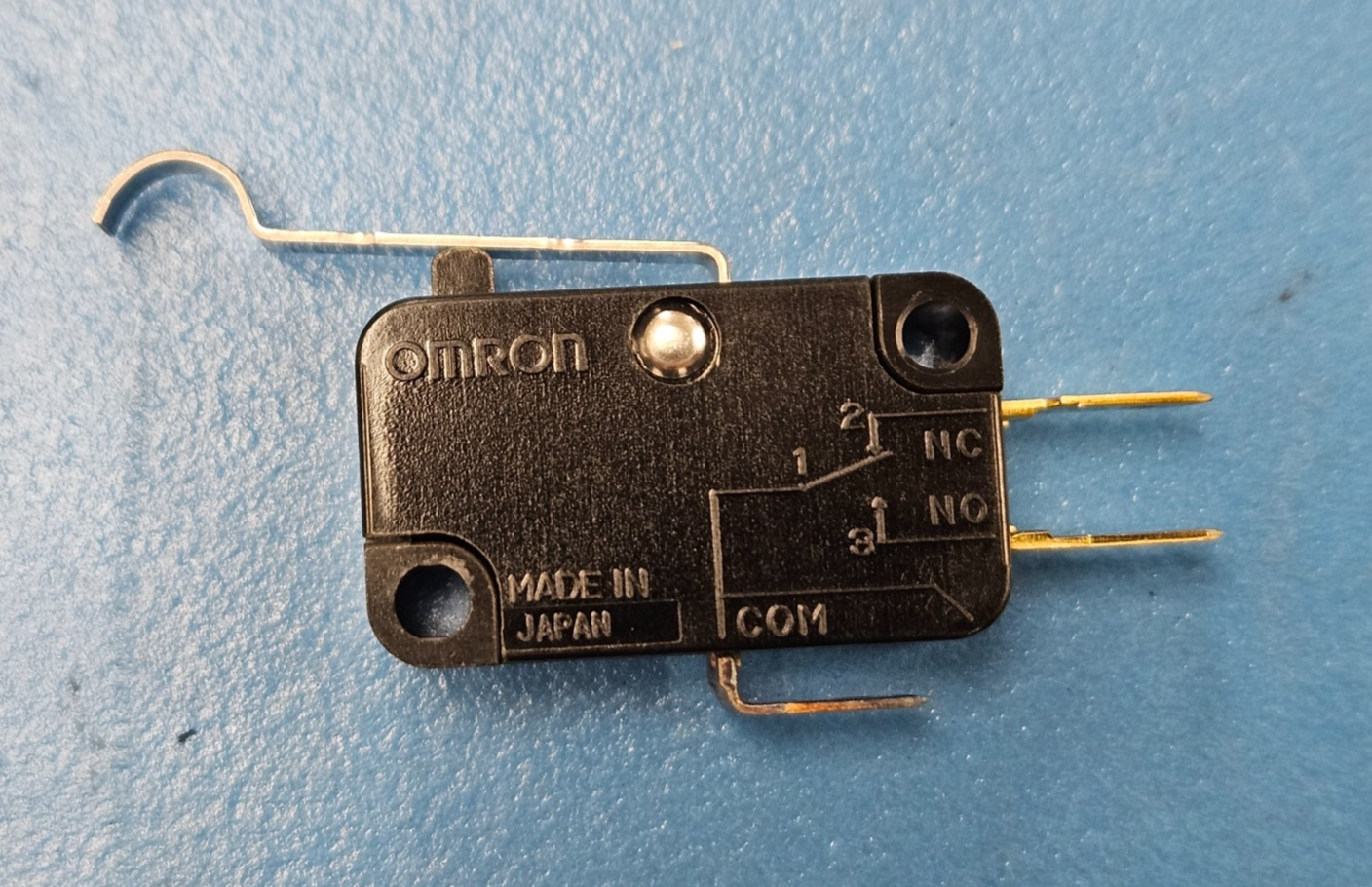

(1PC) V-15G4-1C25-K Snap Acting/Limit Switch, SPDT, 15A, 8V Simulated Roller
Tax included.

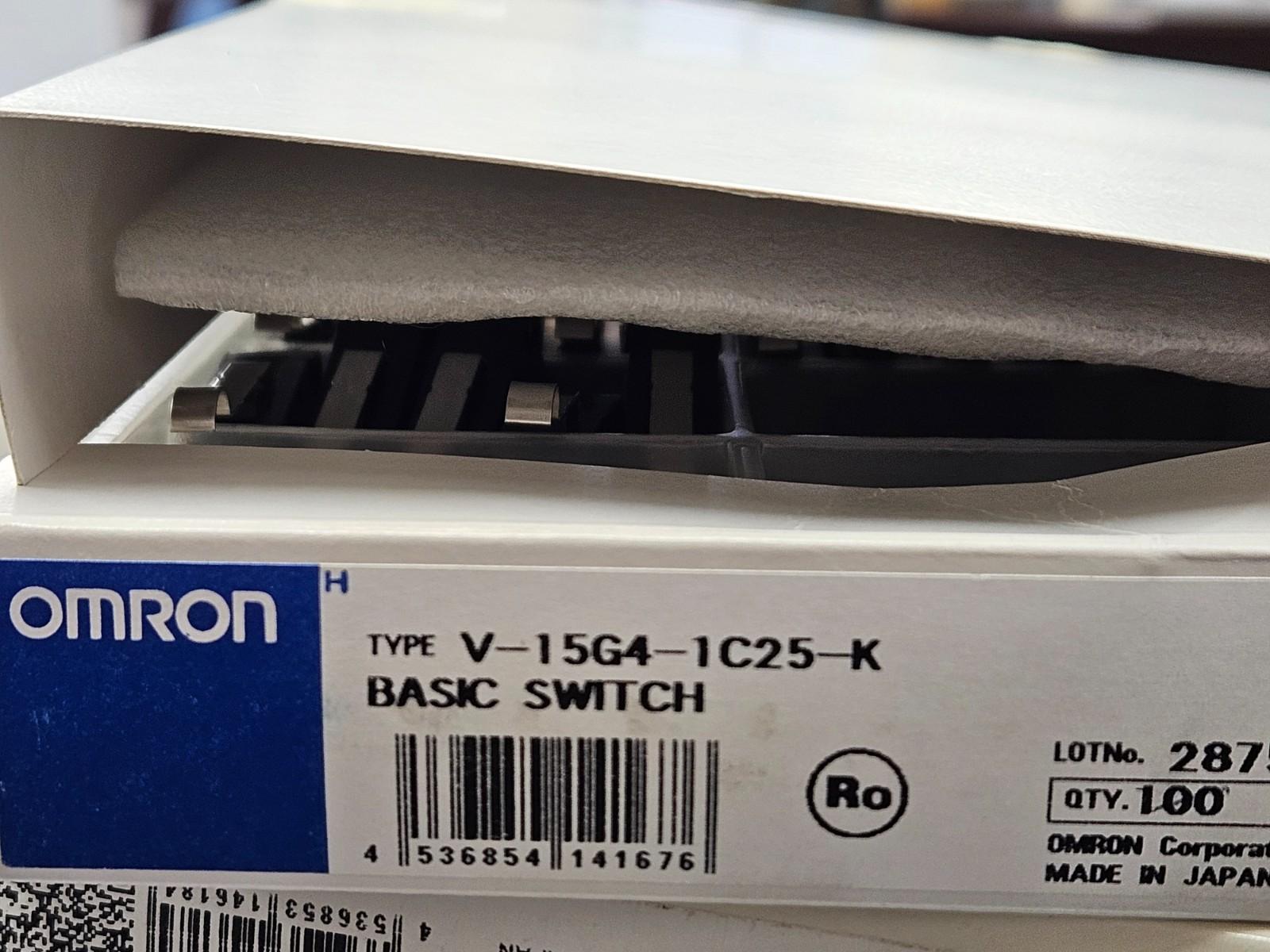

This listing is for (1PC) of V-15G4-1C25-K by Omron
Status Unknown
Actuator Travel (mm) 5.6
Actuator Type SIMULATED ROLLER LEVER
Body Breadth (mm) 10.3000
Body Height (mm) 15.9000
Body Length or Diameter (mm) 27.8000
Contact AC Max Rating R Load 15A@250VAC
Contact Current(AC)-Max (A) 15.00000000
Contact Current(DC)-Max (A) 15.00000000
Contact DC Max Rating R Load 15A@8VDC
Contact Voltage(AC)-Max (V) 250.00000000
Contact Voltage(DC)-Max (V) 8.00000000
Electrical Life (Cycle(s)) 100000
Mounting Feature PANEL MOUNT
Operating Force-Max (N) 1.9600
Operating Temperature-Max (Cel) 80
Operating Temperature-Min (Cel) -25
Pre-Travel-Max (mm) 3.3000
Sealing IP40
Switch Action MOMENTARY
Switch Function SPDT
Switch Type SNAP ACTING/LIMIT SWITCH
Termination Type QUICK CONNECT
