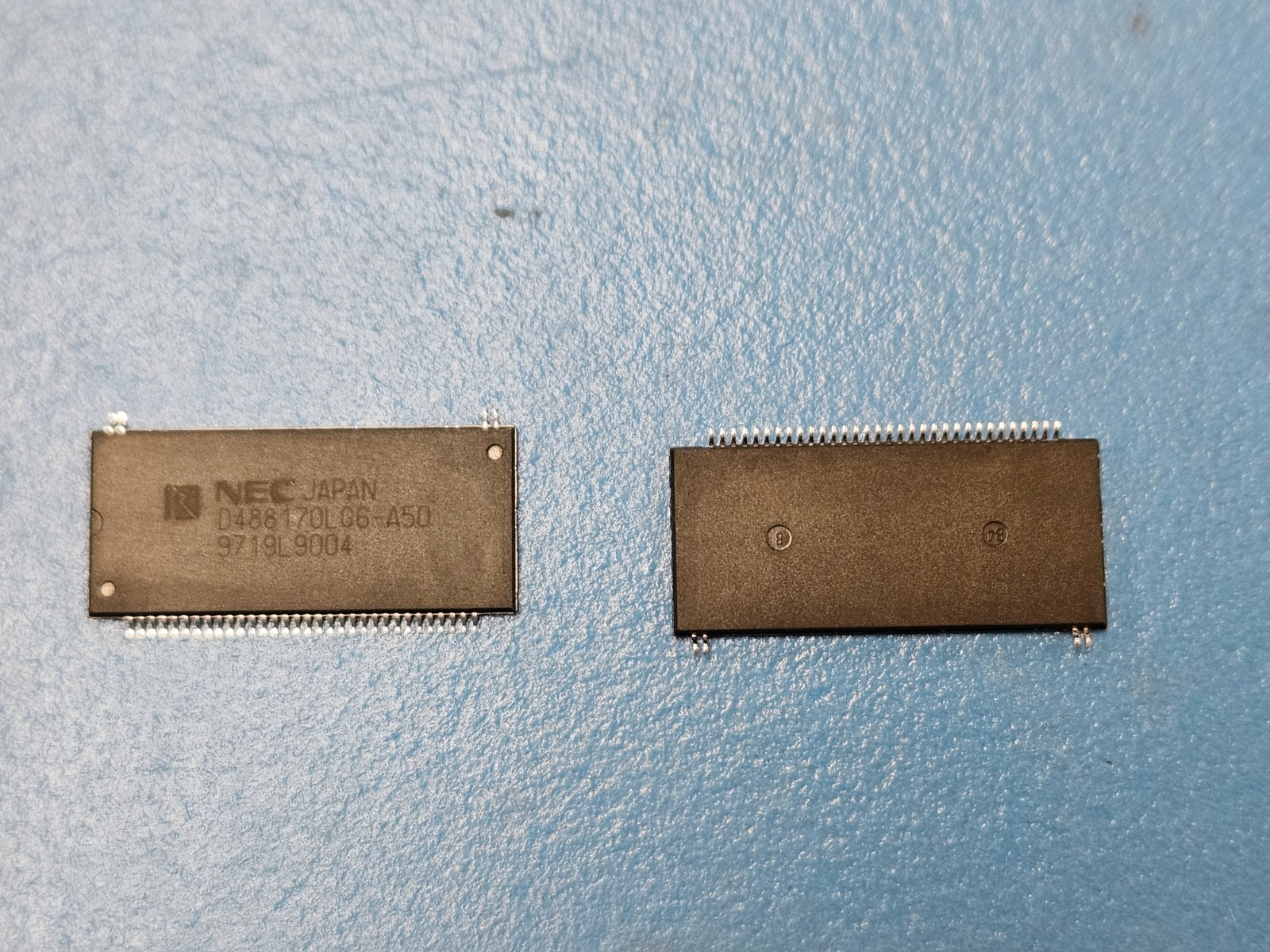

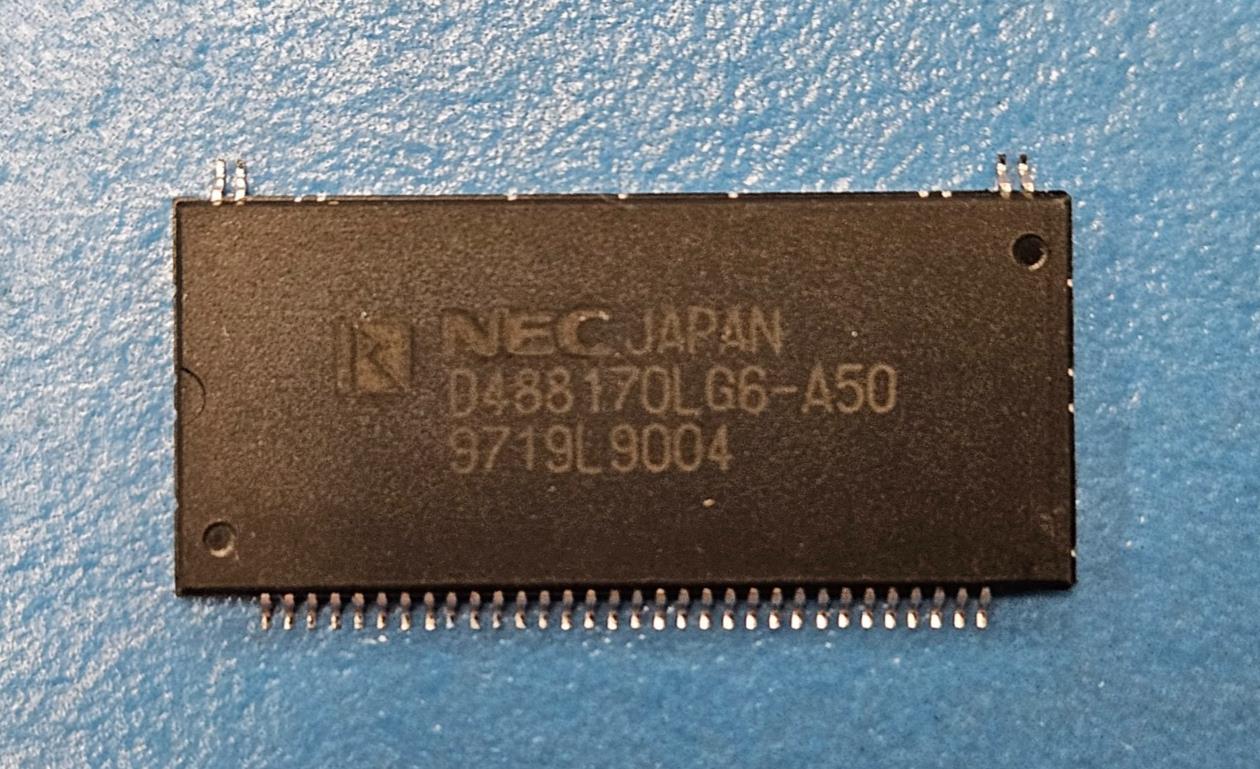

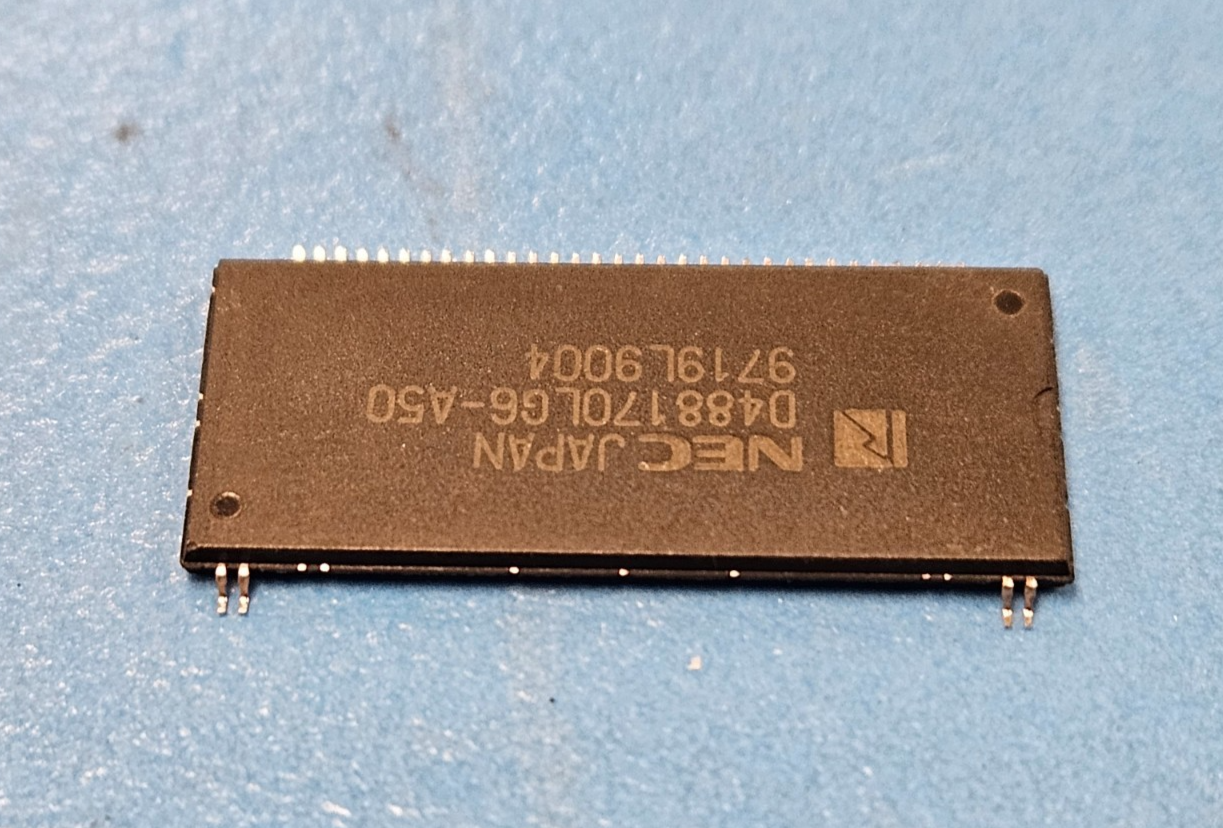

(1PC) UPD488170LG6-A50 D488170LG6-A50 NEC Rambus DRAM, 2MX9, CMOS SSOP36
Tax included.
This listing is for (1PC) of UPD488170LG6-A50 by NEC
Status Discontinued
Access Mode BLOCK ORIENTED PROTOCOL
Additional Feature SELF CONTAINED REFRESH
JESD-30 Code R-PDSO-G36
Memory Density (bits) 18874368.0000000000000000
Memory IC Type RAMBUS DRAM
Memory Width 9
Number of Functions 1
Number of Ports 1
Number of Terminals 36
Number of Words (words) 2097152.0000000000000000
Number of Words Code 2M
Operating Mode SYNCHRONOUS
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Memory Organization 2MX9
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code LSSOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
DLA Qualification Not Qualified
Seated Height-Max (mm) 1.6000
Self Refresh YES
Supply Voltage-Max (V) 3.60000
Supply Voltage-Min (V) 3.15000
Supply Voltage-Nom (V) 3.3
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Form GULL WING
Terminal Pitch (mm) 0.650
Terminal Position DUAL
Width (mm) 11.0000
