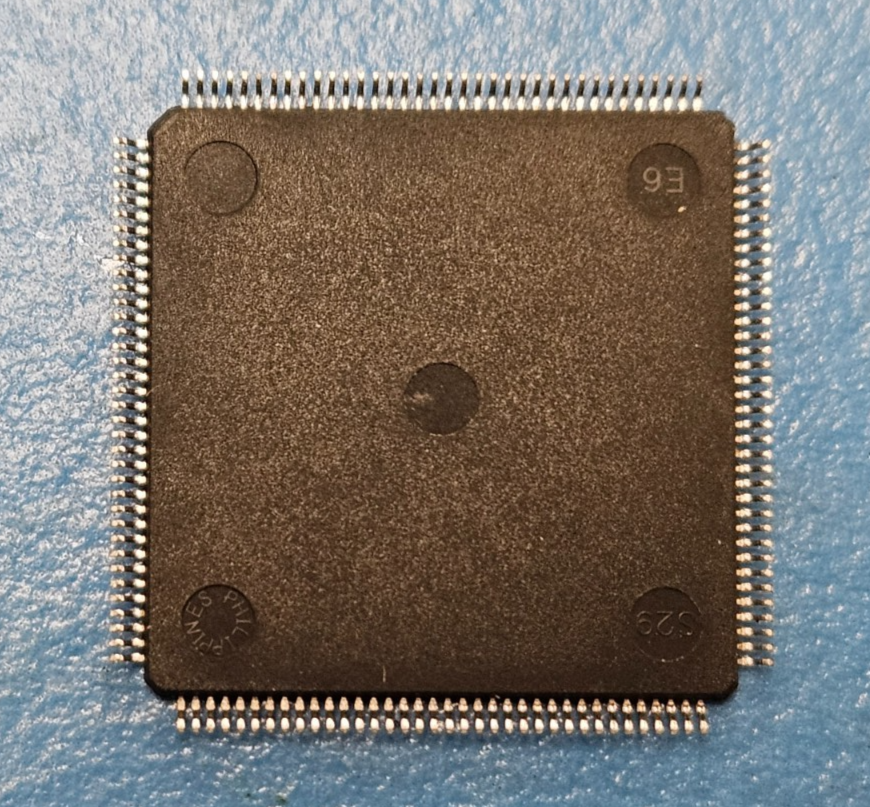

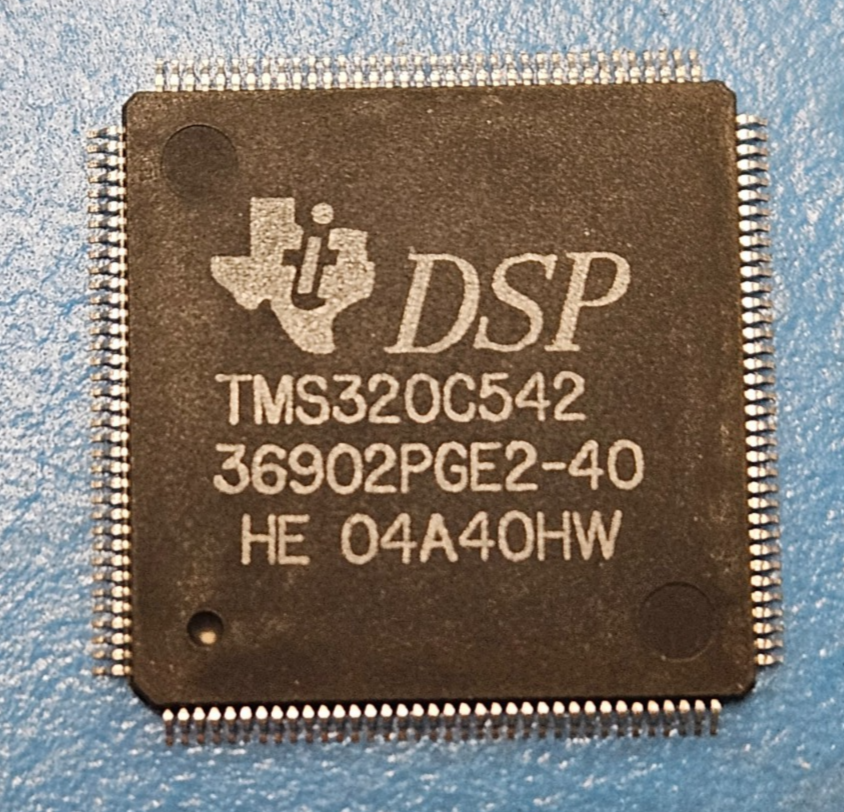

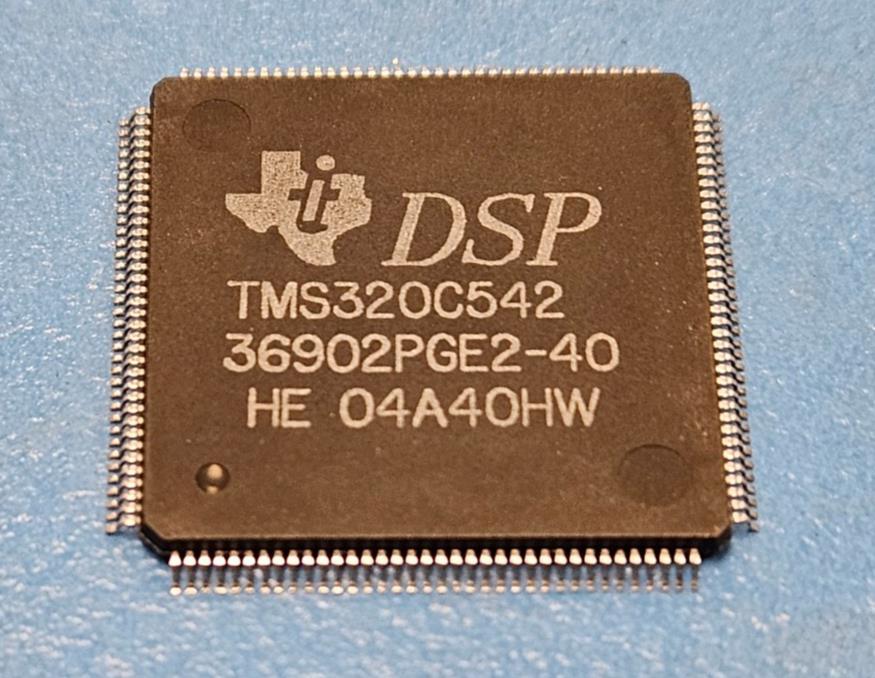

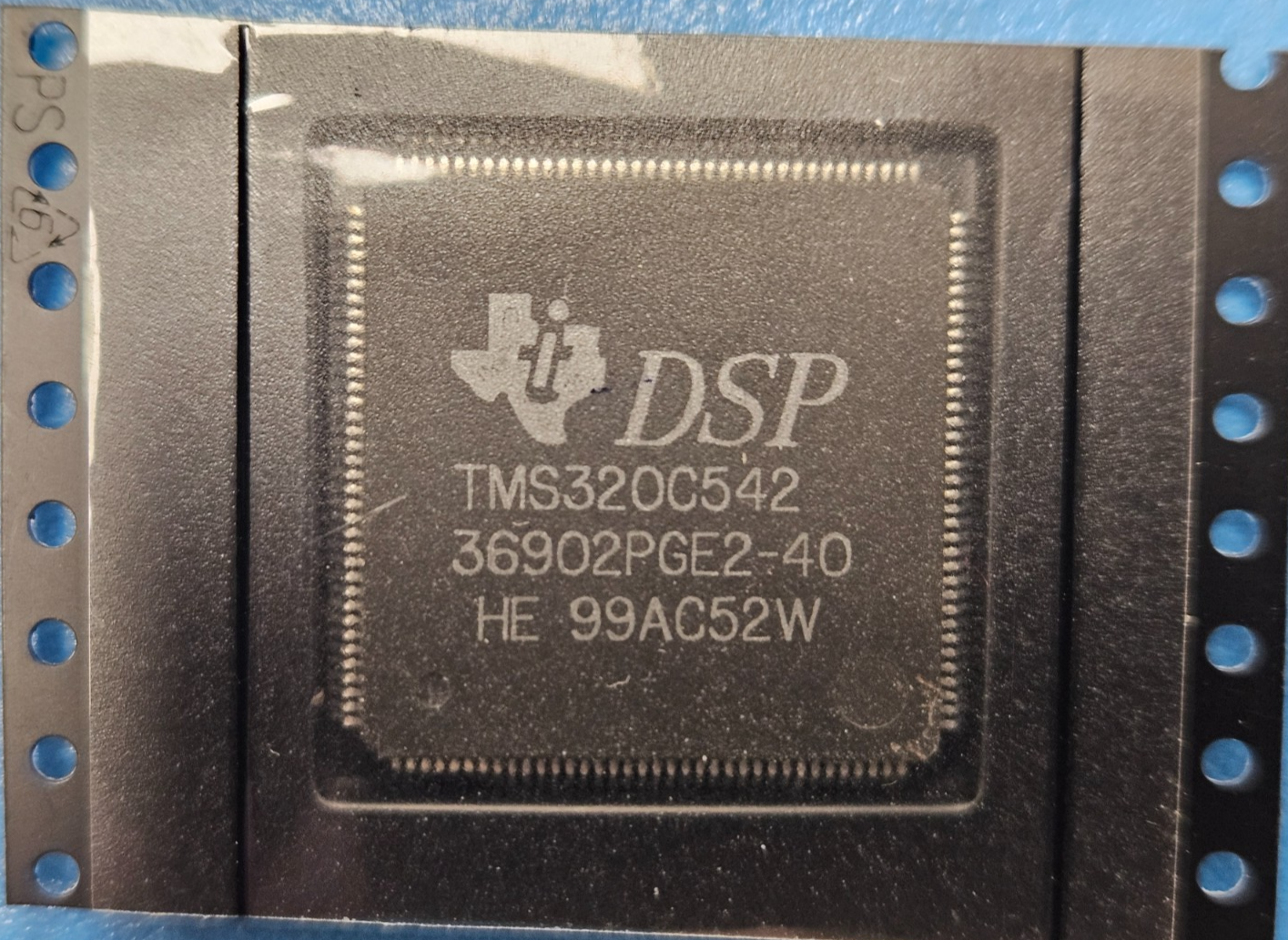

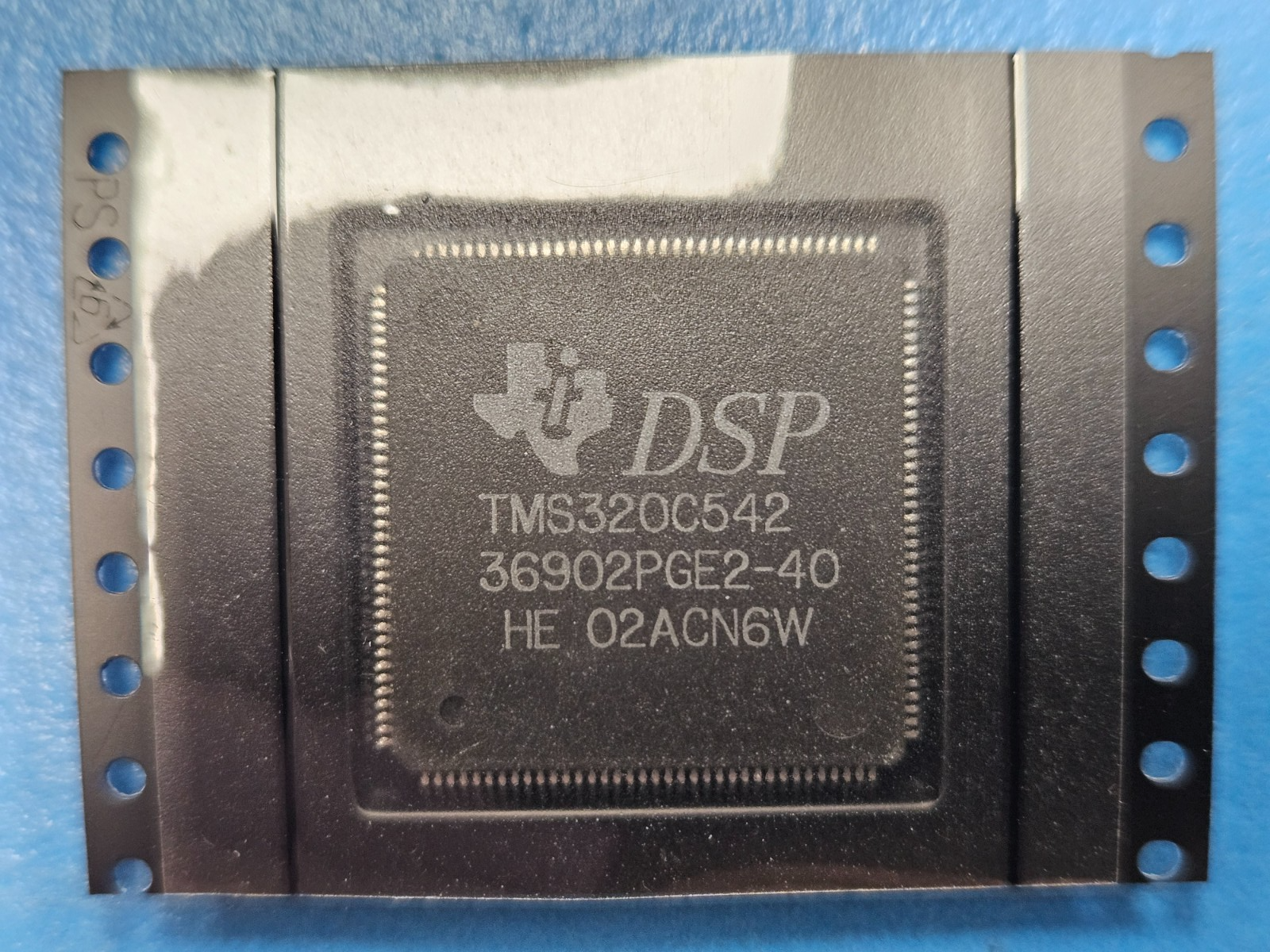

(1PC) TMS320C542PGE2-40 Digital Signal Processor 16-Bit, 20MHz, CMOS, PQFP144
Tax included.
This listing is for (1PC) of TMS320C542PGE2-40 by Texas Instruments
Status Discontinued
Address Bus Width 23
Barrel Shifter YES
Bit Size 16
Boundary Scan YES
Clock Frequency-Max (MHz) 20.0000000000000000
External Data Bus Width 16
Format FIXED POINT
Integrated Cache NO
Internal Bus Architecture MULTIPLE
JESD-30 Code S-PQFP-G144
J-STD-609 Code e4
Length (mm) 20.0000
Low Power Mode YES
Moisture Sensitivity Level 1
Number of DMA Channels 0
Number of External Interrupts 5
Number of Serial I/Os 0
Number of Terminals 144
Number of Timers 1
On Chip Data RAM Width 16
Program Memory Width (bits) 16
Package Body Material PLASTIC/EPOXY
Package Code LFQFP
Package Equivalence Code QFP144,.87SQ,20
Package Shape SQUARE
Package Style FLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
DLA Qualification Not Qualified
RAM (words) 5120
Program Memory Type MROM
Seated Height-Max (mm) 1.6000
Supply Voltage-Max (V) 5.2500
Supply Voltage-Min (V) 4.7500
Supply Voltage-Nom (V) 5.0000
Surface Mount YES
Technology CMOS
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form GULL WING
Terminal Pitch (mm) 0.500
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width (mm) 20.0000
uPs/uCs/Peripheral ICs Type DIGITAL SIGNAL PROCESSOR, OTHER
