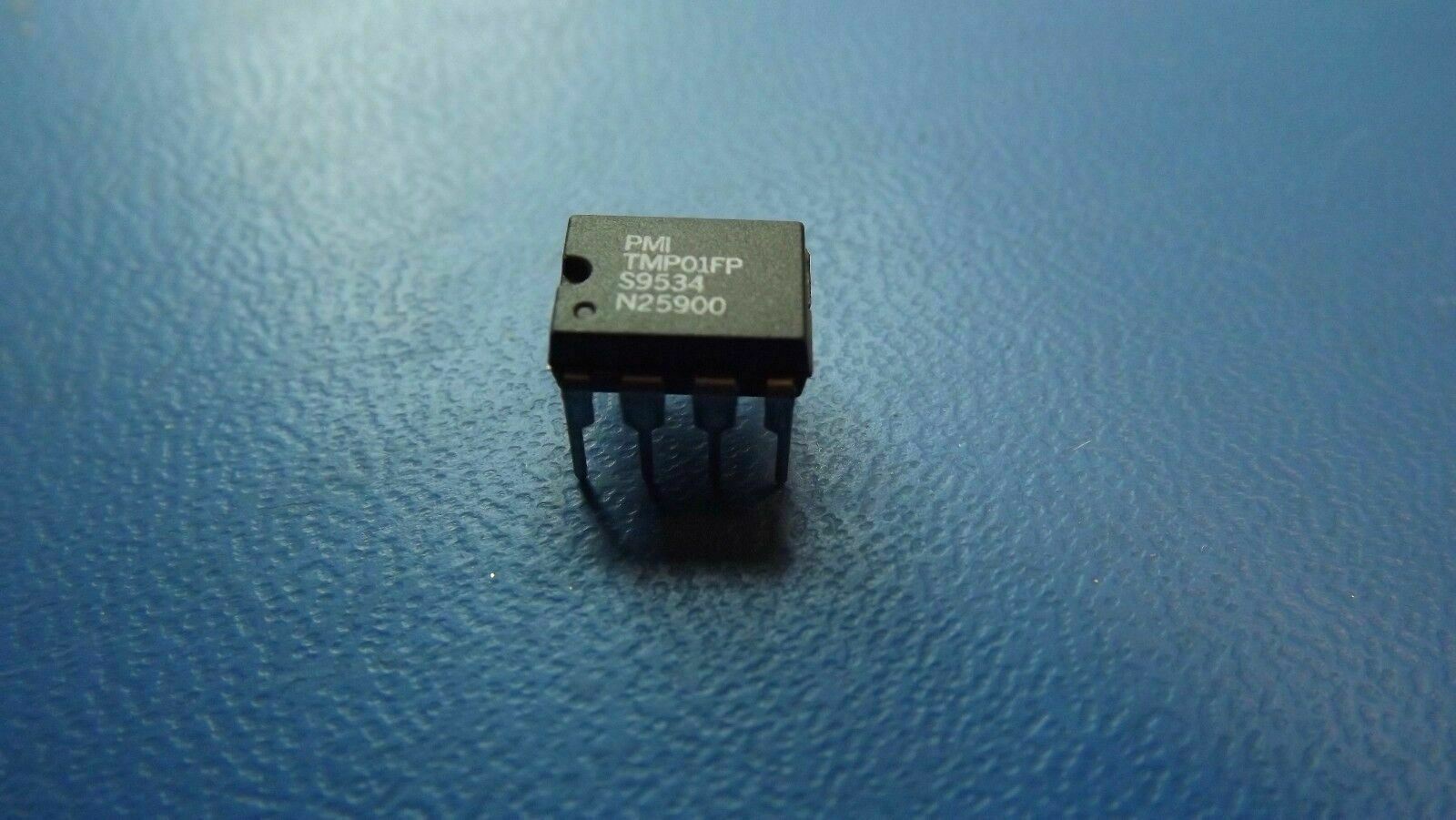

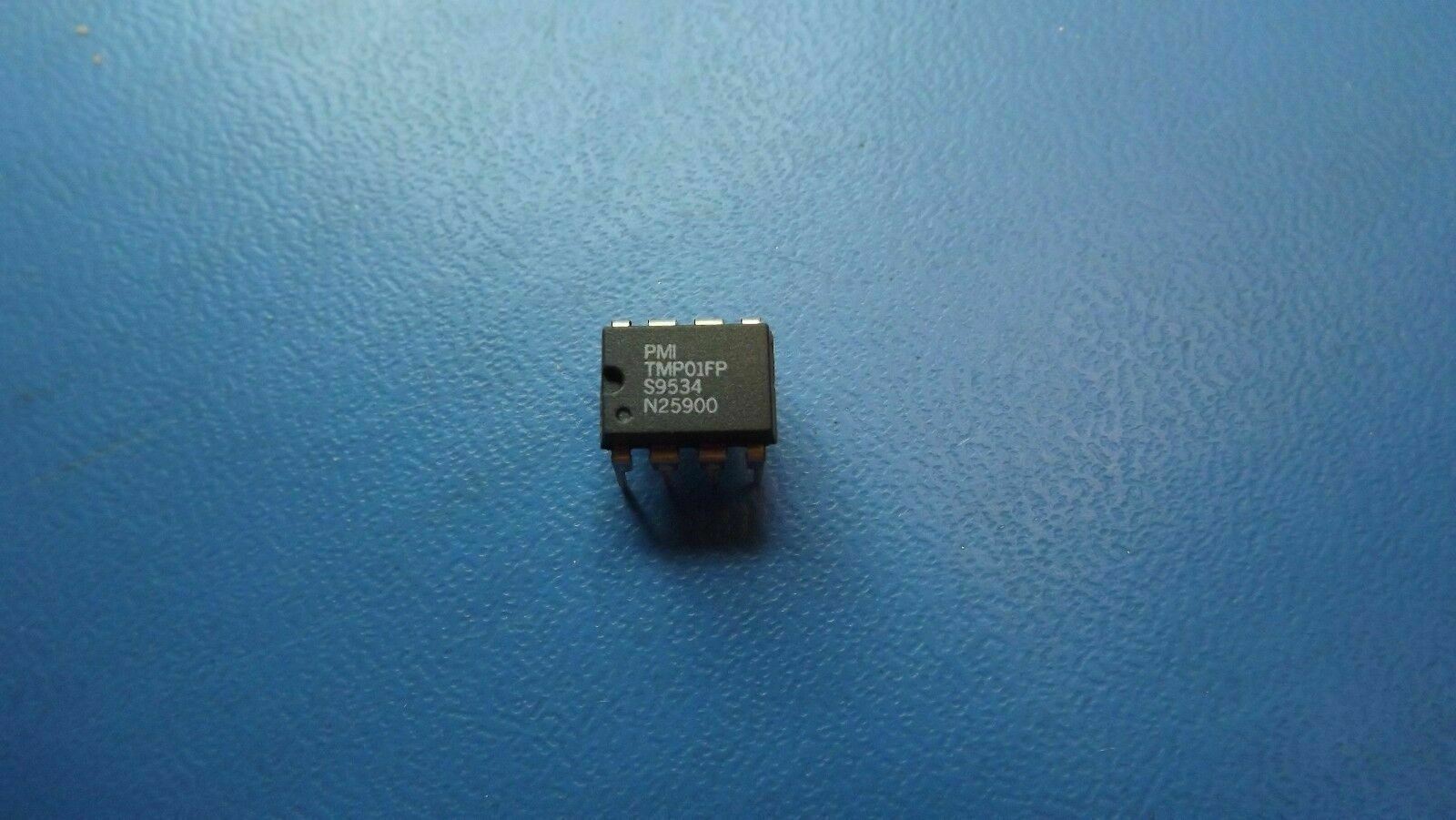

(1PC) TMP01FP PMI Temp Sensor Analog(Voltage) 8-Pin PDIP
Tax included.
THIS LISTING IS FOR (1PC) OF TMP01FP BY PMI
SPECIFICATIONS
| Mfr Package Description | PLASTIC, DIP-8 |
| REACH Compliant | Yes |
| Status | Discontinued |
| Sensors/Transducers Type | TEMPERATURE SENSOR,ANALOG,VOLTAGE OUTPUT |
| Accuracy-Max (Cel) | 5 |
| Body Breadth | 7.87 mm |
| Body Height | 5.33 mm |
| Body Length or Diameter | 9.27 mm |
| Housing | PLASTIC |
| JESD-609 Code | e0 |
| Mounting Feature | THROUGH HOLE MOUNT |
| Number of Terminals | 8 |
| Operating Current-Max | 0.8 mA |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Output Voltage-Min | 2.48 V |
| Output Voltage-Max | 2.51 V |
| Package Body Material | PLASTIC/EPOXY |
| Package Equivalence Code | DIP8,.3 |
| Package Shape/Style | RECTANGULAR |
| Power Supplies (V) | 5/12 |
| Sub Category | Other Sensors/Transducers |
| Supply Voltage-Min | 4.5 V |
| Supply Voltage-Max | 13.2 V |
| Technology | HYBRID |
| Terminal Finish | Tin/Lead (Sn85Pb15) |
| Termination Type | SOLDER |
| Additional Feature | TTL COMPATIBLE, CMOS COMPATIBLE |
