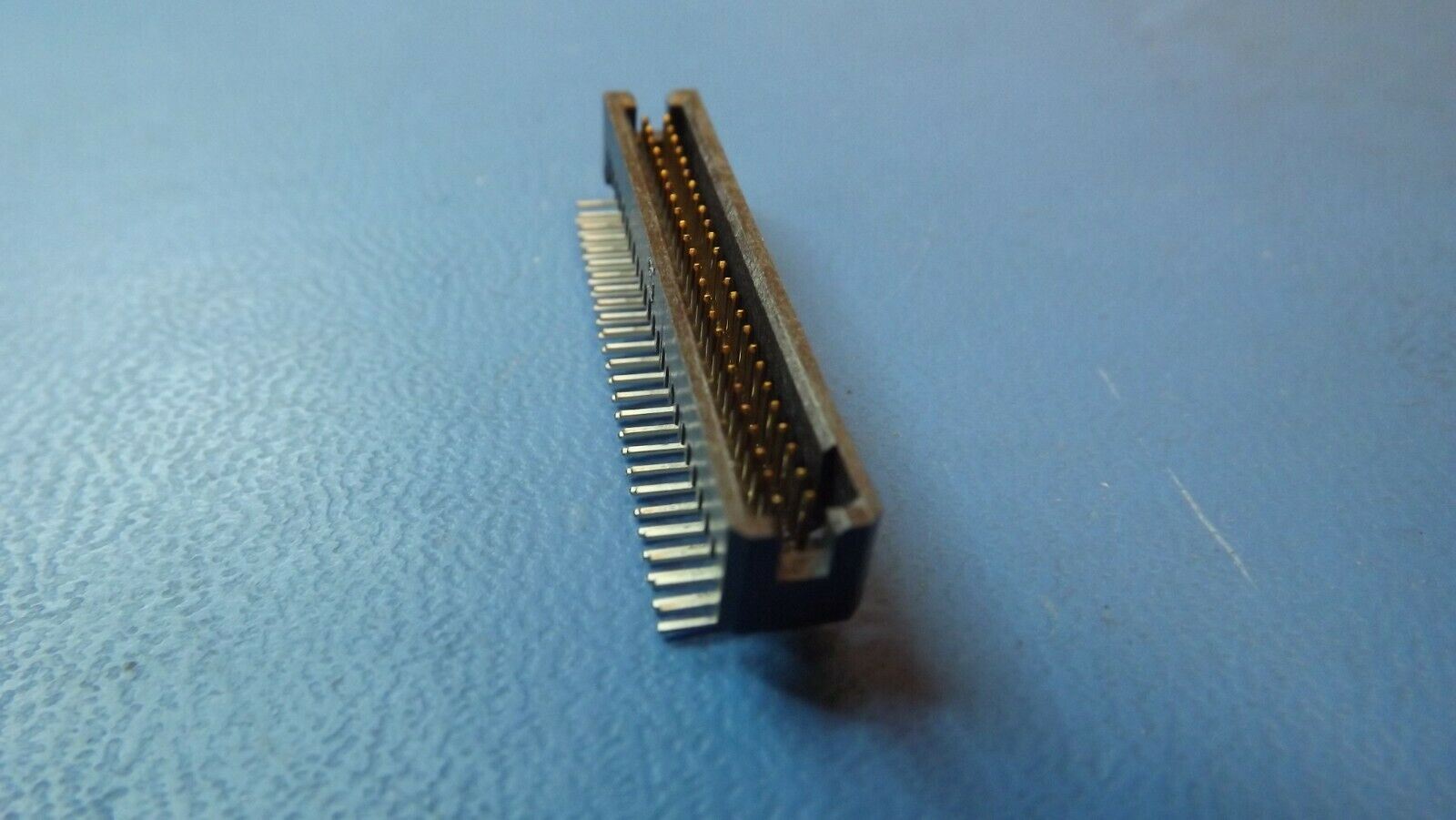

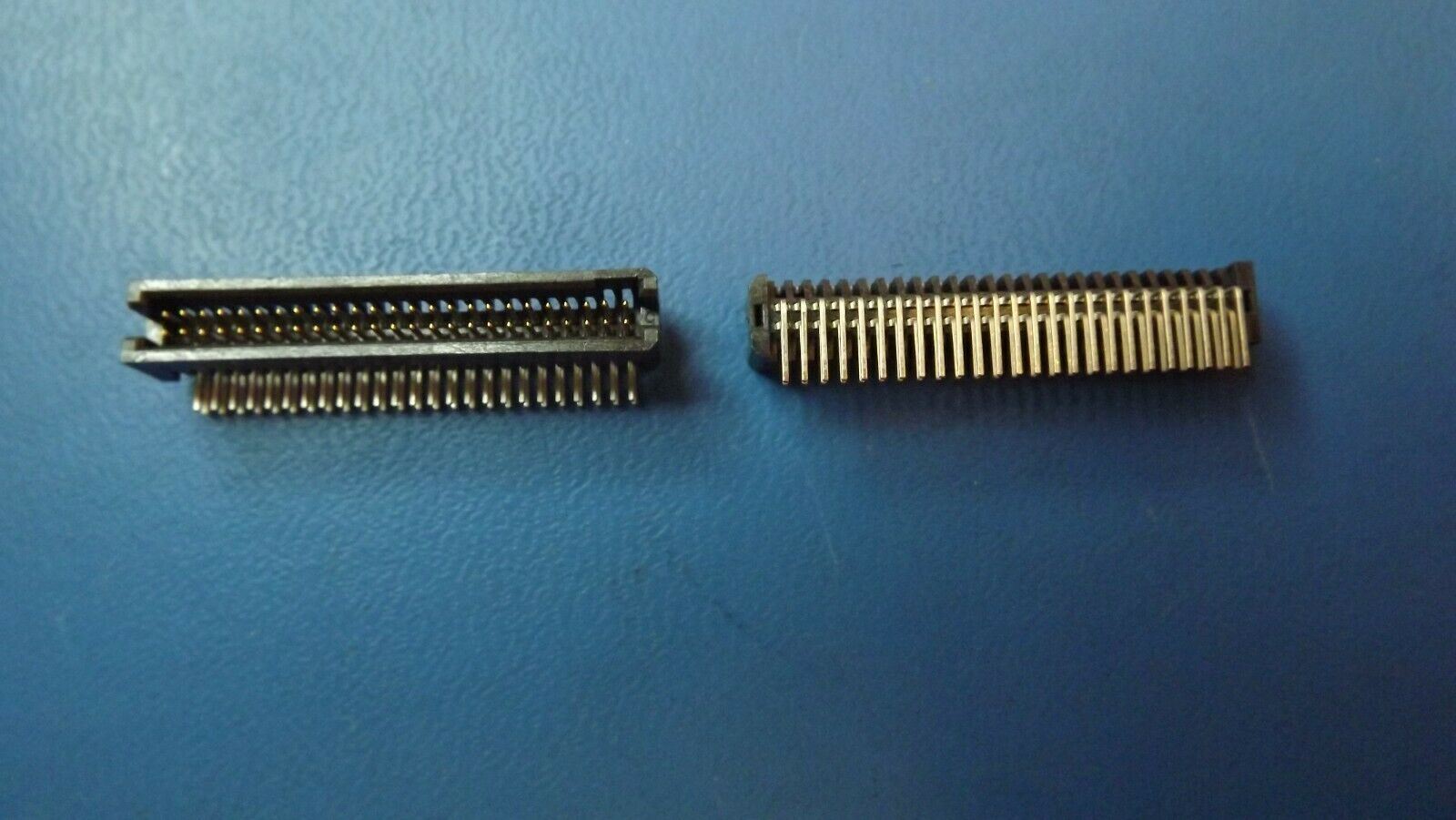

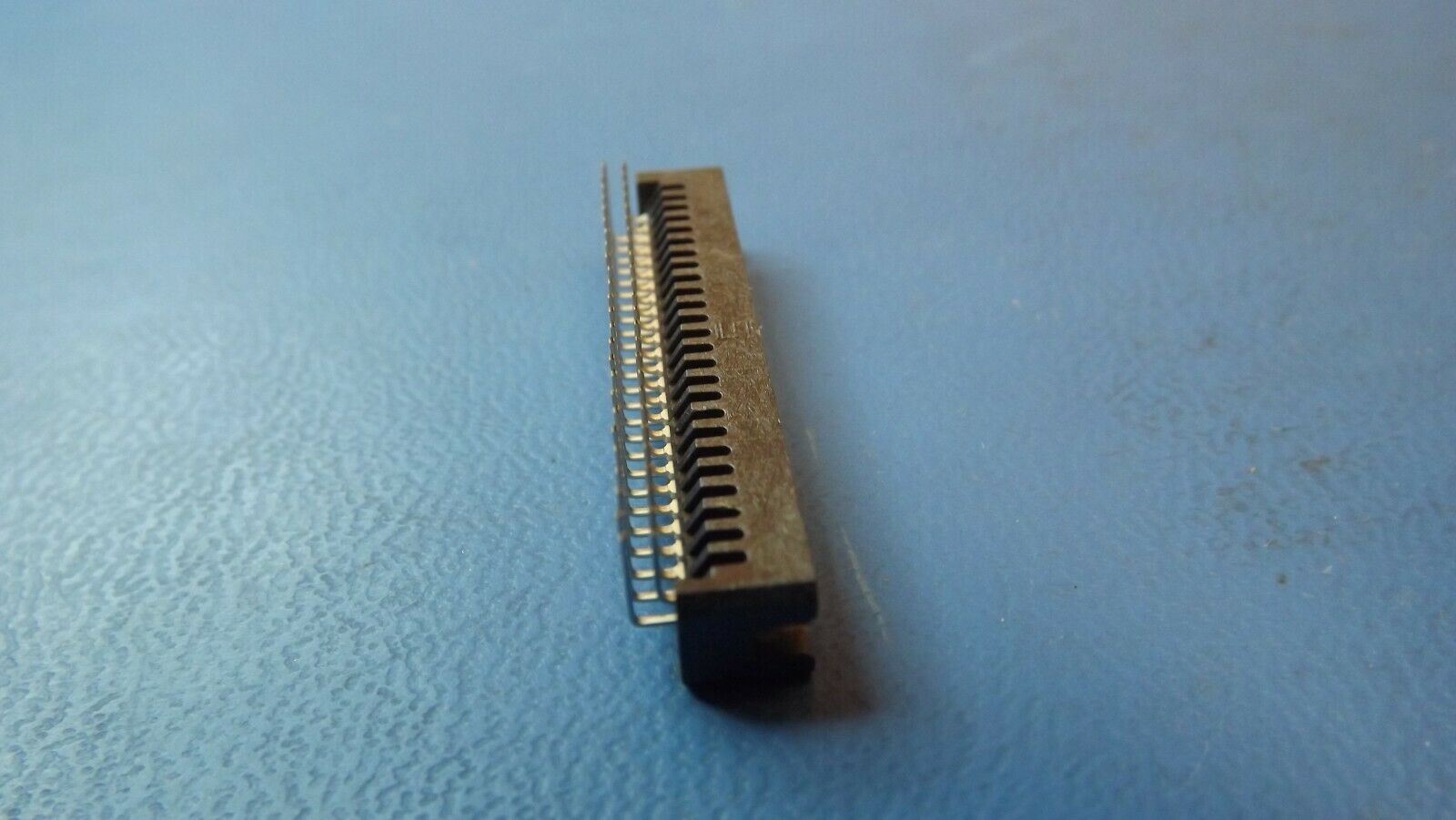

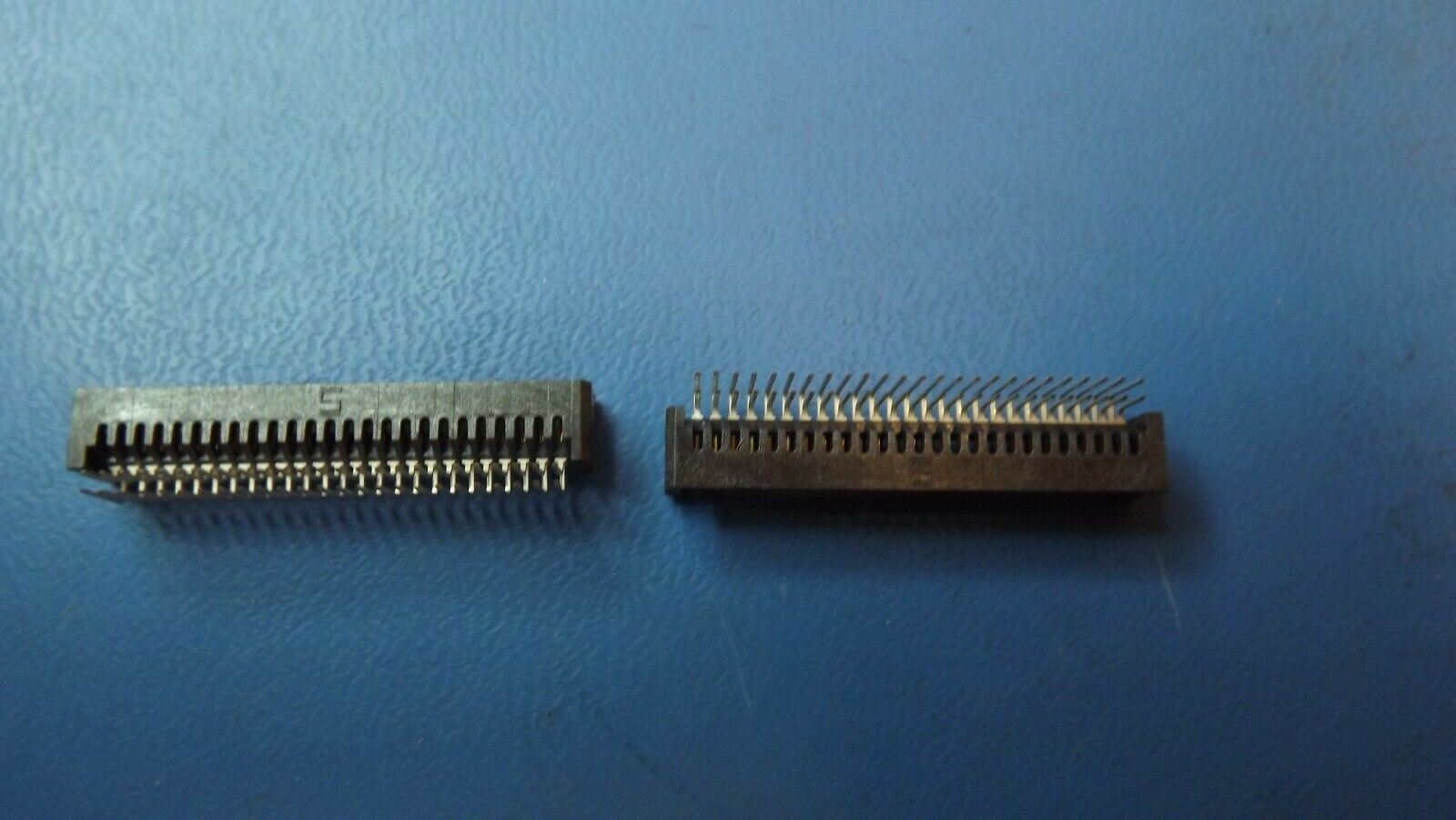

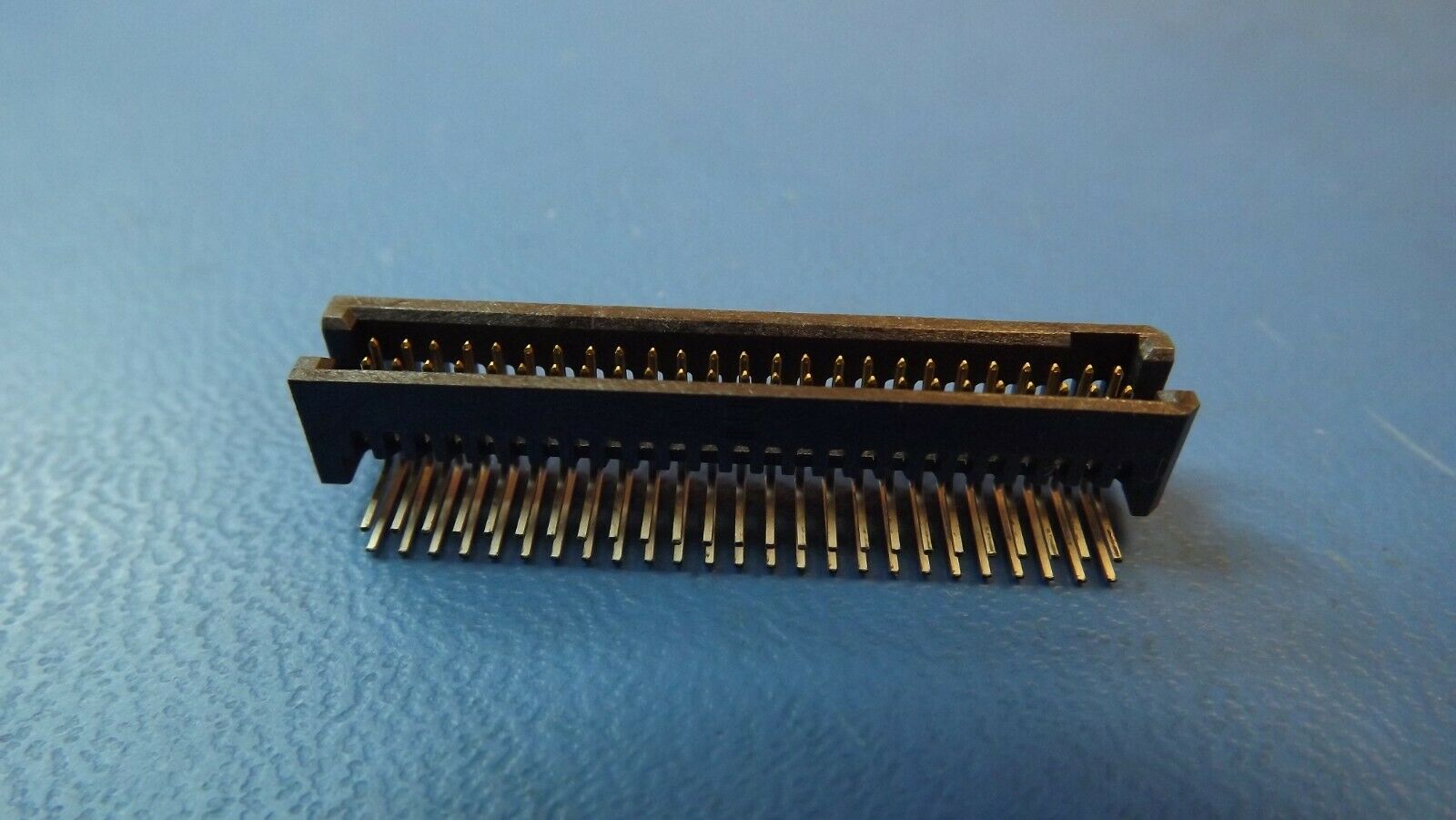

(1PC) TFM-125-01-S-D-RA SAMTEC Connector CONN HEADER R/A 50POS 1.27MM
(1PC) TFM-125-01-S-D-RA SAMTEC Connector CONN HEADER R/A 50POS 1.27MM
(1PC) TFM-125-01-S-D-RA SAMTEC Connector CONN HEADER R/A 50POS 1.27MM
(1PC) TFM-125-01-S-D-RA SAMTEC Connector CONN HEADER R/A 50POS 1.27MM
(1PC) TFM-125-01-S-D-RA SAMTEC Connector CONN HEADER R/A 50POS 1.27MM
(1PC) TFM-125-01-S-D-RA SAMTEC Connector CONN HEADER R/A 50POS 1.27MM

(1PC) TFM-125-01-S-D-RA SAMTEC Connector CONN HEADER R/A 50POS 1.27MM

Tax included.
Only 27 left!
THIS LISTING IS FOR (1PC) OF TFM-125-01-S-D-RA BY SAMTEC

Manufacturer:Samtec
Product Category:Headers & Wire Housings
RoHS:
Product:Headers
Type:Shrouded
Number of Positions:50 Position
Pitch:1.27 mm
Number of Rows:2 Row
Mounting Style:Straight Pin
Termination Style:Through Hole
Mounting Angle:Right Angle
Contact Gender:Pin (Male)
Contact Plating:Gold
Series:TFM
Tradename:Tiger Eye
Minimum Operating Temperature:- 55 C
Maximum Operating Temperature:+ 125 C
Packaging:Tube
Contact Type:-
Current Rating:3.2 A
Housing Material:Liquid Crystal Polymer (LCP)
Voltage Rating:250 V
Brand:Samtec
Contact Material:Phosphor Bronze
Flammability Rating:UL 94 V-0
Row Spacing:1.27 mm
Housing Gender:-
Latching Type:Unlatched
