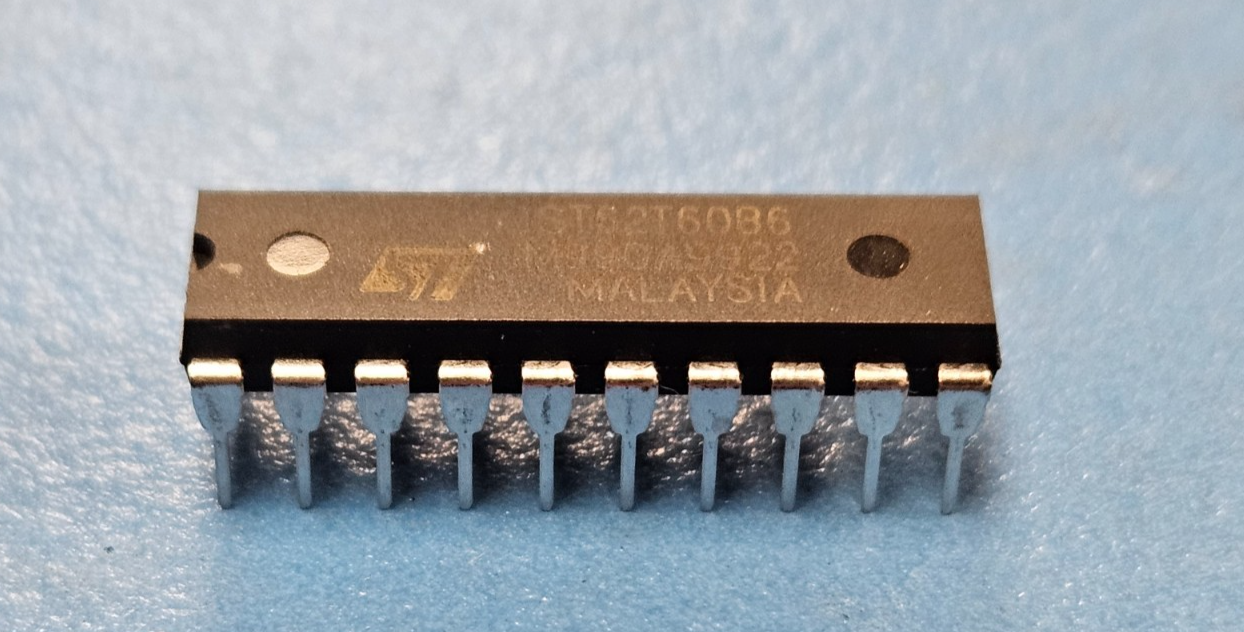

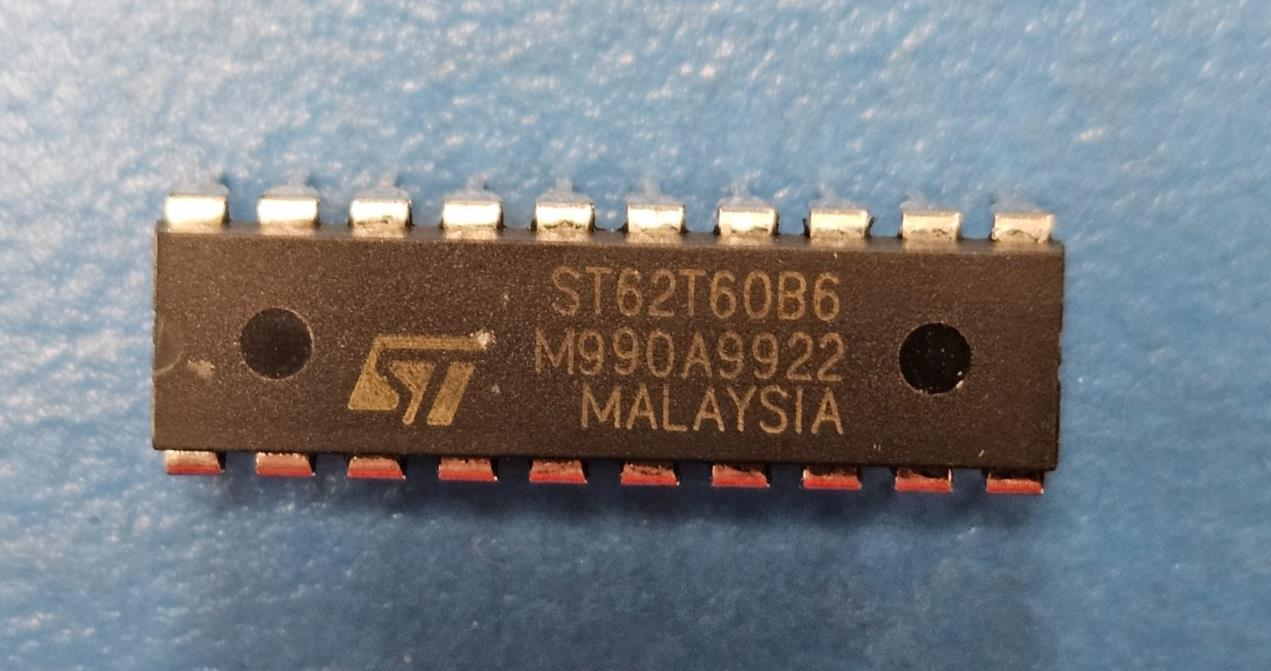

(1PC) ST62T60B6 Microcontroller, 8-Bit, OTPROM, ST6200 CPU, 8MHz, CMOS, PDIP20

$10.95
Unit price per

Tax included.

This listing is for (1PC) of ST62T60B6 by ST Micro

Status Unknown

ADC Channels YES

Additional Feature 3.5 TO 6 V @ 4 MHZ; USER SELECTABLE DATA ROM

Address Bus Width 0

Bit Size 8

Boundary Scan NO

CPU Family ST6200

Clock Frequency-Max (MHz) 8.0000000000000000

DAC Channels NO

DMA Channels NO

External Data Bus Width 0

Format FIXED POINT

Integrated Cache NO

JESD-30 Code R-PDIP-T20

J-STD-609 Code e0

Length (mm) 25.4000

Low Power Mode YES

Number of DMA Channels 0

Number of External Interrupts 1

Number of I/O Lines 13

Number of Serial I/Os 1

Number of Terminals 20

Number of Timers 1

On Chip Data RAM Width 8

Program Memory Width (bits) 8

Operating Temperature-Max (Cel) 85.0000

Operating Temperature-Min (Cel) -40.0000

PWM Channels NO

Package Body Material PLASTIC/EPOXY

Package Code DIP

Package Equivalence Code DIP20,.3

Package Shape RECTANGULAR

Package Style IN-LINE

DLA Qualification Not Qualified

Data RAM Size (bytes) 128

RAM (words) 128

Program Memory Size (words) 4096

Program Memory Type OTPROM

Seated Height-Max (mm) 3.9300

Speed (MHz) 8.00000000

Supply Current-Max (mA) 6.60000000

Supply Voltage-Max (V) 6.0000

Supply Voltage-Min (V) 5.0000

Supply Voltage-Nom (V) 5.0000

Surface Mount NO

Technology CMOS

Temperature Grade INDUSTRIAL

Terminal Finish TIN LEAD

Terminal Form THROUGH-HOLE

Terminal Pitch (mm) 2.540

Terminal Position DUAL

Width (mm) 7.6200

uPs/uCs/Peripheral ICs Type MICROCONTROLLER
