(1PC) SST39VF010-70-4I-NHE 1 Mbit 128 K x 8 3 V Multi-Purpose Flash - PLCC-32
Tax included.

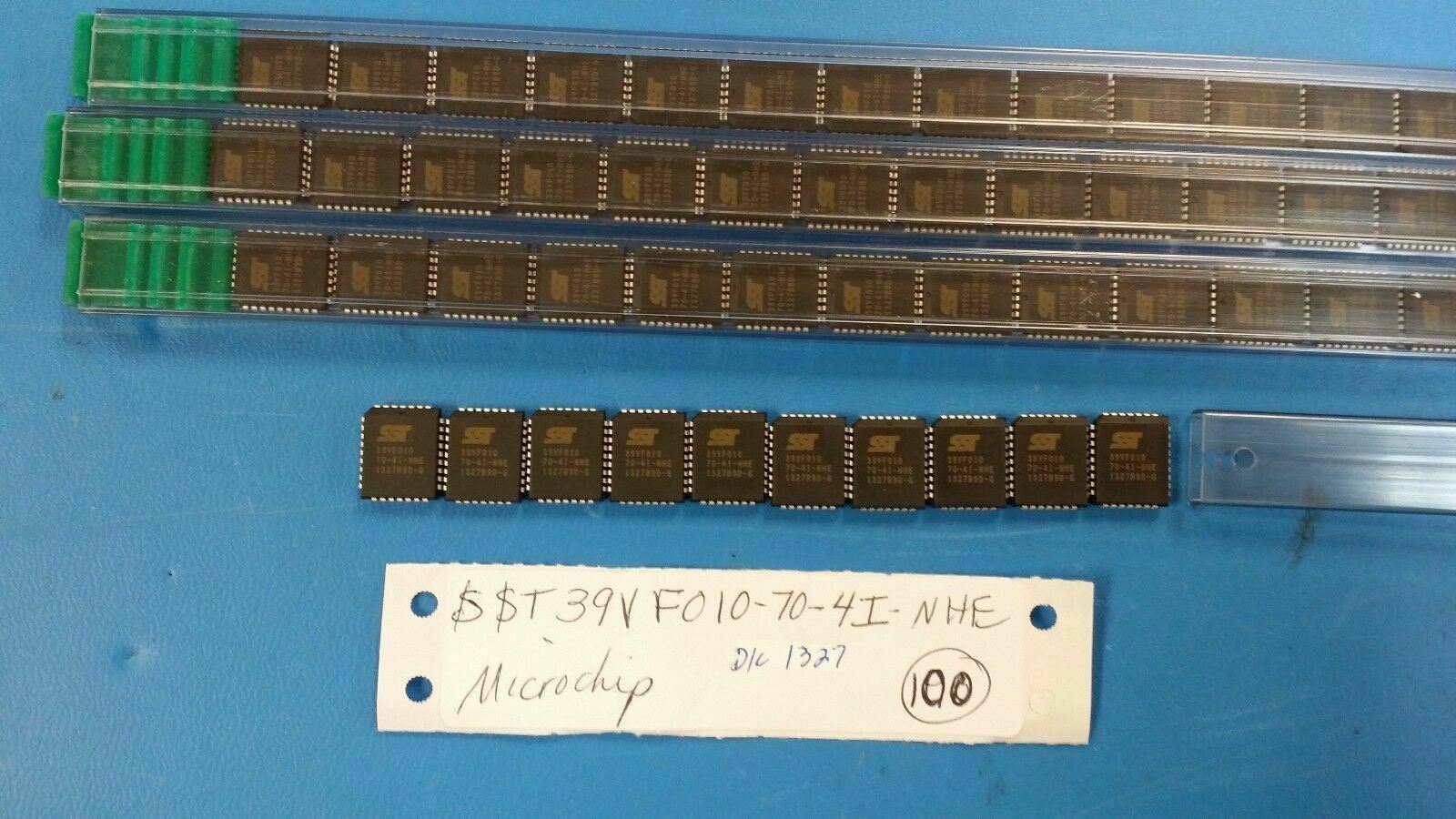

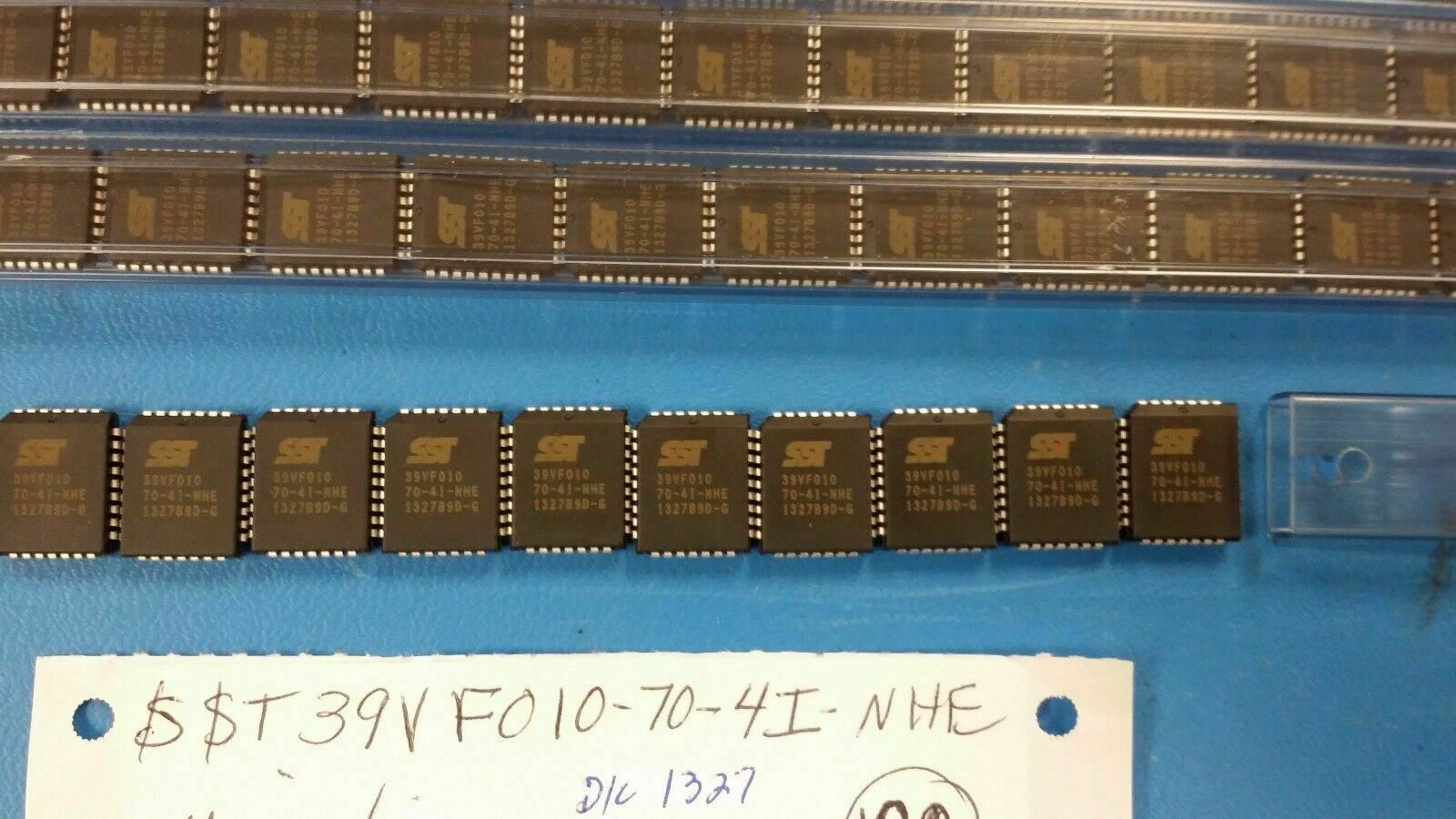

THIS LISTING IS FOR (1PC) OF SST39VF010-70-4I-NHE BY SST
SPECIFICATIONS
| Mfr Package Description | ROHS COMPLIANT, PLASTIC, MS-016AE, LCC-32 |
| EU RoHS Compliant | Yes |
| Status | Transferred |
| Type | NOR TYPE |
| Sub Category | Flash Memories |
| Access Time-Max | 70 ns |
| Command User Interface | YES |
| Data Polling | YES |
| JESD-30 Code | R-PQCC-J32 |
| JESD-609 Code | e3 |
| Memory Density | 1.05E6 bit |
| Memory IC Type | FLASH |
| Memory Width | 8 |
| Number of Functions | 1 |
| Number of Sectors/Size | 32 |
| Number of Terminals | 32 |
| Number of Words | 131072 words |
| Number of Words Code | 128K |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Min | -40 Cel |
| Operating Temperature-Max | 85 Cel |
| Organization | 128KX8 |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | QCCJ |
| Package Equivalence Code | LDCC32,.5X.6 |
| Package Shape | RECTANGULAR |
| Package Style | CHIP CARRIER |
| Parallel/Serial | PARALLEL |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies (V) | 3/3.3 |
| Programming Voltage (V) | 2.7 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 3.56 mm |
| Sector Size (Words) | 4K |
| Standby Current-Max | 1.50E-5 Amp |
| Supply Current-Max | 0.0300 Amp |
| Supply Voltage-Nom (Vsup) | 3 V |
| Supply Voltage-Min (Vsup) | 2.7 V |
| Supply Voltage-Max (Vsup) | 3.6 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | MATTE TIN |
| Terminal Form | J BEND |
| Terminal Pitch | 1.27 mm |
| Terminal Position | QUAD |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Toggle Bit | YES |
| Length | 13.97 mm |
| Width | 11.43 mm |
