(1PC) SQ-SEN-815B-ITR SIGNAL QUEST Tilt Sensor, Zero Power
Tax included.

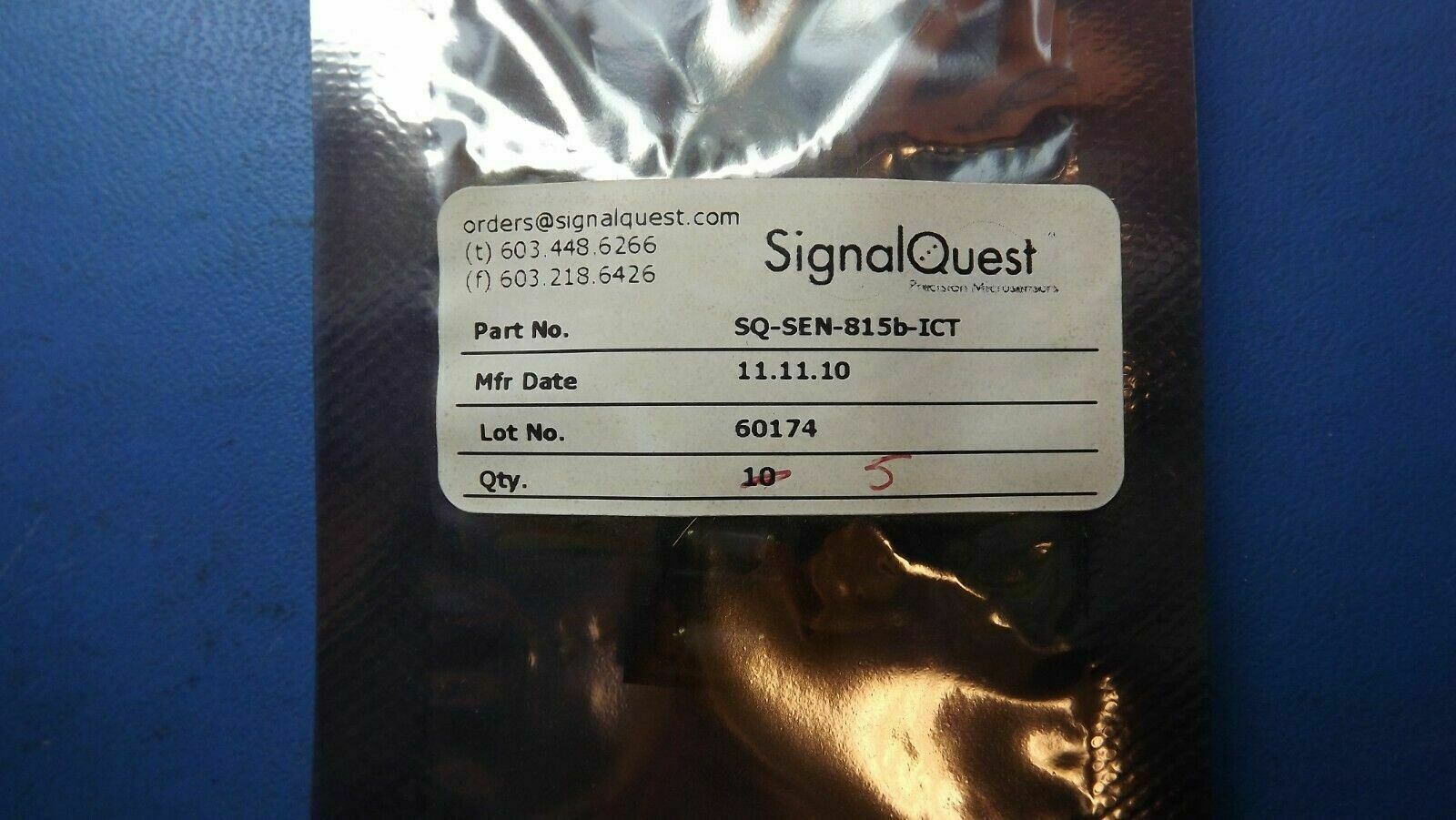

THIS LISTING IS FOR (1PC) OF SQ-SEN-815B-ITR BY SIGNAL QUEST

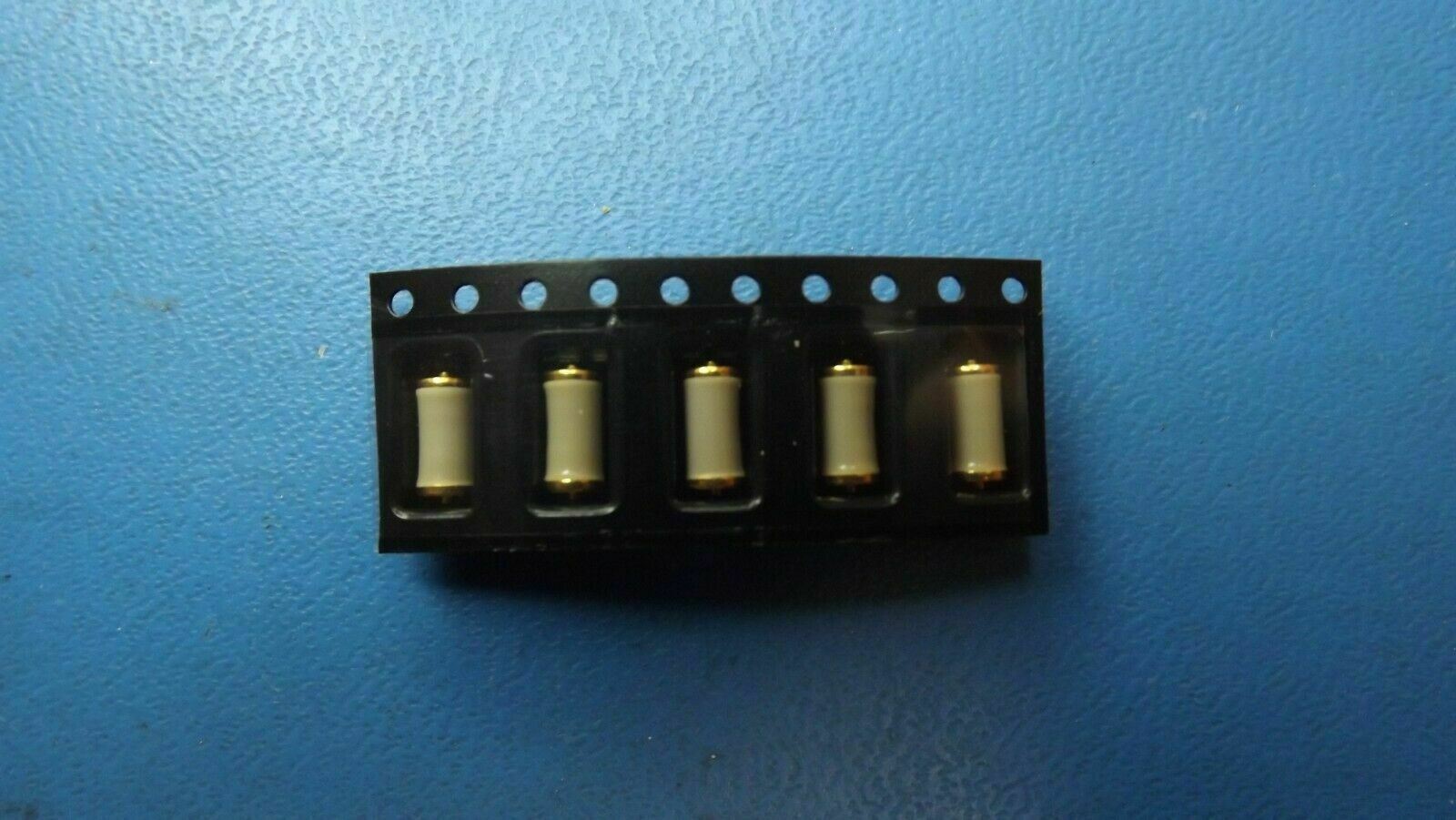

5PCS SHOWN IN PICTURE. ONLY 1PC WILL BE SHIPPED.
TILT SENSOR
Functions
- Normally closed when below the switch angle
- On / off tilt sensing
- Non-sensitive to vibration when open
- Normally open when horizontal
Features
- Surface mount - RoHS & REACH complaint, lead free, Halogen free
- Made in USA - fully automated production, 100% testing, worldwide quality and price leader
- Zero-power normally - < 50 nA when activated
- Activation angle - Bi-directional 15° and -15°
- Industrial rated - 10 year life, -40 to 85 ºC
- Miniature size - 3.3 mm x 6.9 mm
- Simple interface - No signal conditioning required
