(1PC) SPT9687SIC Comparator, 2 Func, 3500uV Offset-Max,1.2ns, BiPolar Gold LCC20
Tax included.

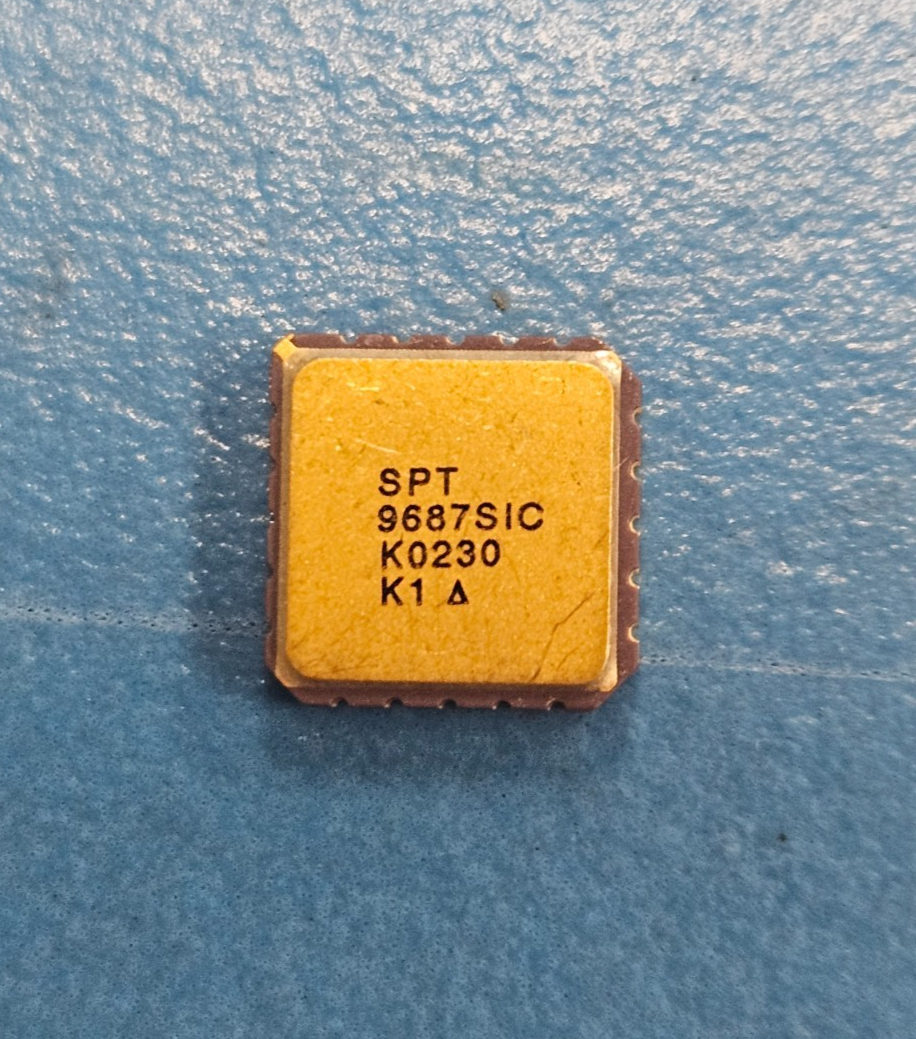

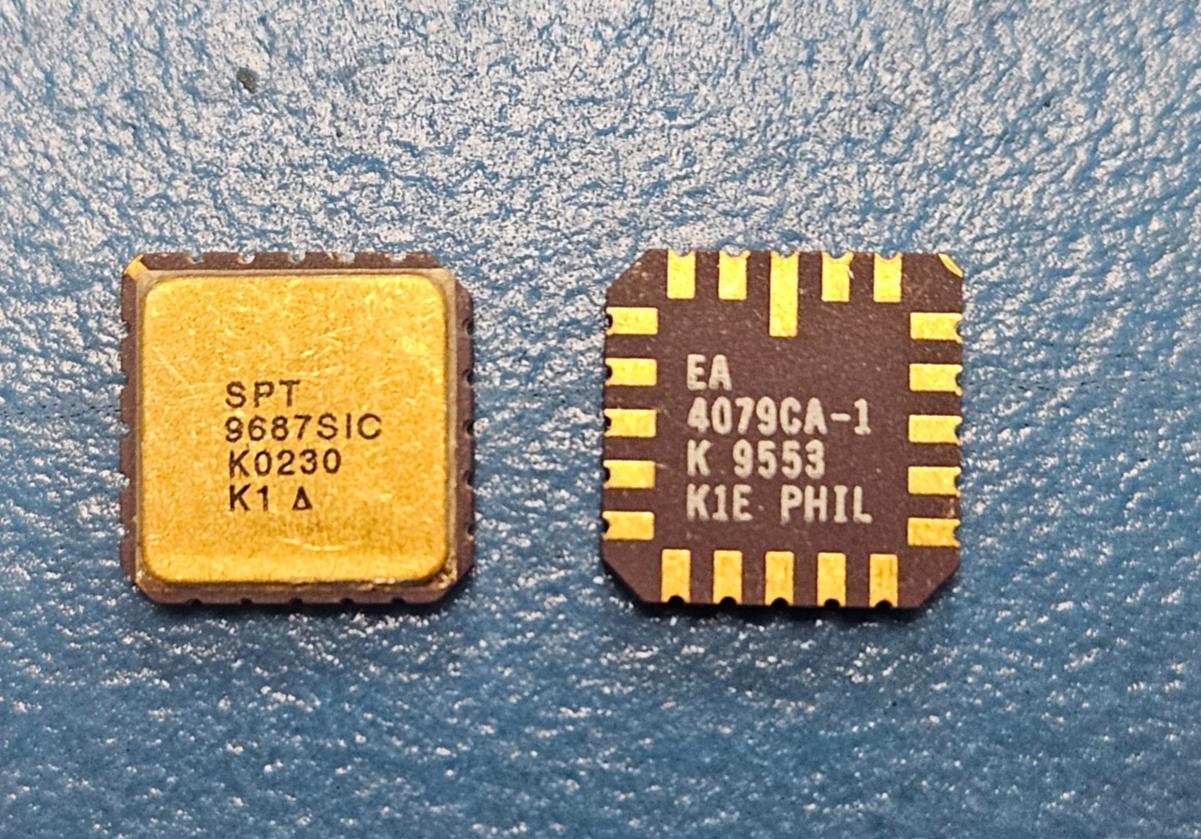

This listing is for (1PC) of SPT9687SIC by Fairchild Semiconductor
Status Discontinued
Amplifier Type COMPARATOR
Average Bias Current-Max (IIB) (uA) 38.0000000000000000
Bias Current-Max (IIB) @25C (uA) 20.0000000000000000
Input Offset Voltage-Max (uV) 3500.00000000
JESD-30 Code S-CQCC-N20
Length (mm) 8.9500
Neg Supply Voltage Limit-Max (V) -6.0000
Negative Supply Voltage-Nom (V) -5.2000
Number of Functions 2
Number of Terminals 20
Operating Temperature-Max (Cel) 85
Operating Temperature-Min (Cel) -25.0000
Output Type OPEN-EMITTER
Package Body Material CERAMIC, METAL-SEALED COFIRED
Package Code QCCN
Package Equivalence Code LCC20,.35SQ
Package Shape SQUARE
Package Style CHIP CARRIER
DLA Qualification Not Qualified
Response Time-Nom (ns) 1.20000000
Seated Height-Max (mm) 1.6800
Supply Current-Max (mA) 37.00000000
Supply Voltage Limit-Max (V) 6.0000
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology BIPOLAR
Temperature Grade OTHER
Terminal Form NO LEAD
Terminal Pitch (mm) 1.270
Terminal Position QUAD
Width (mm) 8.9500
