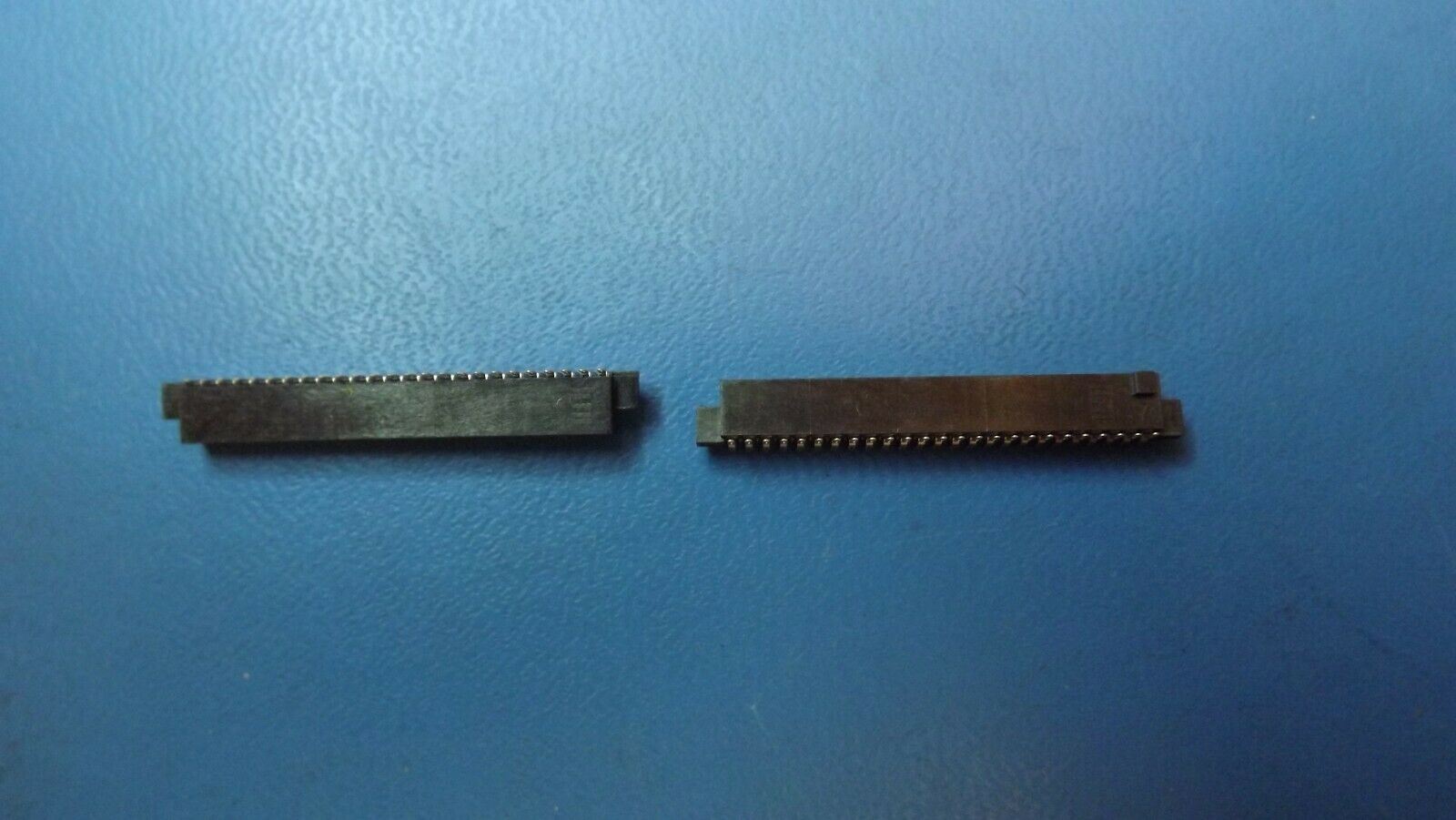

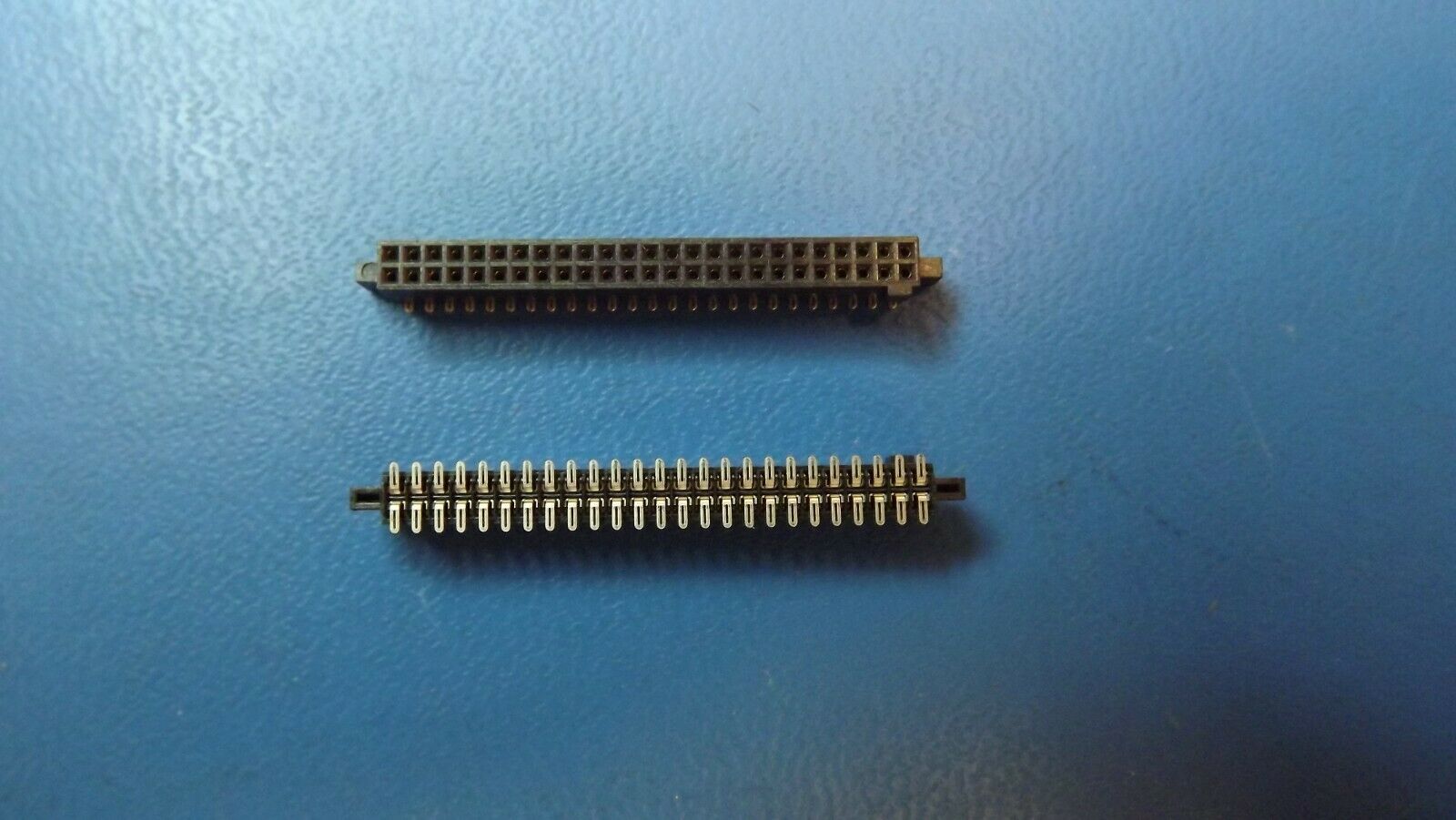

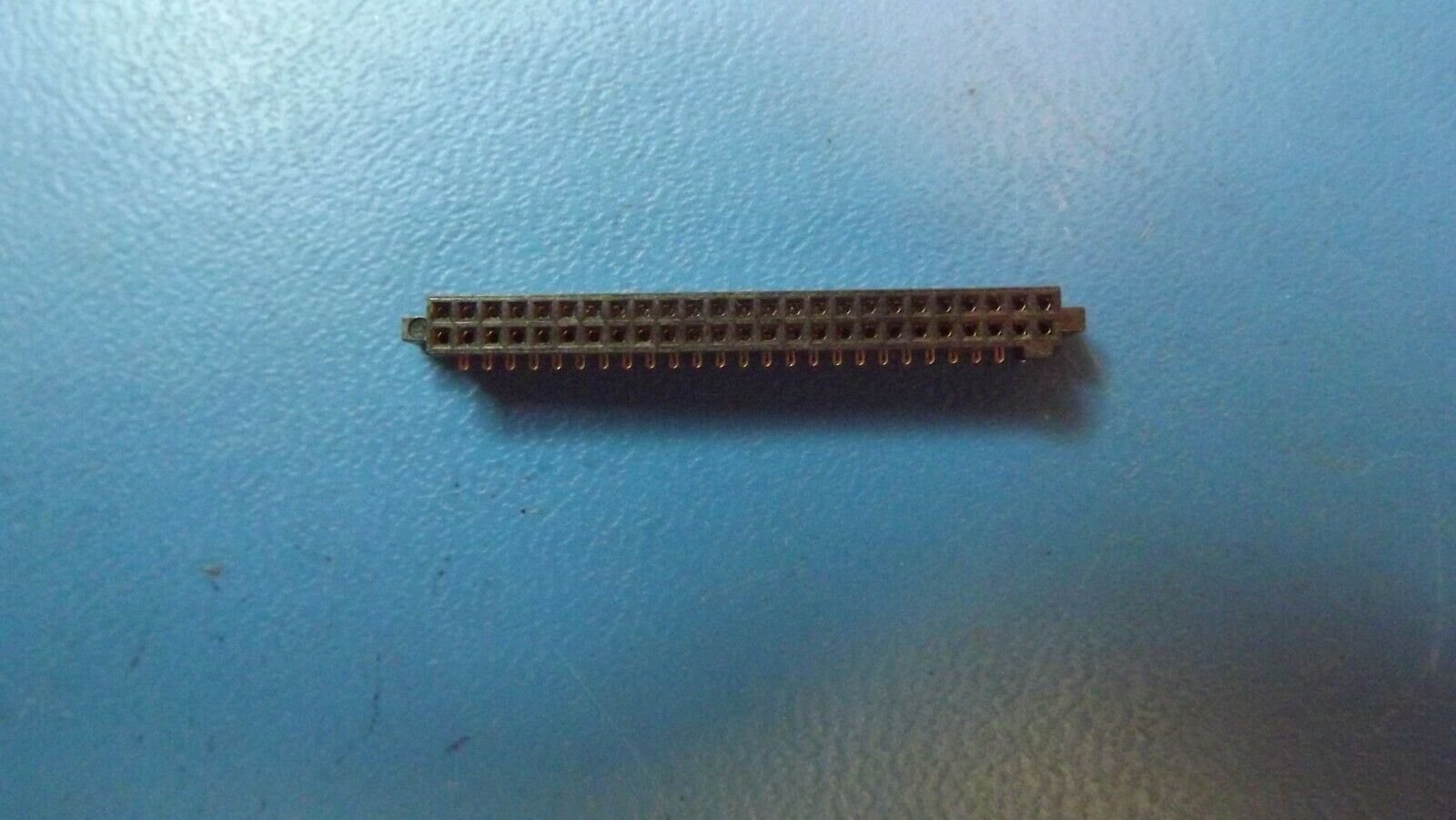

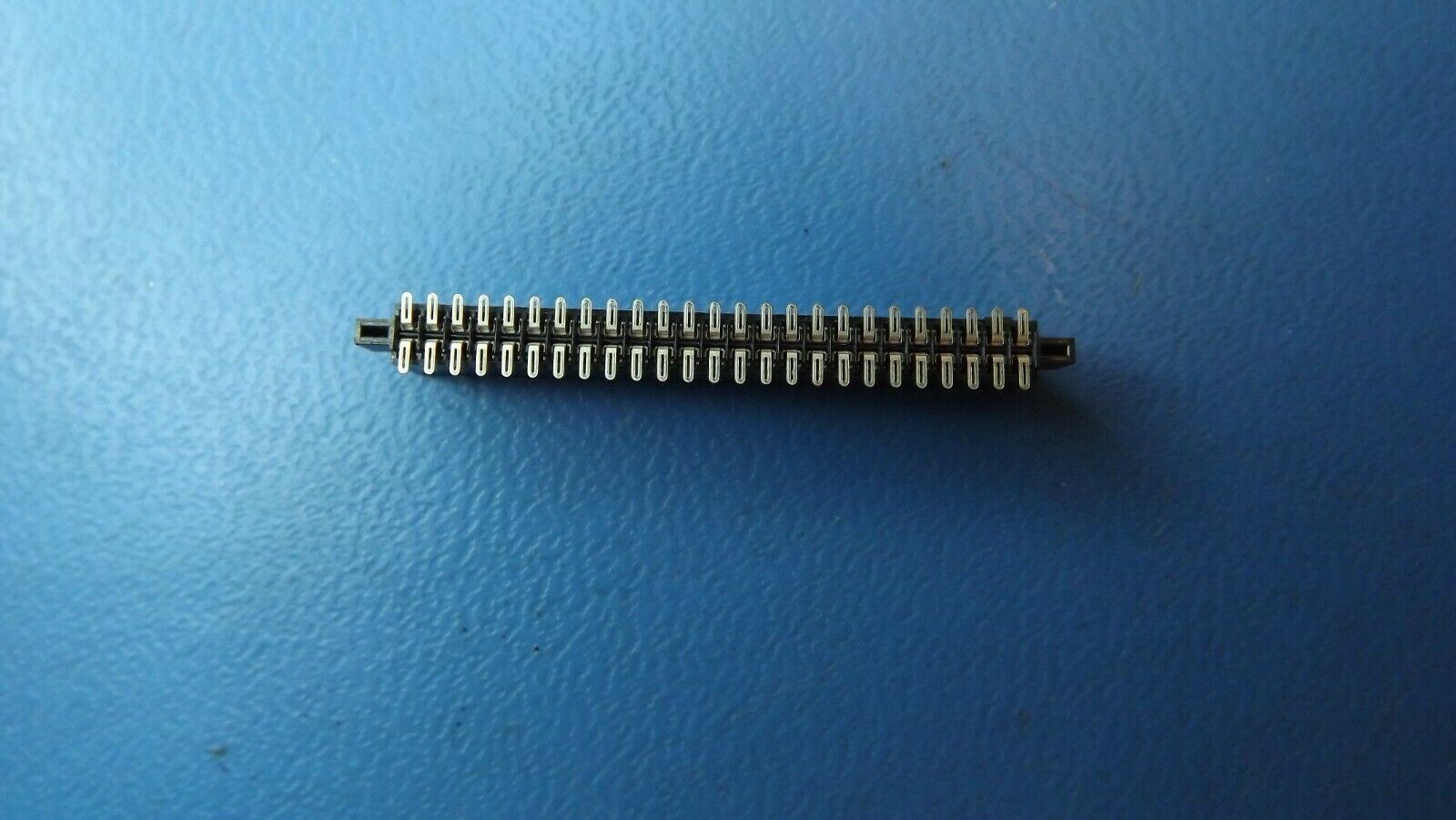

(1PC) SFM-125-02-S-D CONNECTOR RCPT 50POS 0.05 GOLD SMD
Tax included.
THIS LISTING IS FOR (1PC) OF SFM-125-02-S-D BY SAMTEC
Manufacturer:Samtec
Product Category:Headers & Wire Housings
RoHS: Details
Product:Headers
Type:Socket
Number of Positions:50 Position
Pitch:1.27 mm
Number of Rows:2 Row
Mounting Style:SMD/SMT
Termination Style:SMD/SMT
Mounting Angle:Straight
Contact Gender:Socket (Female)
Contact Plating:Gold
Mating Post Length:-
Termination Post Length:-
Series:SFM
Tradename:Tiger Eye
Minimum Operating Temperature:- 55 C
Maximum Operating Temperature:+ 125 C
Packaging:Tube
Contact Type:-
Current Rating:3.2 A
Housing Material:Liquid Crystal Polymer (LCP)
Voltage Rating:250 V
Brand:Samtec
Contact Material:Beryllium Copper
Flammability Rating:UL 94 V-0
Row Spacing:1.27 mm
Housing Gender:-
Latching Type:Unlatched
Product Type:Headers & Wire Housings
