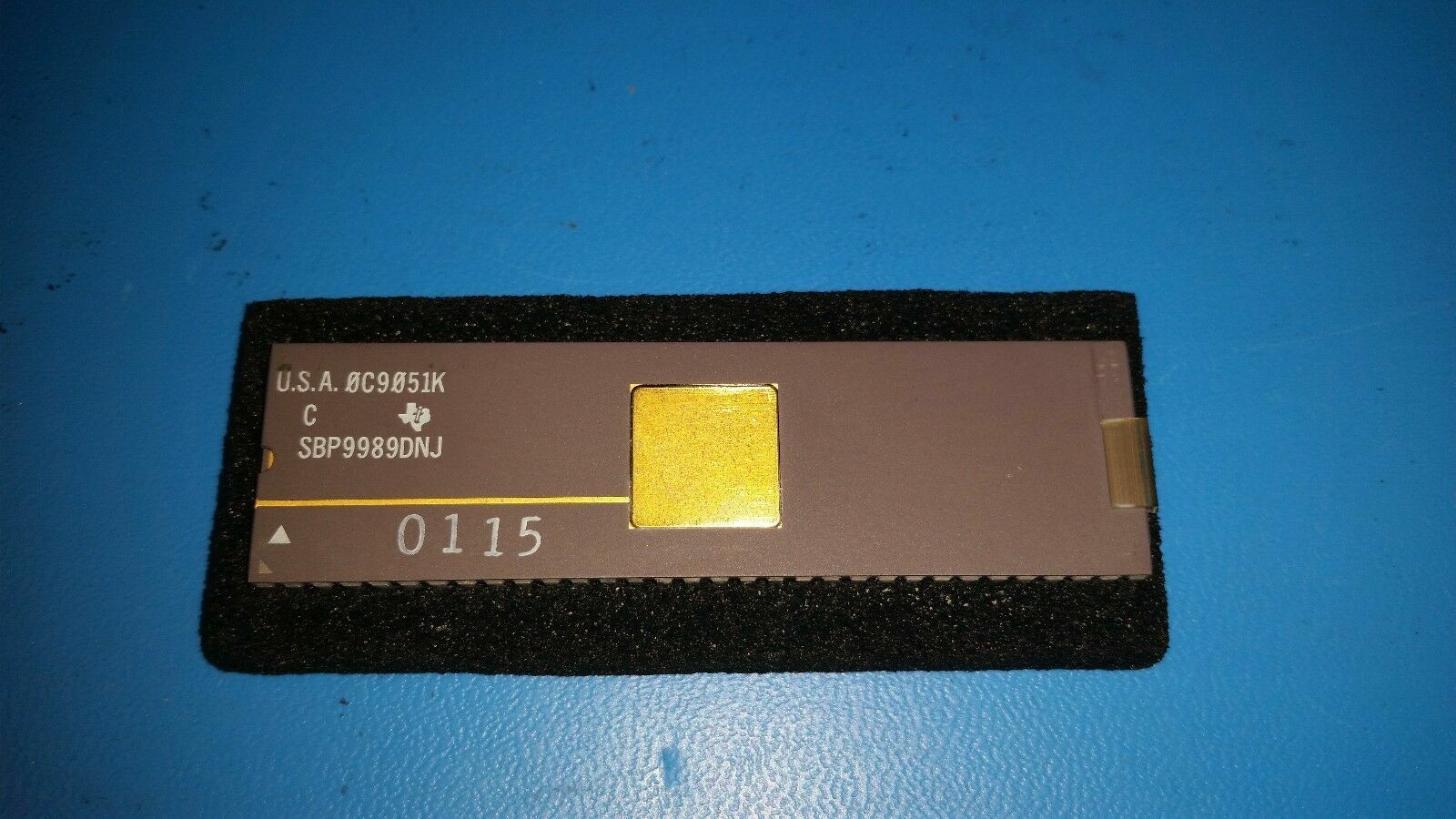

(1pc) SBP9989DNJ Microprocessor 16-Bit 4.4MHz Bipolar CDIP64, 5962-01-169-4245
Tax included.
THIS LISTING IS FOR (1PC) OF SBP9989DNJ BY TEXAS INSTRUMENTS
Microprocessor, 16-Bit, 4.4MHz, Bipolar, CDIP64
Part #: SBP9989DNJ
Part Category: Microprocessors/Microcontrollers/Peripheral ICs
Manufacturer: Texas Instruments High-Performance Analog
Description: Microprocessor, 16-Bit, 4.4MHz, Bipolar, CDIP64
Mfr Package Description DIP-64
Status Discontinued
Address Bus Width 15.0
Bit Size 16
Boundary Scan NO
External Data Bus Width 16.0
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-CDIP-T64
Low Power Mode NO
Number of Terminals 64
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Package Body Material CERAMIC, METAL-SEALED COFIRED
Package Code DIP
Package Equivalence Code DIP64,.9
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Screening Level MIL-STD-883 Class B
Seated Height-Max 5.72 mm
Speed 4.4 MHz
Sub Category Microprocessors
Surface Mount NO
Technology BIPOLAR
Temperature Grade MILITARY
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 80.285 mm
Width 22.86 mm
