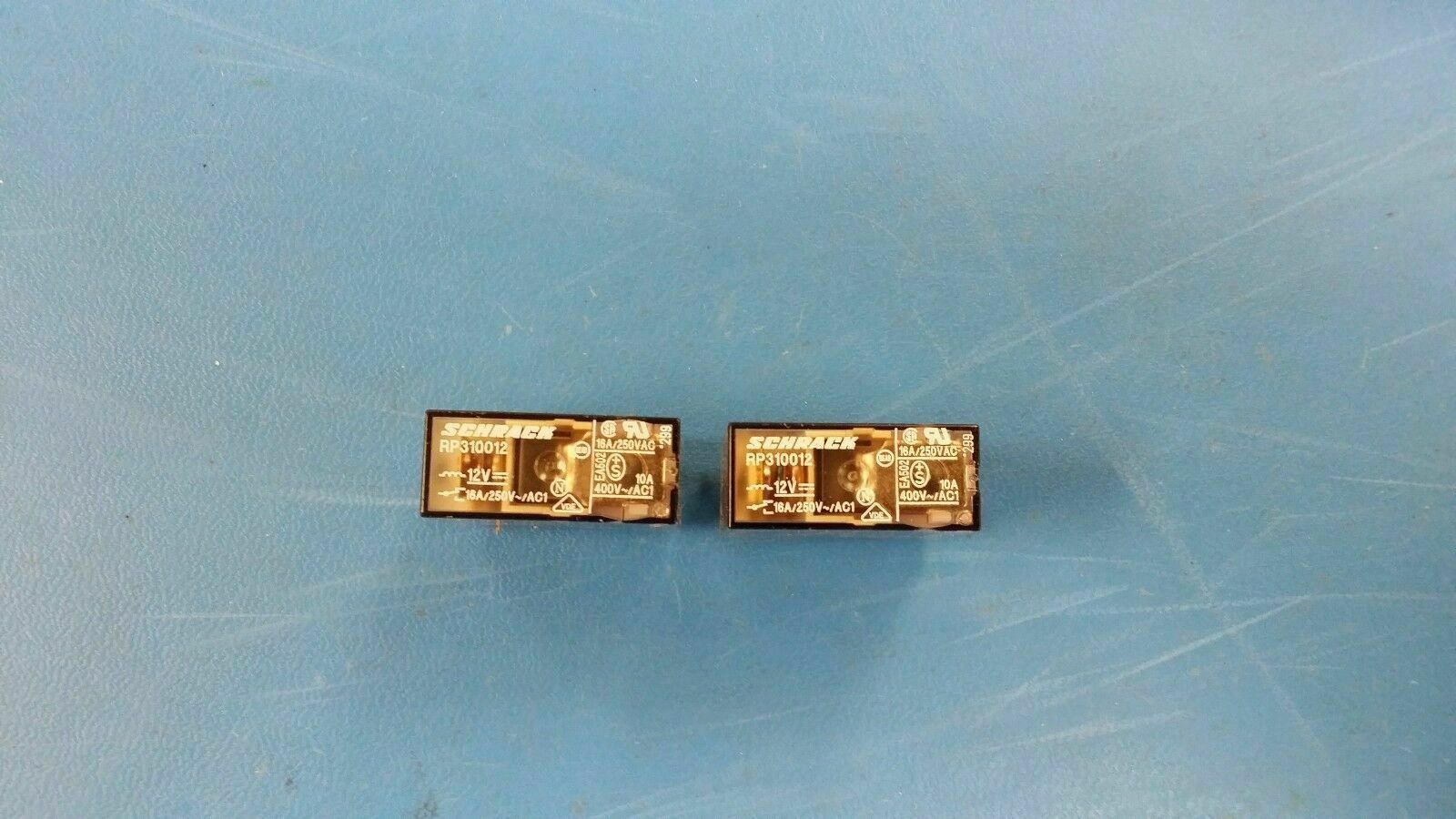

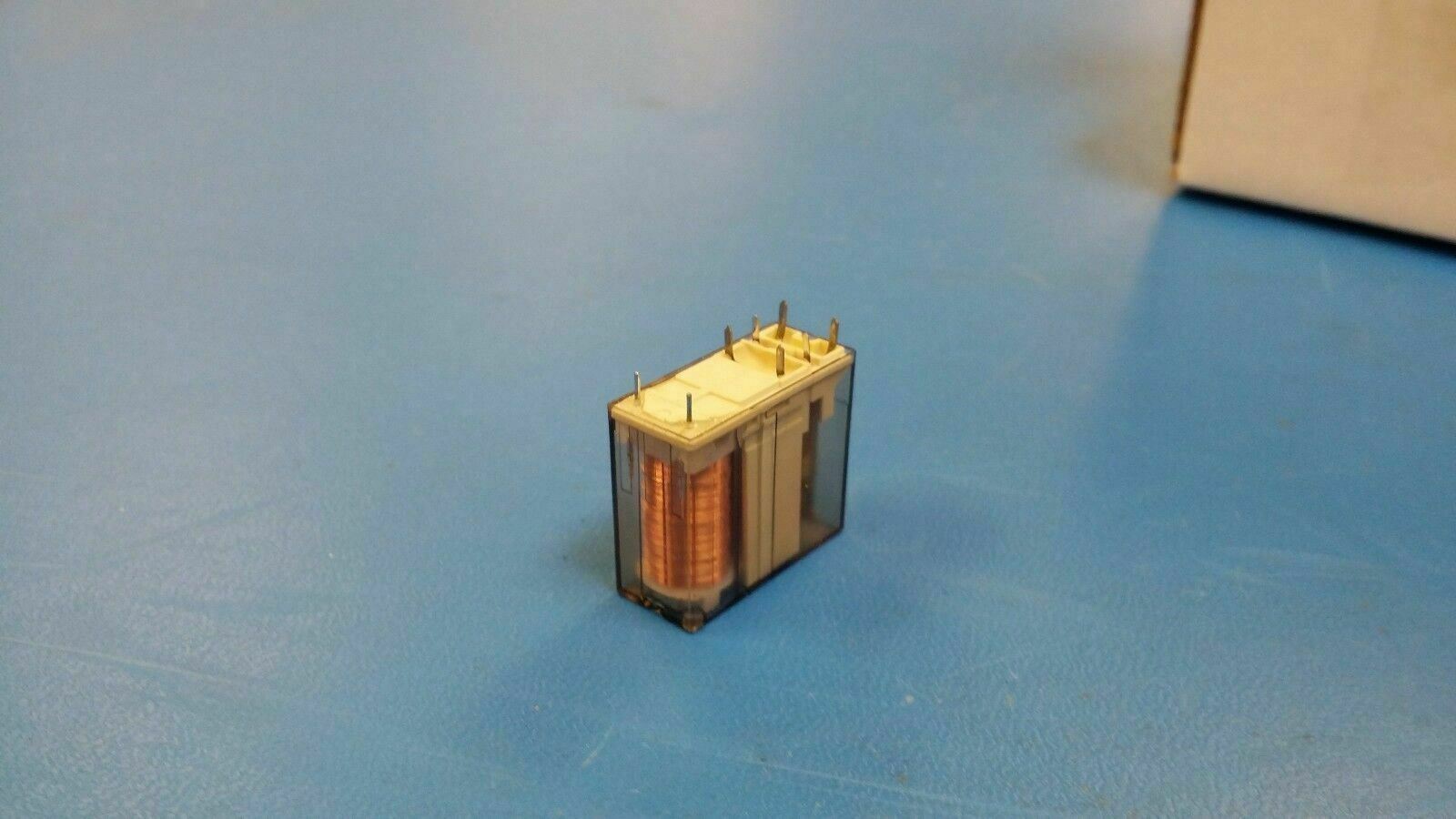

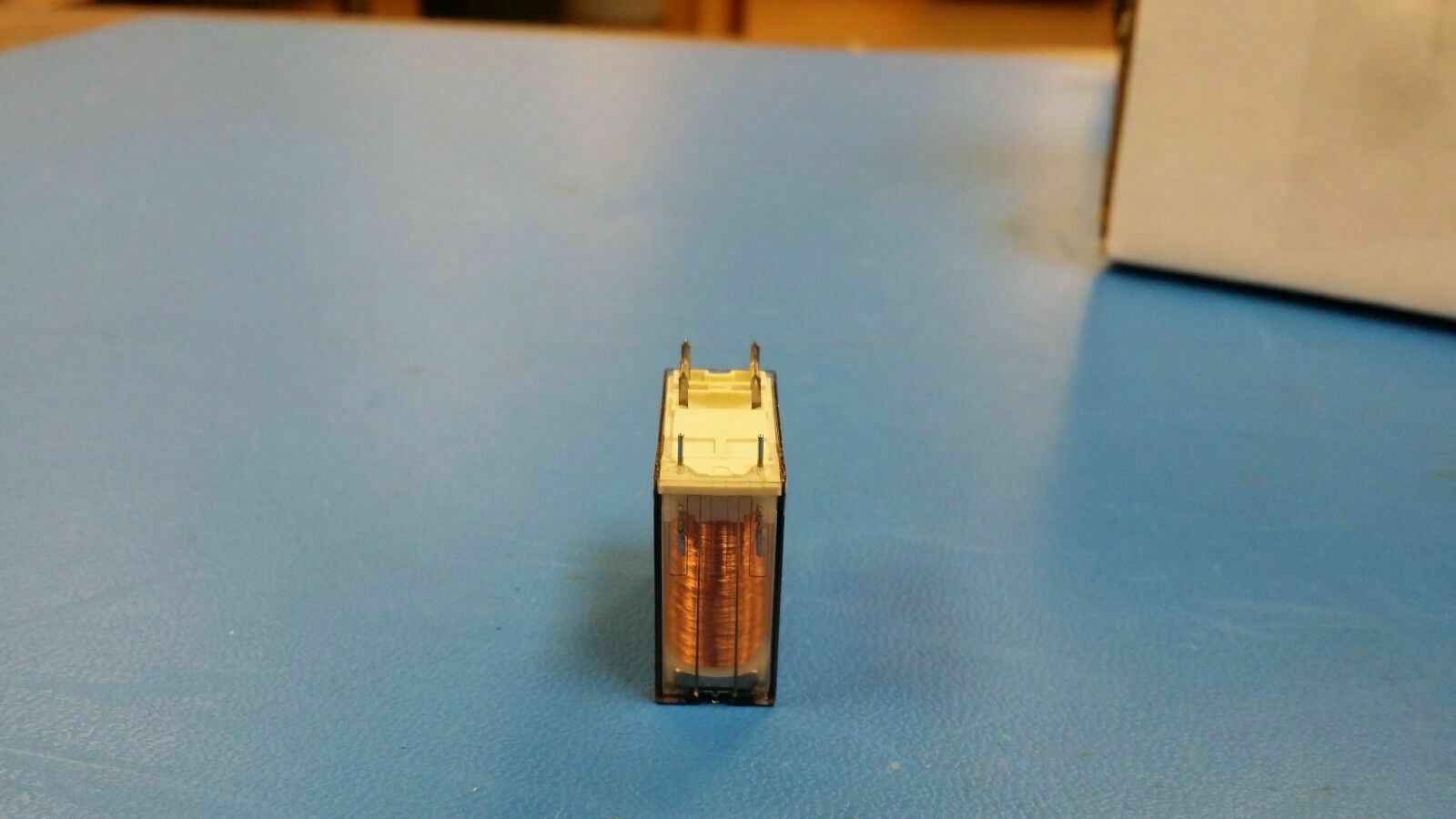

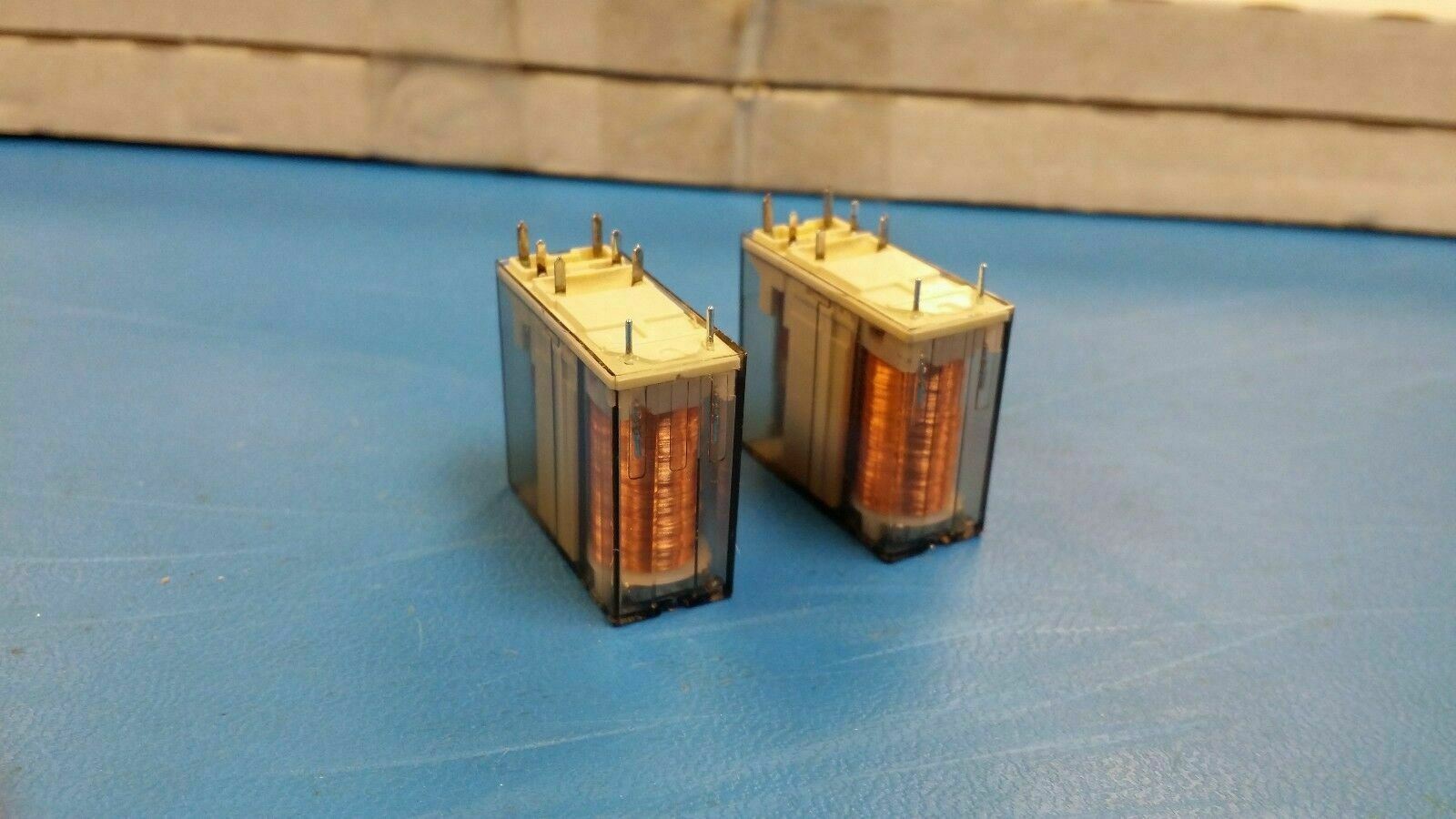

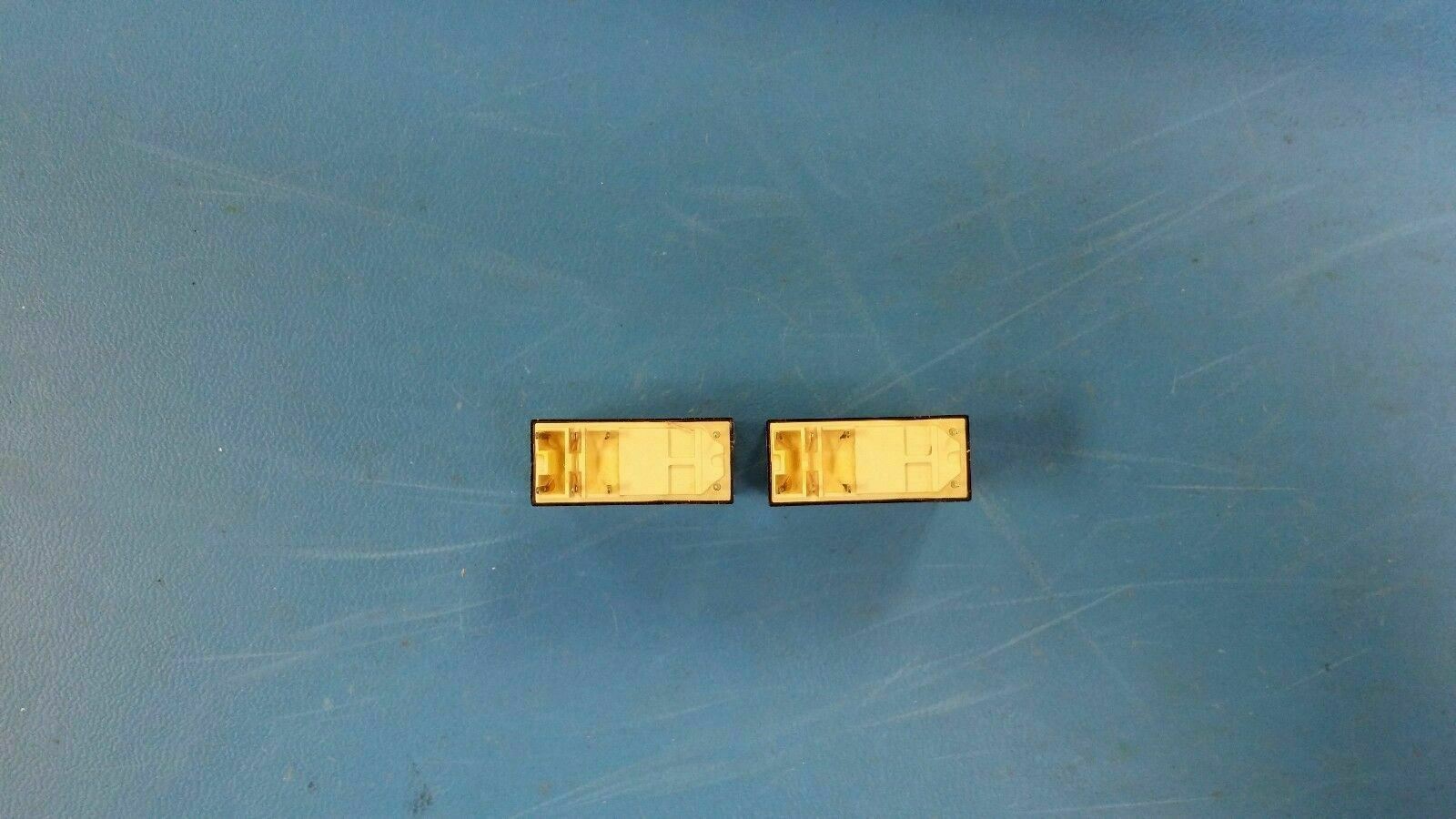

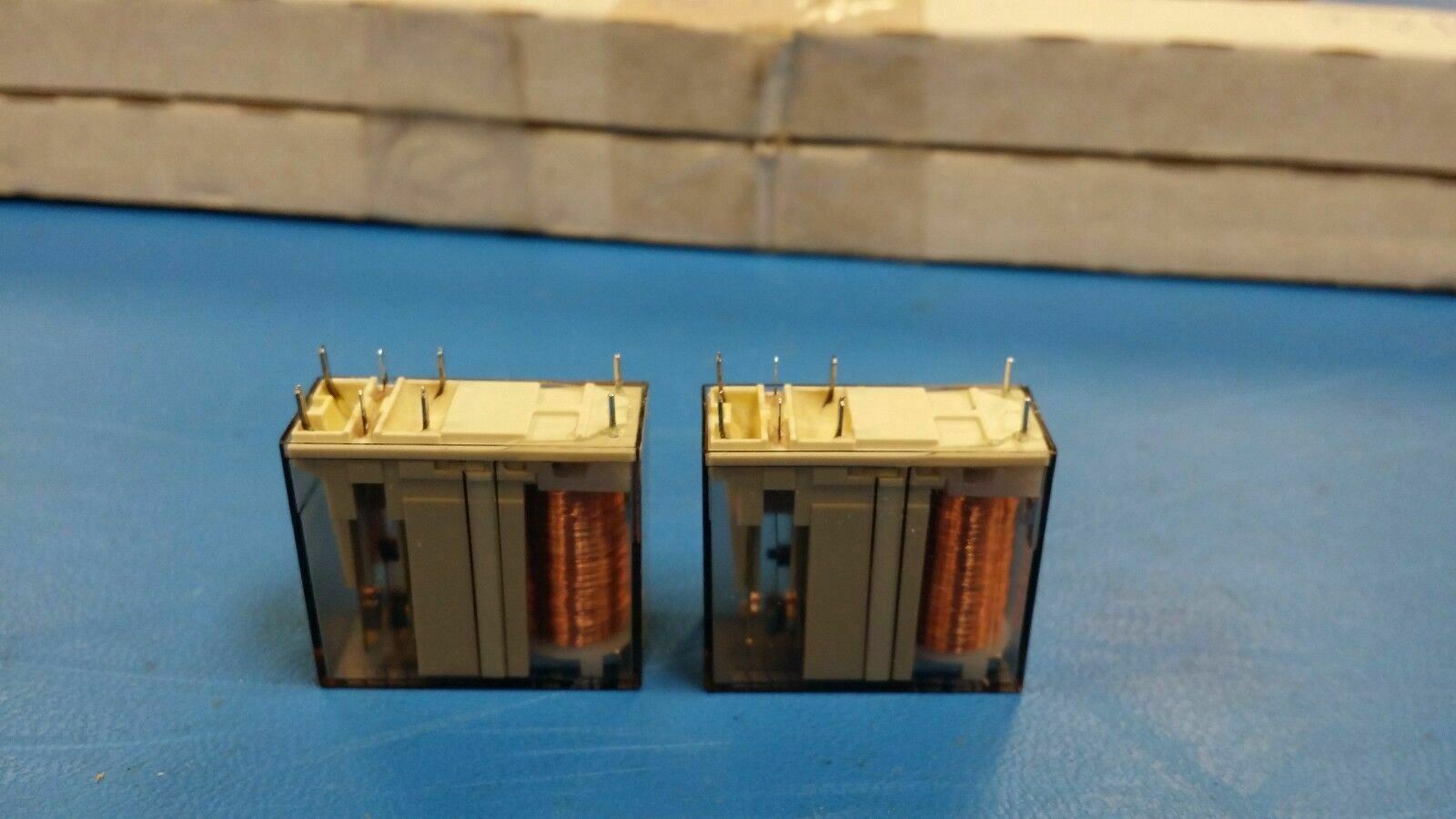

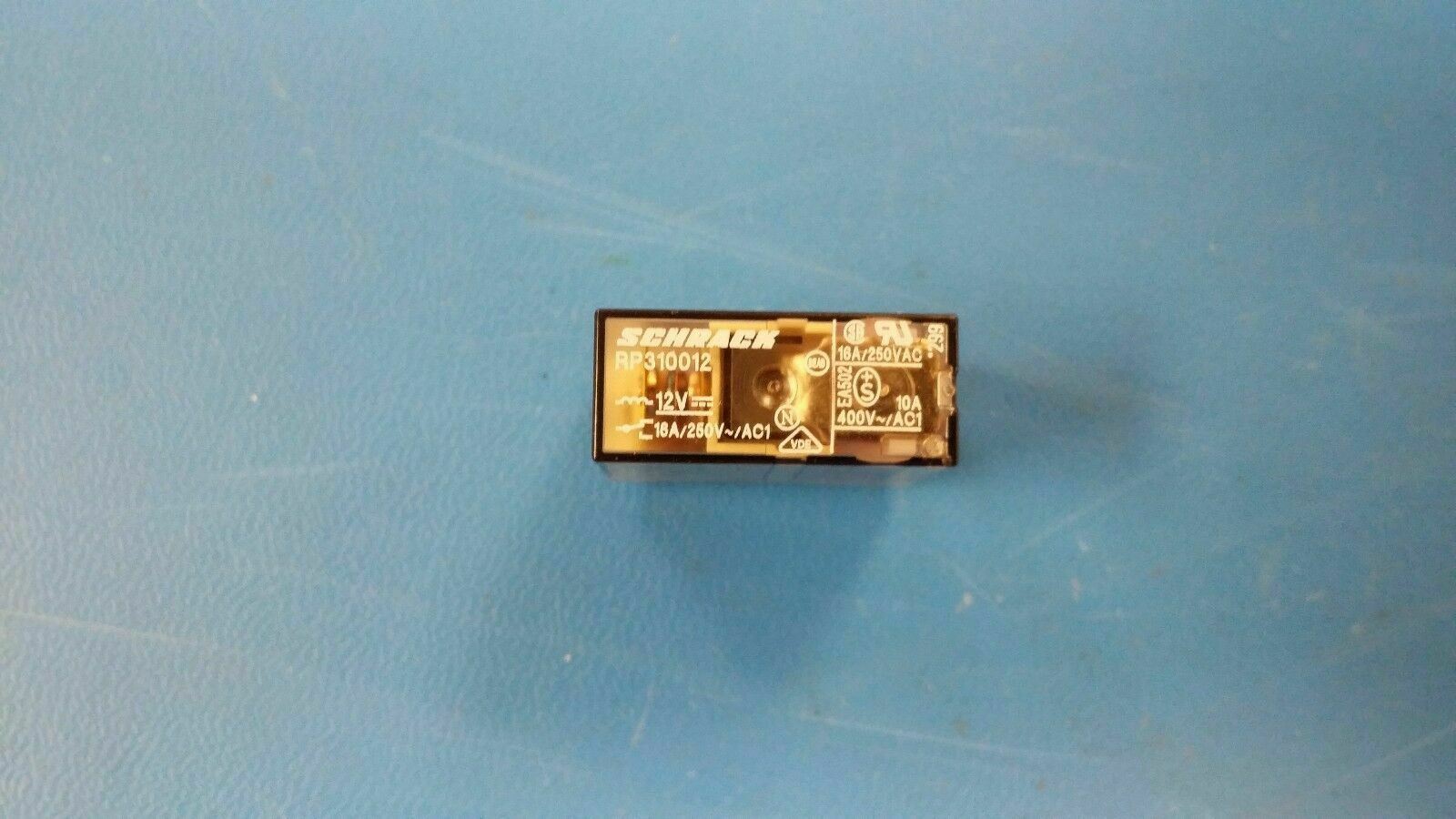

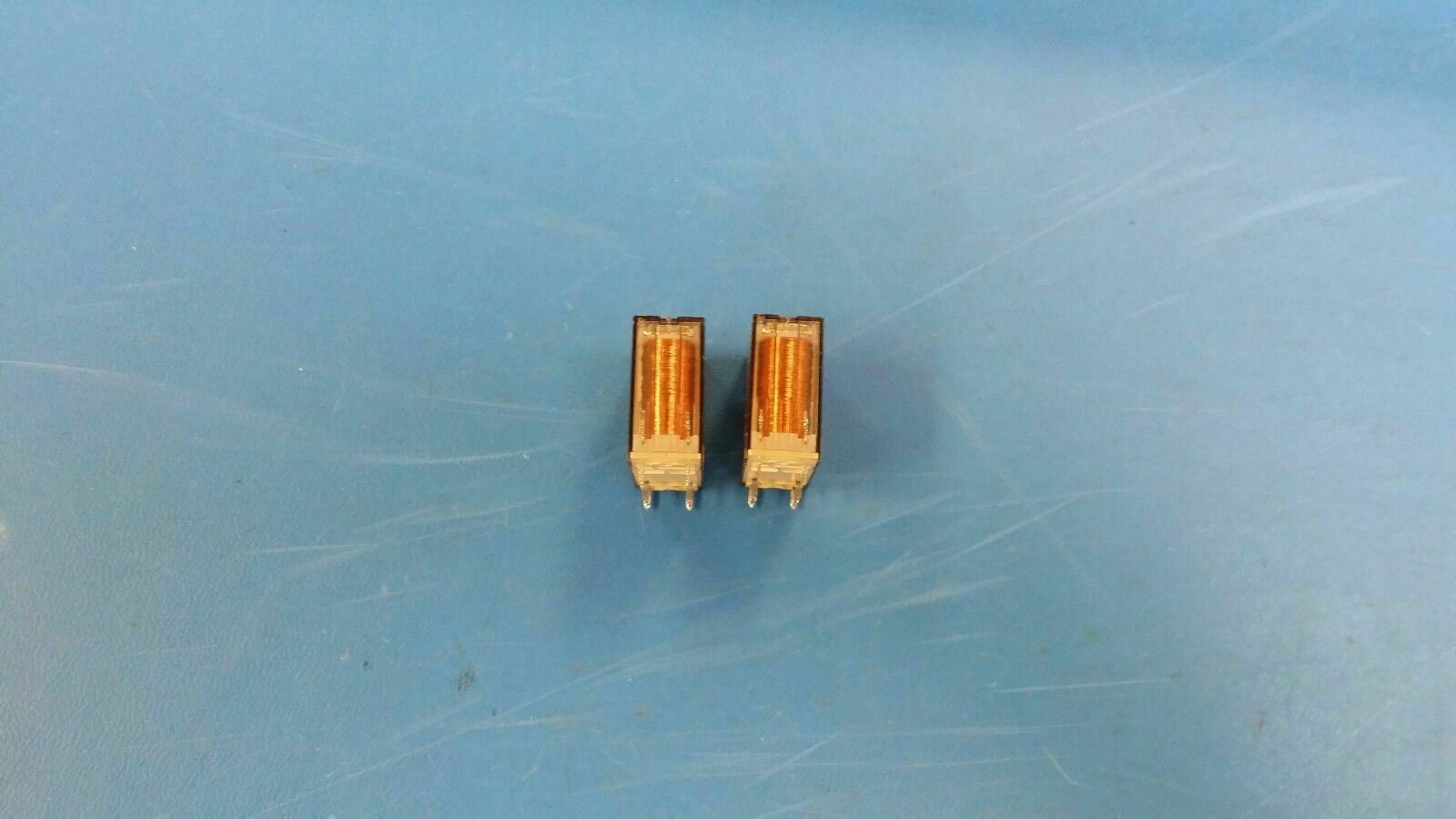

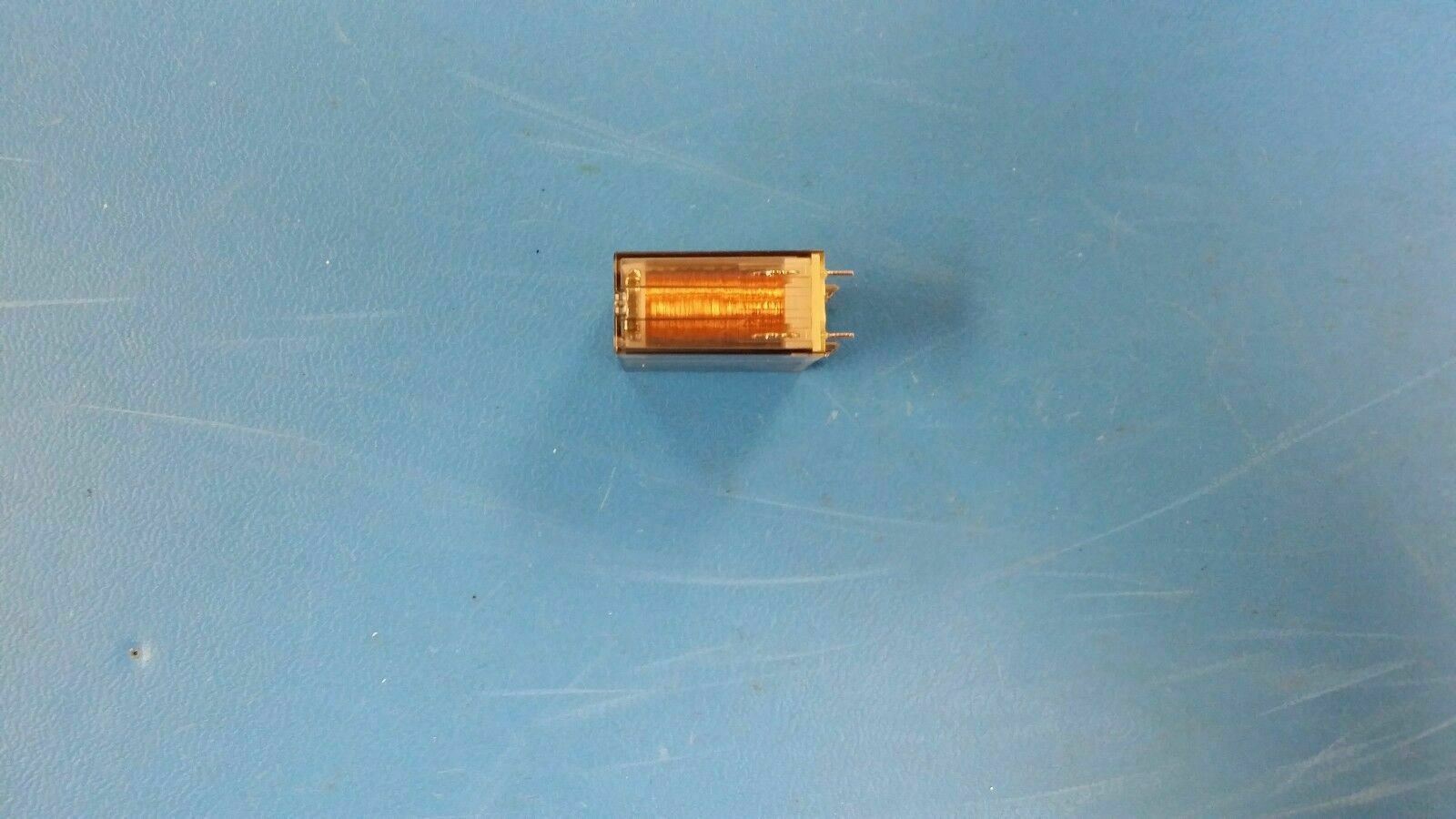

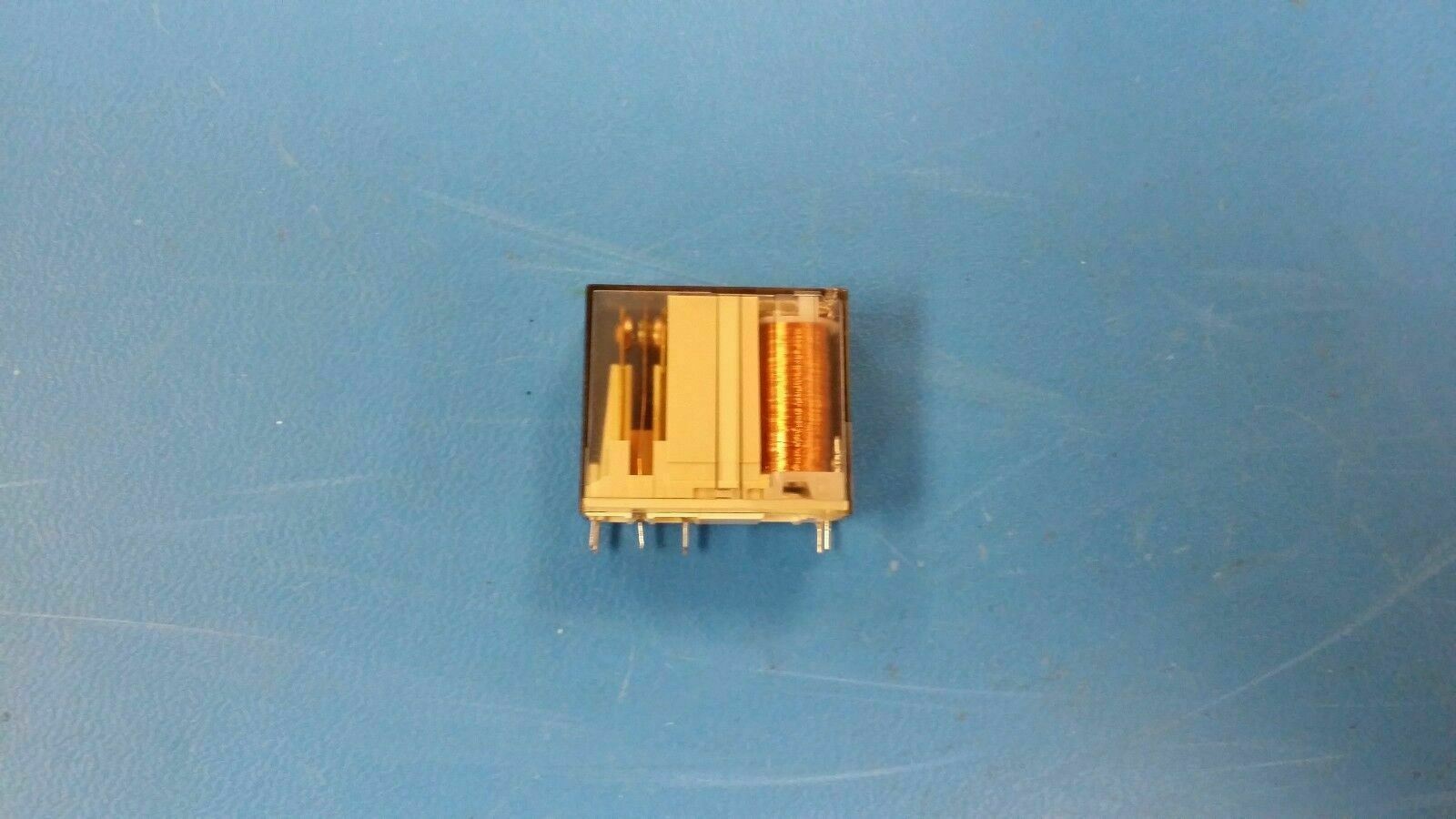

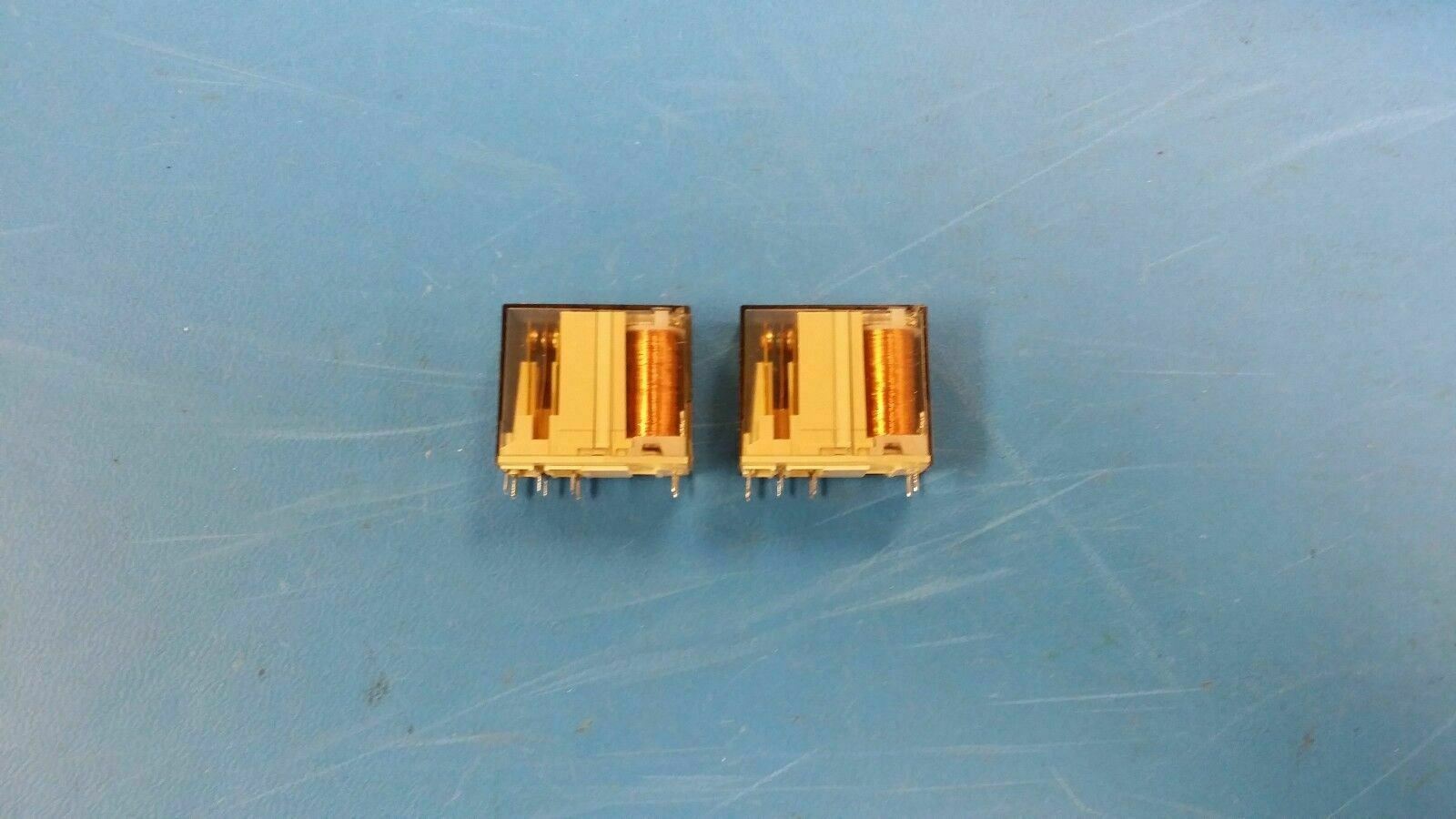

(1PC) RP310012 General Purpose / Industrial Relays SPDT 16Amps 12VDC
Tax included.
THIS LISTING IS FOR (1PC) OF RP310012 BY SHCRACK
SPECIFICATIONS
| Mfr Package Description | |
| EU RoHS Compliant | |
| Status | Active |
| Relay Type | POWER/SIGNAL RELAY |
| Body Breadth | 12.6 mm |
| Body Height | 25.5 mm |
| Body Length or Diameter | 29 mm |
| Coil Current(DC)-Max | 0.0420 A |
| Coil/Input Supply Type | DC |
| Coil Operate Voltage(DC) | 8.4 V |
| Coil Power (mW) | 500 |
| Coil Release Voltage(DC) | 1.2 V |
| Coil Resistance | 270 ohm |
| Coil Voltage-Nom | 12 V |
| Coil Voltage(DC)-Max | 12 V |
| Contact AC Max Rating R Load | 16A@440VAC |
| Contact Current(AC)-Max | 16 A |
| Contact Current(DC)-Max | 16 A |
| Contact/Output Supply Type | AC/DC |
| Contact Voltage(AC)-Max | 440 V |
| Dielectric Strength Between Coil and Contacts | 4000 Vrms |
| Dielectric Strength Between Open Contacts | 1000 Vrms |
| End Contact Material | Silver Cadmium Oxide |
| Input Switching Control Type | Random |
| Manufacturer Series | RPII/1 |
| Mounting Feature | THROUGH HOLE-STRAIGHT MOUNT |
| Number of Terminals | 8 |
| Operate Time | 12 ms |
| Operating Temperature-Min | -40 Cel |
| Operating Temperature-Max | 70 Cel |
| Packing Method | BOX |
| PCB Hole Count | 8 |
| Physical Dimension | 29mm X 12.6mm X 25.5mm |
| Reference Standard | UL; VDE |
| Relay Action | MOMENTARY |
| Relay Form | 1 FORM C |
| Relay Function | SPDT |
| Release Time | 6 ms |
| Sealing | RT2 |
| Terminal Finish | NOT SPECIFIED |
| Termination Type | SOLDER |
| Weight | 18 g |
