(1PC) RJSAE-5381-02 16 POS Solder RA Thru-Hole 24 Terminal 2 Port Cat 5
Tax included.

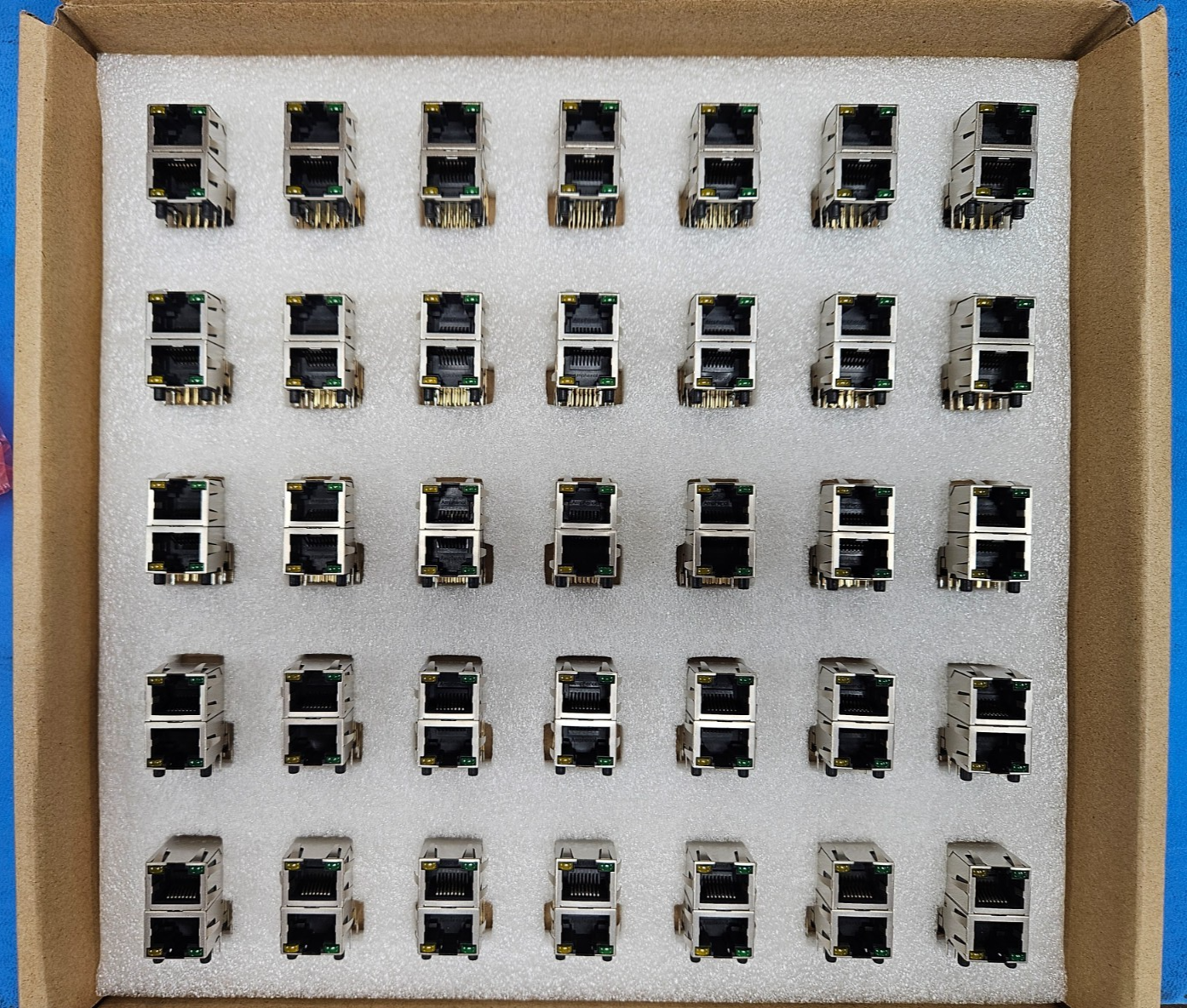

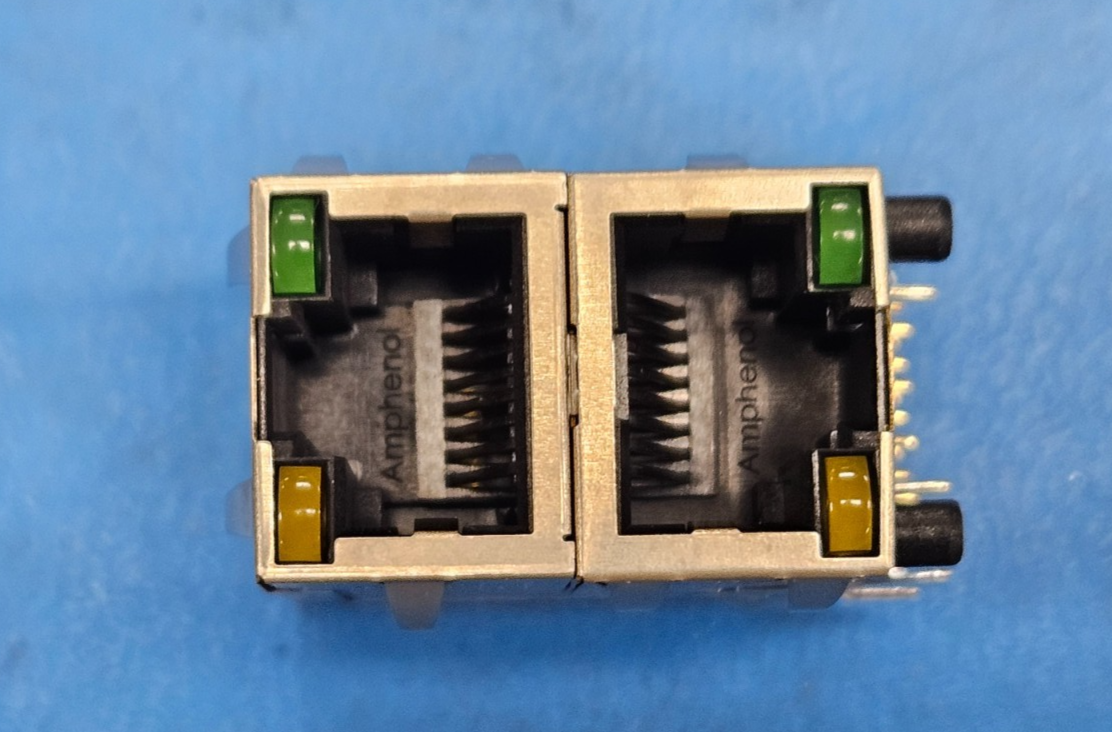

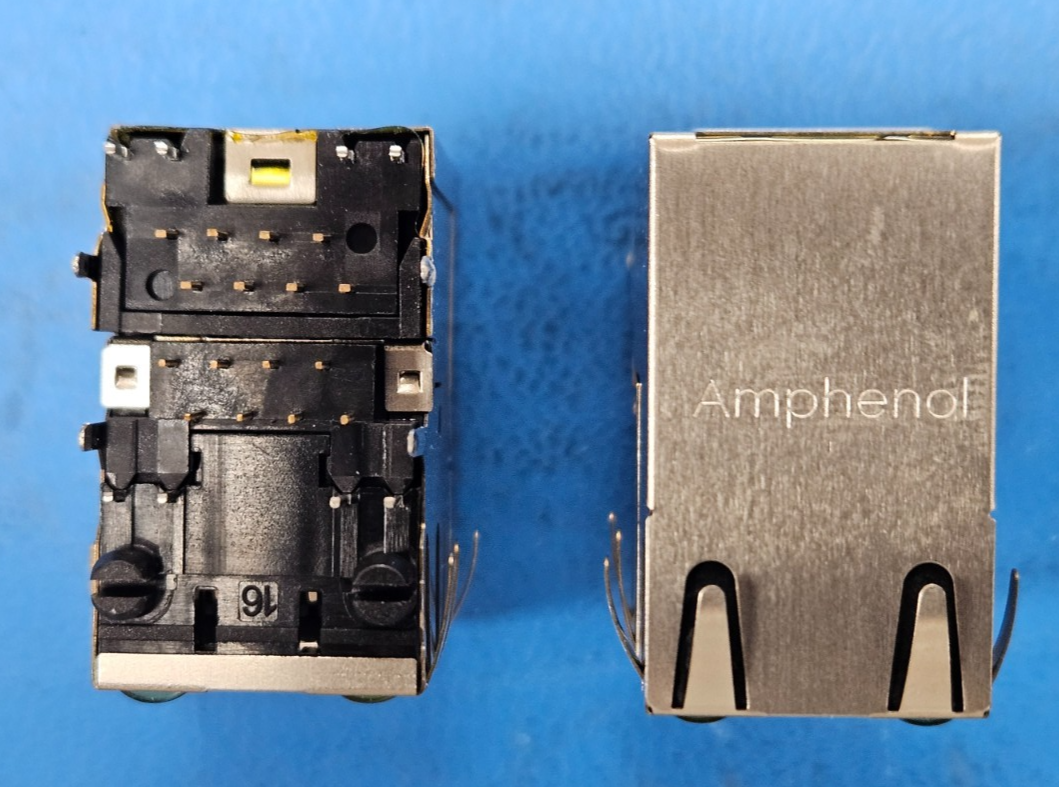

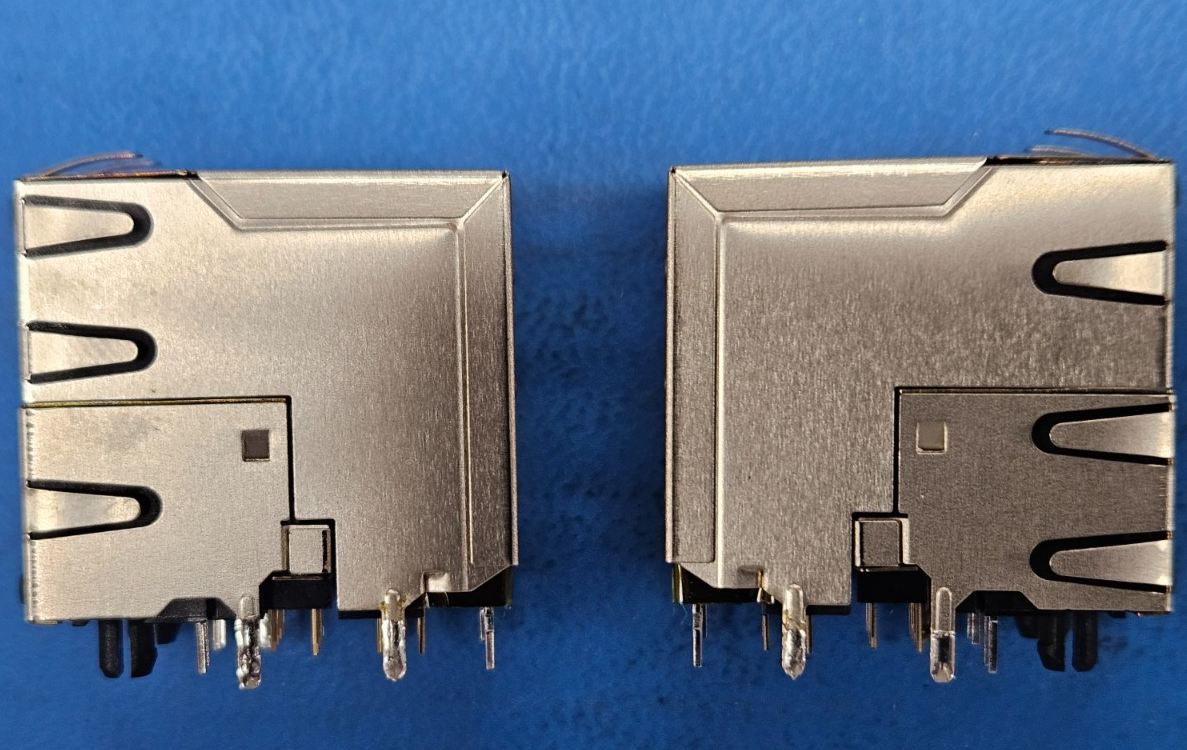

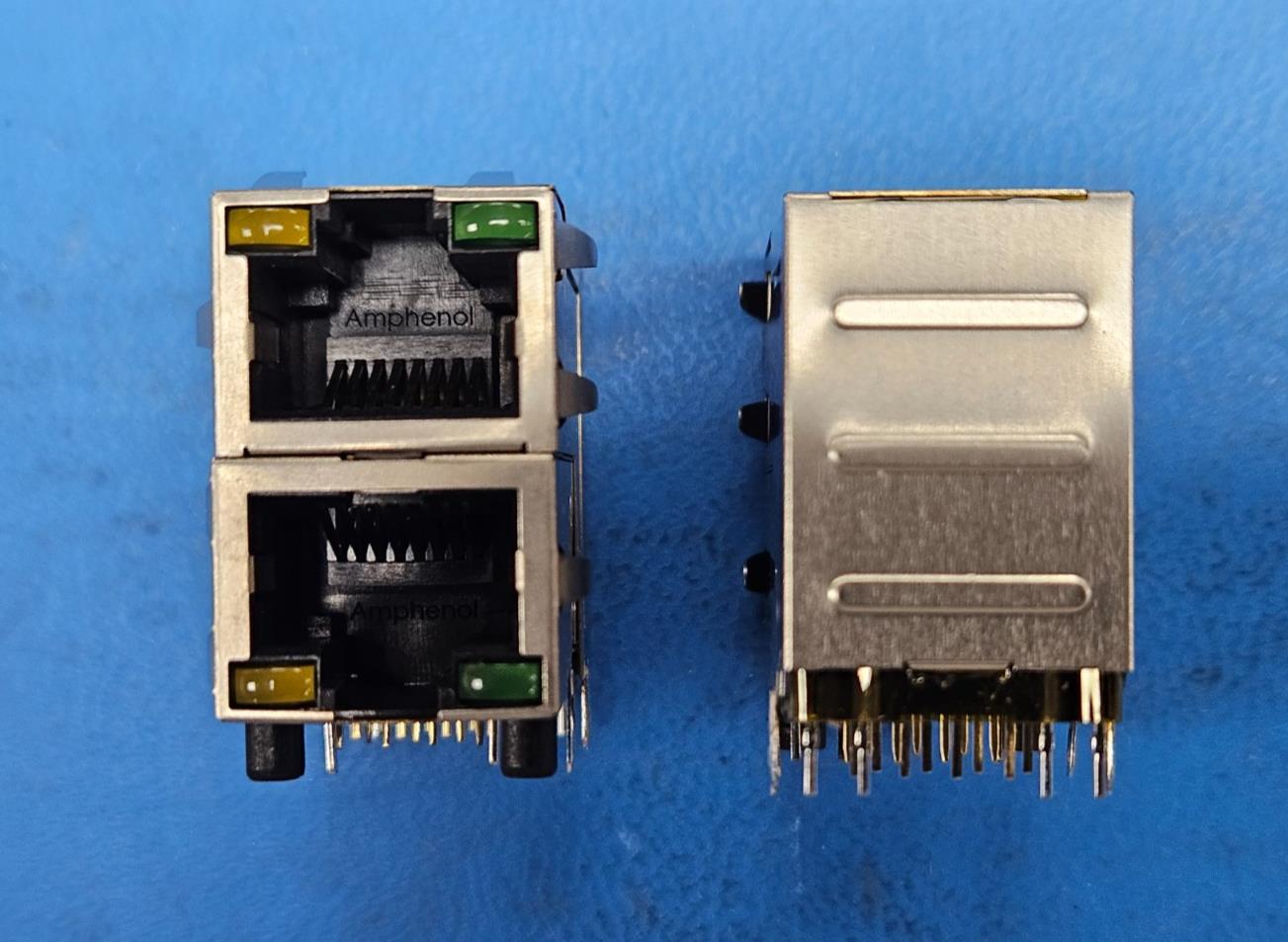

This listing is for (1) RJSAE-5381-02 by Amphenol
Status Active
Additional Feature SHIELDED
Board Mounting Option SPLIT BOARD LOCK
Body Breadth (inch) 1.000000
Body Depth (inch) 1.108000
Body Length (inch) 0.650000
Body/Shell Style JACK
Connector Type RJ CONNECTOR
Contact Gender FEMALE
Contact Pattern RECTANGULAR
Contact Resistance (mohm) 20.000000000000000
Contact Style MODULAR JACK
Dielectric Withstanding Voltage (V) 1000VAC
Durability (Cycles) 750
Empty Shell NO
Filter Feature NO
Insulation Resistance (ohm) 500000000.000000000000000
Insulator Color BLACK
Insulator Material POLYETHYLENE
Mixed Contacts NO
Mounting Option 1 MOUNTING FLANGE
Mounting Option 2 LOCKING
Mounting Style RIGHT ANGLE
Mounting Type BOARD AND PANEL
Number of PCB Rows 2+2
Number of Ports 2
Number of Rows Loaded 1+1
Operating Temperature-Max (Cel) 85
Operating Temperature-Min (Cel) -55
Option GENERAL PURPOSE
PCB Contact Pattern STAGGERED
PCB Contact Row Spacing (mm) 2.54/3.69
Plating Thickness (inch) 50u
Polarization Key POLARIZED HOUSING
Rated Current (Signal) (A) 1.5000000000000000
Screening Level / Reference Standard TIA; UL
Shell Finish NICKEL
Shell Material COPPER ALLOY
Terminal Length (inch) 0.100000
Terminal Pitch (mm) 2.54
Termination Type SOLDER
Number of Contacts 8+8
UL Flammability Code 94V-0
