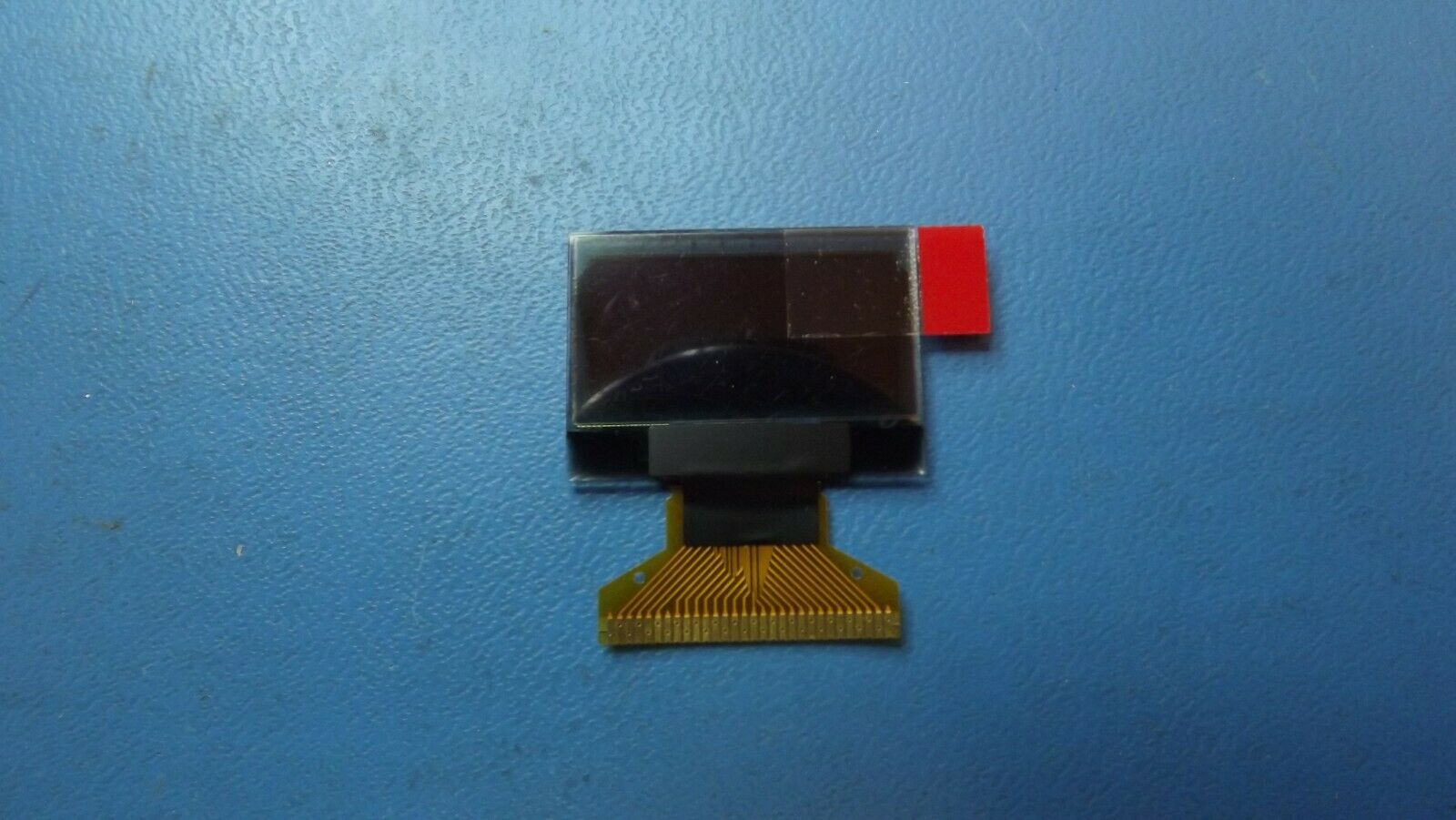

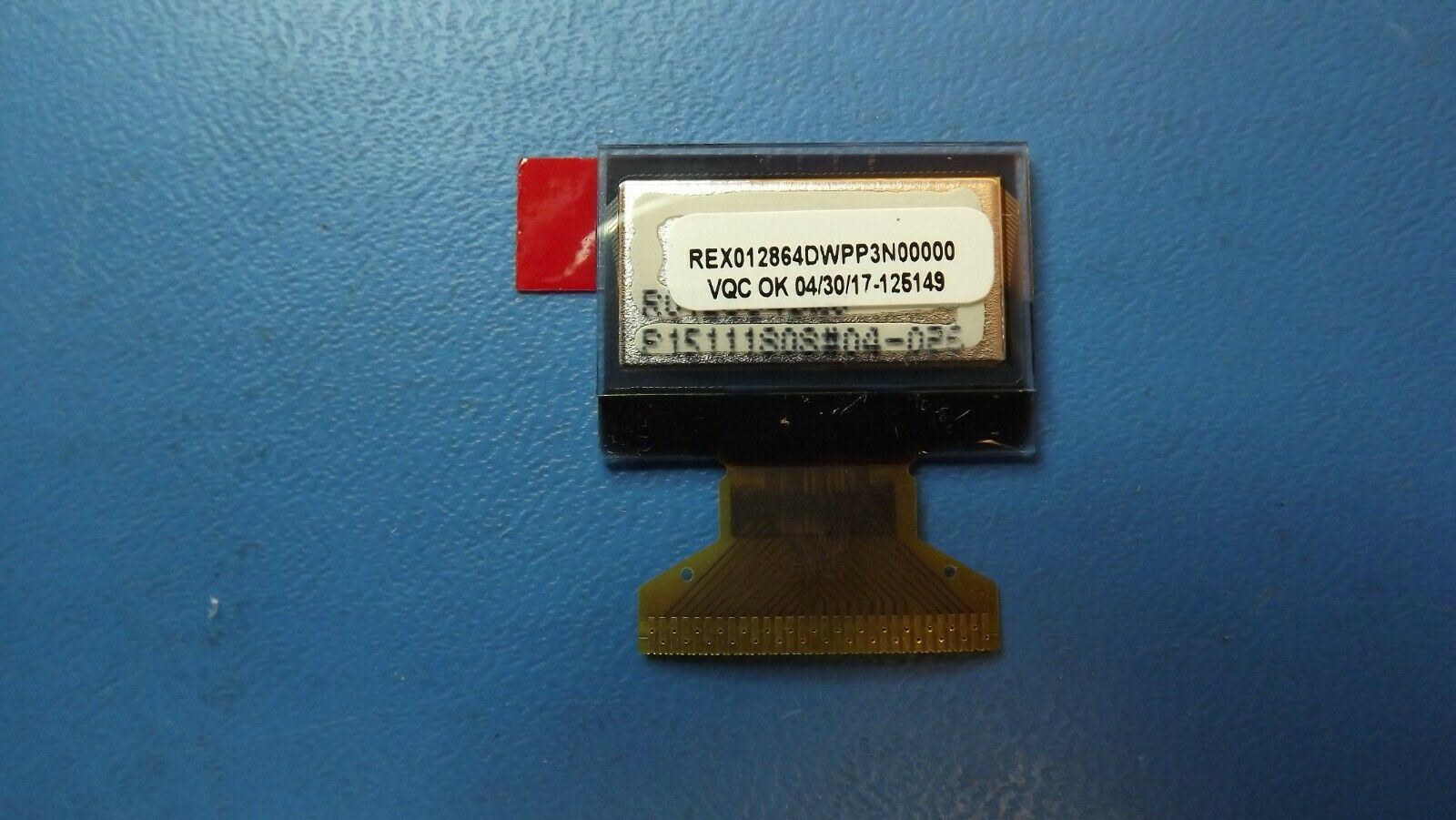

(1PC) REX012864DWPP3N00000-EOL RAYSTAR 128x64, 0.96 inch OLED Graphic Module
Tax included.
THIS LISTING IS FOR (1PC) OF REX012864DWPP3N00000-EOL BY RAYSTAR
| ITEM | DIMENSION | UNIT |
|---|---|---|
| Structure | COG | |
| Size | 0.96 | inch |
| Dot Matrix (Resolution) | 128 × 64 | dots |
| Module Dimension | 26.7 × 19.26 × 1.4 | mm |
| View Area | 23.938 × 12.058 | mm |
| Active Area | 21.738 × 10.858 | mm |
| Dot Size | 0.148 × 0.148 | mm |
| Dot Pitch | 0.17 × 0.17 | mm |
| Emitting Color | OLED, White / Yellow / Green / Blue | |
| Display Mode | Passive Matrix | |
| Bulit-in Controller | SSD1306BZ | |
| Interface | 6800, 8080, SPI, I2C | |
| Power Supply | 3V | |
| Duty | 1/64 duty | |
| Type | OLED Graphic Display |
