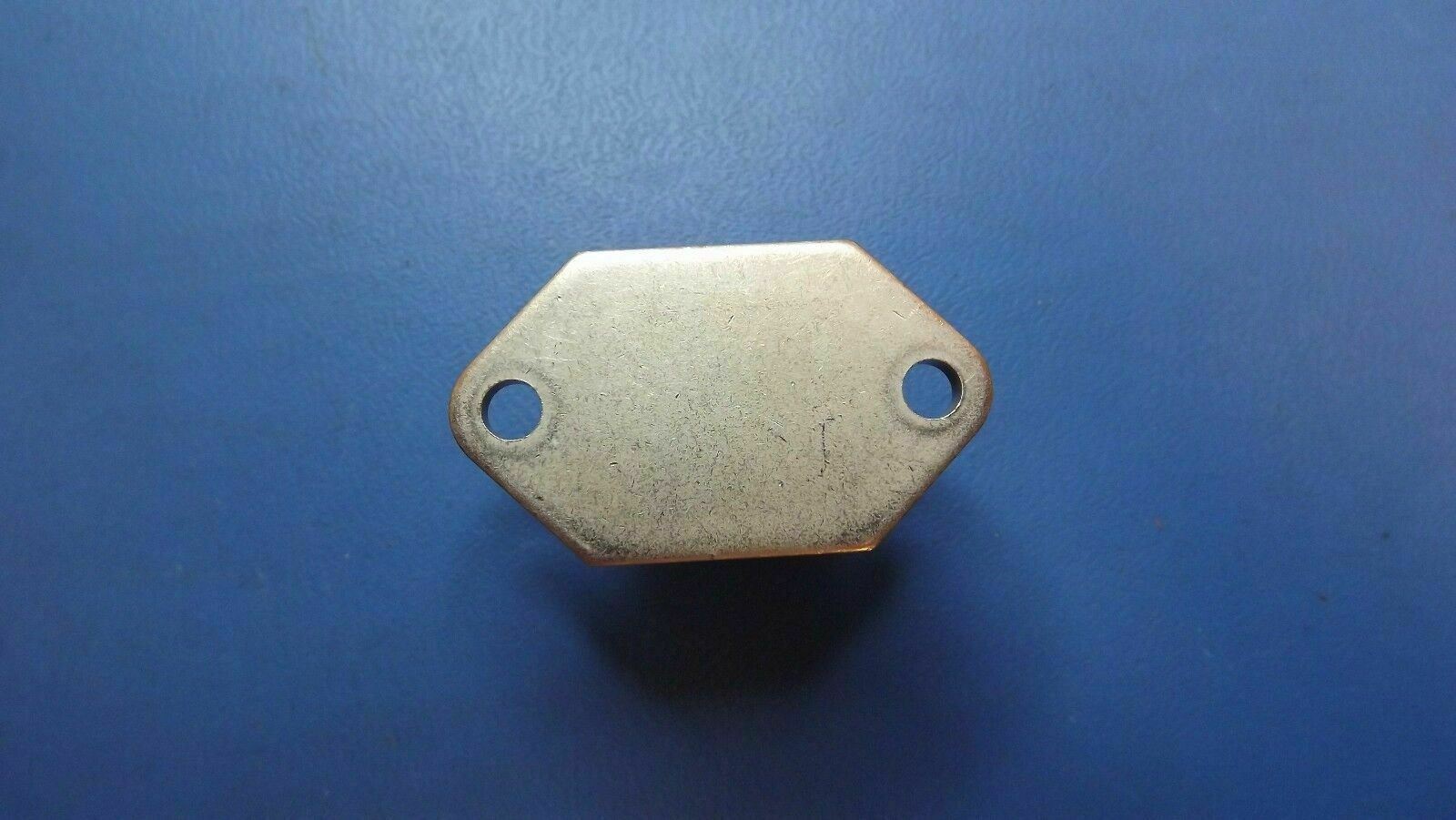

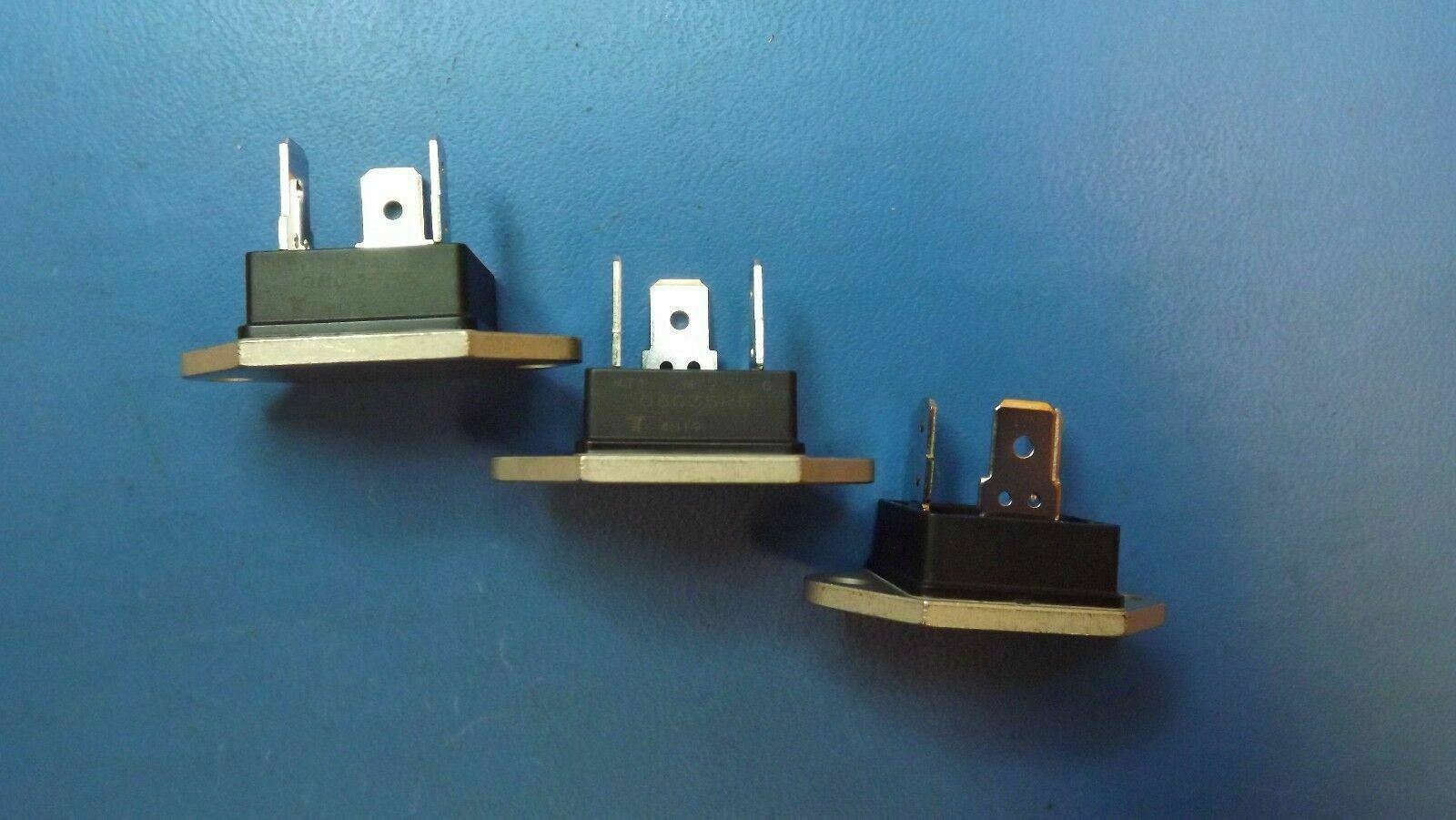

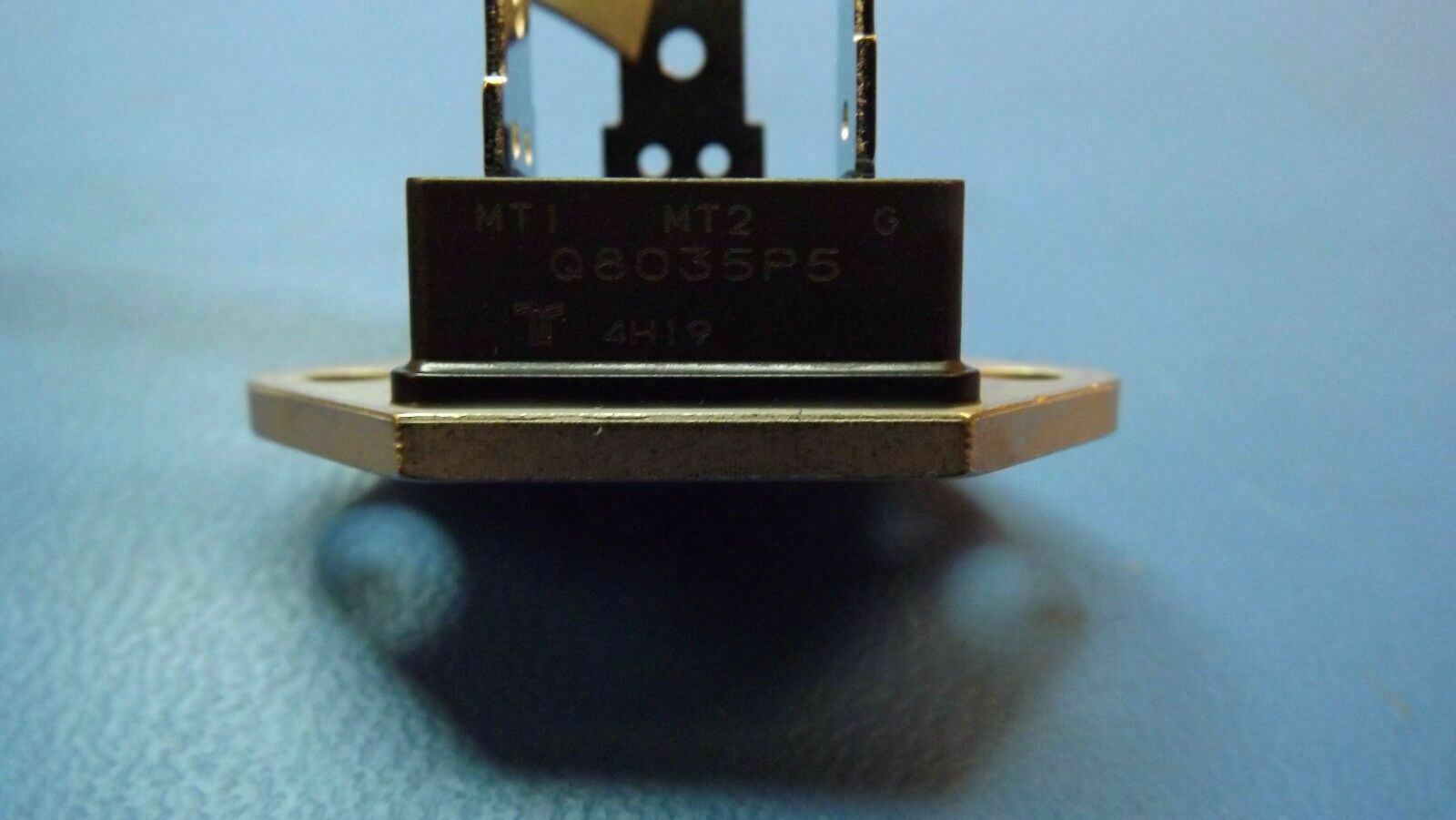

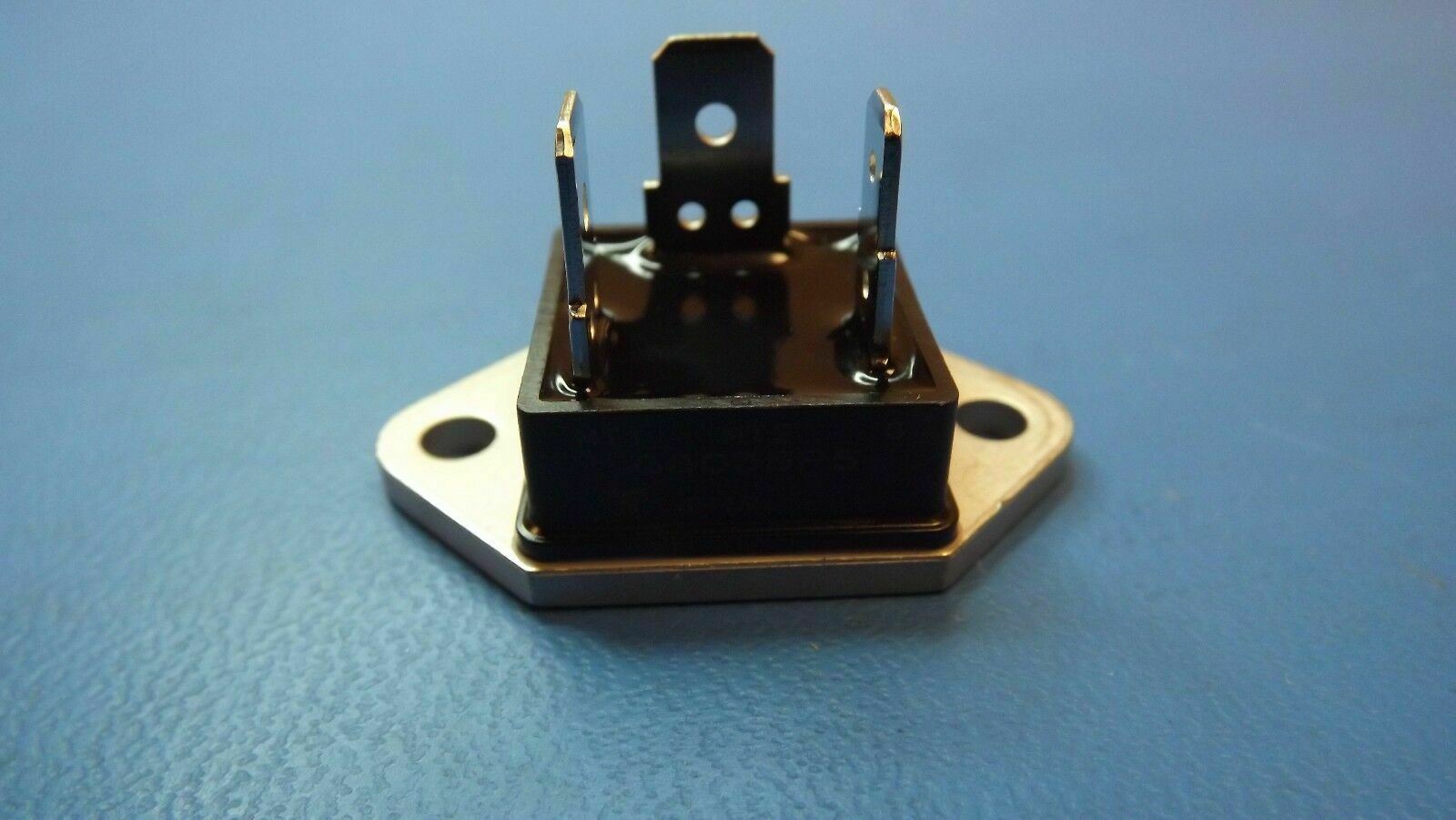

(1PC) Q8035P5 LITTELFUSE/TECCOR Thyristor TRIAC 800V 350A 4-Pin(3+Tab) TO-3
Tax included.
THIS LISTING IS FOR (1PC) OF Q8035P5 BY LITTELFUSE/TECCOR
SPECIFICATIONS
| Mfr Package Description | ROHS COMPLIANT, TO-3, 3 PIN |
| EU RoHS Compliant | Yes |
| Status | EOL |
| Trigger Device Type | 4 QUADRANT LOGIC LEVEL TRIAC |
| Case Connection | ISOLATED |
| Configuration | SINGLE |
| Critical Rate of Rise of Off-state Voltage-Min | 400.0 V/us |
| DC Gate Trigger Current-Max | 50.0 mA |
| DC Gate Trigger Voltage-Max | 2.75 V |
| Holding Current-Max | 50.0 mA |
| JESD-30 Code | S-PUFM-D3 |
| JESD-609 Code | e3 |
| Leakage Current-Max | 5.0 mA |
| Number of Elements | 1.0 |
| Number of Terminals | 3 |
| Operating Temperature-Min | -25.0 Cel |
| Operating Temperature-Max | 125.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | SQUARE |
| Package Style | FLANGE MOUNT |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Qualification Status | Not Qualified |
| Repetitive Peak Off-state Voltage | 800.0 V |
| RMS On-state Current-Max | 35.0 A |
| Sub Category | TRIACs |
| Surface Mount | NO |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | SOLDER LUG |
| Terminal Position | UPPER |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Additional Feature | UL RECOGNIZED |
