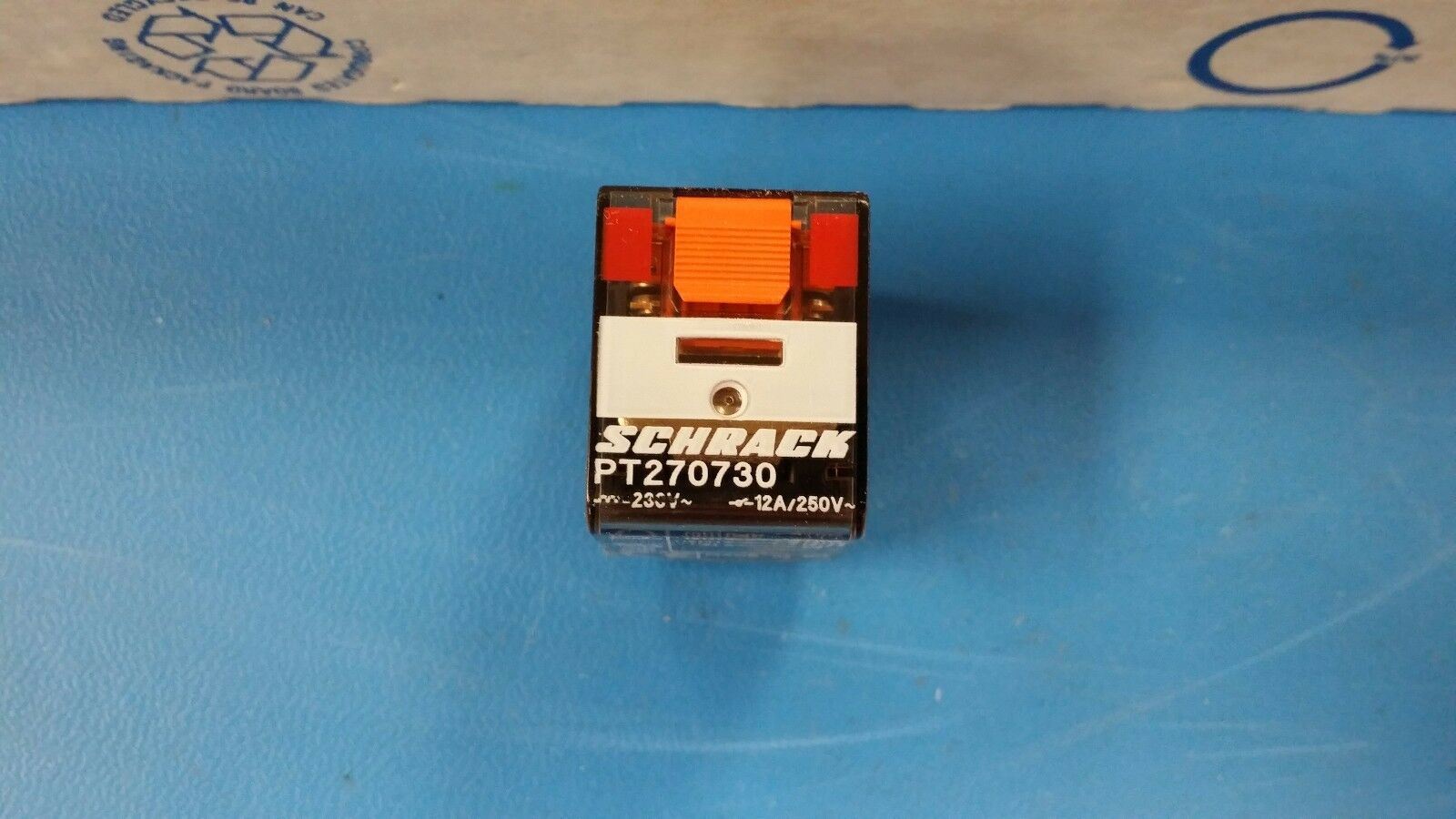

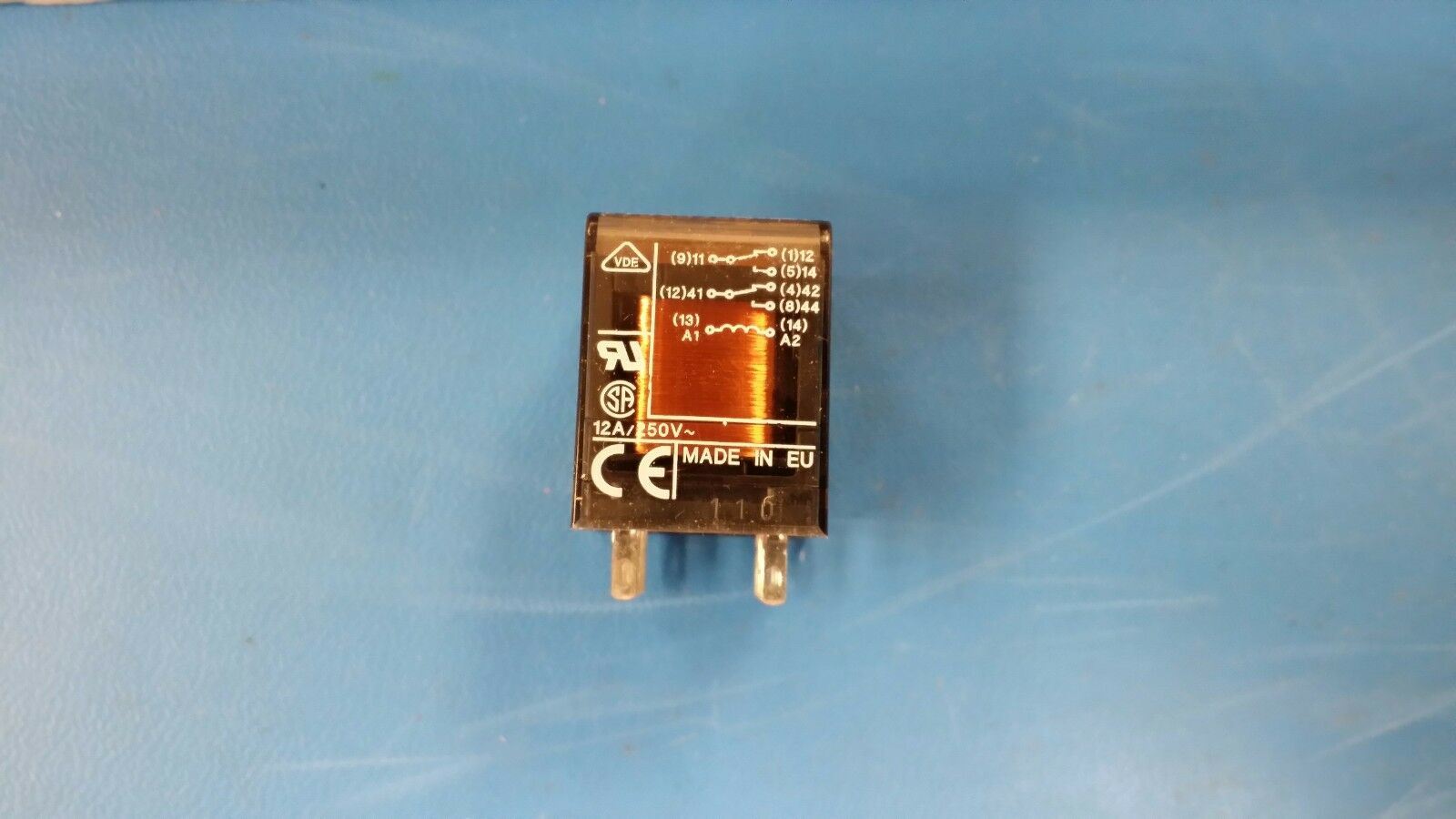

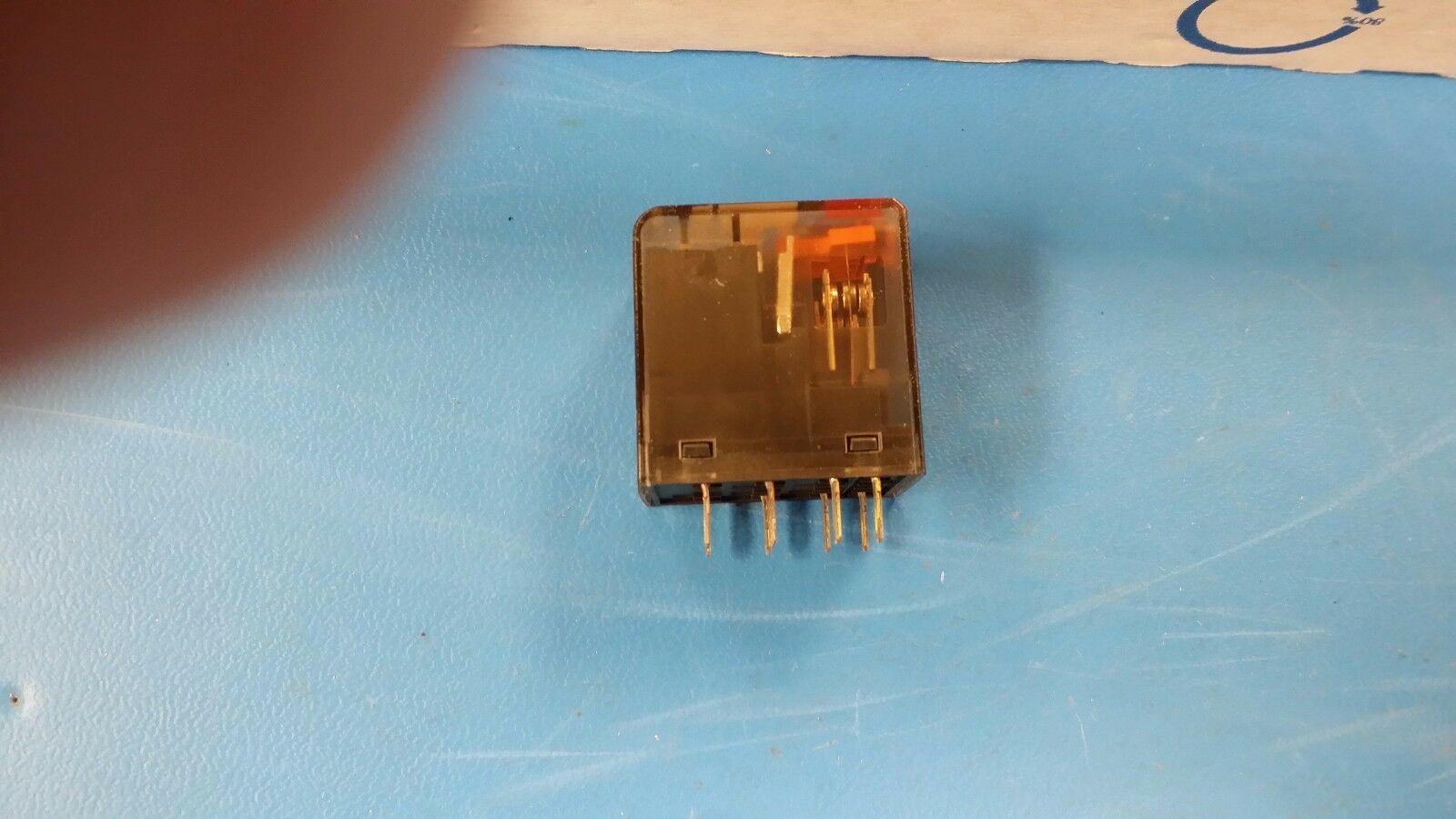

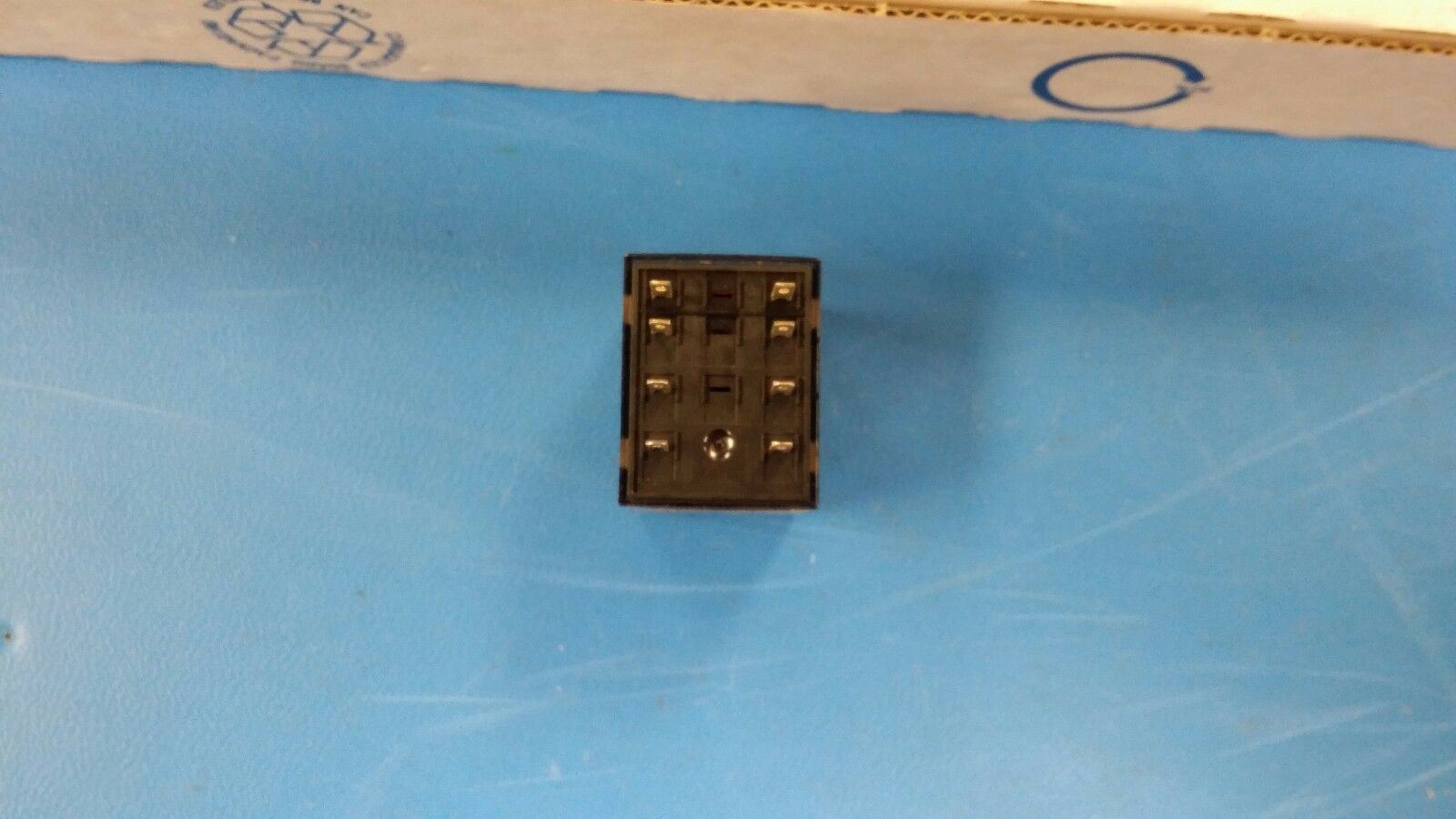

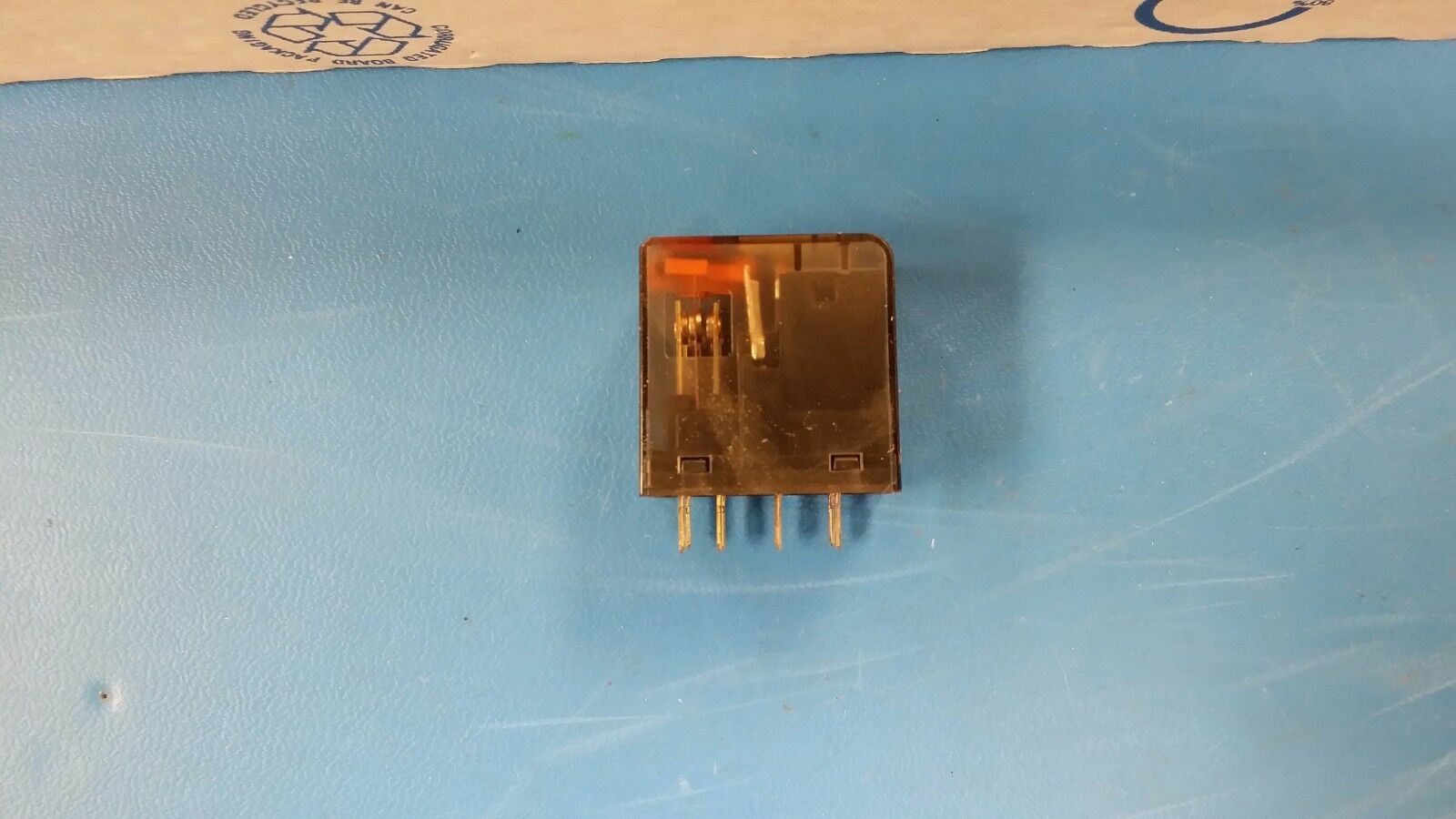

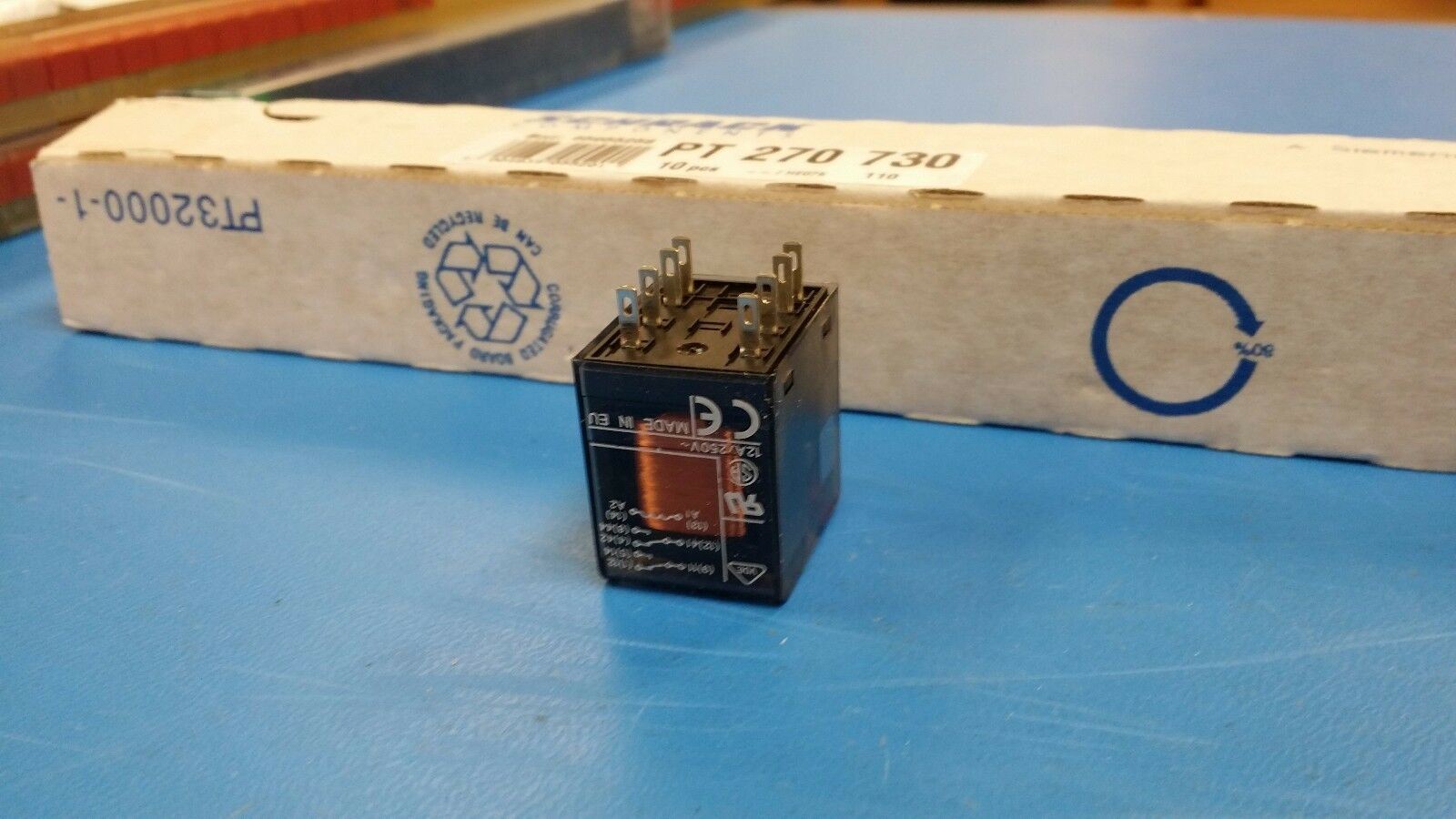

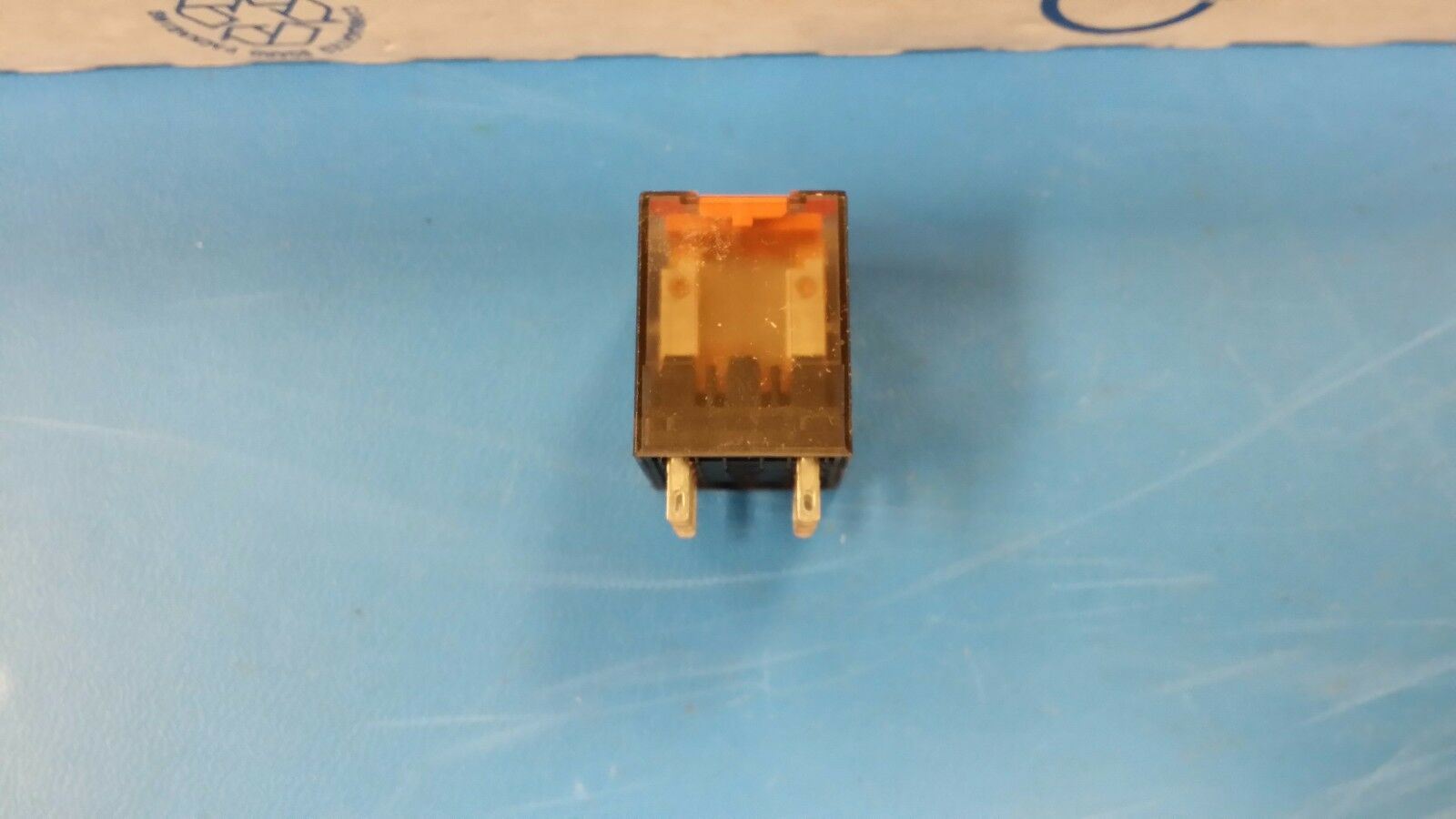

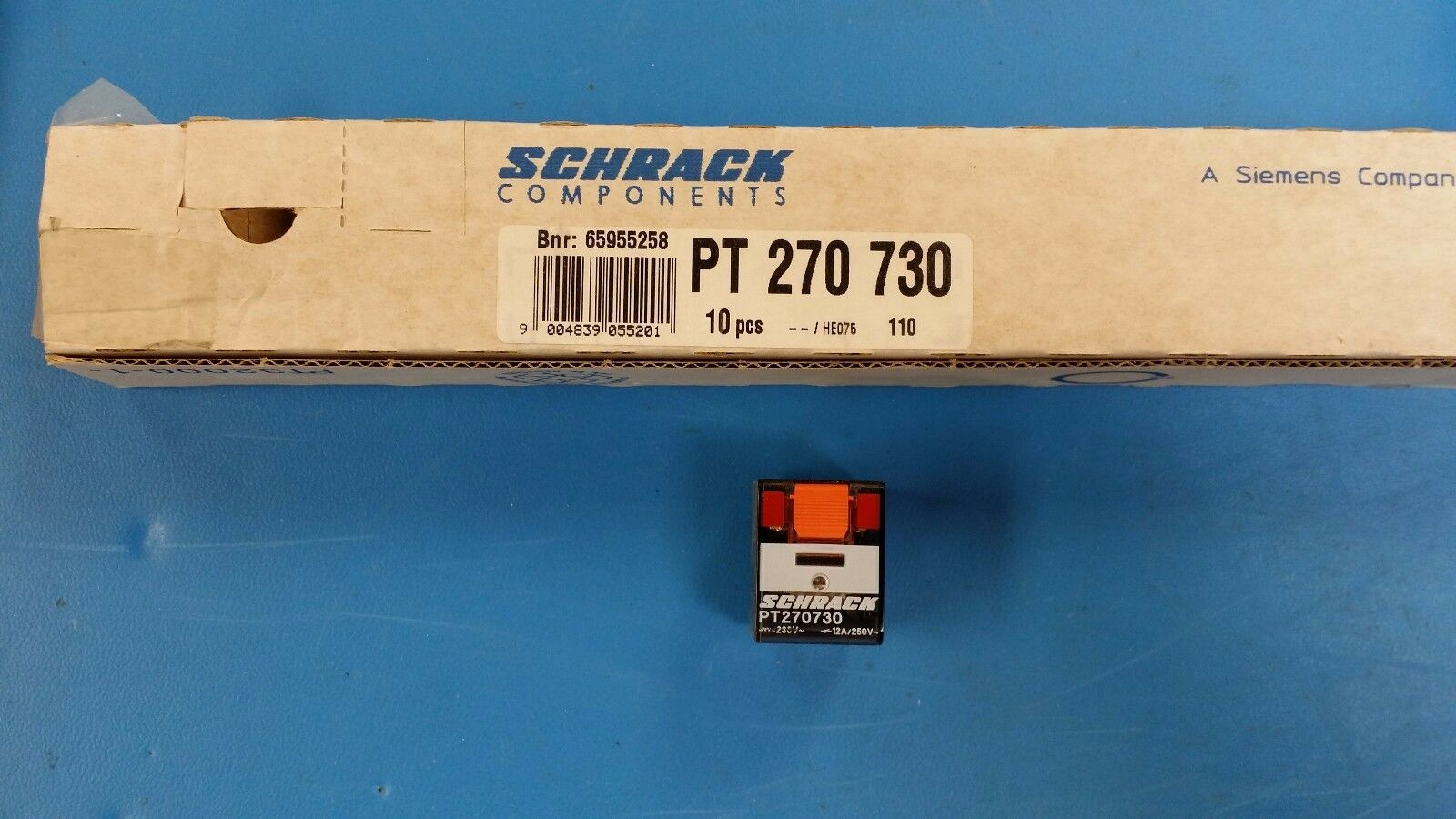

(1PC) PT270730 RELAY GENERAL PURPOSE DPDT 12A 230V
Tax included.
THIS LISTING IS FOR (1PC) OF PT270730 BY TYCO/SCHRACK
| Relay Type | General Purpose |
|---|---|
| Coil Type | Non Latching |
| Coil Current | - |
| Coil Voltage | 230VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 12A |
| Switching Voltage | 400VAC - Max |
| Turn On Voltage (Max) | 184 VAC |
| Turn Off Voltage (Min) | 69 VAC |
| Operate Time | - |
| Release Time | - |
| Features | Mechanical Indicator, Test Button |
| Mounting Type | Socketable |
| Termination Style | Plug In, Quick Connect - 0.110" (2.8mm) |
| Contact Material | Silver Nickel (AgNi) |
| Coil Power | 1 VA |
| Coil Resistance | 19.47 kOhms |
