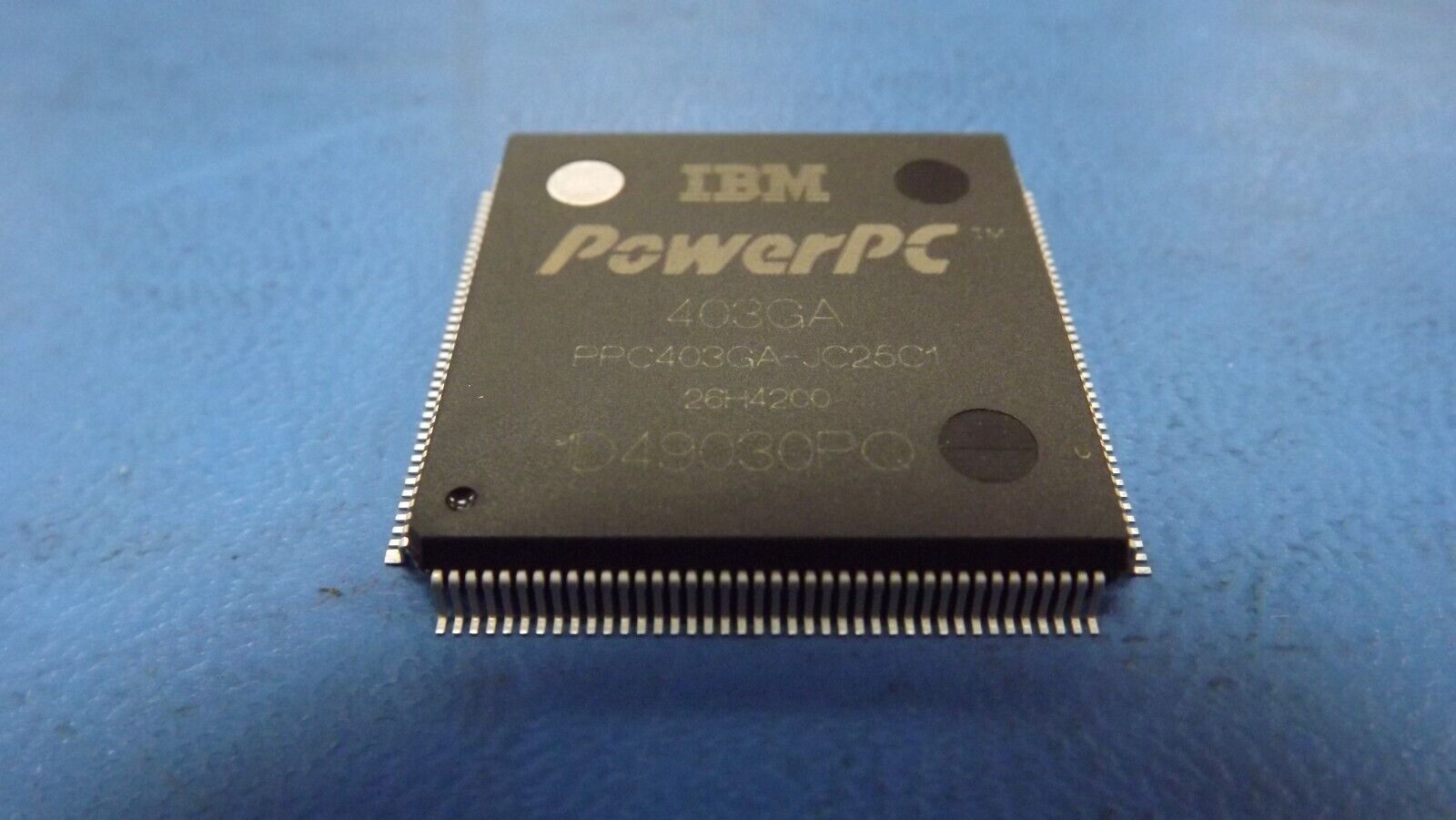

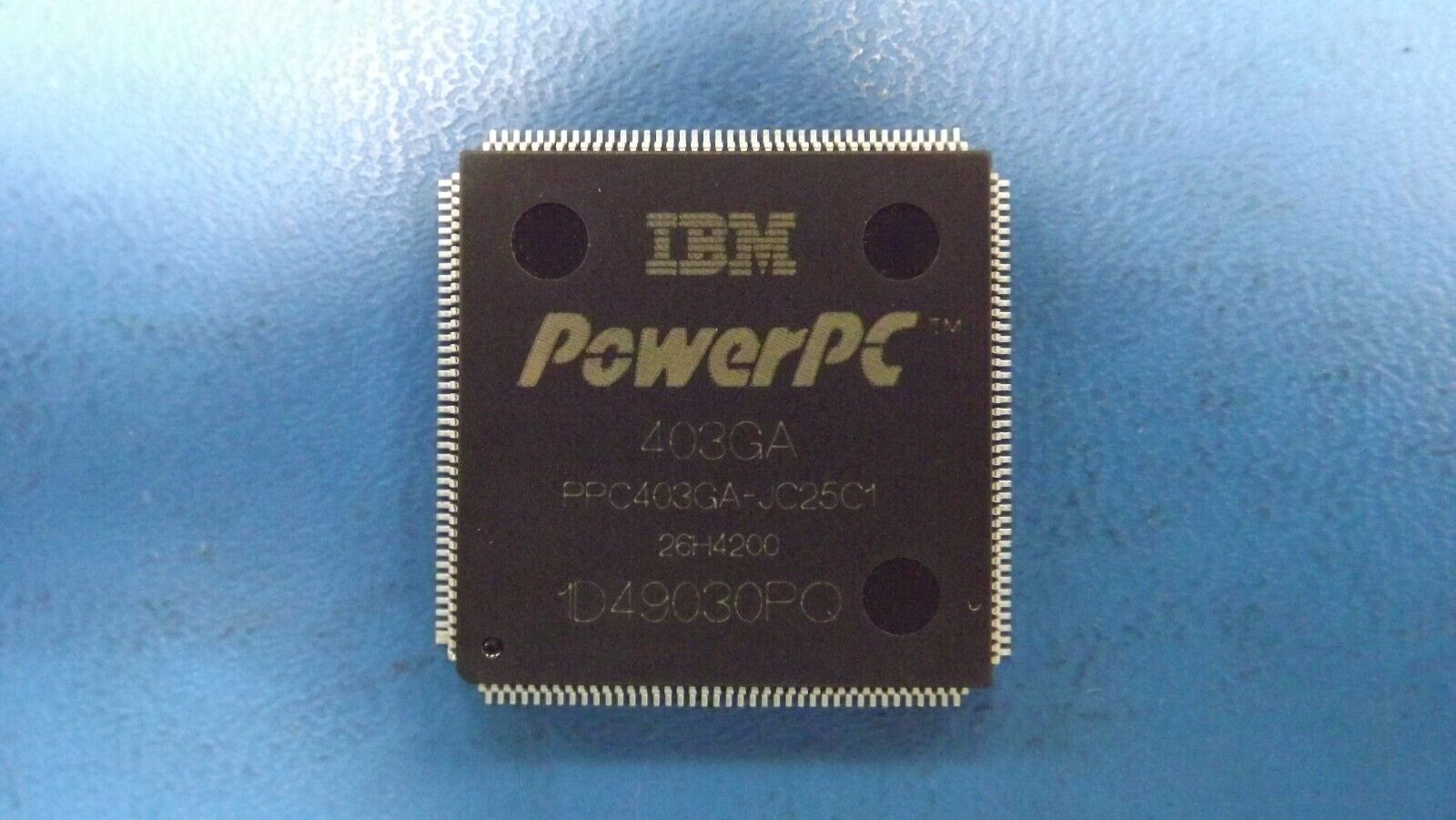

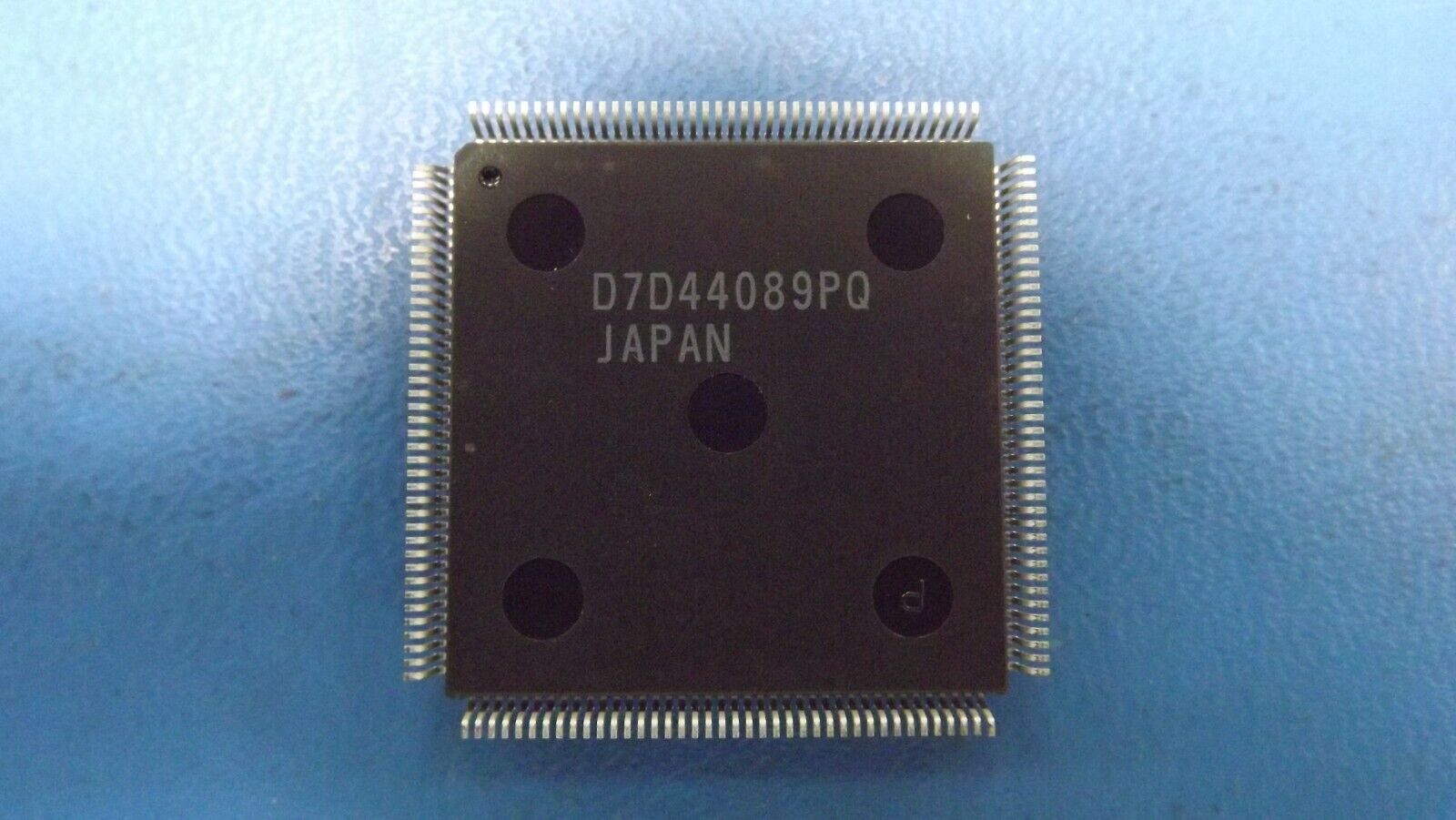

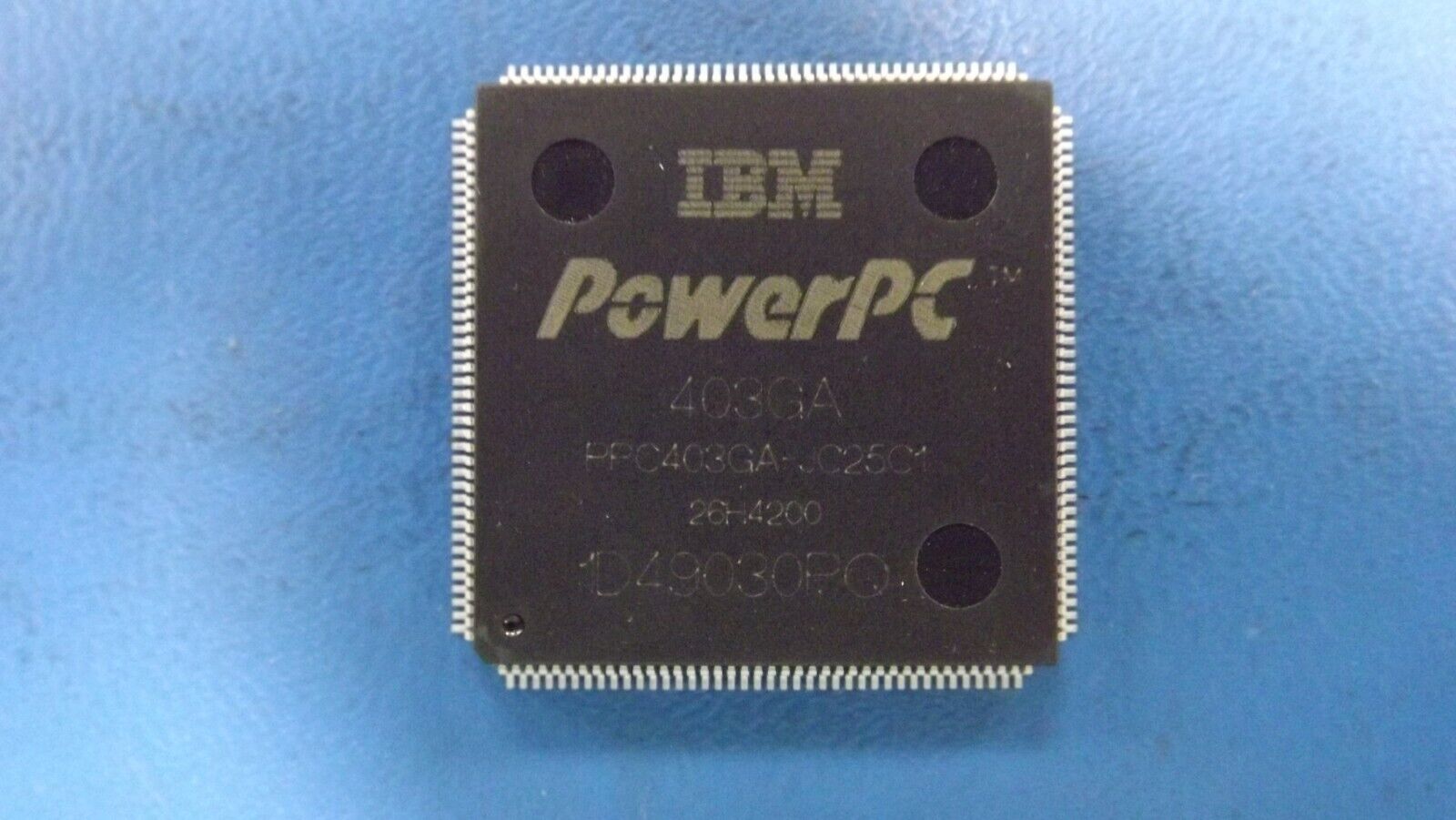

(1PC) PPC403GA-JC25CM RISC Microprocessor, 32-Bit, 33MHz, CMOS, PQFP160 PowerPC
Tax included.
THIS LISTING IS FOR (1PC) OF PPC403GA-JC25CM BY IBM
Mfr Package Description PLASTIC, QFP-160
Status Transferred
Address Bus Width 24.0
Bit Size 32
Boundary Scan YES
Clock Frequency-Max 33.0 MHz
External Data Bus Width 32.0
Format FIXED POINT
Integrated Cache NO
JESD-30 Code S-PQFP-G160
Low Power Mode YES
Number of DMA Channels 4.0
Number of External Interrupts 6.0
Number of Serial I/Os 1.0
Number of Terminals 160
On Chip Data RAM Width 0
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code QFP
Package Equivalence Code QFP160,1.2SQ
Package Shape SQUARE
Package Style FLATPACK
Power Supplies 3.3
Qualification Status Not Qualified
RAM (words) 0
Seated Height-Max 4.5 mm
Speed 33.0 MHz
Sub Category Microprocessors
Supply Current-Max 260.0 mA
Supply Voltage-Nom 3.3 V
Supply Voltage-Min 3.14 V
Supply Voltage-Max 3.47 V
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position QUAD
Length 28.0 mm
Width 28.0 mm
Additional Feature DRAM CONTROLLER; TEMP SPECIFIED AS TC
