(1PC) PM7645FP D/A Converter, 1 Func, Parallel, Word Input Loading, PDIP20
Tax included.

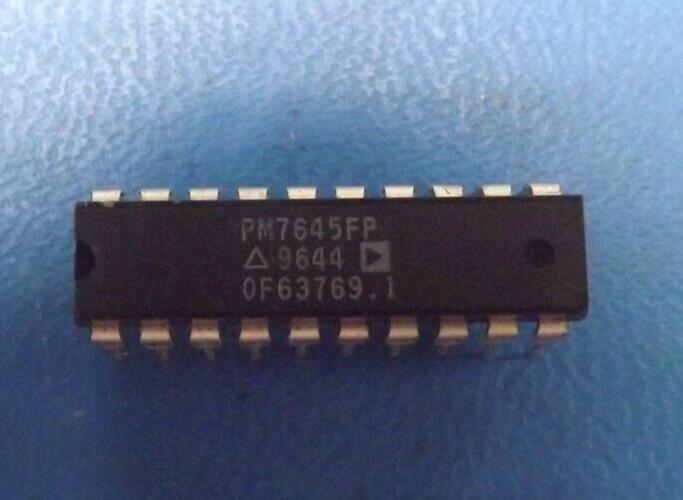

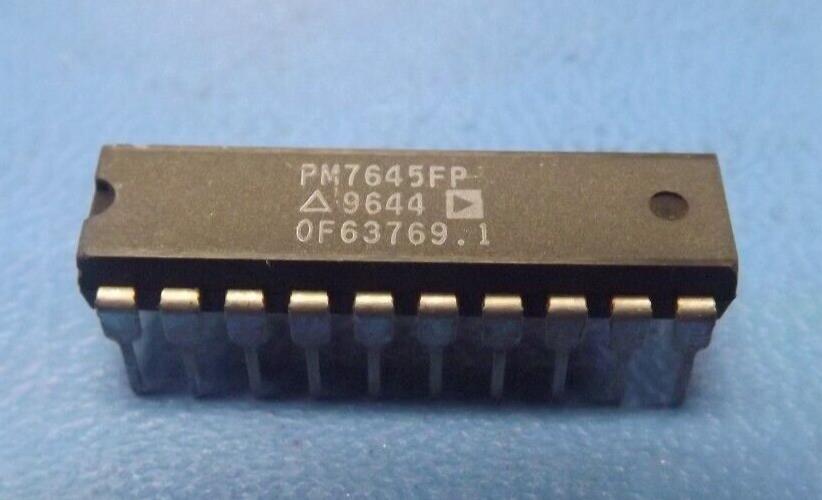

THIS LISTING IS FOR (1PC) OF PM7645FP BY ANALOG DEVICES
Mfr Package Description 0.300 INCH, PLASTIC, DIP-20
Status Discontinued
Converter Type D/A CONVERTER
Input Bit Code BINARY, 2'S COMPLEMENT BINARY
Input Format PARALLEL, WORD
JESD-30 Code R-PDIP-T20
JESD-609 Code e0
Linearity Error-Max (EL) 0.0122 %
Number of Bits 12
Number of Functions 1
Number of Terminals 20
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP20,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Settling Time-Max 1.0 µs
Sub Category Other Converters
Supply Current-Max 2.0 mA
Supply Voltage-Nom 5.0 V
Surface Mount NO
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
