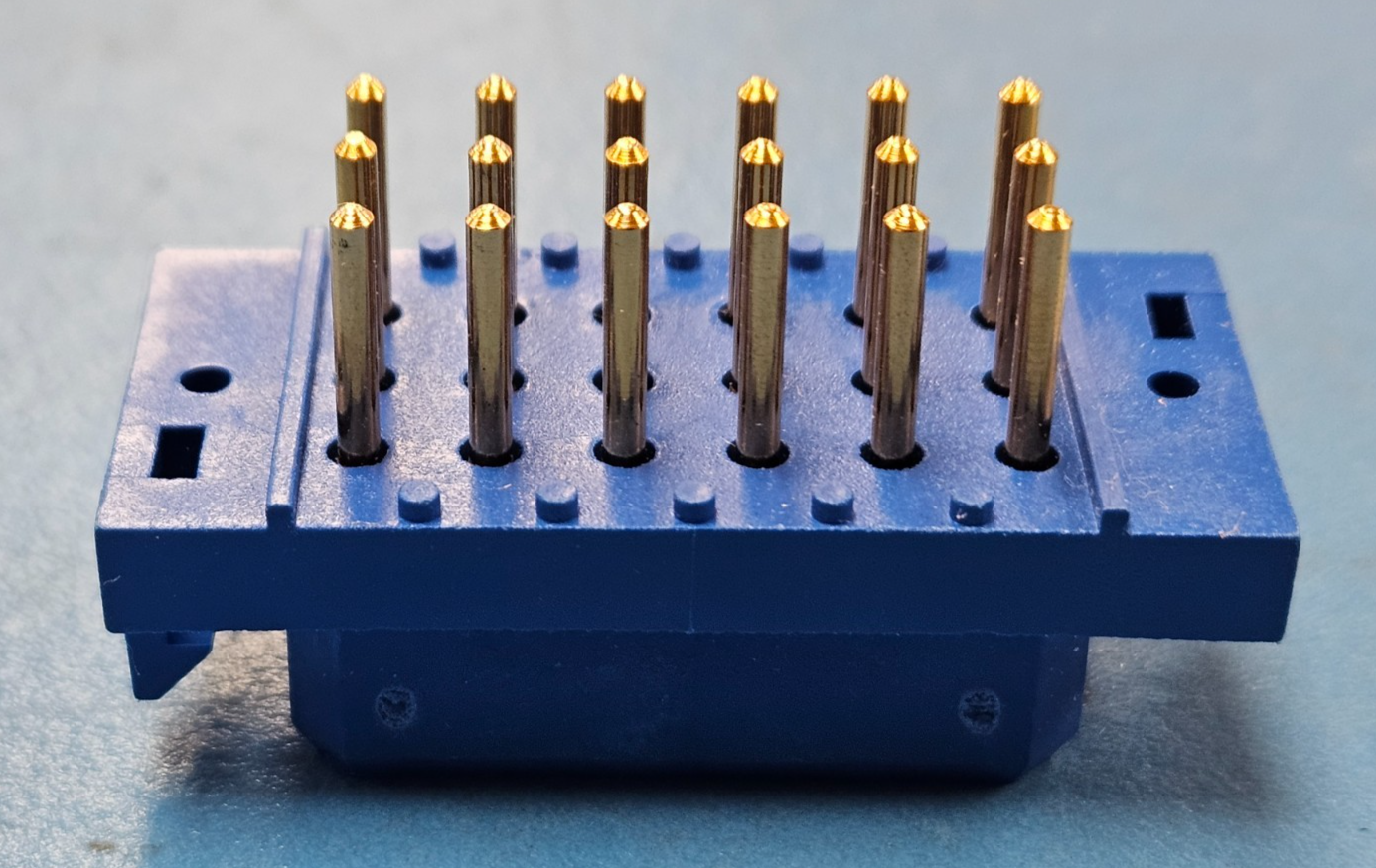

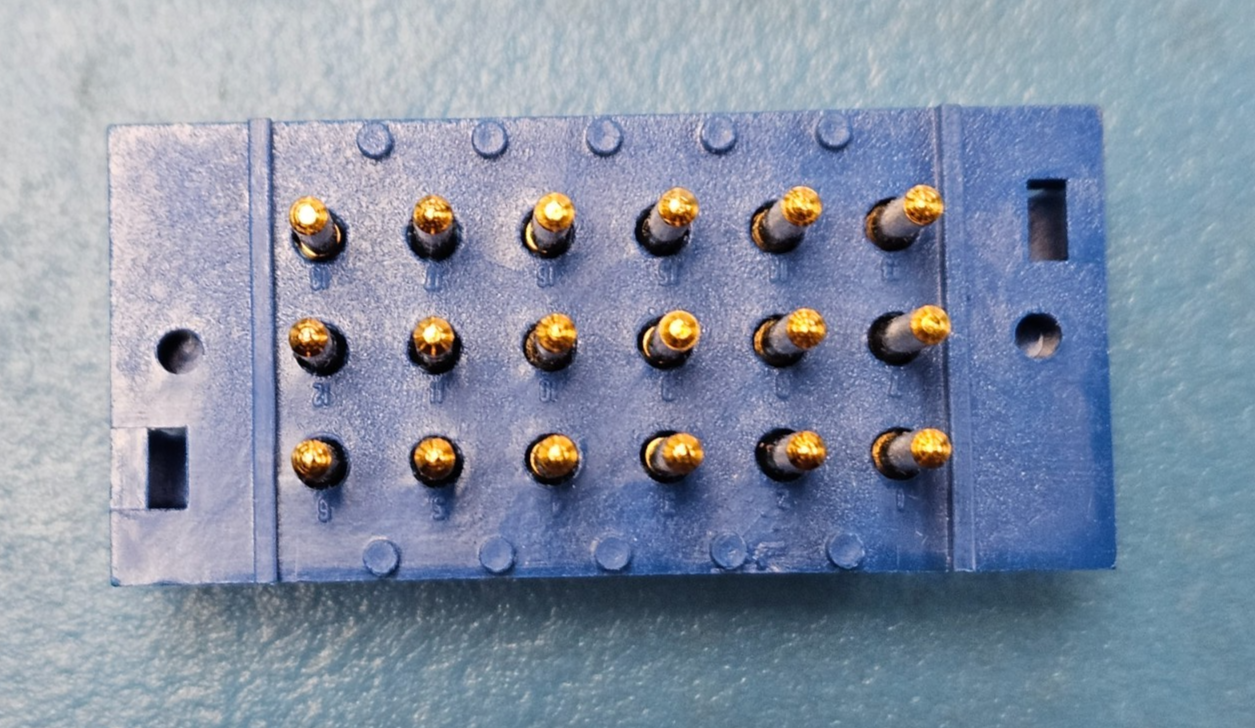

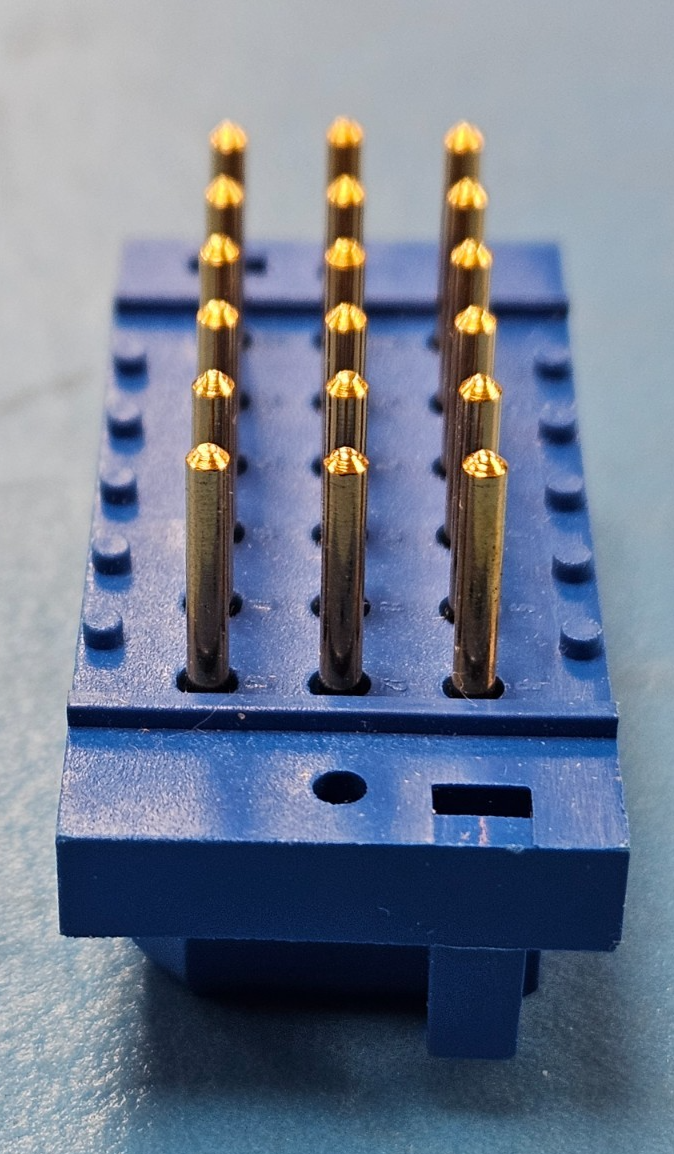

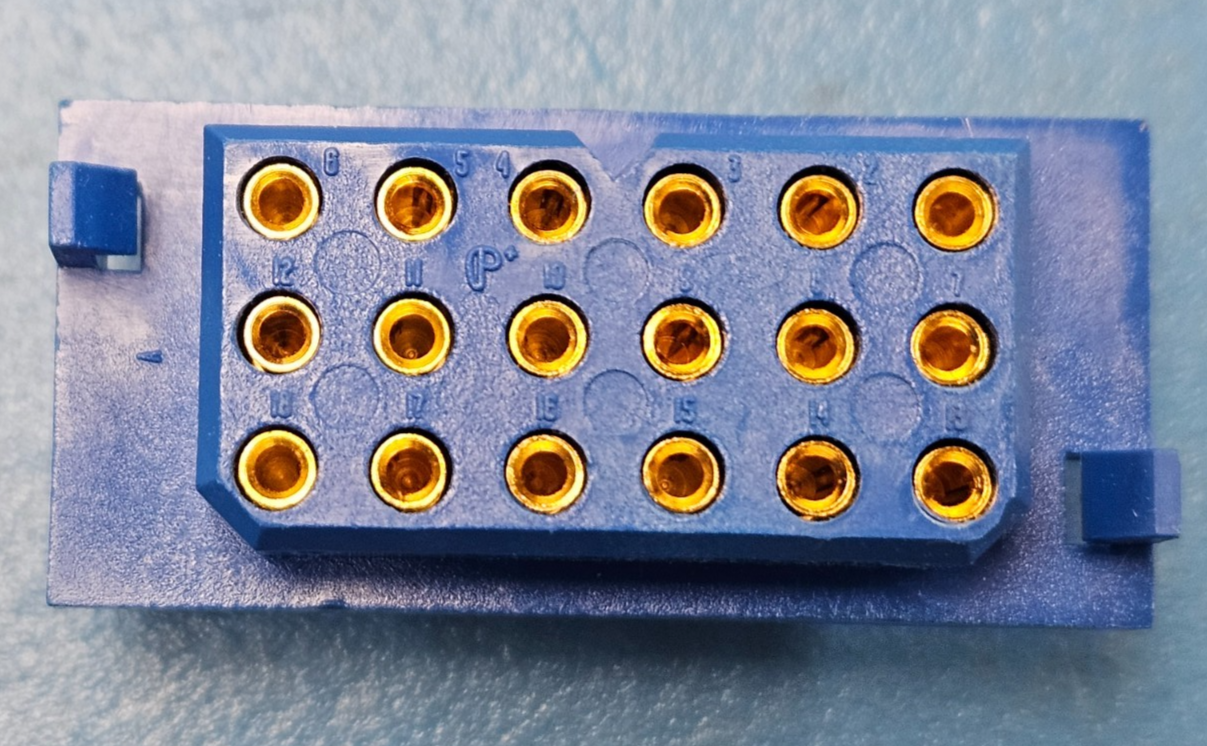

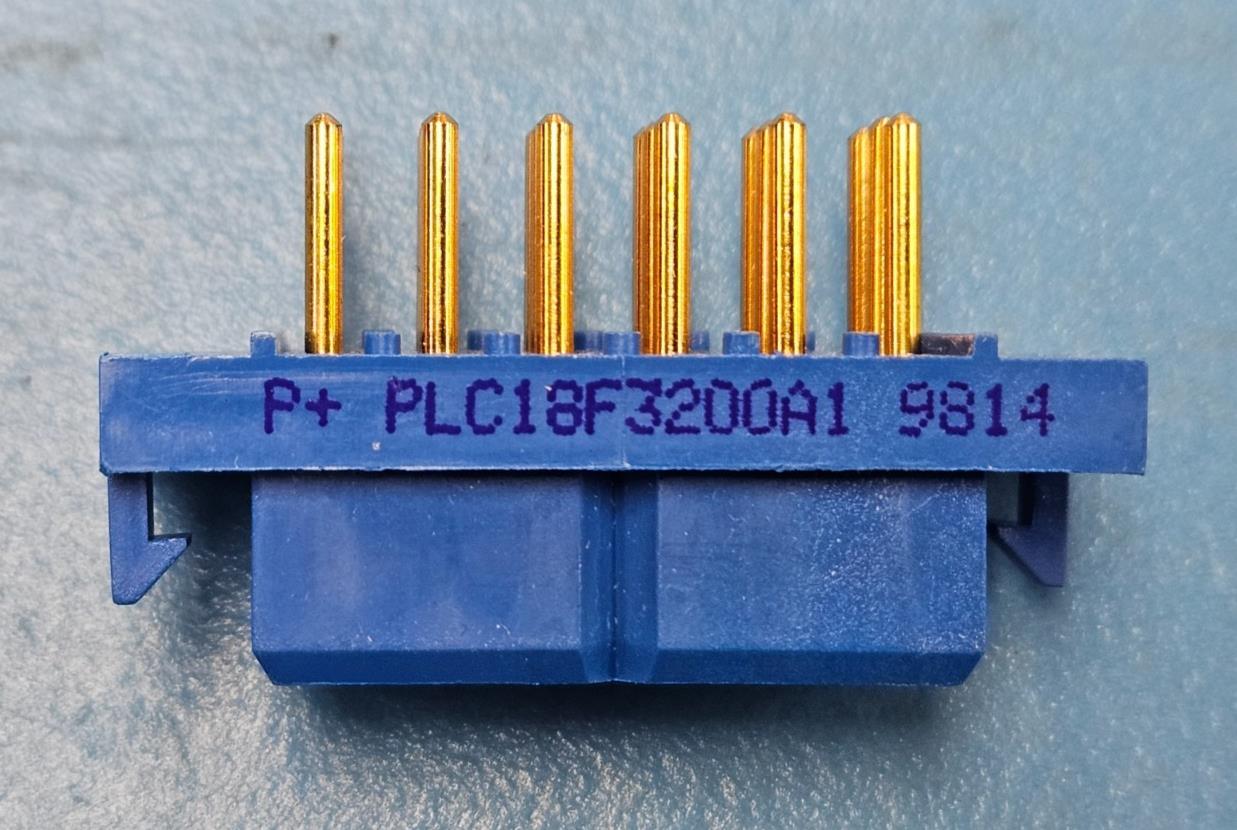

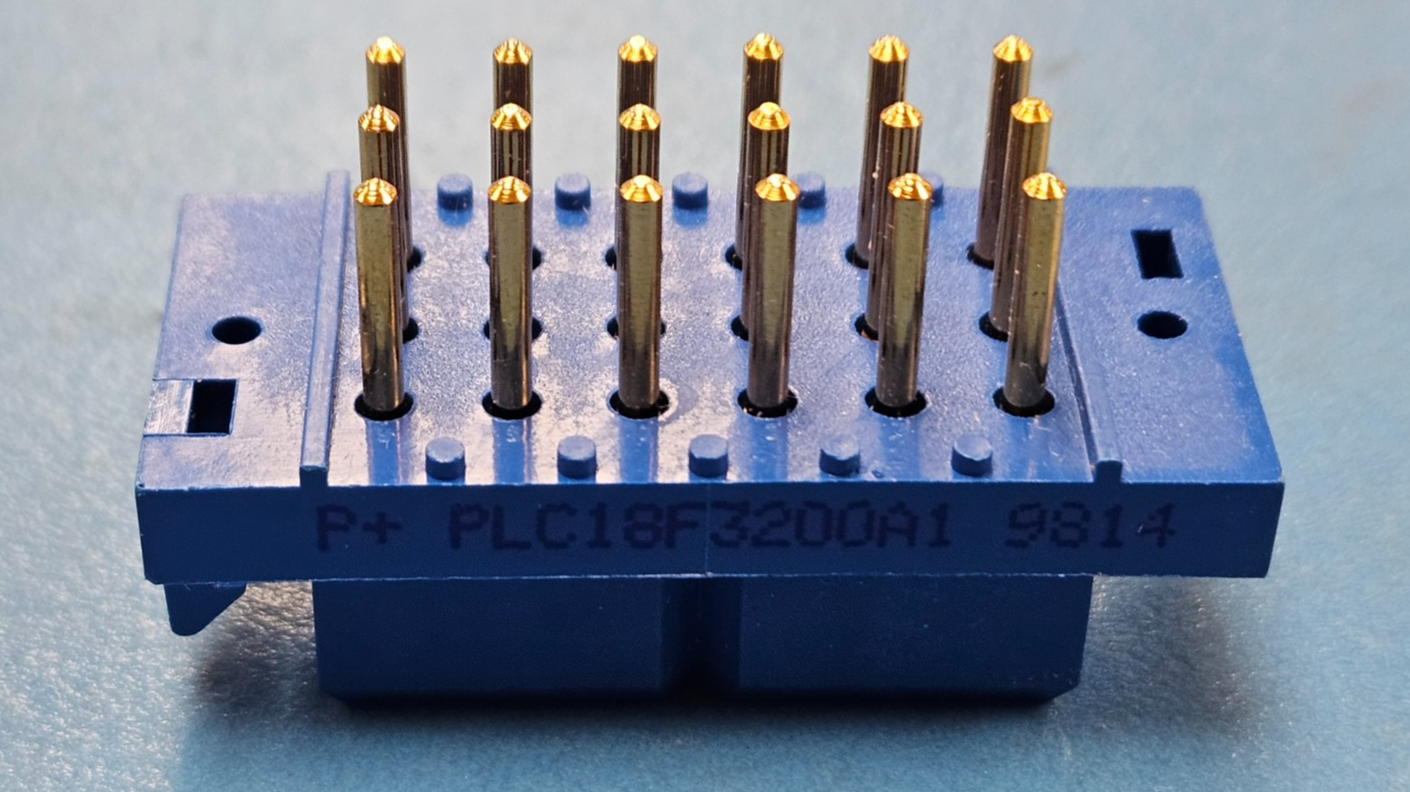

(1PC) PLC18F3200A1 Rectangular Power Connector, 18 Contact, 3 Row, Female
Tax included.
This listing is for (1PC) of PLC18F3200A1 by Positronic
Status Active
Additional Feature POLARIZED
Body Breadth (inch) 0.802000
Body Depth (inch) 0.600000
Body Length (inch) 1.718000
Body/Shell Style PLUG
Connector Type RECTANGULAR POWER CONNECTOR
Contact Finish - Mating GOLD FLASH OVER NICKEL
Contact Finish - Termination Gold Flash (Au) - with Nickel (Ni) barrier
Contact Gender FEMALE
Contact Material BERYLLIUM COPPER/BRASS
Contact Pattern RECTANGULAR
Contact Style RND PIN-SKT
DIN Conformance NO
Dielectric Withstanding Voltage (V) 600VAC
Durability (Cycles) 1000
Empty Shell NO
Filter Feature NO
IEC Conformance NO
Insertion Force-Max (N) 2.224
Insulation Resistance (ohm) 5000000000.000000000000000
Insulator Material GLASS FILLED POLYESTER
MIL Conformance NO
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 POLARIZED LCK
Mounting Style STRAIGHT
Mounting Type BOARD
Number of Connectors ONE
Number of PCB Rows 3
Number of Rows Loaded 3
Operating Temperature-Max (Cel) 125
Operating Temperature-Min (Cel) -55
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing (mm) 5.0038
Plating Thickness (inch) 10u
Polarization Key RIGHT
Screening Level / Reference Standard CSA, UL
Terminal Length (inch) 0.377000
Terminal Pitch (mm) 5.0038
Termination Type SOLDER
Number of Contacts 18
UL Flammability Code 94V-0
Withdrawl Force-Min (N) 2.224
