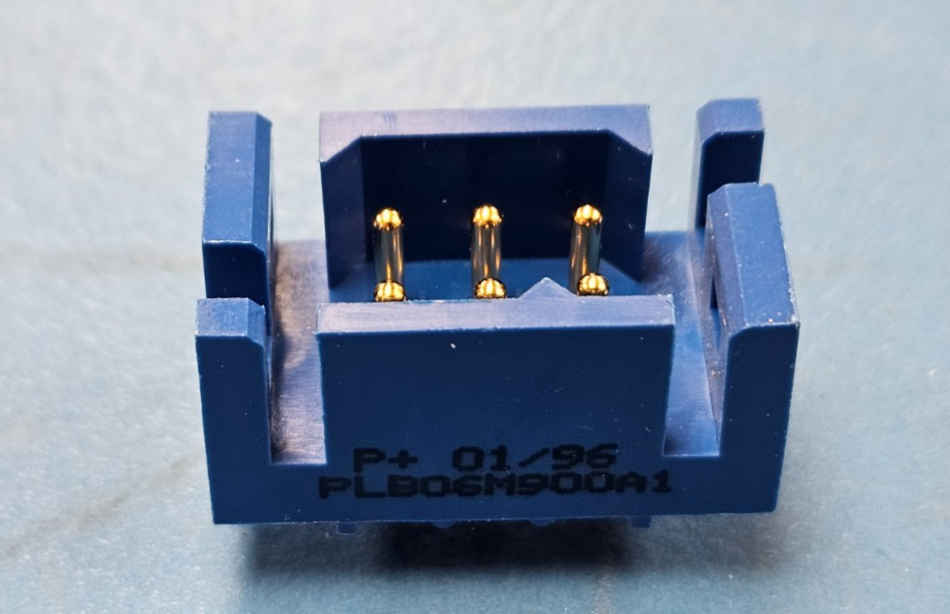

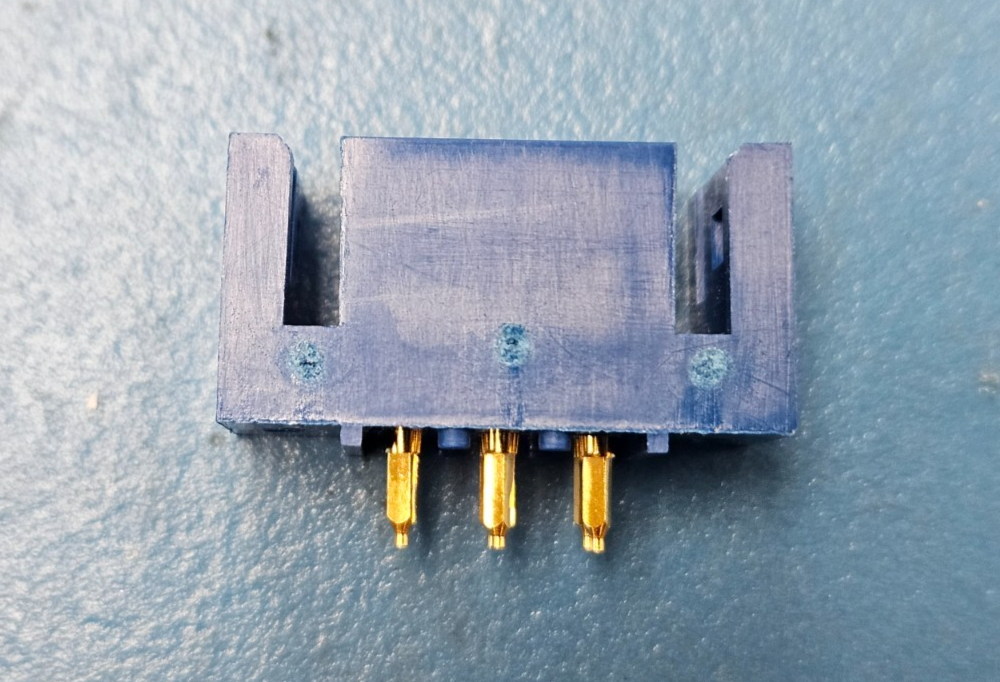

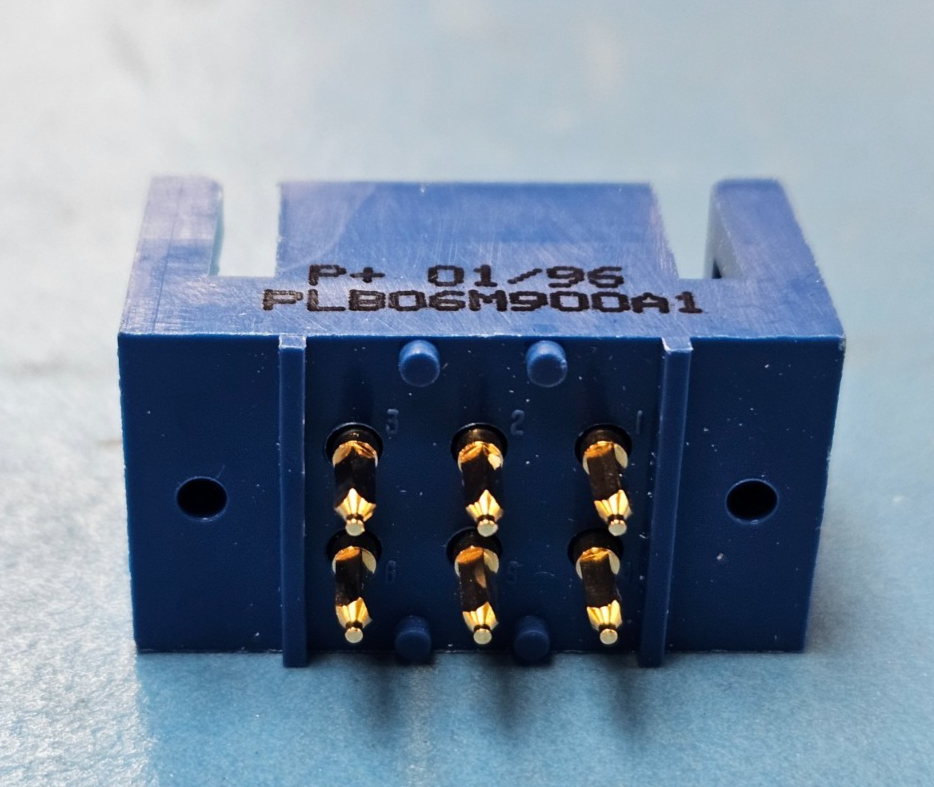

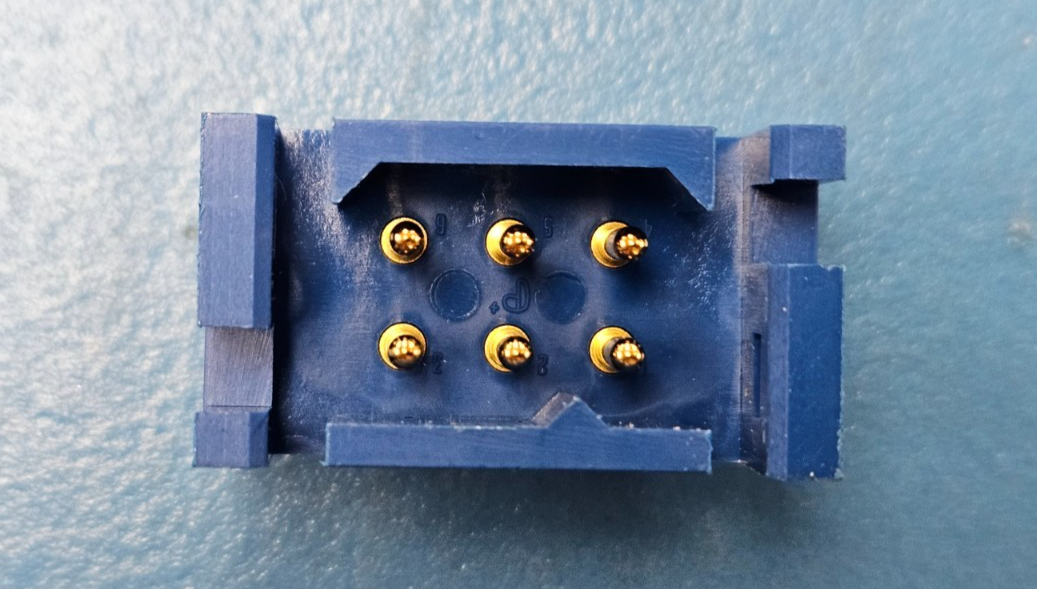

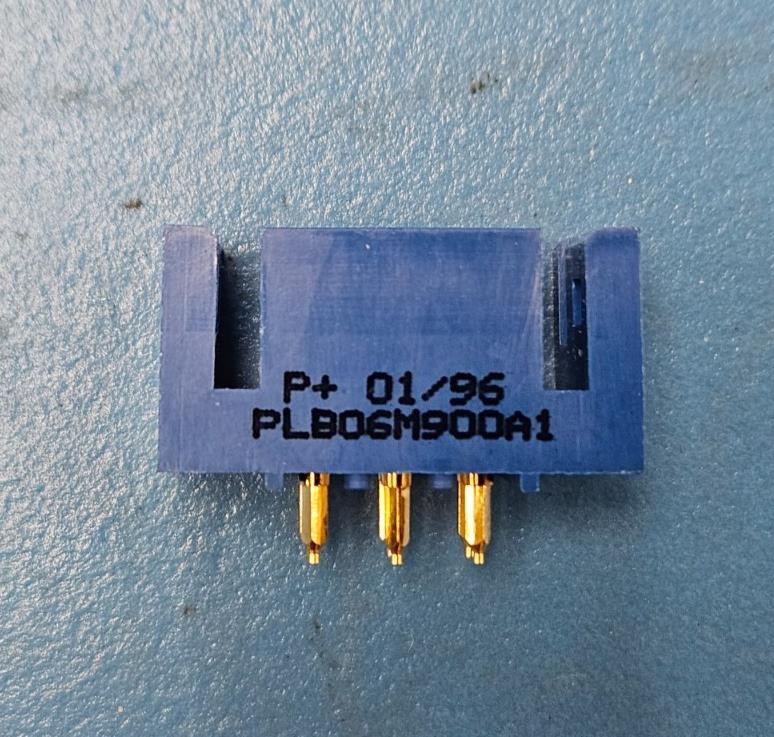

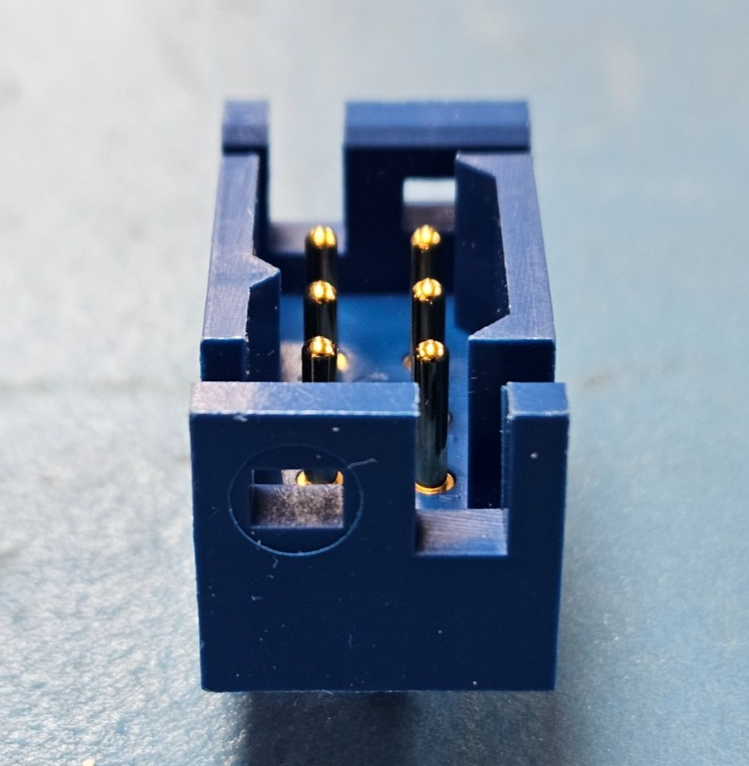

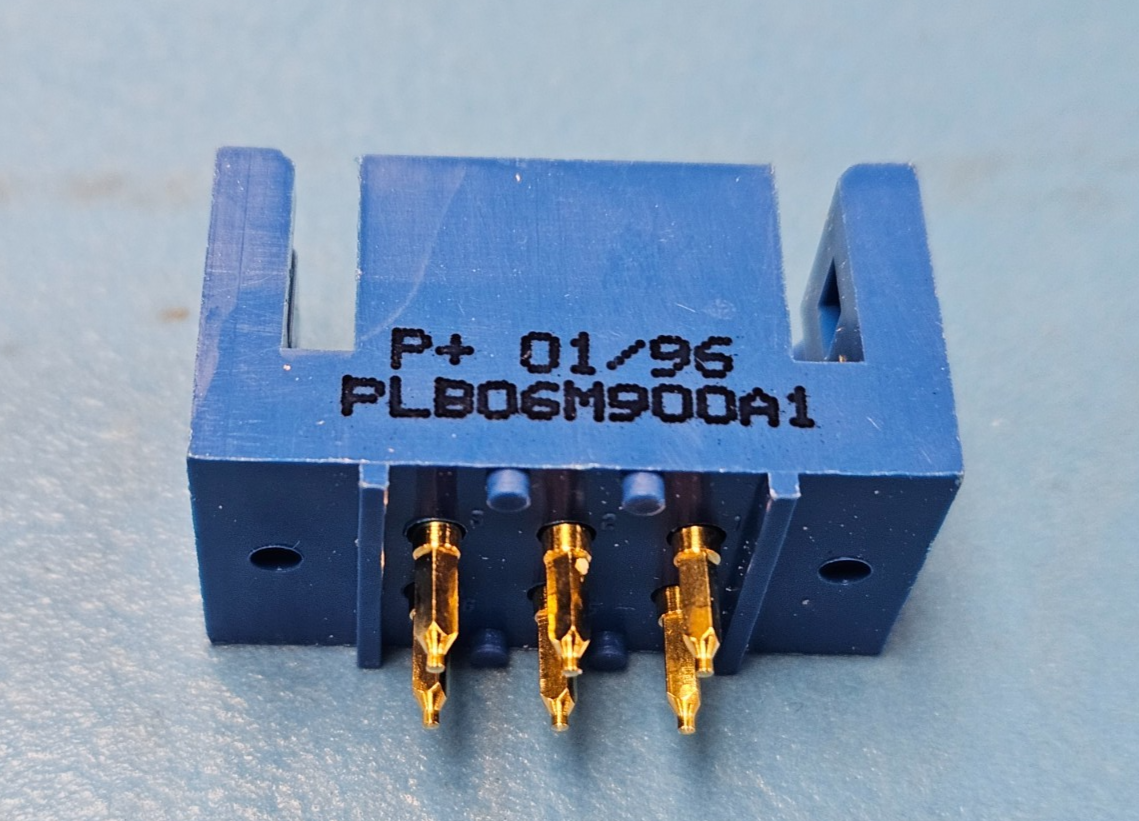

(1PC) PLB06M900A1 Board Connector, 6 Contact, Male, Straight, Press Fit
Tax included.
This listing is for (1PC) of PLB06M900A1 by Positronic
Status Active
Body Breadth (inch) 0.606000
Body Depth (inch) 0.600000
Body Length (inch) 1.126000
Body/Shell Style RECEPTACLE
Connector Type BOARD CONNECTOR
Contact Arrangement S0P6
Contact Finish - Mating AU ON NI
Contact Finish - Termination GOLD
Contact Gender MALE
Contact Material COPPER ALLOY
Contact Resistance (mohm) 7.000000000000000
Contact Style RND PIN-SKT
Dielectric Withstanding Voltage (V) 600VAC
Durability (Cycles) 1000
Filter Feature NO
Insertion Force-Max (N) 2.224
Insulation Resistance (ohm) 5000000000.000000000000000
Insulator Material GLASS FILLED POLYESTER
Mixed Contacts YES
Mounting Option 2 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number of Connectors ONE
Operating Temperature-Max (Cel) 125
Operating Temperature-Min (Cel) -55
Plating Thickness (inch) 10u
Rated Current (Signal) (A) 25.0000000000000000
Screening Level / Reference Standard UL, CSA
Terminal Length (inch) 0.218000
Termination Type PRESS FIT
Withdrawl Force-Min (N) 2.224
