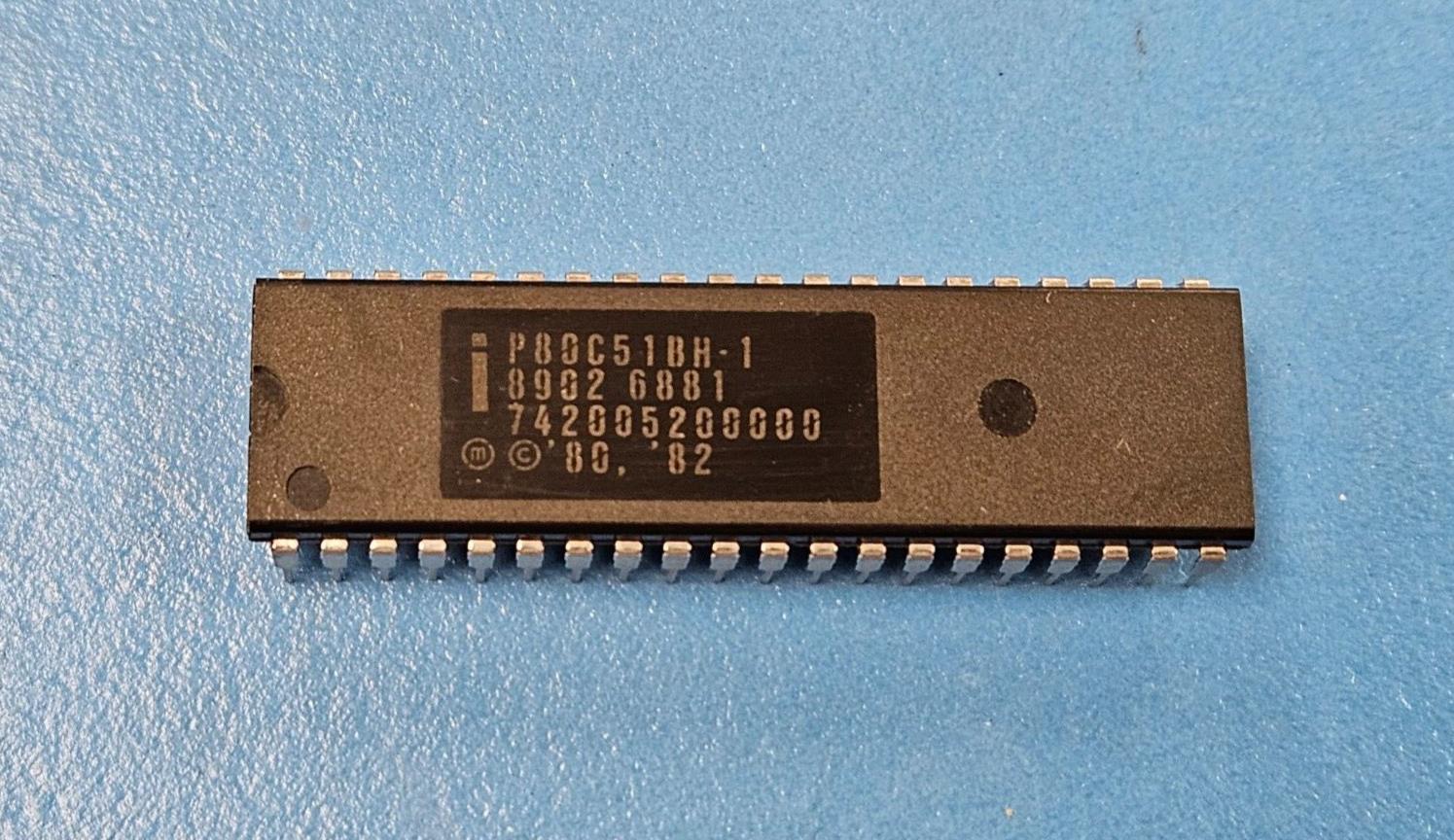

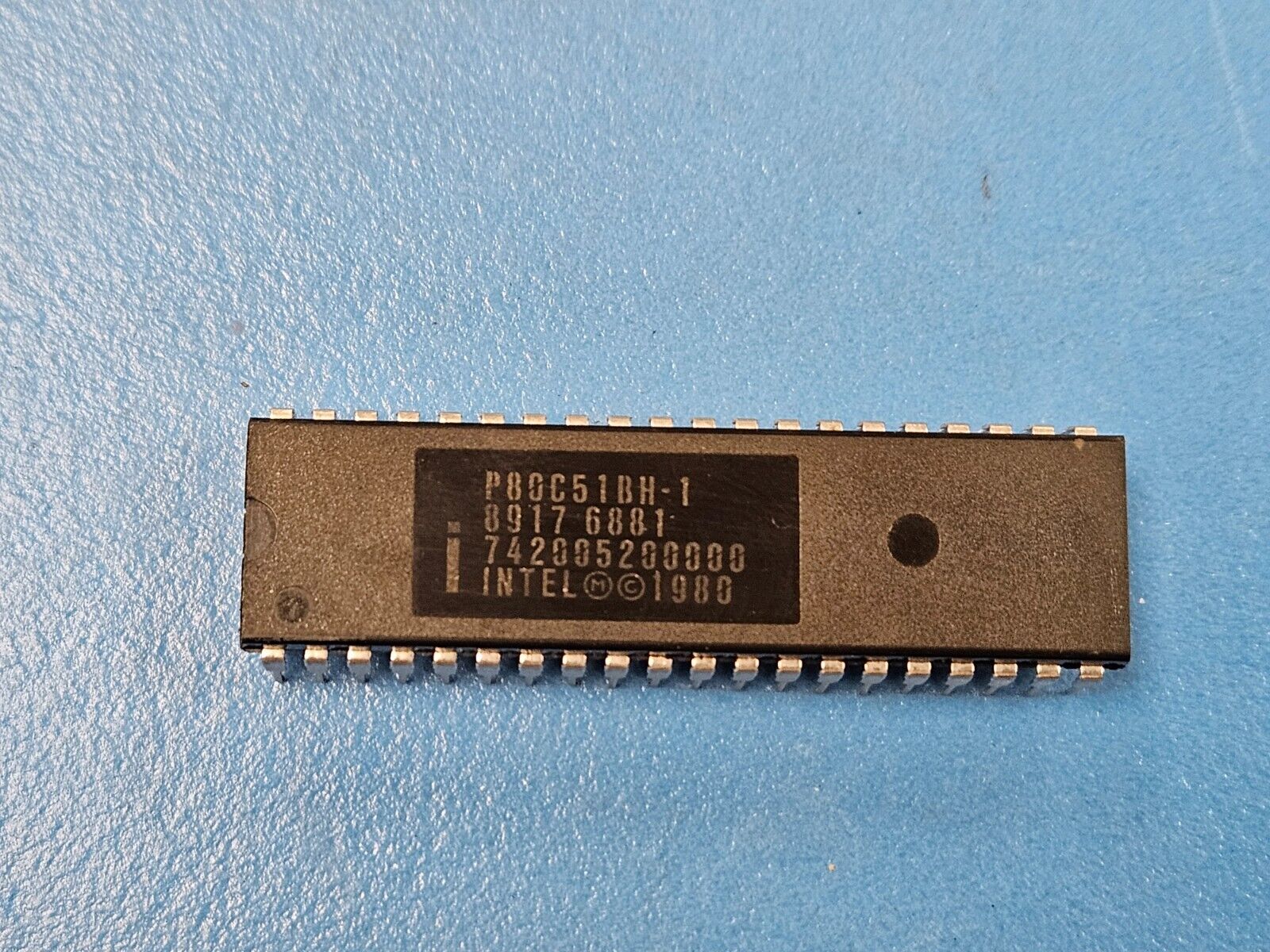

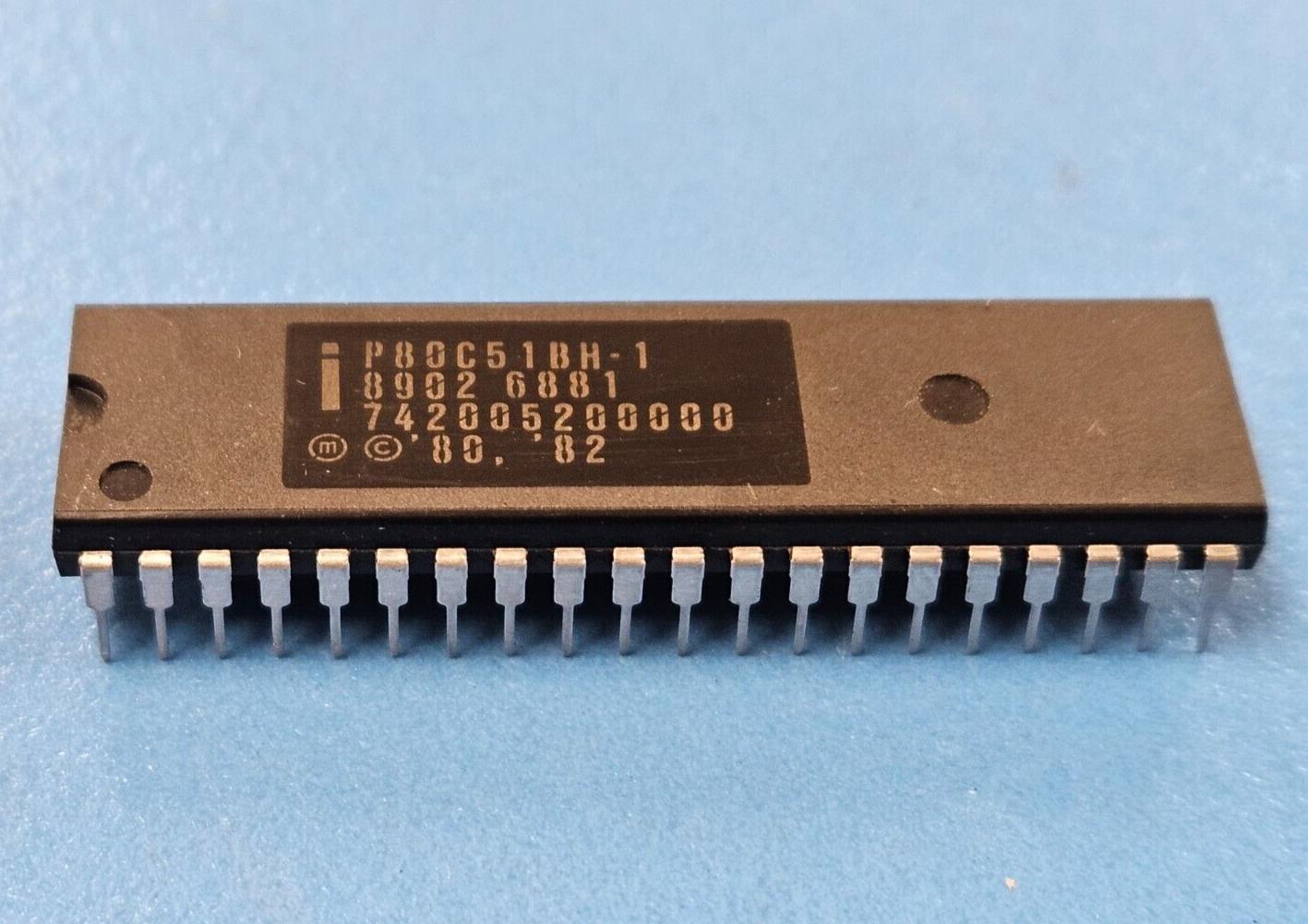

(1PC) P80C51BH-1 Intel MCU 8-Bit MCS51 CISC 4KB ROM 5V 40-PDIP
Tax included.
THIS LISTING IS FOR (1PC) OF P80C51BH-1 BY INTEL
Mfr Package Description PLASTIC, DIP-40
Status Discontinued
ADC Channels NO
Address Bus Width 16.0
Bit Size 8
Clock Frequency-Max 16.0 MHz
CPU Family 8051
DAC Channels NO
DMA Channels NO
External Data Bus Width 8.0
JESD-30 Code R-PDIP-T40
JESD-609 Code e0
Number of I/O Lines 32.0
Number of Terminals 40
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP40,.6
Package Shape RECTANGULAR
Package Style IN-LINE
Power Supplies 5
PWM Channels NO
Qualification Status Not Qualified
RAM (bytes) 128.0
ROM Programmability MROM
ROM (words) 4096
Seated Height-Max 5.715 mm
Speed 16.0 MHz
Sub Category Microcontrollers
Supply Current-Max 25.0 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.0 V
Supply Voltage-Max 6.0 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 52.324 mm
Width 15.24 mm
