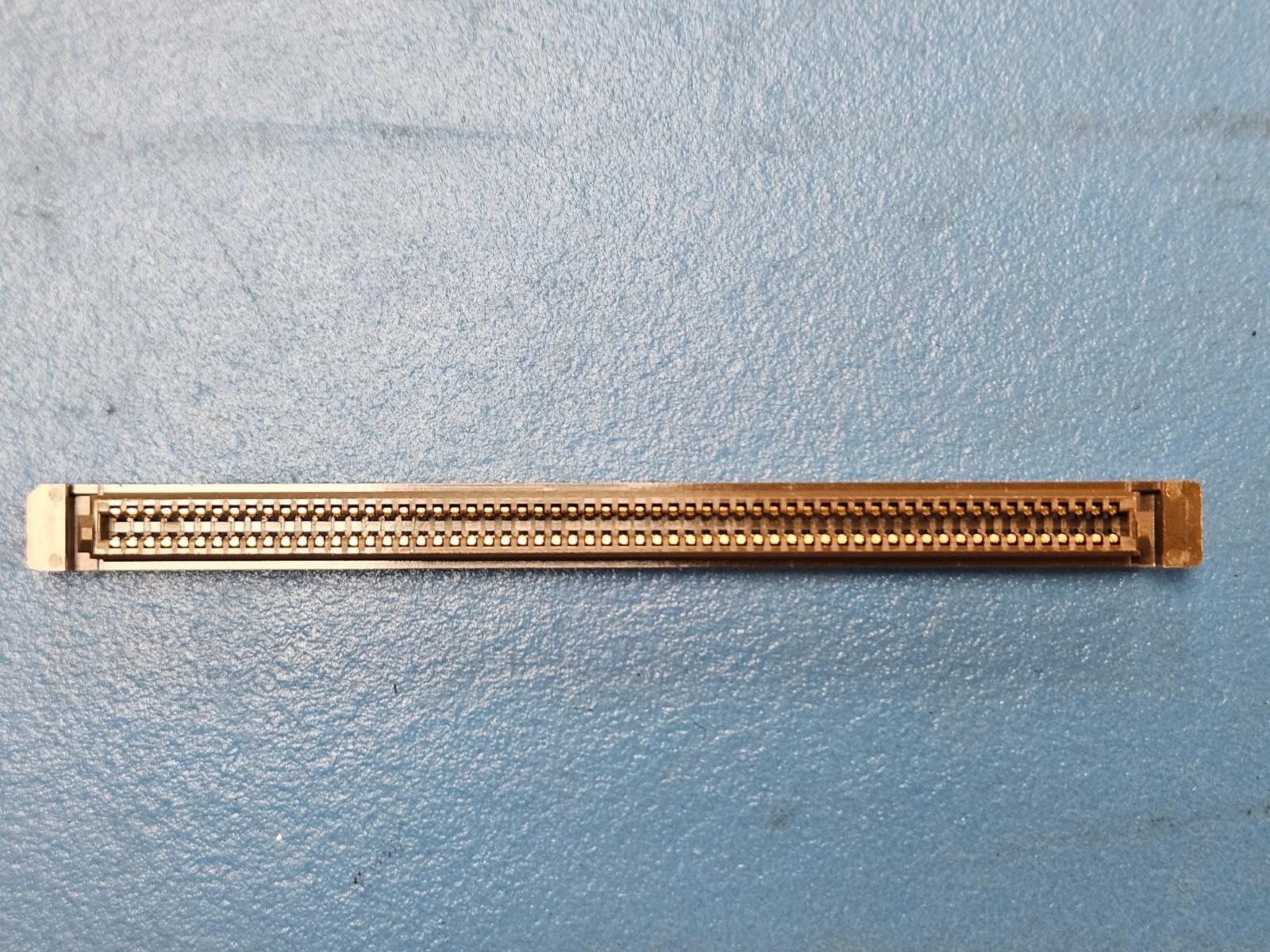

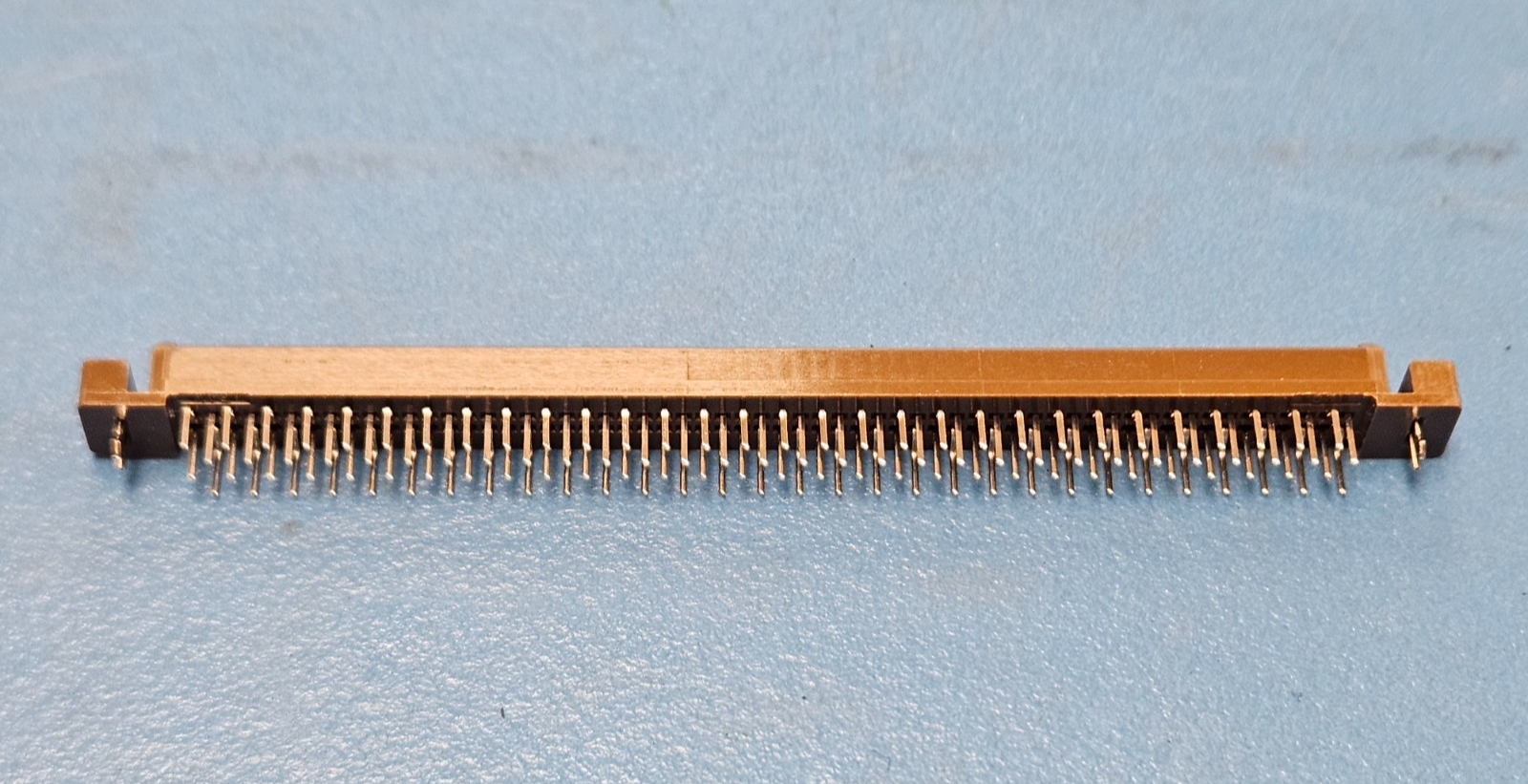

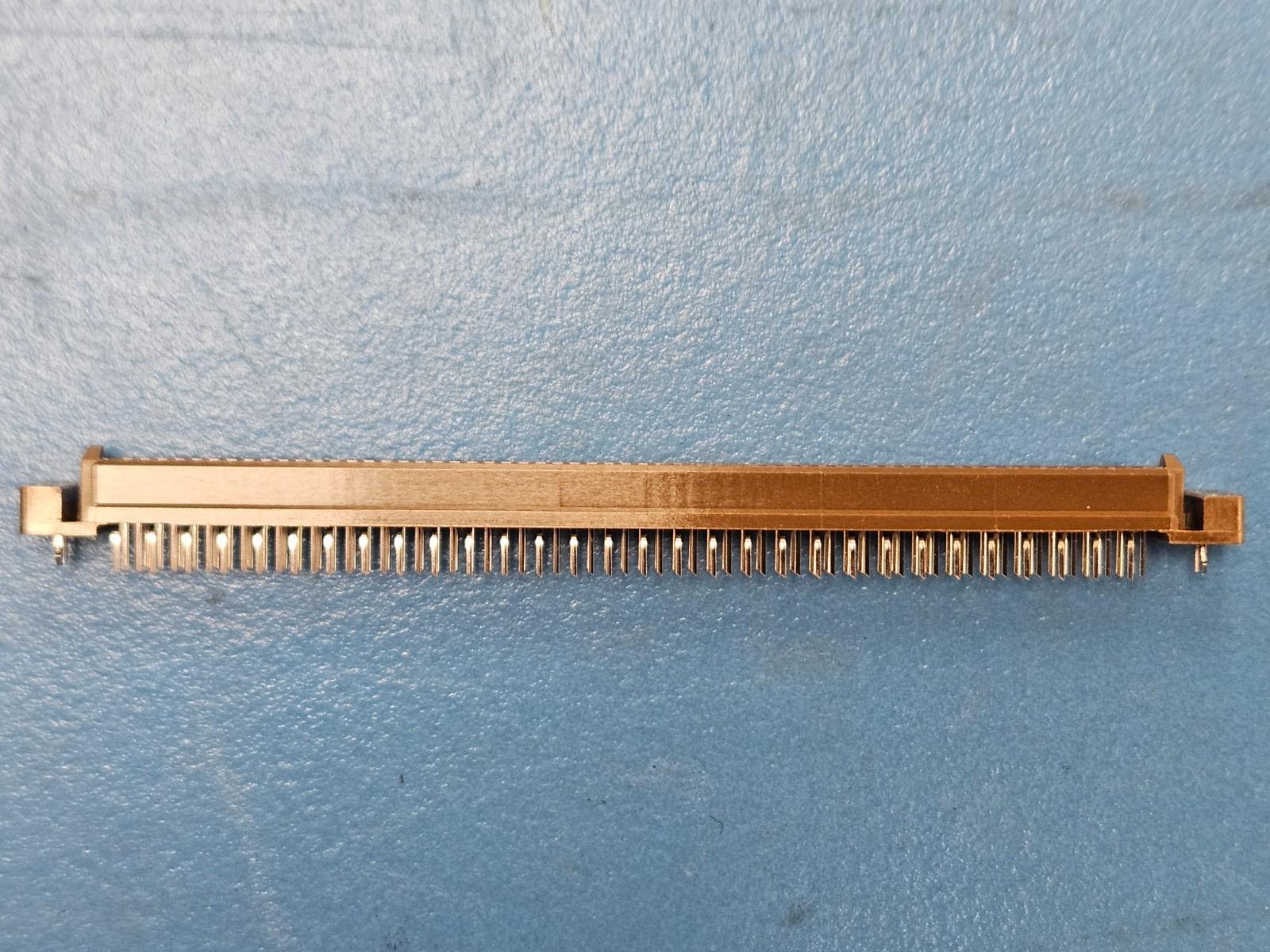

(1PC) P50L-120S-A-TGF 3M Board Stacking Connector, 120 Contact, 2 Row, Female
Tax included.
This listing is for (1PC) of P50L-120S-A-TGF by 3M
Status Discontinued
Additional Feature LOW PROFILE, STAGGERED CONFIGURATION
Board Mounting Option SPLIT BOARD LOCK
Body Breadth (inch) 0.260000
Body Depth (inch) 0.252000
Body Length (inch) 3.501000
Body/Shell Style SOCKET
Connector Type BOARD STACKING CONNECTOR
Contact Finish - Mating GOLD (3) OVER NICKEL (80)
Contact Finish - Termination Tin (Sn) - with Nickel (Ni) barrier
Contact Gender FEMALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Resistance (mohm) 40.000000000000000
Contact Style BELLOWED TYPE
DIN Conformance NO
Dielectric Withstanding Voltage (V) 650VAC
Filter Feature NO
IEC Conformance NO
Insertion Force-Max (N) .9174
Insulation Resistance (ohm) 1000000000.000000000000000
Insulator Color BLACK
Insulator Material POLYPHENYLENE SULFIDE
J-STD-609 Code e3
MIL Conformance NO
Mating Contact Pitch (inch) 0.05
Mating Contact Row Spacing (inch) 0.075
Mixed Contacts NO
Mounting Style STRAIGHT
Mounting Type BOARD
Number of Connectors ONE
Number of PCB Rows 4
Number of Rows Loaded 2
Operating Temperature-Max (Cel) 105
Operating Temperature-Min (Cel) -55
Option GENERAL PURPOSE
PCB Contact Pattern STAGGERED
PCB Contact Row Spacing (mm) 1.905
Plating Thickness (inch) FLASH
Rated Current (Signal) (A) 0.5000000000000000
Screening Level / Reference Standard UL
Terminal Length (inch) 0.118000
Terminal Pitch (mm) 2.54
Termination Type SOLDER
Number of Contacts 120
UL Flammability Code 94V-0
Withdrawl Force-Min (N) .139
